Victron Energy - BPR065022000

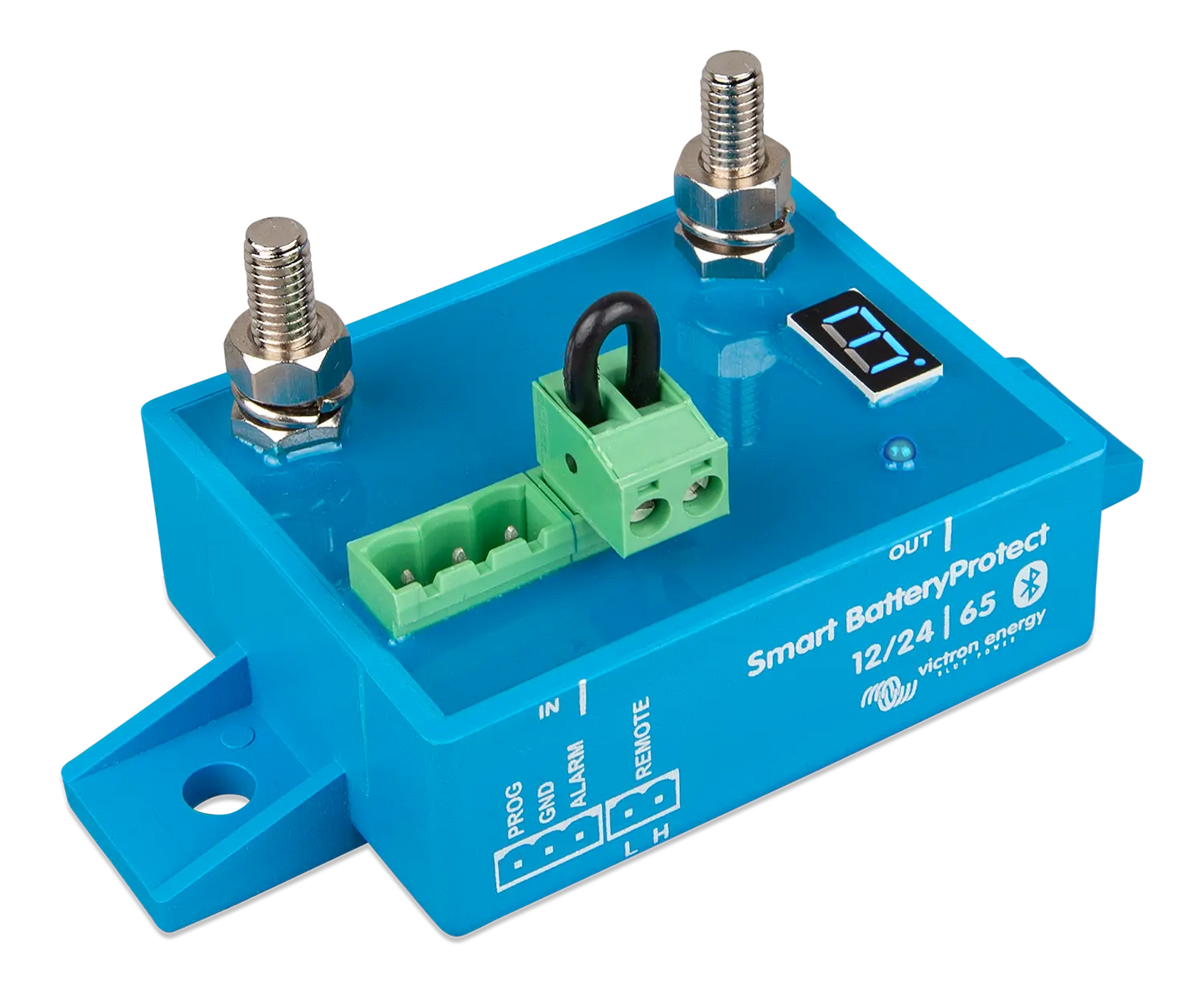

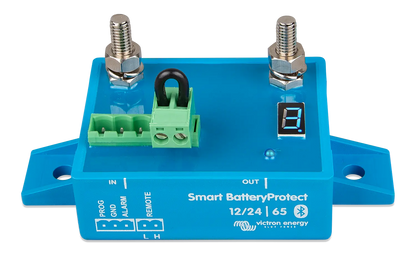

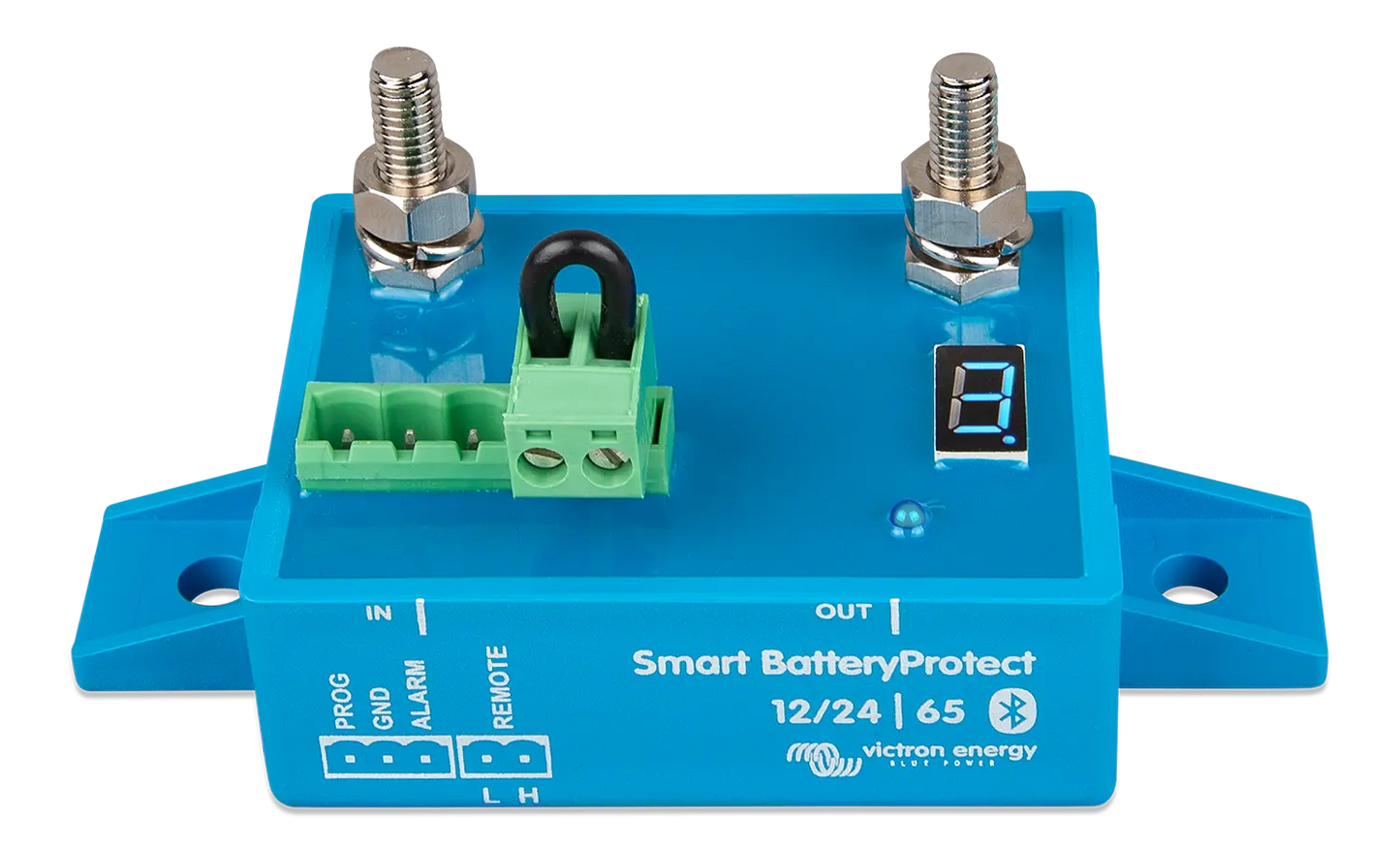

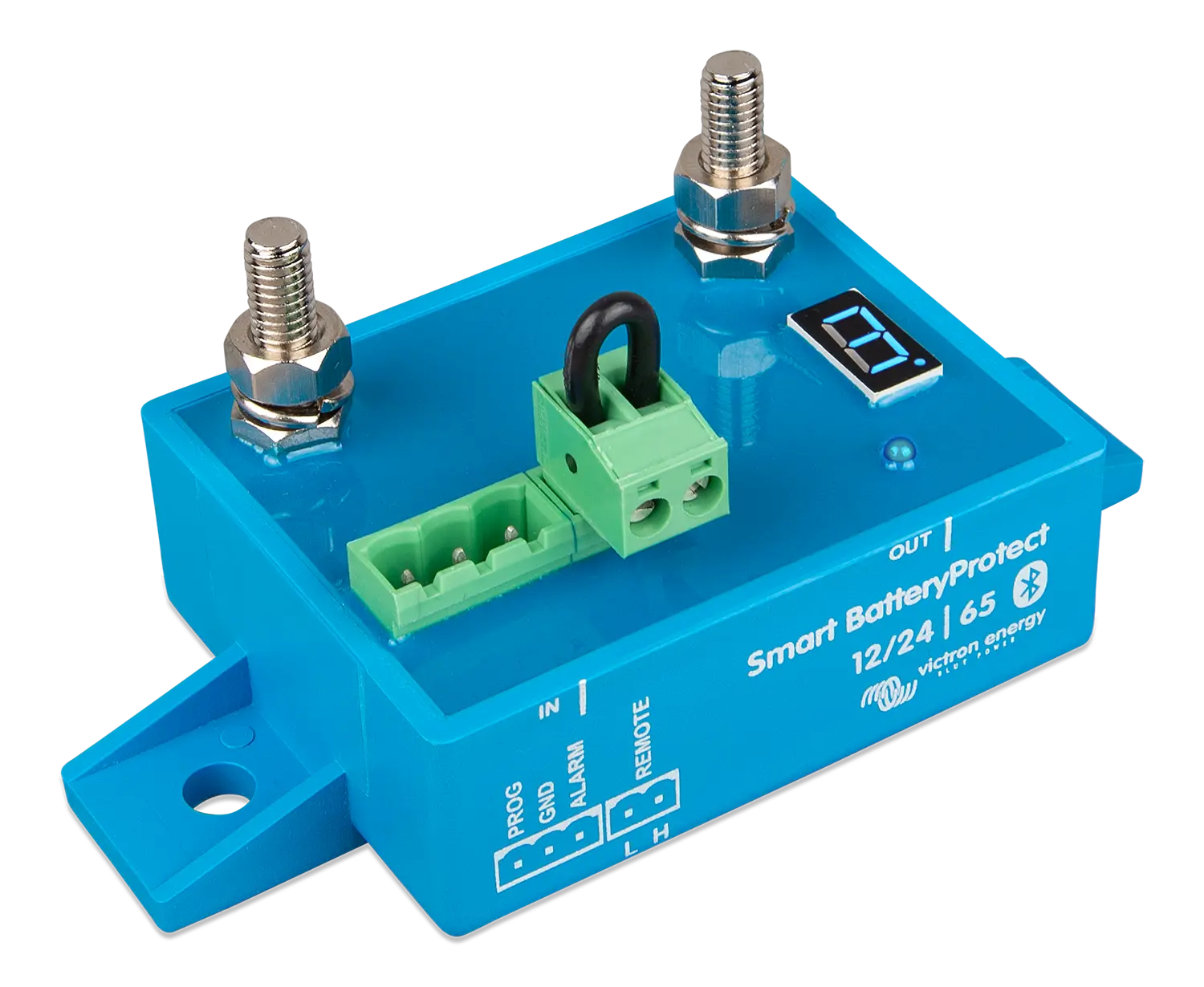

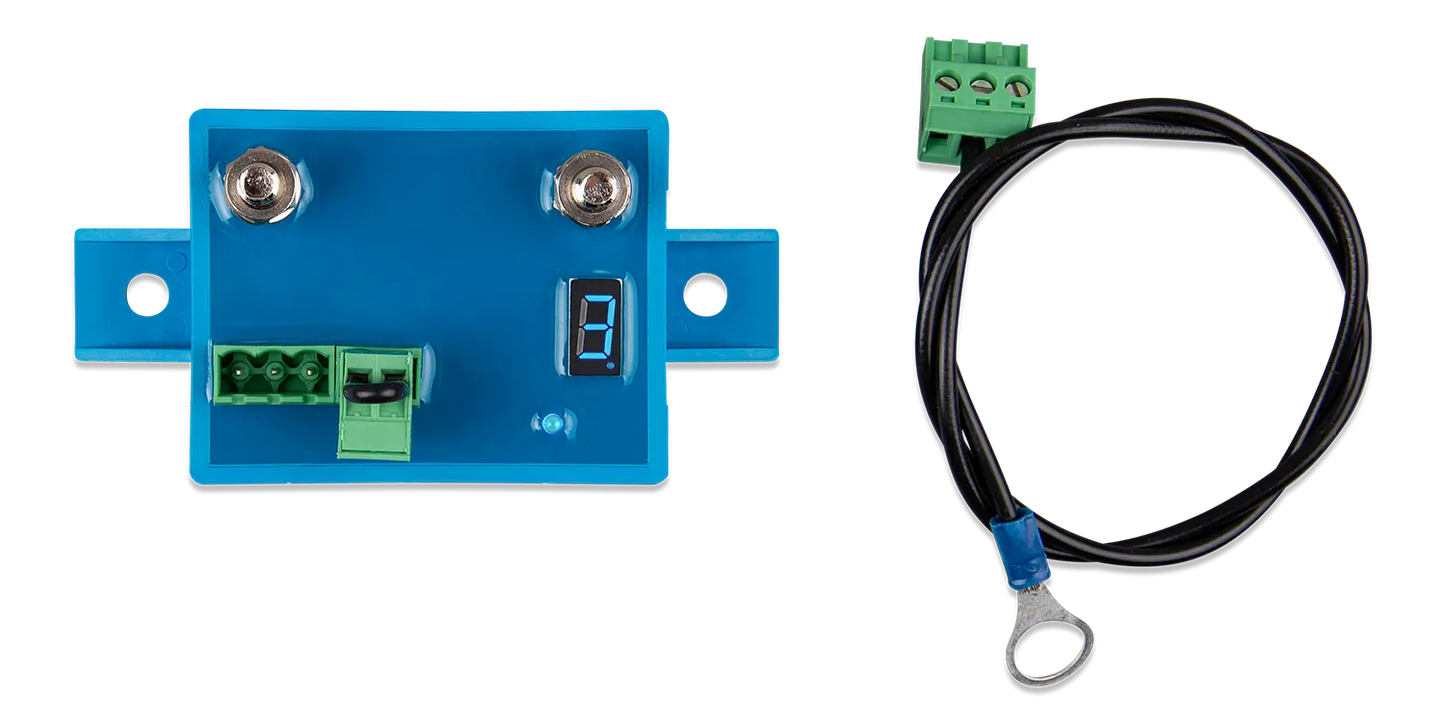

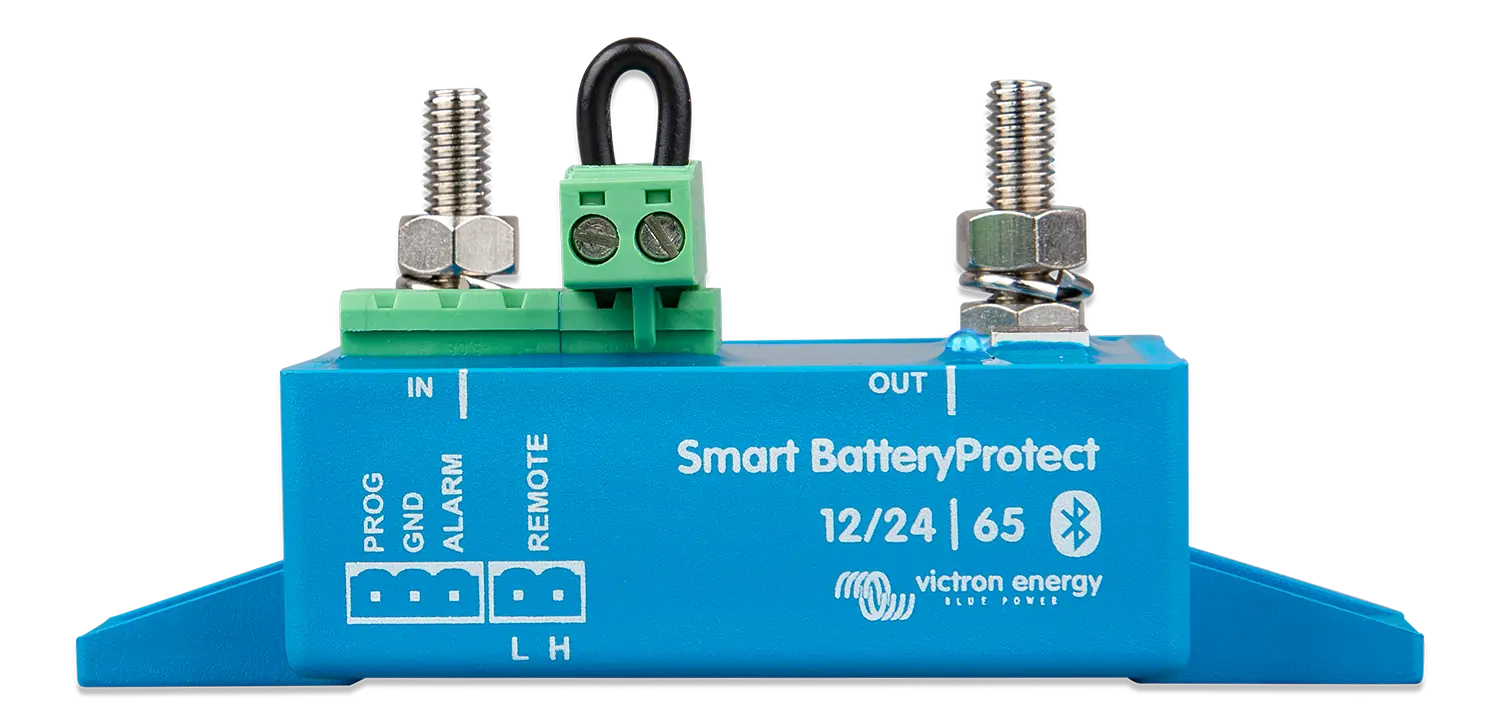

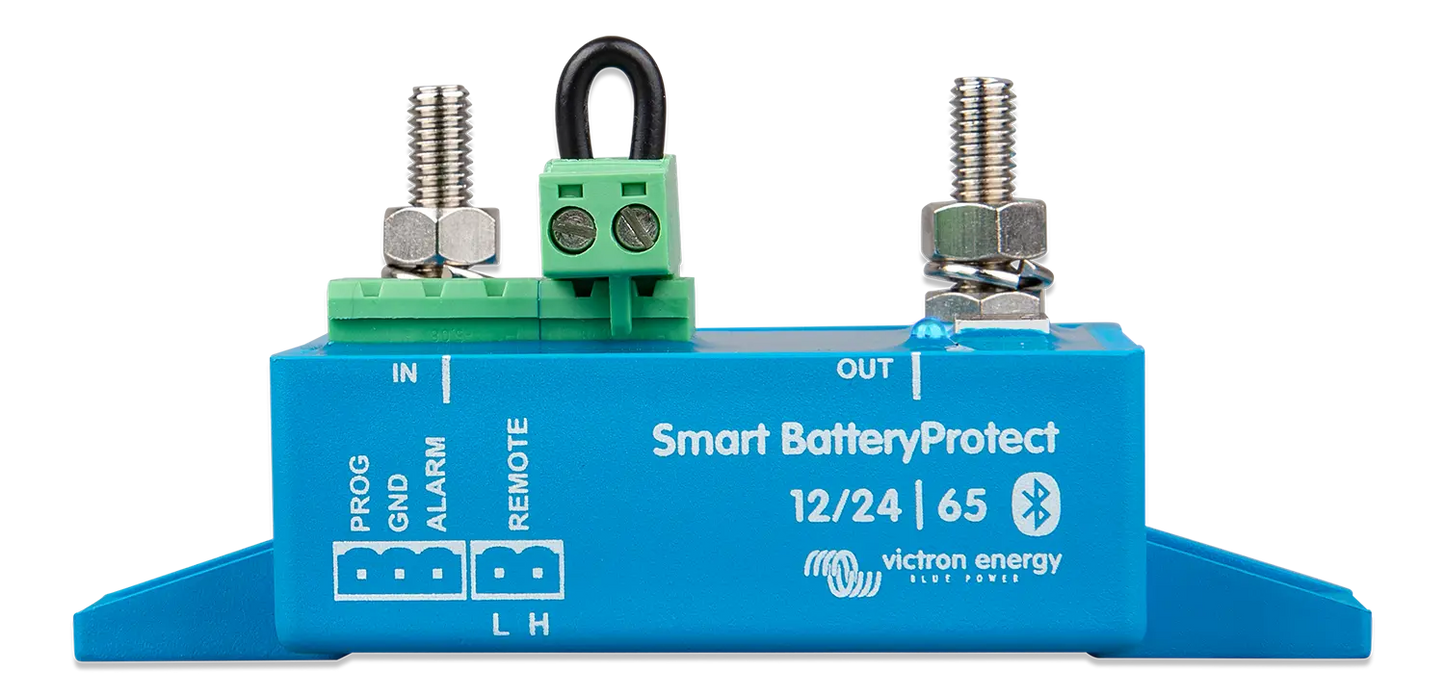

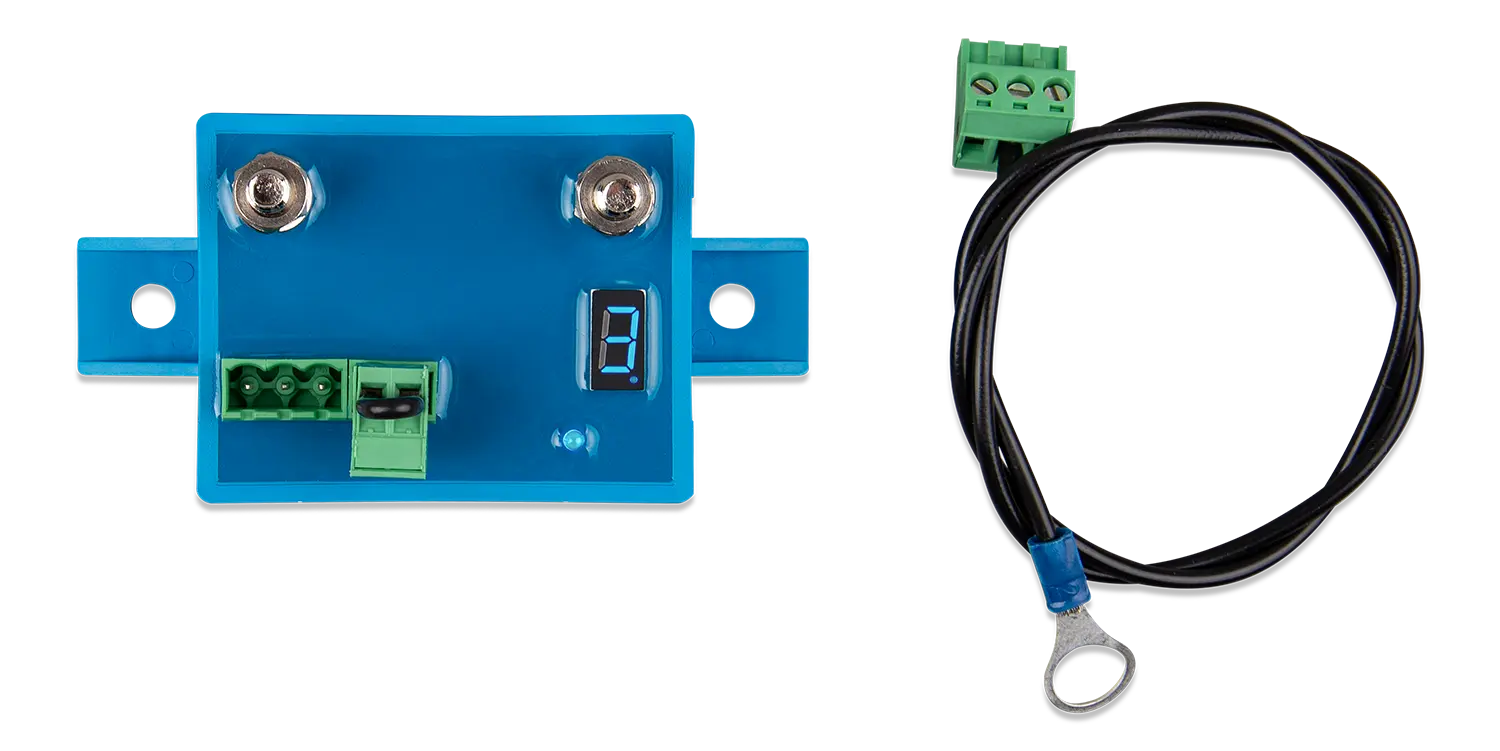

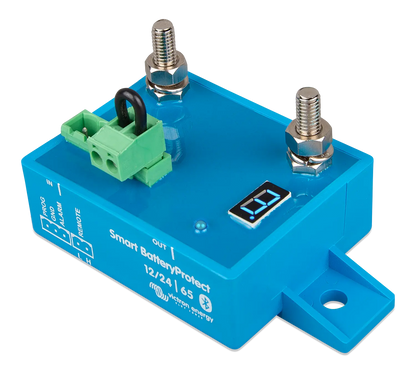

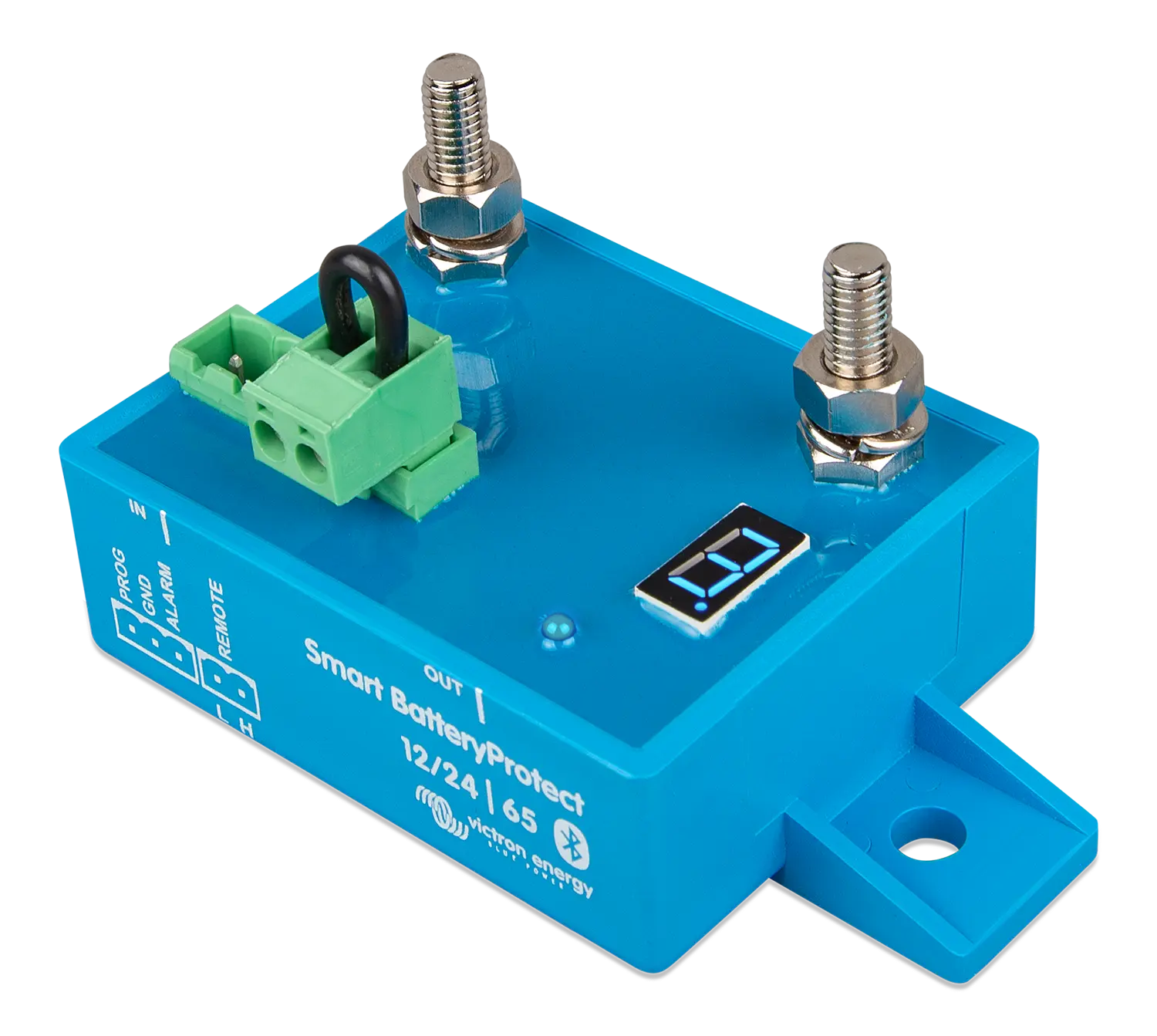

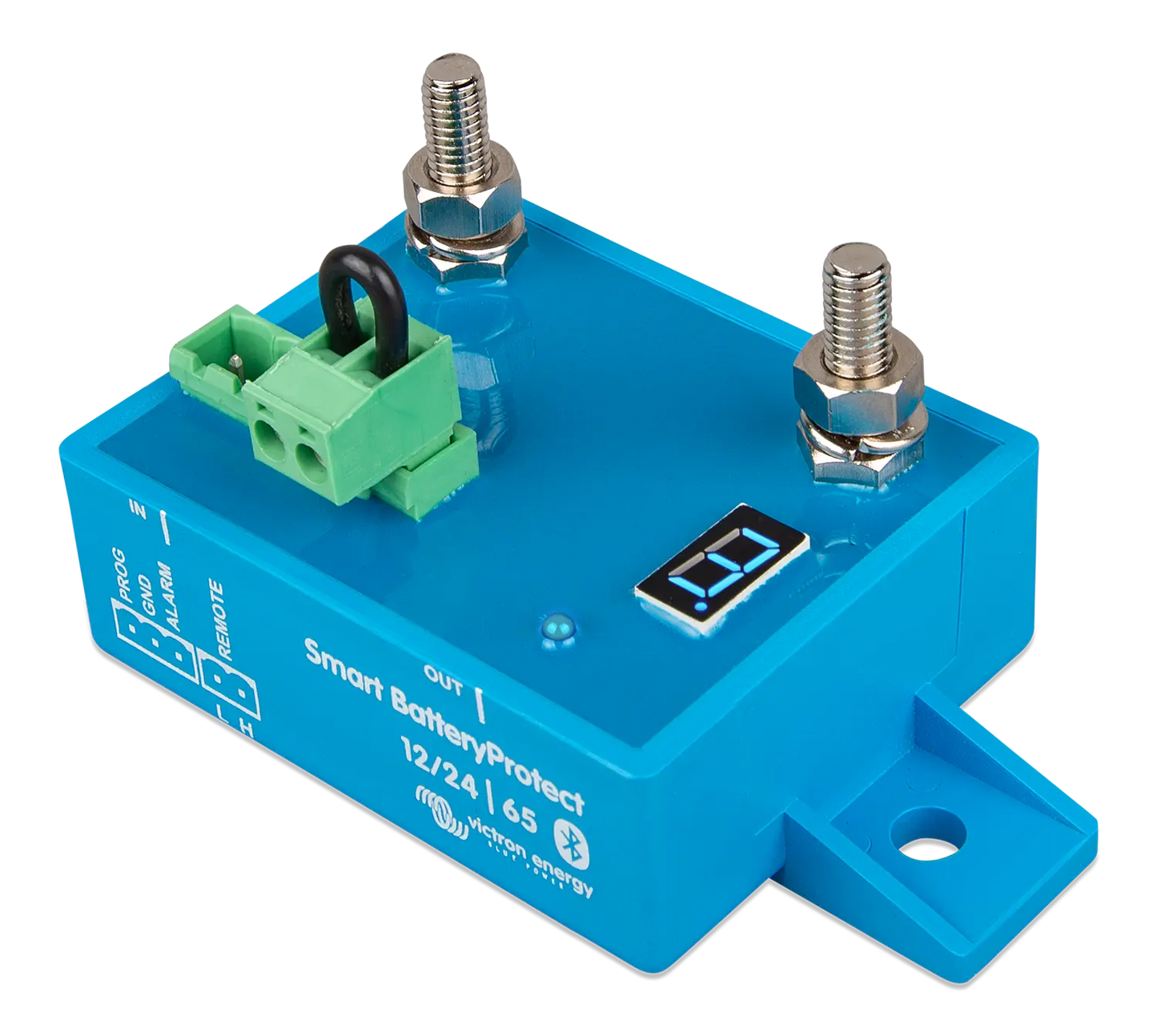

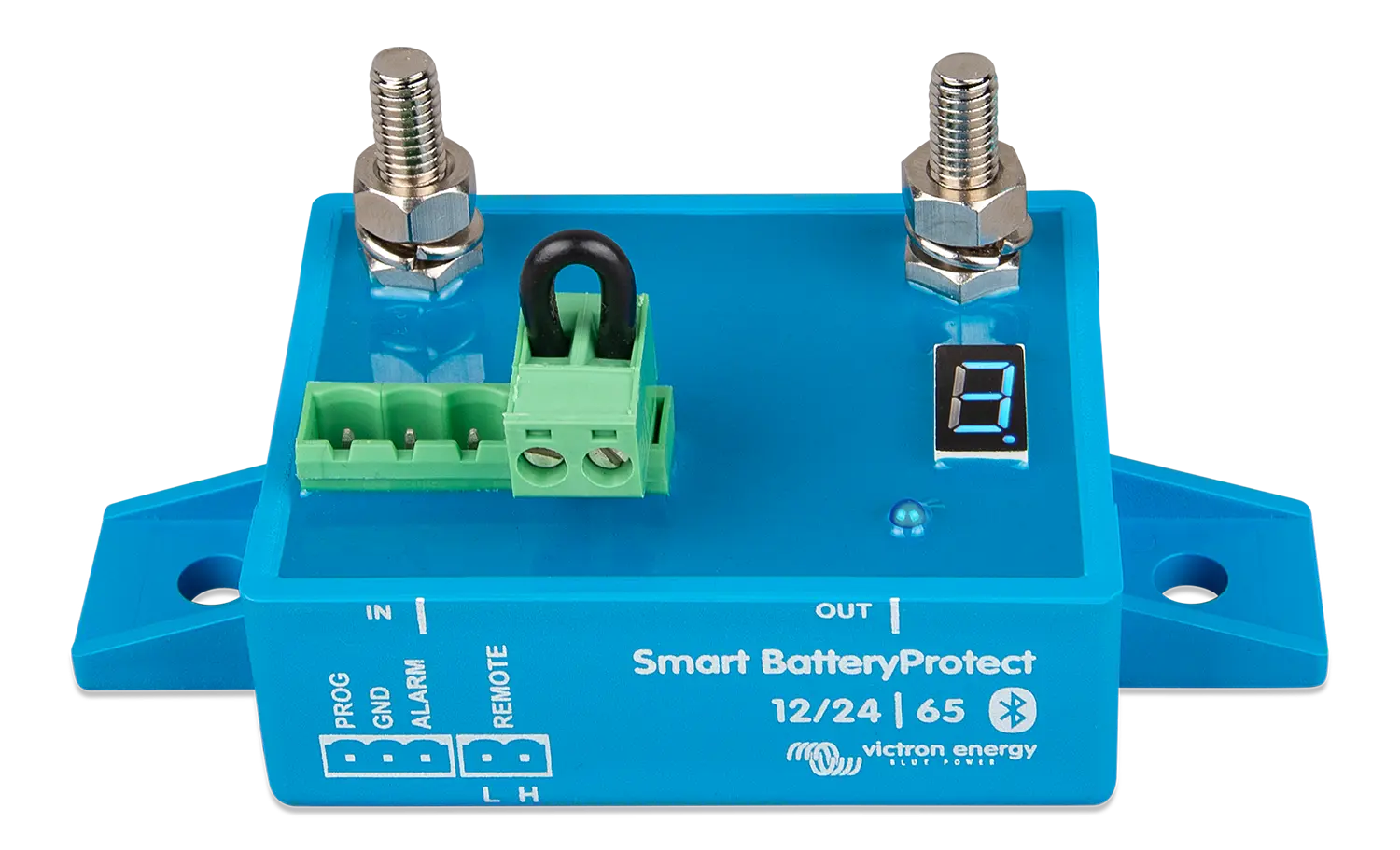

Victron Smart BatteryProtect 12/24V 65A Bluetooth Battery Protection Device
Ideal for protecting batteries in 4WDs, caravans, camper trailers, boats, off-grid solar systems and commercial 12V or 24V electrical installations.
Regular price
$115.95 AUD
Regular price
Sale price
$115.95 AUD
Unit price
/
per
FREE shipping Australia-wide
- Genuine Victron Energy battery protection
- Bluetooth setup and monitoring via VictronConnect
- Suitable for both lead acid and lithium battery systems
- Silent relay-free MOSFET switching
- Fast Australia-wide dispatch from Battery Force
The Victron Smart BatteryProtect 12/24V 65A is an intelligent battery protection device designed to prevent excessive battery discharge and protect your electrical system from damaging low and high voltage conditions. Suitable for both 12V and 24V battery systems, it automatically disconnects non-essential loads before battery voltage falls to a level that could reduce battery life or leave you unable to start your vehicle.
Featuring built-in Bluetooth Smart technology, the Smart BatteryProtect can be configured and monitored using the free VictronConnect app. Disconnect and reconnect voltages, operating modes and alarm settings can all be customised from your smartphone, allowing the unit to be tailored to your specific battery chemistry and application without the need for switches or additional programming tools.
Unlike conventional battery isolators that use mechanical relays, the Smart BatteryProtect utilises silent MOSFET switching for reliable, spark-free operation and extremely low standby power consumption. It is fully compatible with lead acid and lithium battery systems and can integrate with Victron Battery Management Systems (BMS) for advanced battery protection.
Whether you're protecting a dual battery setup in a 4WD, managing power in a caravan, camper trailer, boat or off-grid solar installation, the Victron Smart BatteryProtect 65A provides dependable automatic battery protection and complete peace of mind.
Key Features
- Genuine Victron Energy Smart BatteryProtect
- 65A continuous current rating
- Suitable for 12V and 24V battery systems
- Automatic low voltage disconnect protects batteries from excessive discharge
- Over-voltage protection for connected equipment
- Built-in Bluetooth Smart connectivity
- Fully programmable using the VictronConnect app
- Automatic voltage detection
- Silent MOSFET switching with no mechanical relays
- Extremely low standby power consumption
- Remote on/off control capability
- Alarm output for buzzer, relay or LED
- Compatible with Victron lithium Battery Management Systems
- Can be used as a complete system on/off switch
Specifications
| Model | Smart BatteryProtect 65A |
| Brand | Victron Energy |
| Continuous Current | 65A |
| Peak Current | 250A |
| System Voltage | 12V / 24V Auto Detect |
| Operating Voltage | 6–35V DC |
| Connectivity | Bluetooth Smart |
| Configuration | VictronConnect App or PROG Pin |
| Switching Technology | MOSFET (Relay-Free) |
| Alarm Output | 50mA (Short Circuit Protected) |
| Remote Control | Yes |
| Connection Size | M6 |
| Operating Temperature | -40°C to +40°C (Full Load) |
| Dimensions | 106 × 48 × 40mm |
| Weight | 0.2kg |
Share
What does the Smart BatteryProtect do?
What does the Smart BatteryProtect do?
It automatically disconnects non-essential loads before your battery becomes excessively discharged, helping maximise battery life and ensuring sufficient power remains for starting or critical equipment.
Can I program it using my phone?
Can I program it using my phone?
Yes. Built-in Bluetooth allows complete configuration and monitoring through the free VictronConnect app, including disconnect voltages, reconnect voltages and operating modes.
Is it compatible with lithium batteries?
Is it compatible with lithium batteries?
Yes. The Smart BatteryProtect supports lithium battery systems and can integrate with compatible Victron Battery Management Systems (BMS) for advanced battery protection.
Does it work on both 12V and 24V systems?
Does it work on both 12V and 24V systems?
Yes. The Smart BatteryProtect automatically detects whether it is connected to a 12V or 24V battery system during installation.
Can I use it to protect an inverter?
Can I use it to protect an inverter?
Yes, but Victron recommends using the Smart BatteryProtect to control the inverter via its remote on/off input rather than placing the device directly in the inverter's main DC power circuit.
