Victron Energy - BPR110022000

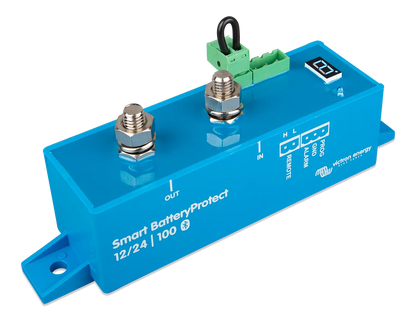

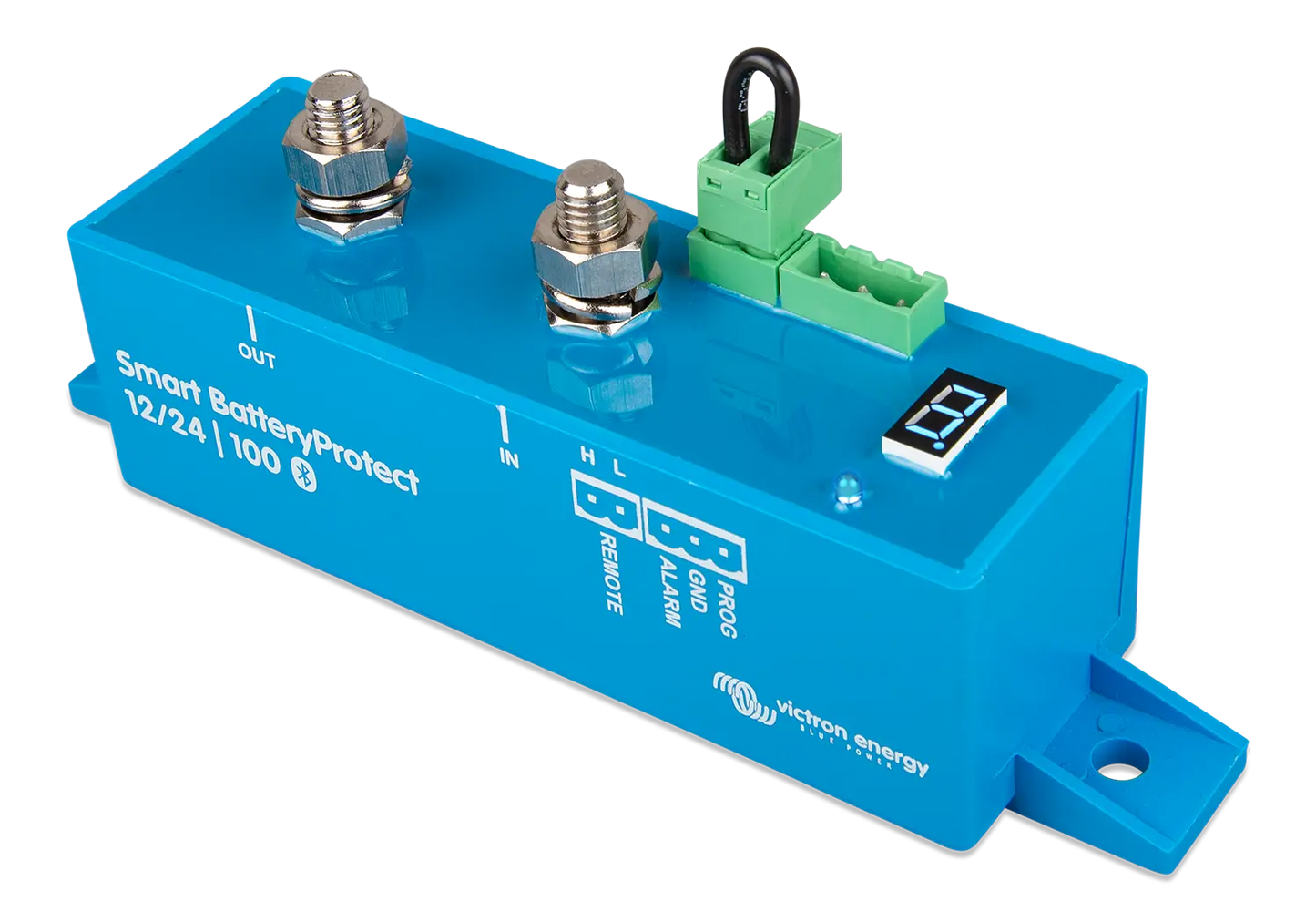

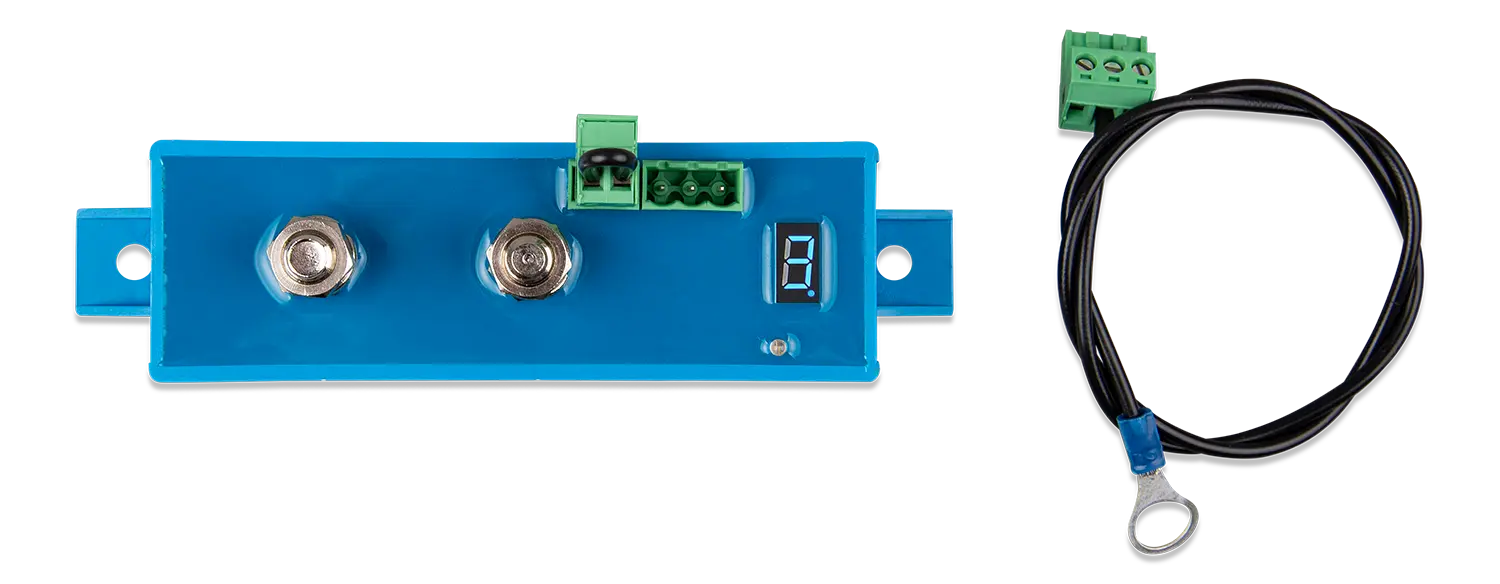

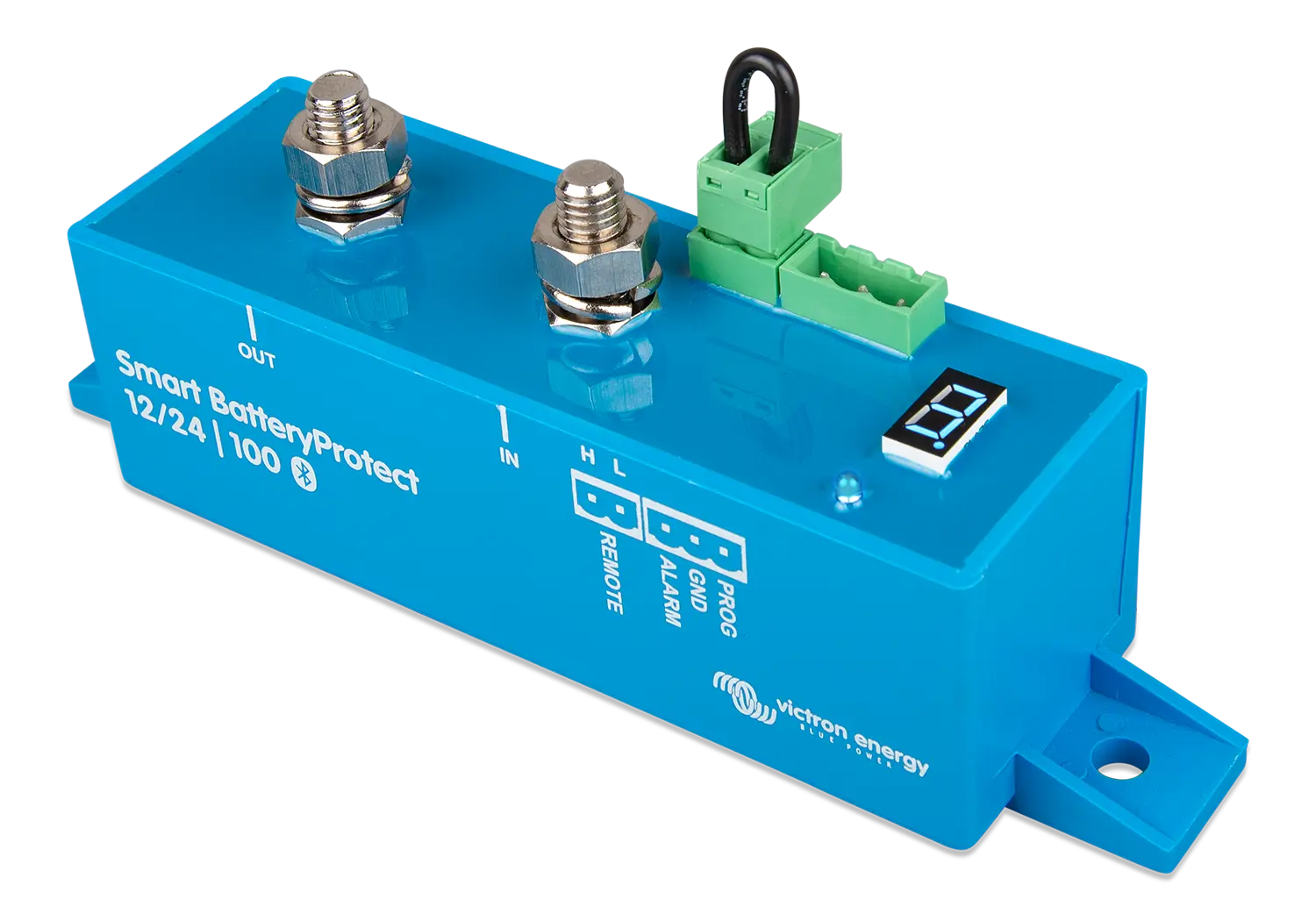

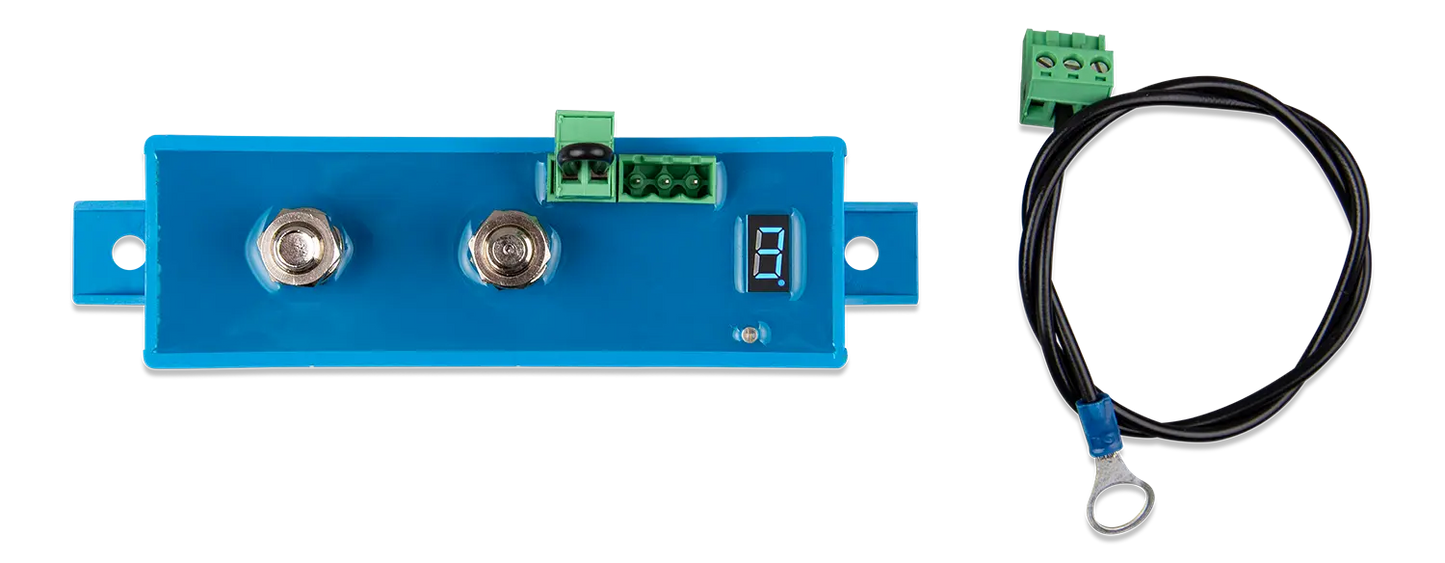

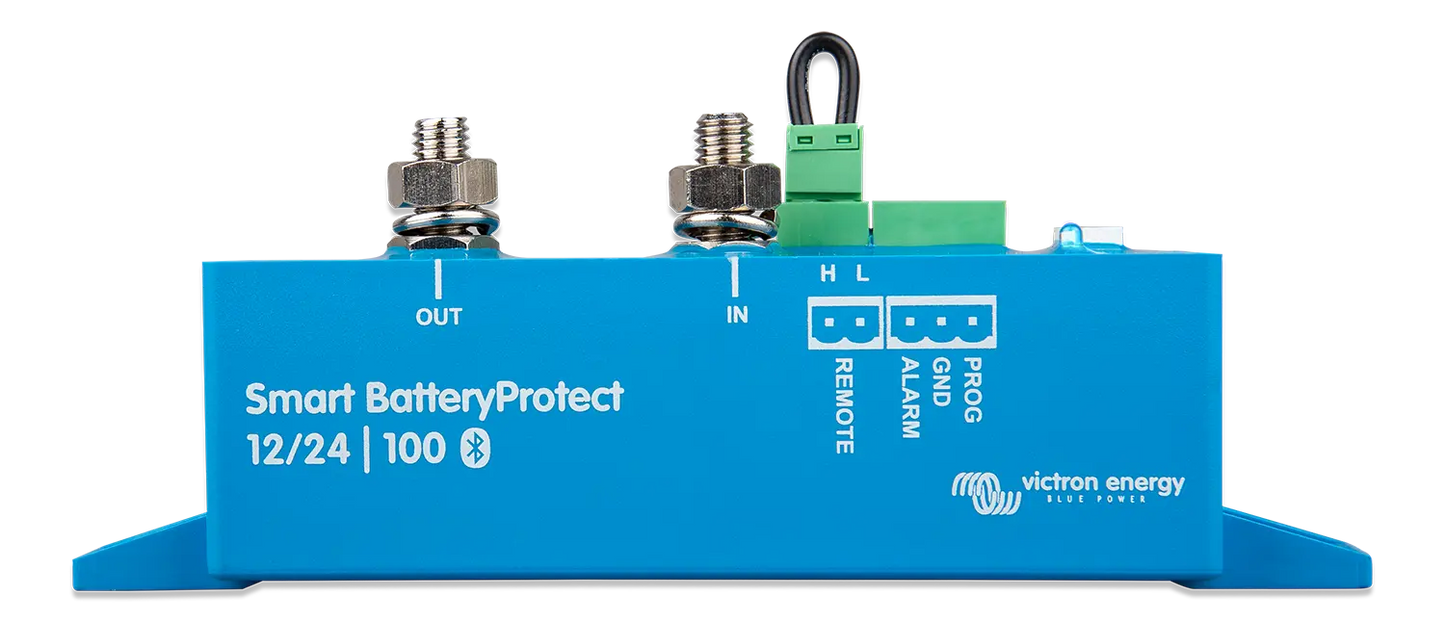

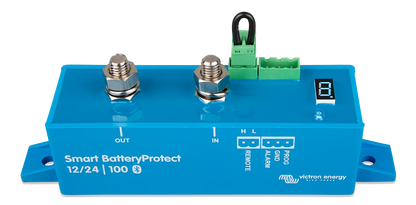

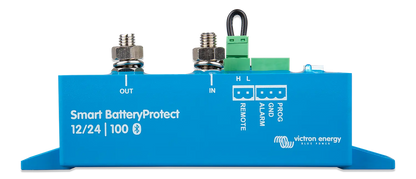

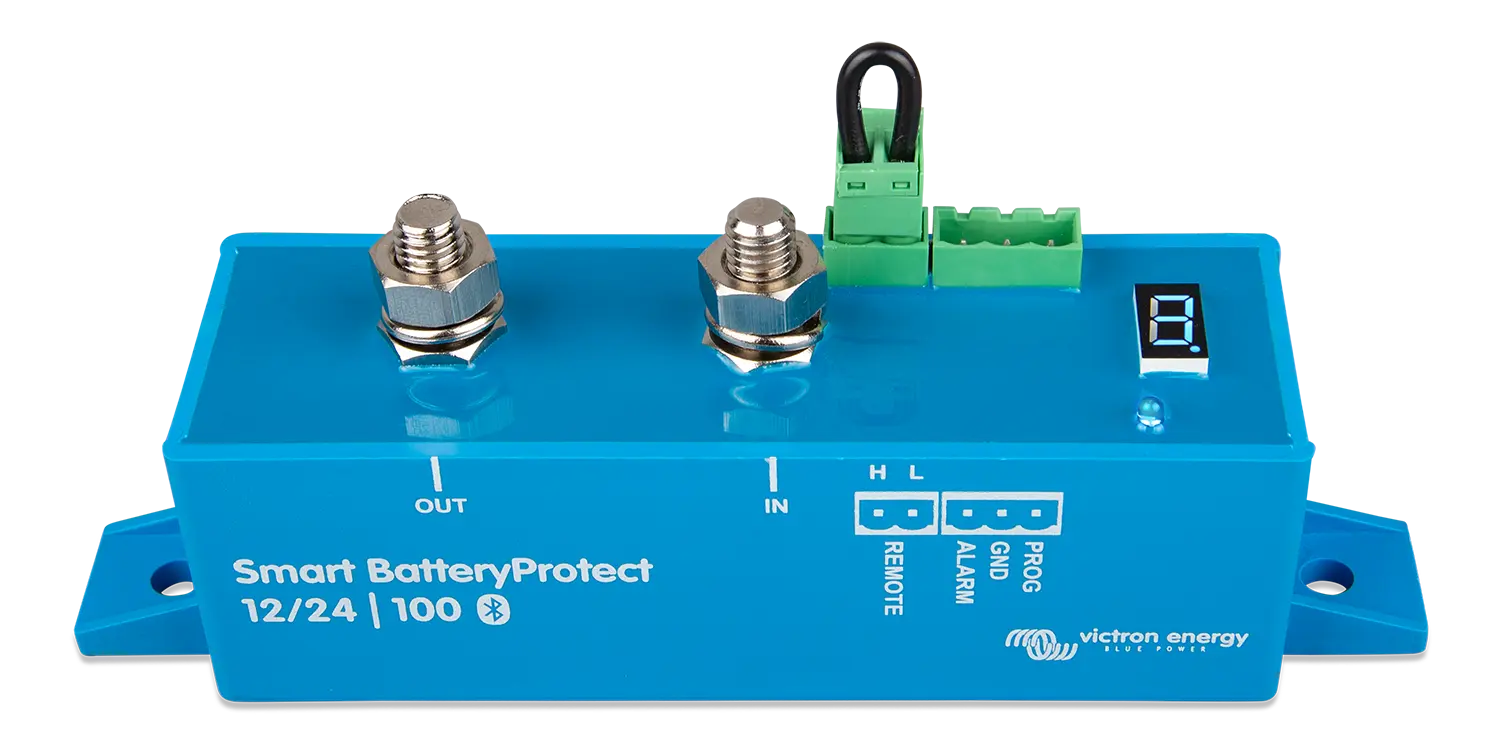

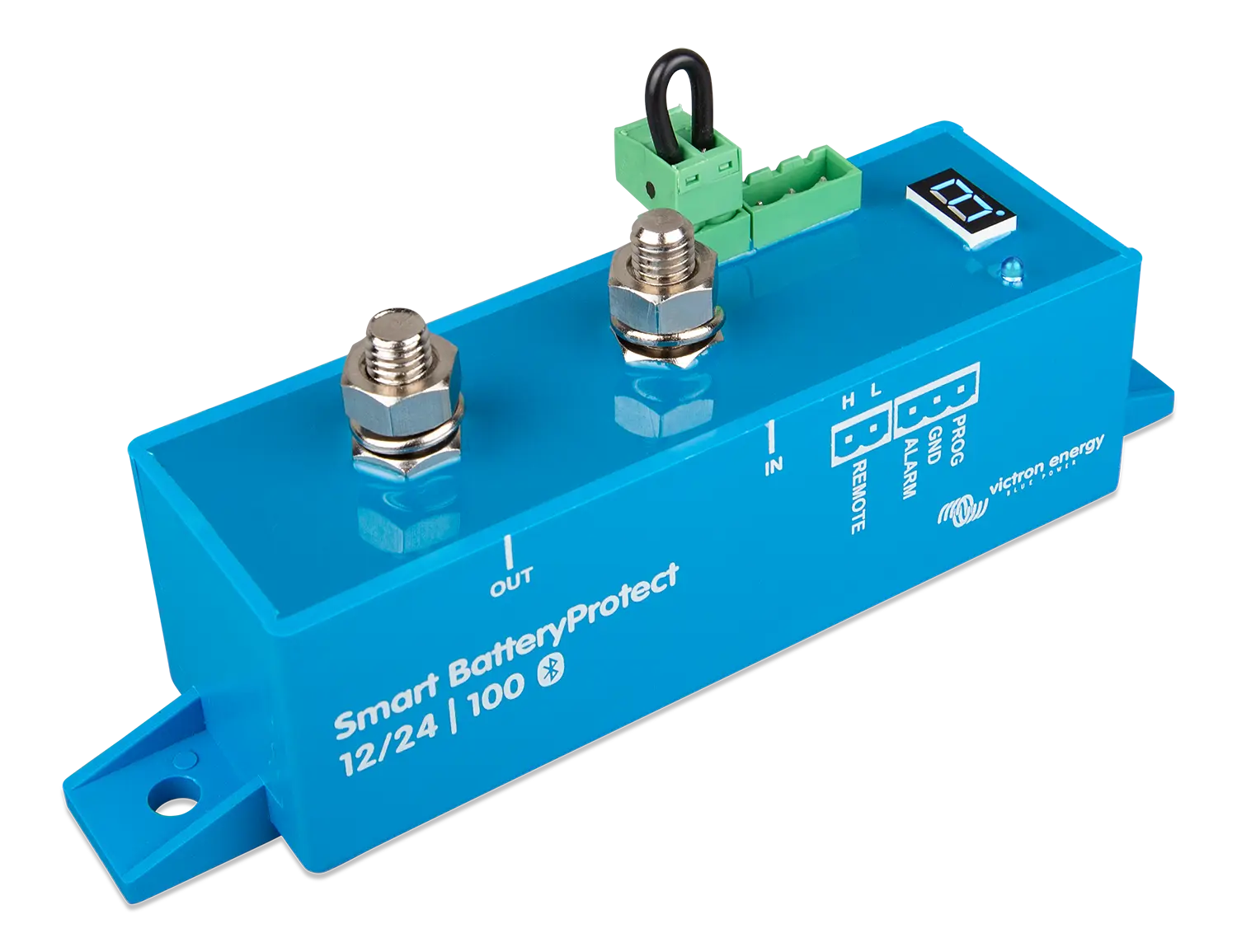

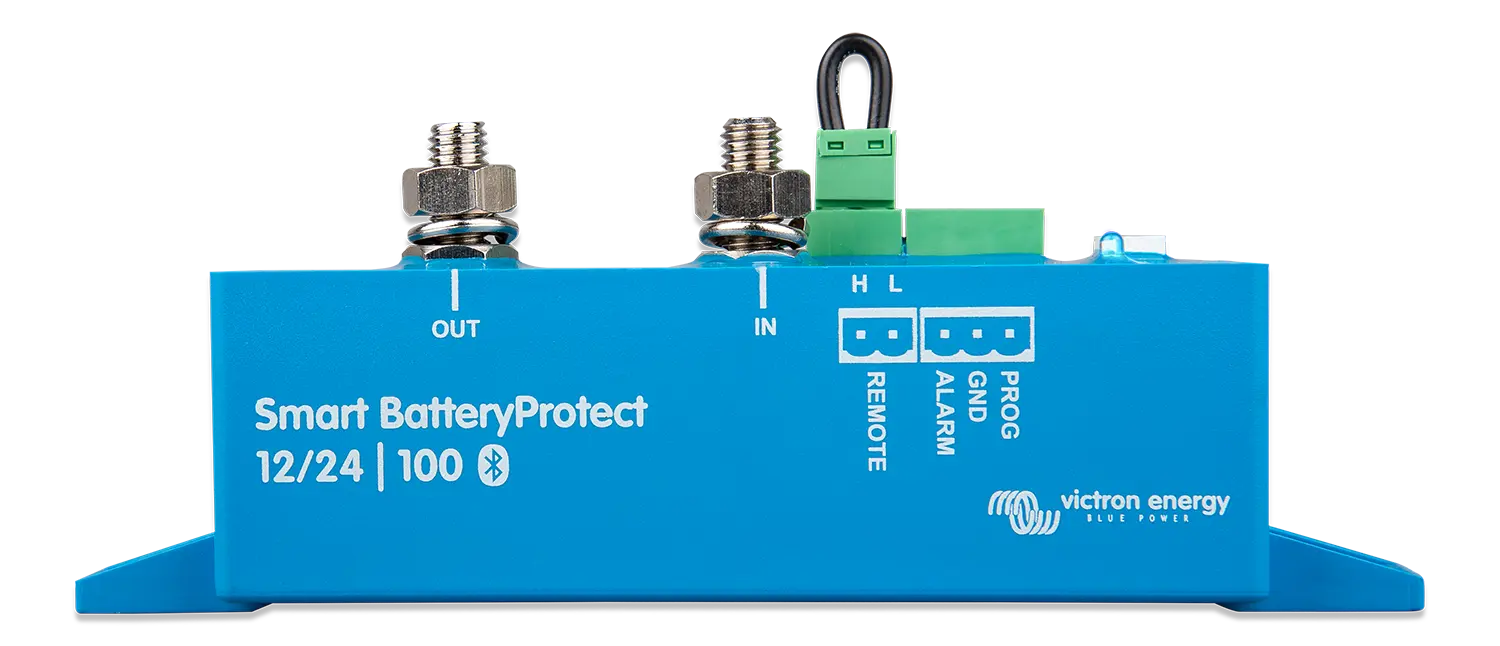

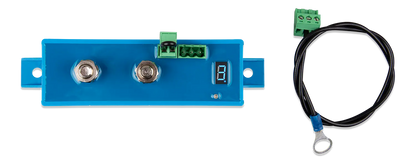

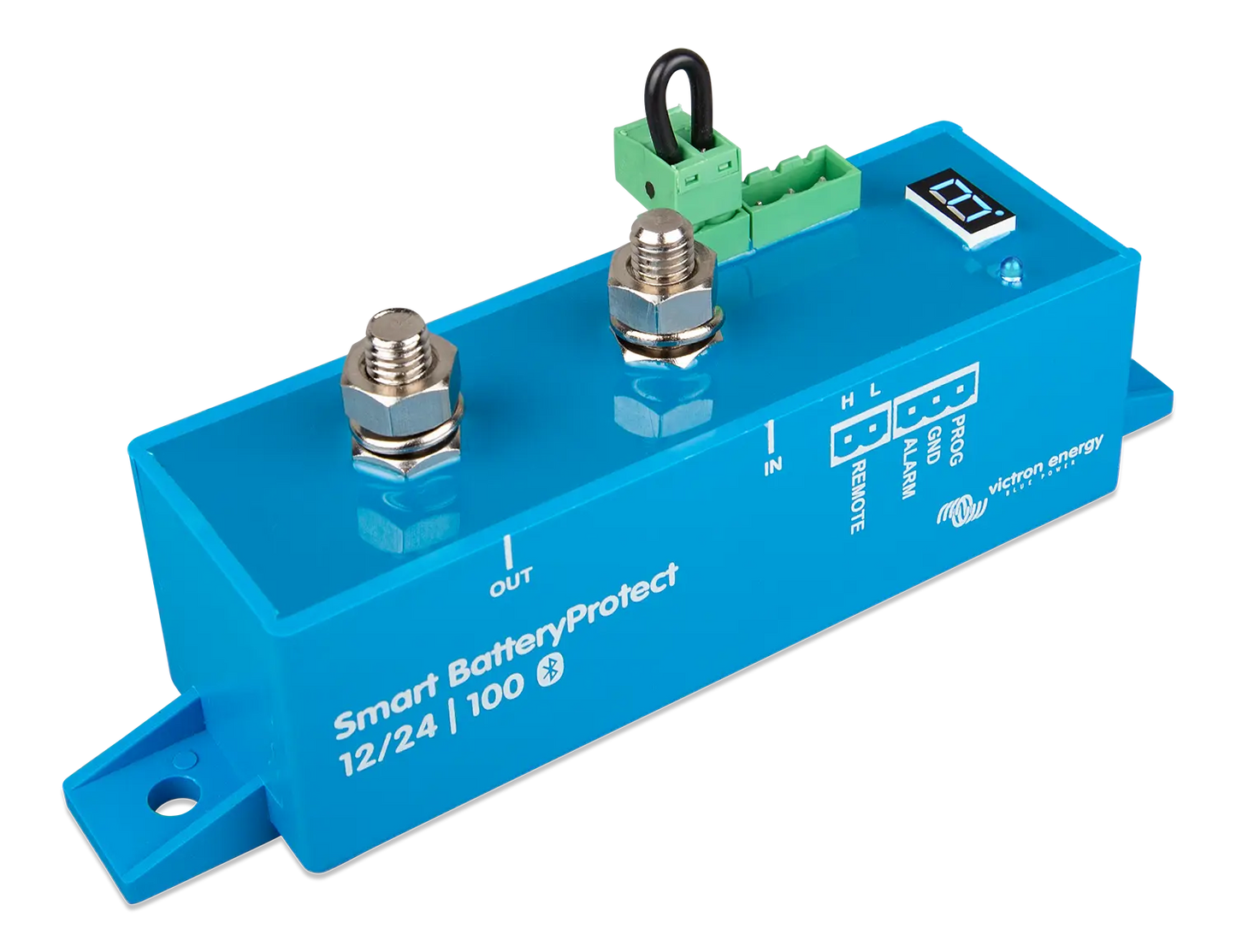

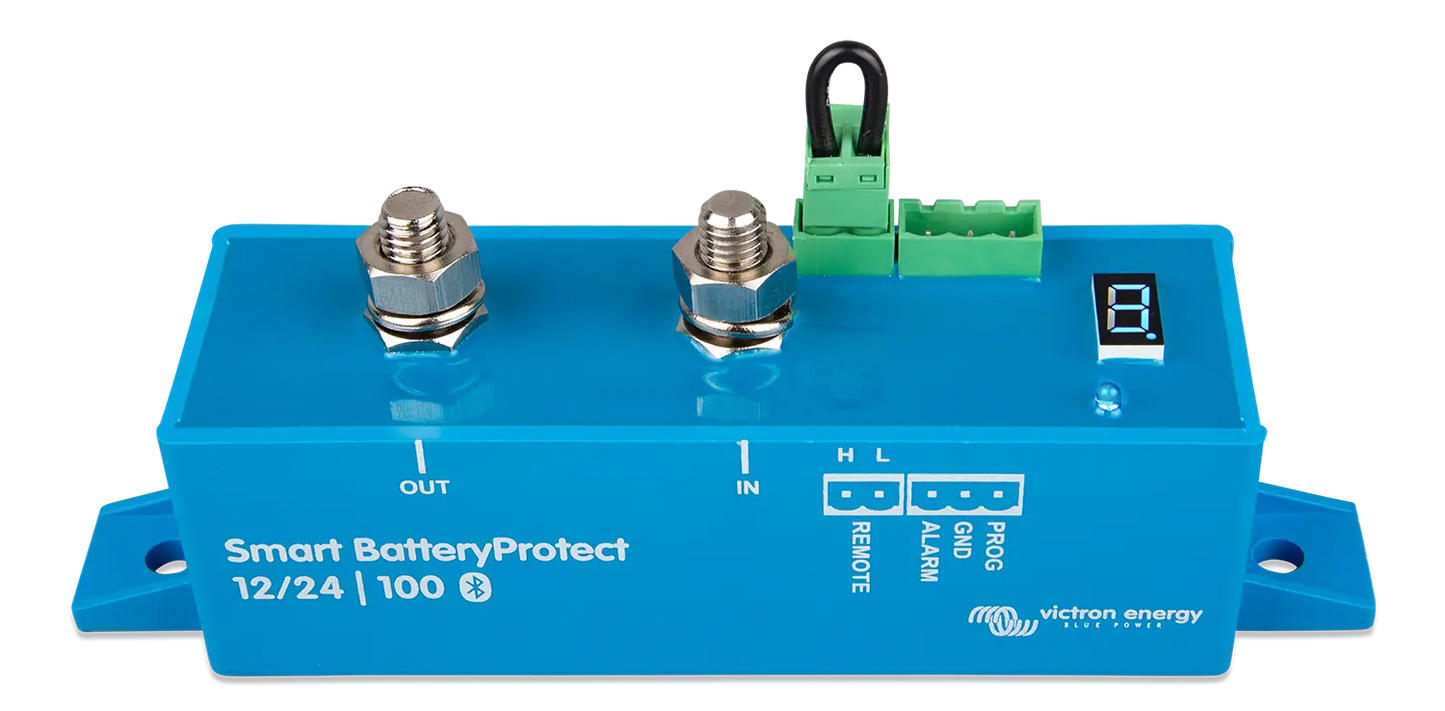

Victron Smart BatteryProtect 12/24V 100A Bluetooth Battery Protection Device

Ideal for protecting batteries in high-current 4WD electrical systems, caravans, camper trailers, motorhomes, marine applications, commercial vehicles and off-grid solar installations where loads up to 100A require automatic battery protection.

$152.95 AUD
$152.95 AUD
Sale
FREE shipping Australia-wide
  • Genuine Victron Energy battery protection device
  • Bluetooth setup and monitoring via VictronConnect
  • Suitable for lead acid and lithium battery systems
  • High-capacity 100A continuous current rating
  • Fast Australia-wide dispatch from Battery Force

The Victron Smart BatteryProtect 12/24V 100A is a powerful battery protection device designed to safeguard your battery system by automatically disconnecting non-essential loads before excessive discharge can occur. Suitable for both 12V and 24V systems, it helps extend battery life while ensuring sufficient power remains for critical equipment or engine starting.

Featuring integrated Bluetooth Smart technology, the Smart BatteryProtect is fully configurable using the free VictronConnect app. Users can customise disconnect and reconnect voltages, select operating modes and monitor system status directly from a compatible smartphone or tablet. Instant Readout technology also allows key operating information, alarms and warnings to be viewed without requiring a paired Bluetooth connection.

Unlike conventional battery protectors that rely on mechanical relays, the Smart BatteryProtect uses silent MOSFET switching for reliable, spark-free operation and extremely low standby current. It is compatible with both lead acid and lithium battery systems and supports integration with Victron Battery Management Systems (BMS) for advanced lithium battery protection.

Ideal for larger dual battery systems, caravans, camper trailers, marine installations, commercial vehicles and off-grid power systems, the 100A Smart BatteryProtect delivers intelligent battery management and dependable protection for demanding applications.

Key Features

  • Genuine Victron Energy Smart BatteryProtect
  • 100A continuous current rating
  • Suitable for both 12V and 24V battery systems
  • Automatic low voltage disconnect protects against excessive battery discharge
  • Over-voltage protection for connected equipment
  • Built-in Bluetooth Smart connectivity
  • Fully programmable using the VictronConnect app
  • Instant Readout without Bluetooth pairing
  • Automatic 12V/24V system voltage detection
  • Silent MOSFET switching with no mechanical relays
  • Ultra-low standby power consumption
  • Remote on/off control capability
  • Alarm output for buzzer, relay or LED
  • Compatible with Victron lithium Battery Management Systems
  • Can also function as a complete system on/off switch

Specifications

Model Smart BatteryProtect 100A
Brand Victron Energy
Continuous Current 100A
Peak Current 600A
System Voltage 12V / 24V Auto Detect
Operating Voltage 6–35V DC
Connectivity Bluetooth Smart
Configuration VictronConnect App or PROG Pin
Switching Technology MOSFET (Relay-Free)
Alarm Output 50mA (Short Circuit Protected)
Alarm Delay 12 Seconds
Load Disconnect Delay 90 Seconds (Immediate when triggered by BMS)
Load Reconnect Delay 30 Seconds
Default Disconnect Voltage 10.5V / 21V
Default Reconnect Voltage 12V / 24V
Current Consumption 1.4mA (Bluetooth On), 1.2mA (Bluetooth Off)
Operating Temperature -40°C to +40°C (Full Load)
Terminal Size M8
Mounting Torque 9Nm
Dimensions 59 × 42 × 115mm
Weight 0.5kg

What does the Smart BatteryProtect 100A do?

It automatically disconnects non-essential loads before your battery becomes excessively discharged, helping extend battery life while ensuring sufficient power remains for essential equipment or engine starting.

How do I configure the Smart BatteryProtect?

Configuration is completed using the free VictronConnect app via Bluetooth or by using the PROG pin programming method. Disconnect voltages, reconnect voltages and operating modes can all be customised.

Is it suitable for lithium batteries?

Yes. The Smart BatteryProtect supports lithium battery systems and includes a dedicated lithium mode for use with compatible external Victron Battery Management Systems (BMS).

Can it be used as a system on/off switch?

Yes. In addition to protecting against excessive battery discharge, the Smart BatteryProtect can also be used as a remote-controlled system on/off switch.

Can I connect an inverter directly through the Smart BatteryProtect?

No. Victron recommends controlling compatible inverters or inverter/chargers via their remote on/off input rather than placing the Smart BatteryProtect directly in the inverter's main DC supply circuit.
