Victron Energy - PIN242121300

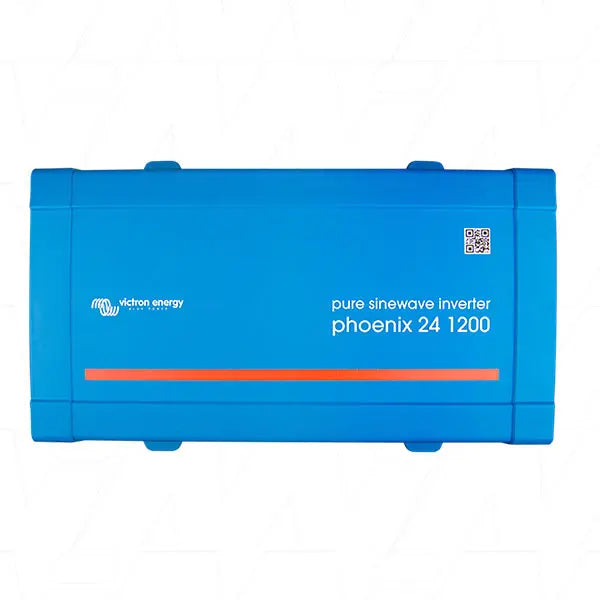

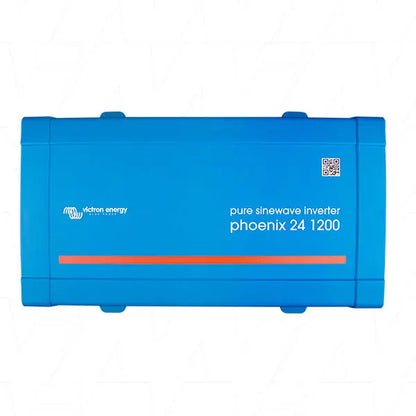

Victron Energy Phoenix Inverter 24/1200 VE.Direct

Ideal for professionally designed 24V caravan, motorhome, marine and off-grid systems requiring dependable 230–240V pure sine wave power and VE.Direct monitoring.

$599.95 AUD
$599.95 AUD
Sale
Tax included. Shipping calculated at checkout.
  • Genuine Victron Energy Phoenix inverter
  • Pure sine wave output for compatible sensitive electronics
  • VE.Direct monitoring and configuration support
  • Backed by Victron Energy's five-year standard warranty
  • Expert support available before and after purchase

The Victron Energy Phoenix Inverter 24/1200 VE.Direct converts power from a compatible 24V battery system into 230–240V pure sine wave AC for appliances and electronic equipment. Its full-bridge toroidal transformer topology provides proven reliability, while high start-up capability supports demanding compatible loads such as refrigeration compressors, LED lamps and electrical tools.

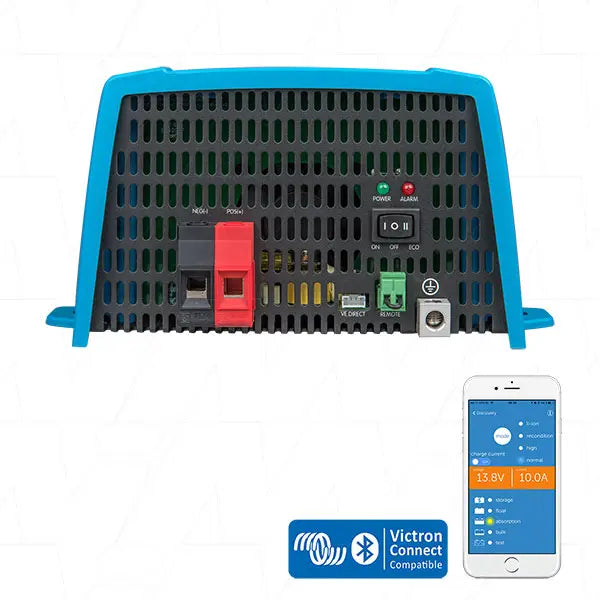

The VE.Direct communication port enables configuration and monitoring through a computer or compatible Victron equipment. With an additional VE.Direct Bluetooth Smart dongle, users can also access supported settings and status information through VictronConnect on compatible phones and tablets.

Configurable voltage and frequency settings, ECO mode, remote on/off capability and LED diagnostics make it a flexible inverter for professionally designed 24V touring, marine and off-grid electrical systems. This is an inverter only and does not contain a built-in battery charger or automatic transfer switch.

Key Features

  • 24V DC input and 230–240V pure sine wave AC output
  • 1200VA inverter capacity
  • VE.Direct port for monitoring and configuration
  • Compatible with VictronConnect using optional connection accessories
  • Configurable low-battery alarm, shutdown and restart levels
  • Configurable output voltage and frequency
  • Adjustable ECO mode reduces standby consumption
  • Remote on/off connection
  • LED status and fault diagnostics
  • Protection against short circuit, overload, voltage, temperature and DC ripple faults

Specifications

Brand Victron Energy
Product Phoenix Inverter 24/1200 VE.Direct
Manufacturer Part Number PIN242121300
Battery Voltage 24V
DC Input Range 18.4–34V DC
AC Output 230–240V AC
Rated Capacity 1200VA
Output Voltage Adjustment 210–245V
Output Frequency 50Hz or 60Hz
Communications VE.Direct
ECO Mode Yes, adjustable
Remote On/Off Yes
Dimensions 362 × 232 × 117mm
Weight 7.4kg
Automatic Transfer Switch No, external transfer switch required

What does the Victron Phoenix 24/1200 inverter do?

It converts power from a compatible 24V DC battery system into pure sine wave 230–240V AC power for suitable appliances and electronic equipment.

How much power does the Phoenix 24/1200 provide?

The inverter is rated at 1200VA. When selecting appliances, consider their continuous consumption, combined loads and startup surge—not just the appliance’s advertised running wattage.

What is the VE.Direct port used for?

VE.Direct enables supported monitoring and configuration through a computer or compatible Victron equipment. Wireless VictronConnect access requires an optional VE.Direct Bluetooth Smart dongle.

Does this inverter have a built-in charger or transfer switch?

No. The PIN242121300 is an inverter only. It does not include a battery charger or automatic transfer switch; compatible external equipment is required if those functions are needed.

Does the Victron Phoenix 24/1200 require professional installation?

Professional installation is recommended. The battery bank, cabling, fusing, earthing and ventilation must be correctly sized for the inverter and its expected loads.
