Battery Force - ORI481238120

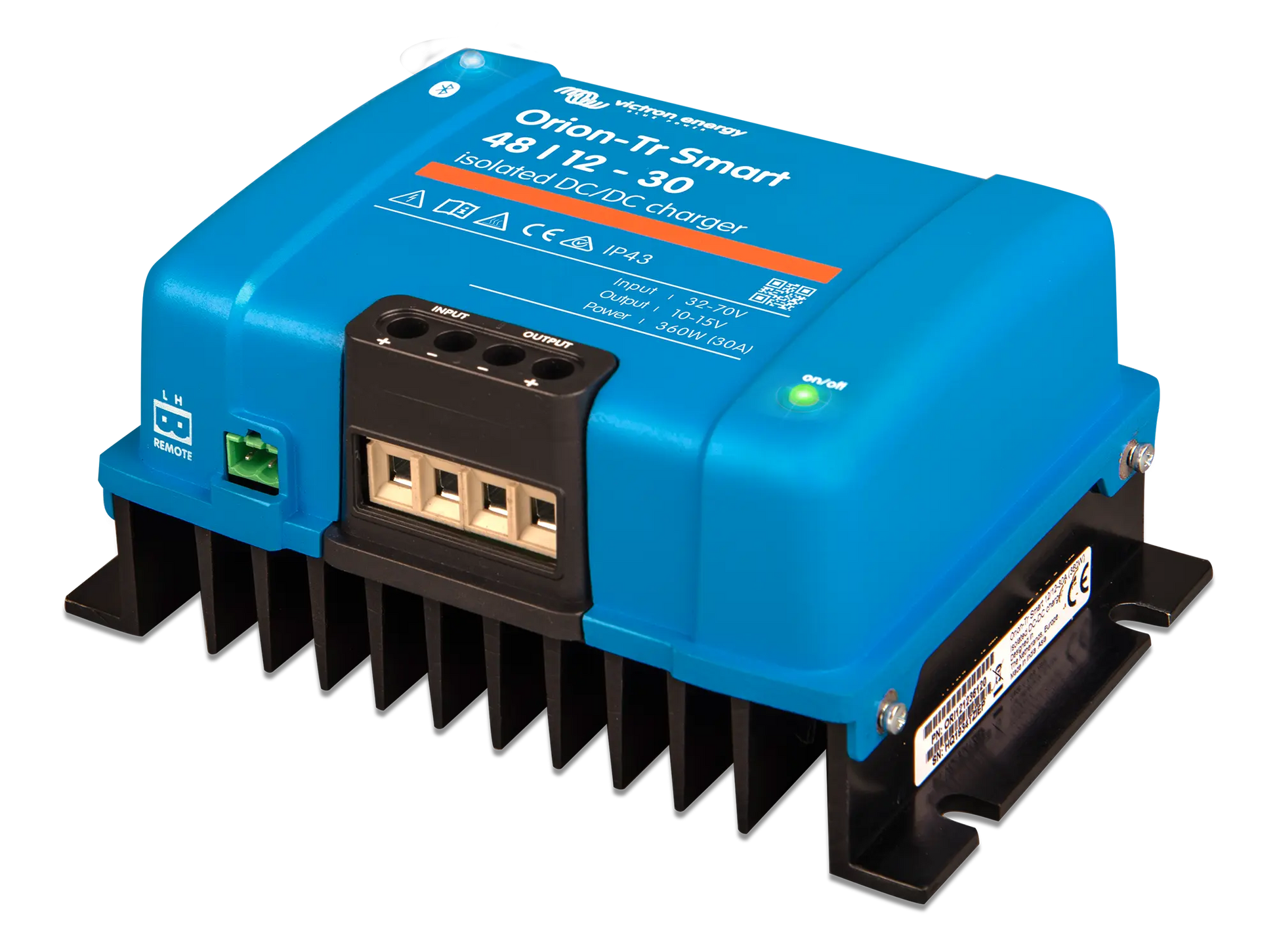

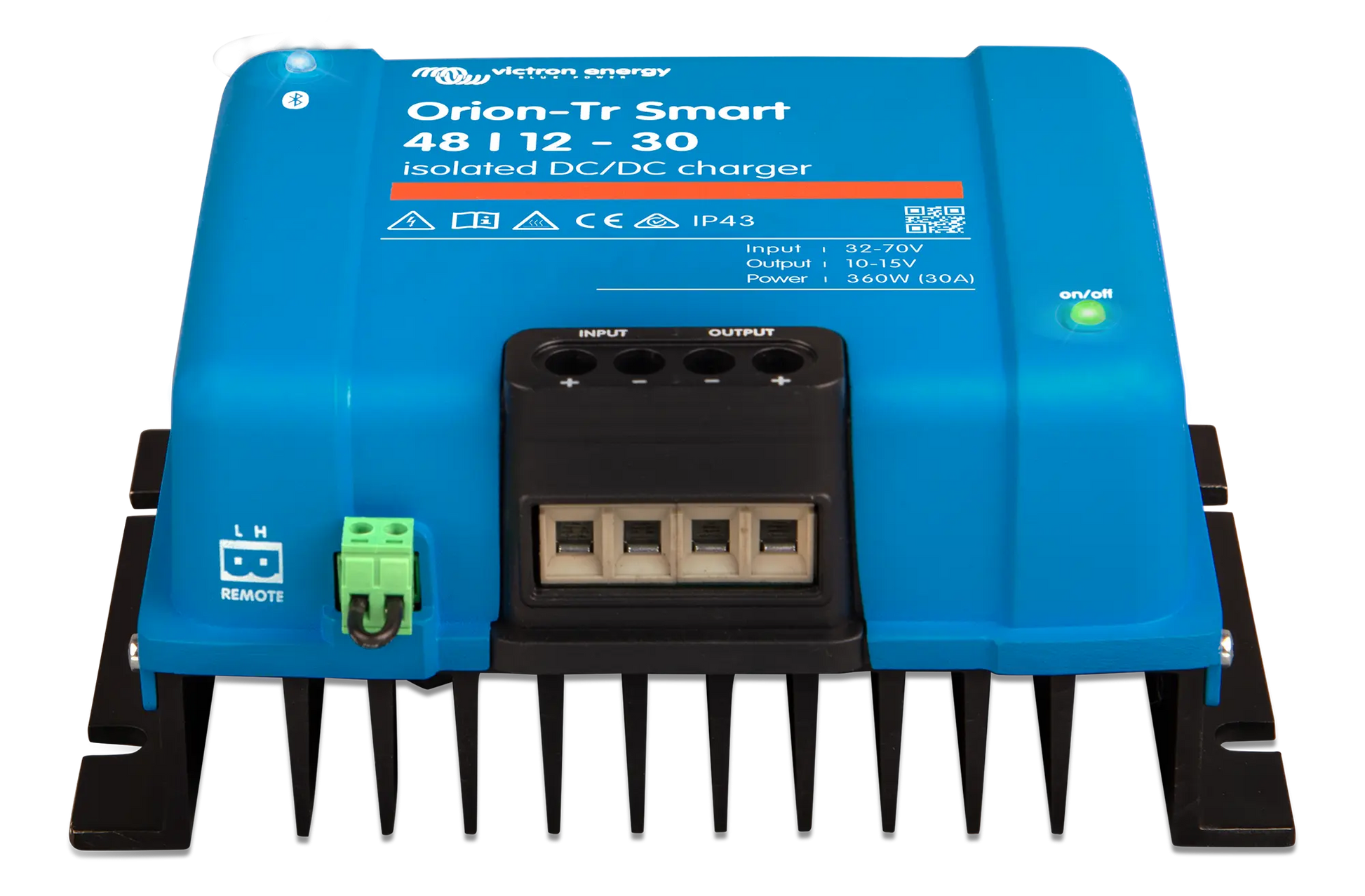

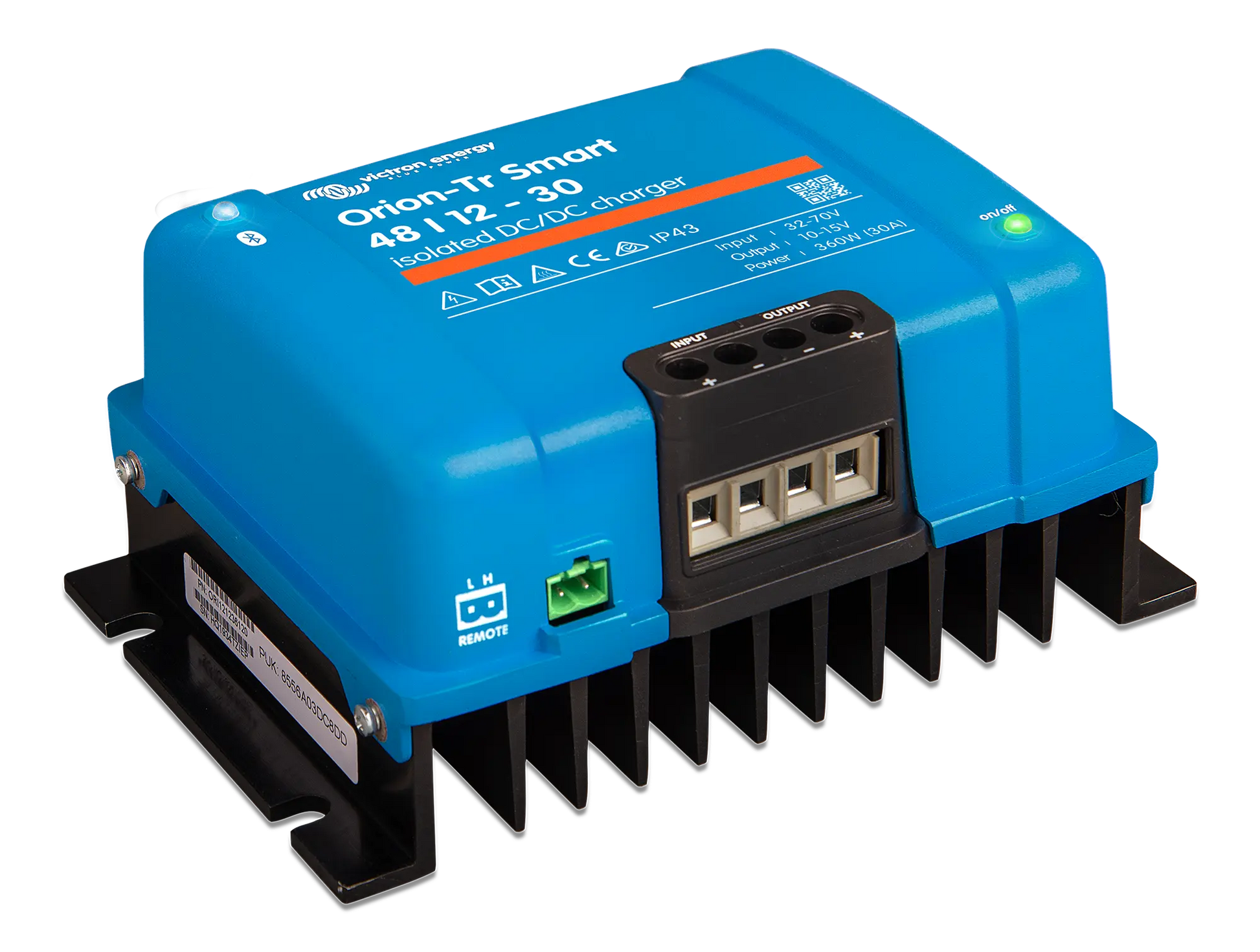

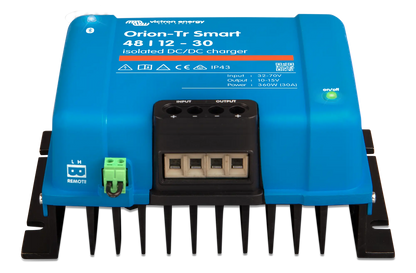

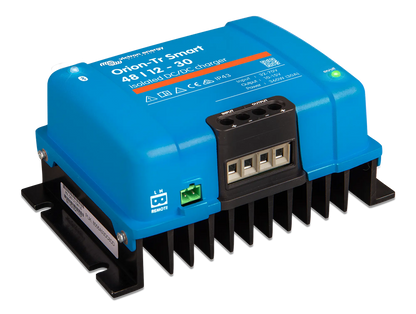

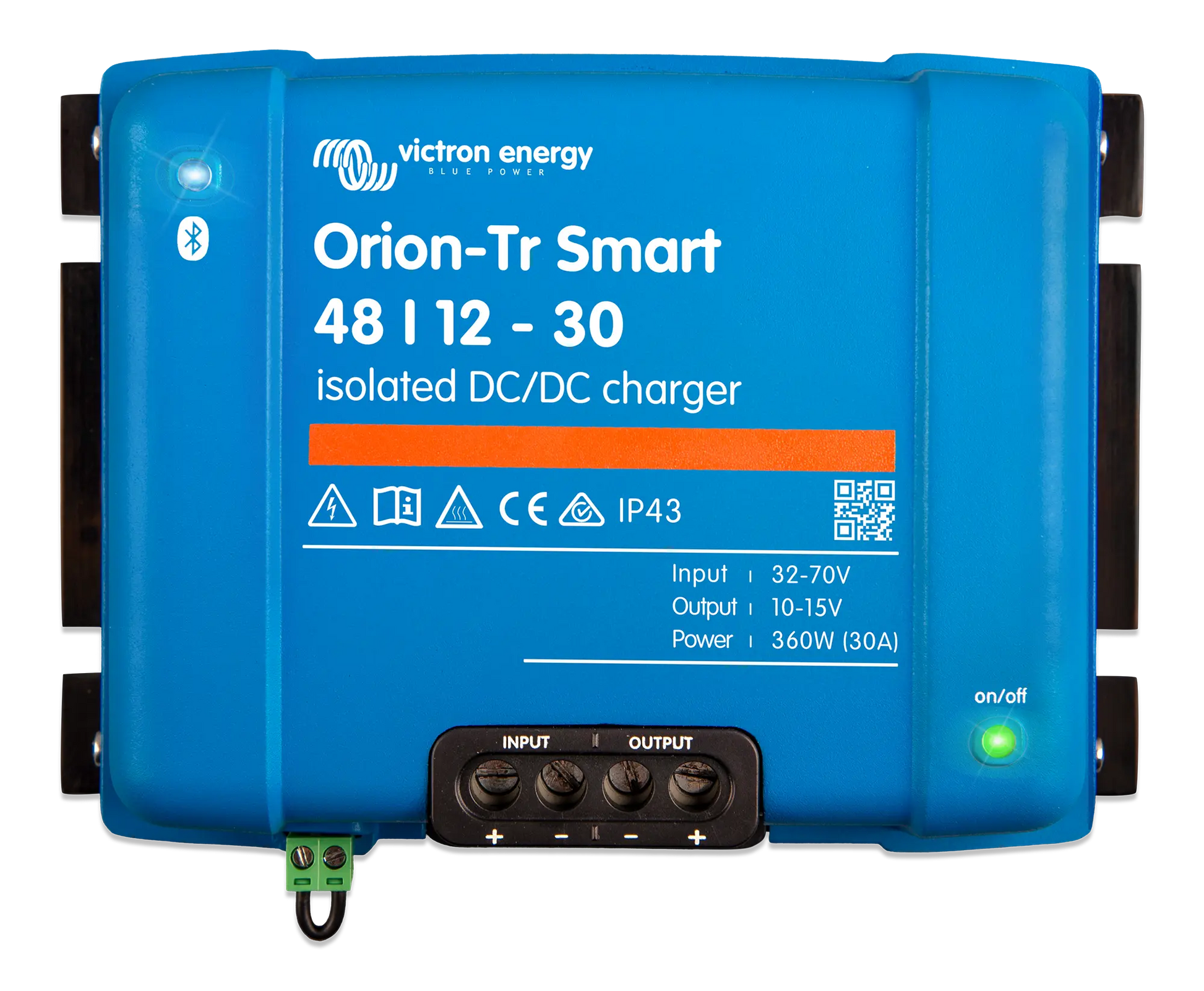

Victron Orion-Tr Smart Isolated DC-DC Charger 48V to 12V 30A (360W)

Name: Victron Orion-Tr Smart Isolated DC-DC Charger 48V to 12V 30A (360W)
Brand: Battery Force
SKU: ORI481238120
Price: 511.95 AUD
Availability: InStock

Ideal for charging 12V auxiliary batteries from 48V electrical systems in commercial, industrial, marine and specialised vehicle applications.

$511.95 AUD

Sale

FREE shipping Australia-wide

Product variants

Quantity

Genuine Victron Energy Smart charger
Bluetooth monitoring and configuration via VictronConnect
Fully isolated design for maximum electrical protection
Compatible with lead-acid and lithium batteries
Backed by Victron's 5-year warranty

The Victron Orion-Tr Smart Isolated 48/12-30A DC-DC Charger is a professional-grade battery charger and power supply designed to efficiently convert 48V DC input to a regulated 12V output. Delivering up to 30A (360W), it is ideal for charging 12V auxiliary batteries from 48V electrical systems found in electric vehicles, industrial equipment, commercial vehicles and specialised mobile power applications.

Featuring fully isolated input and output circuitry, the Orion-Tr Smart provides enhanced electrical protection and system flexibility, making it suitable for demanding installations where galvanic isolation is required. Victron's adaptive three-stage charging algorithm (Bulk, Absorption and Float) optimises battery charging for lead-acid batteries, while configurable settings also allow charging of lithium batteries or operation as a regulated DC power supply.

Integrated Bluetooth Smart technology allows complete configuration, monitoring and firmware updates using the free VictronConnect app. Installers can adjust charging voltages, monitor performance, receive diagnostic information and customise operating parameters directly from a smartphone or tablet without additional hardware.

The Orion-Tr Smart also includes intelligent engine running detection, eliminating the need to connect an ignition signal in many vehicle applications. Built-in protection against overheating, IP43 protection (when mounted with terminals facing down) and the ability to parallel multiple units make it an excellent solution for professional vehicle, marine and industrial electrical systems.

Key Features

Converts 48V DC to 12V DC
30A continuous output
360W maximum output
Fully isolated input and output
Bluetooth Smart connectivity
VictronConnect app compatible
Adaptive 3-stage battery charging
Suitable for lead-acid and lithium batteries
Can operate as a regulated DC power supply
Intelligent engine running detection
Parallel operation for higher output
High temperature protection
IP43 rated when correctly installed
Remote on/off capability
Genuine Victron Energy quality

Specifications

Model	ORI481238120
SKU	ORI481238120
Brand	Victron Energy
Product	Orion-Tr Smart Isolated DC-DC Charger
Input Voltage	32–70V DC
Output Voltage	12.2V Nominal
Output Voltage Adjustment	10–15V
Continuous Output Current	30A
Continuous Output Power	360W @ 40°C
Peak Output Current	40A (10 seconds)
Charging Algorithm	Adaptive 3-Stage (Bulk, Absorption, Float)
Battery Compatibility	Lead Acid & Lithium (Configurable)
Bluetooth	Yes
Remote On/Off	Yes
Isolation	200V DC Between Input, Output & Case
Protection Rating	IP43 (Terminals Facing Down)
Operating Temperature	-20°C to +55°C
Dimensions	130 × 186 × 80mm
Weight	1.8kg
Warranty	5 Years

What does the Orion-Tr Smart 48/12-30A do?

It converts a 48V DC power source into a regulated 12V DC output while charging a 12V auxiliary battery or supplying stable DC power to connected equipment.

Is this charger suitable for lithium batteries?

Yes. The Orion-Tr Smart can be configured for both lead-acid and lithium battery charging using the VictronConnect app.

What is the benefit of an isolated DC-DC charger?

An isolated charger electrically separates the input and output circuits, reducing the risk of ground loop issues and improving safety in complex electrical installations.

Can I monitor the charger from my phone?

Yes. Built-in Bluetooth allows you to configure settings, monitor charging performance, update firmware and view diagnostics using the free VictronConnect app.
