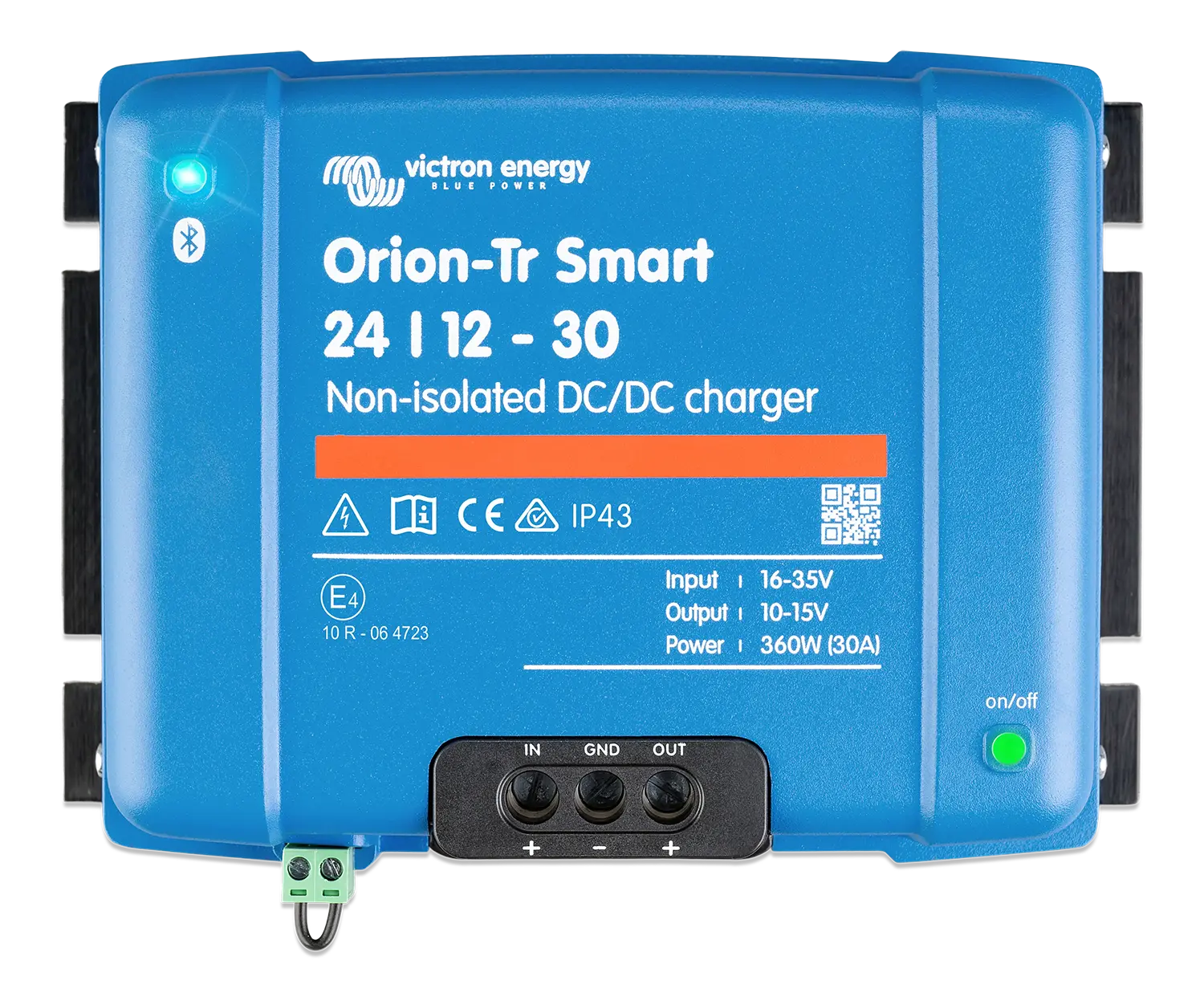

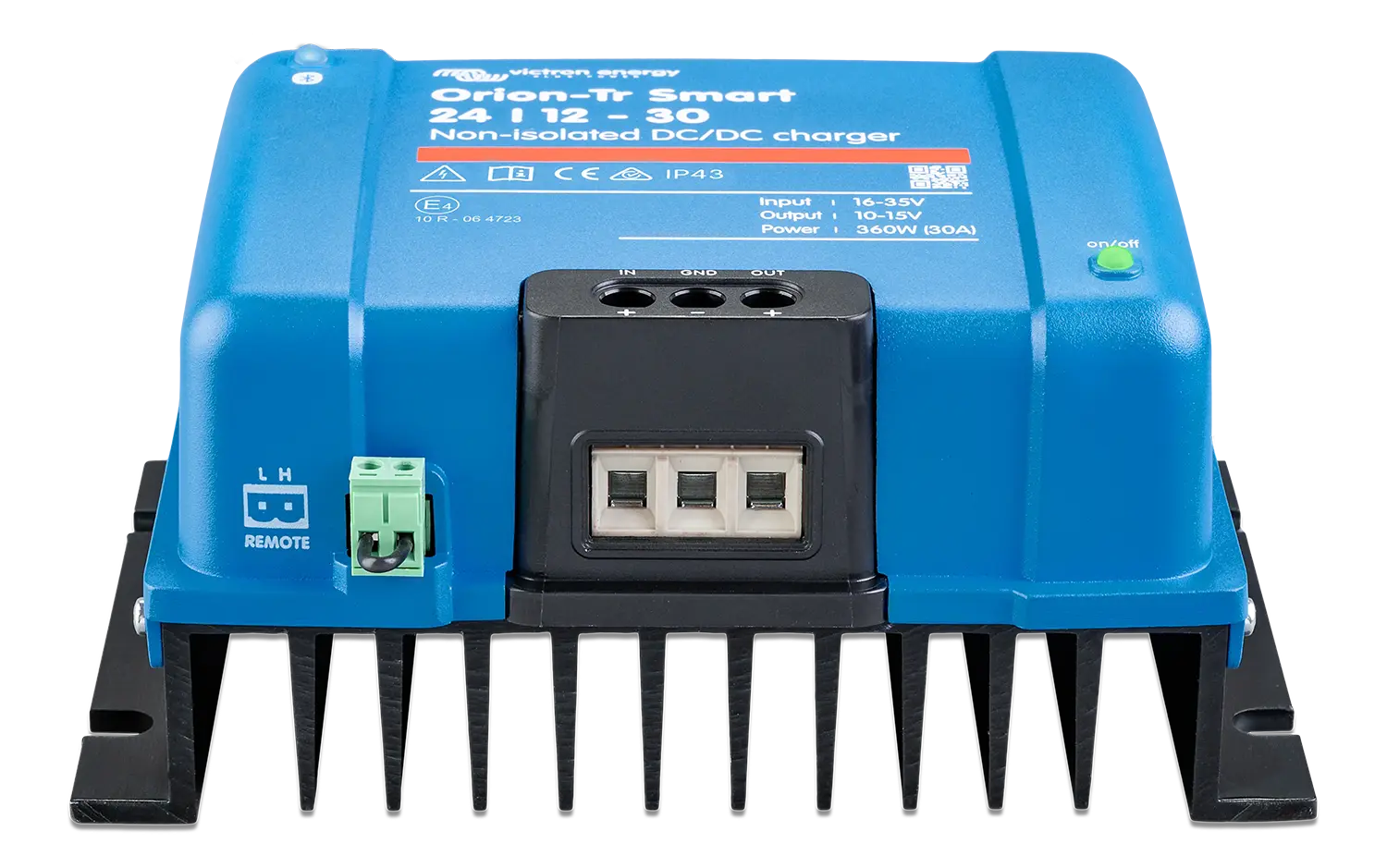

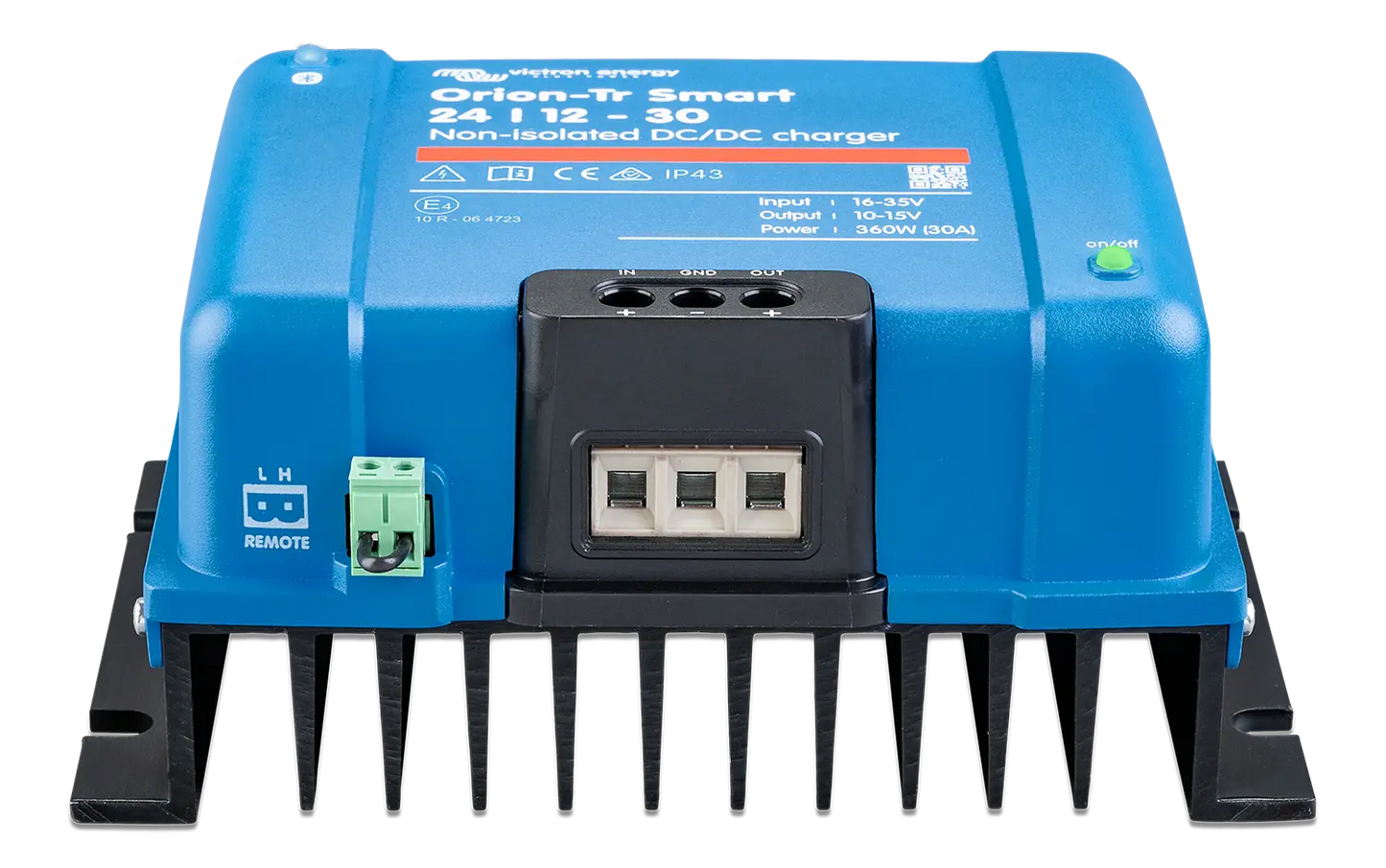

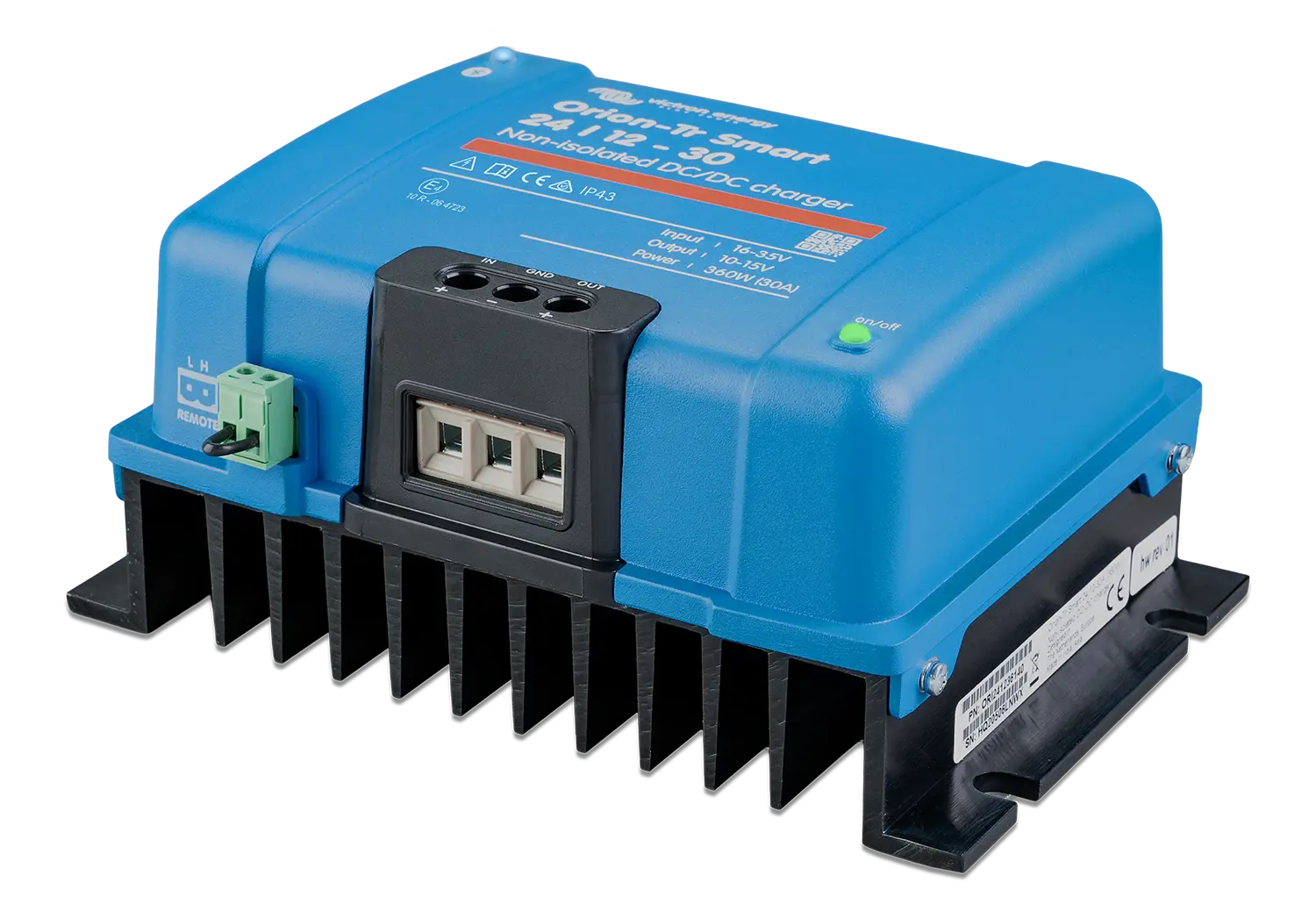

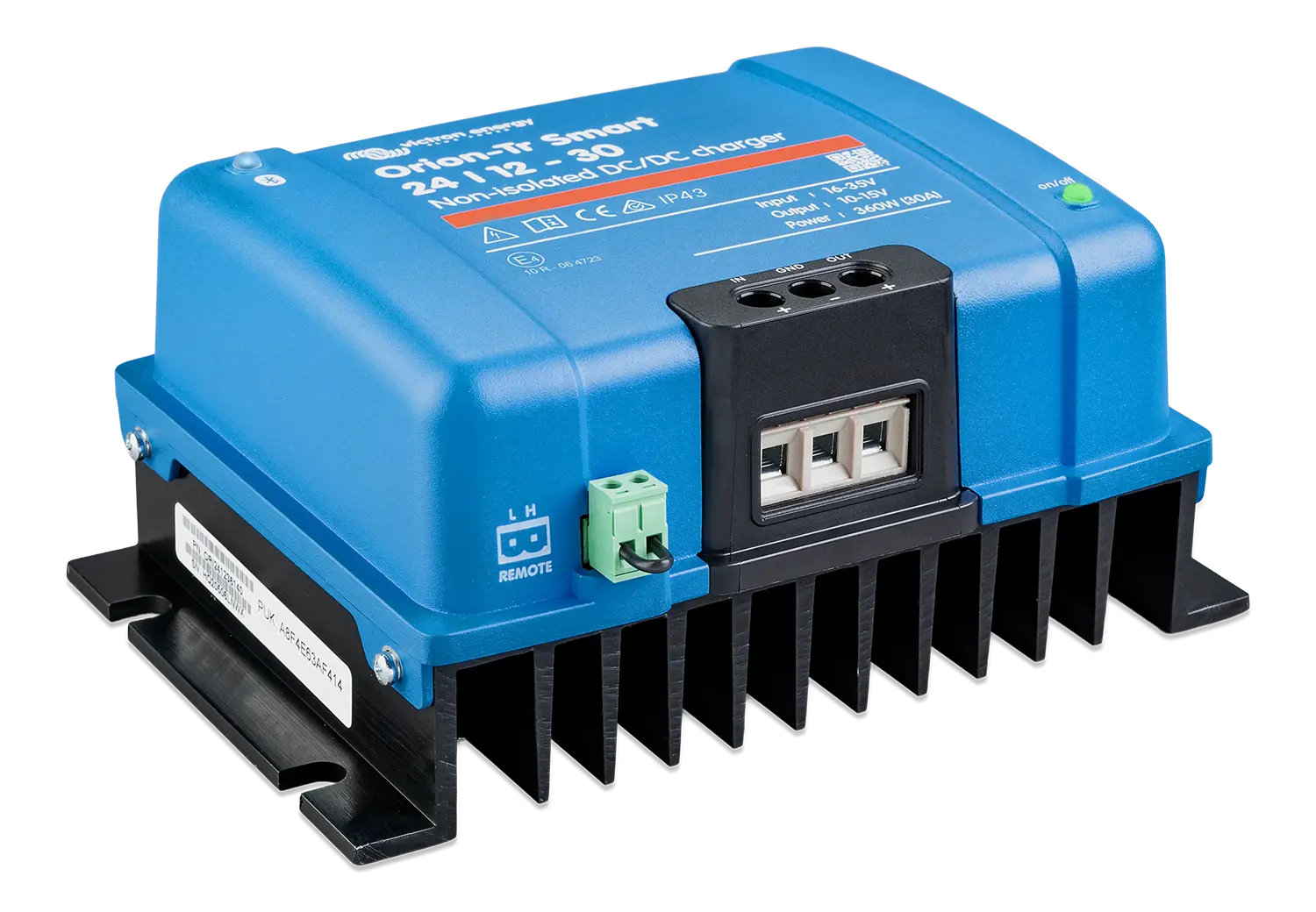

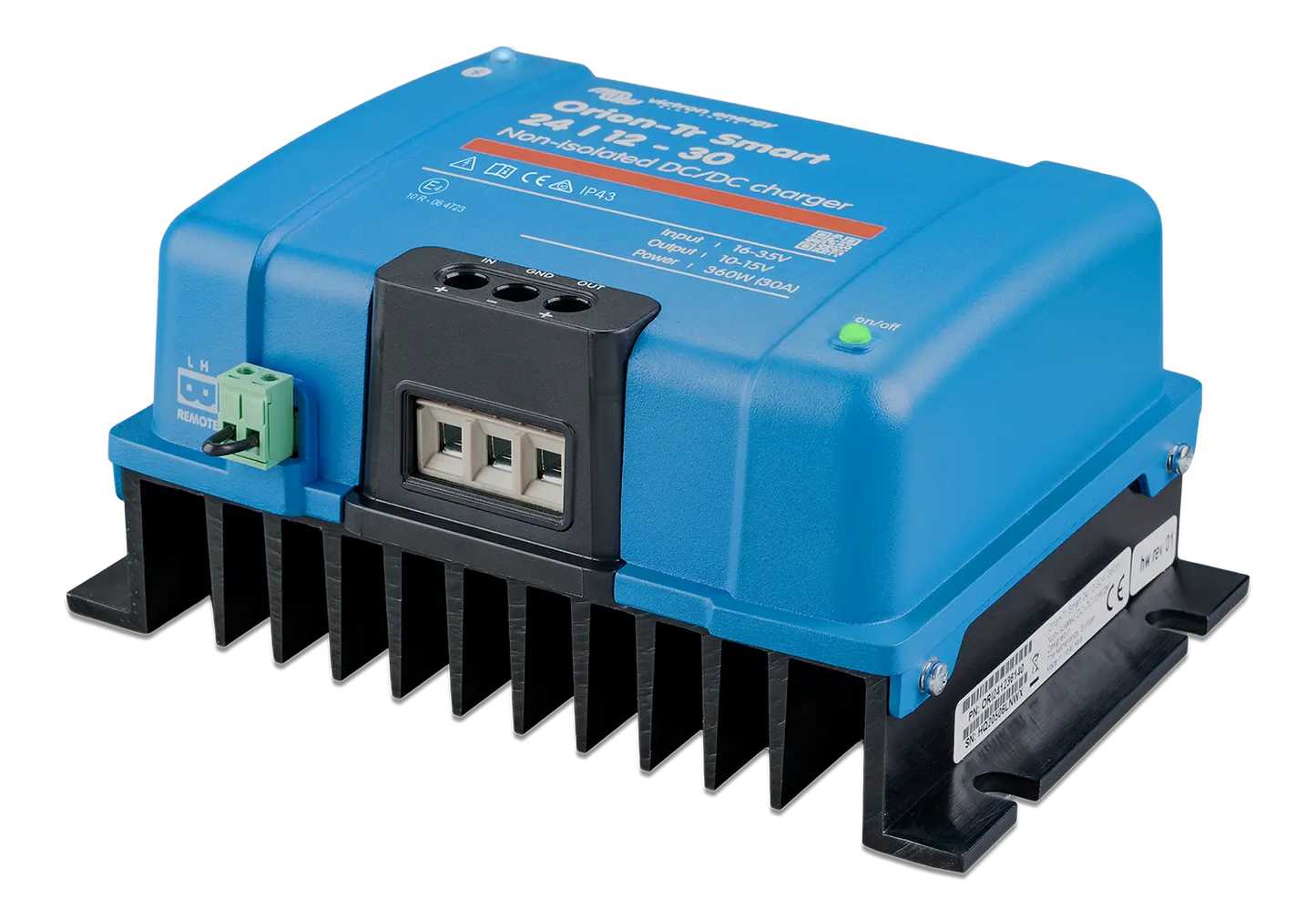

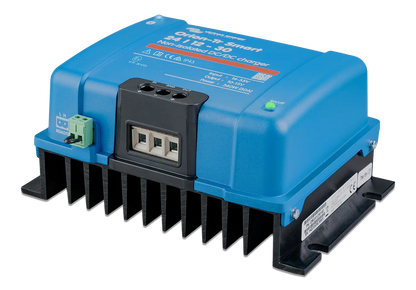

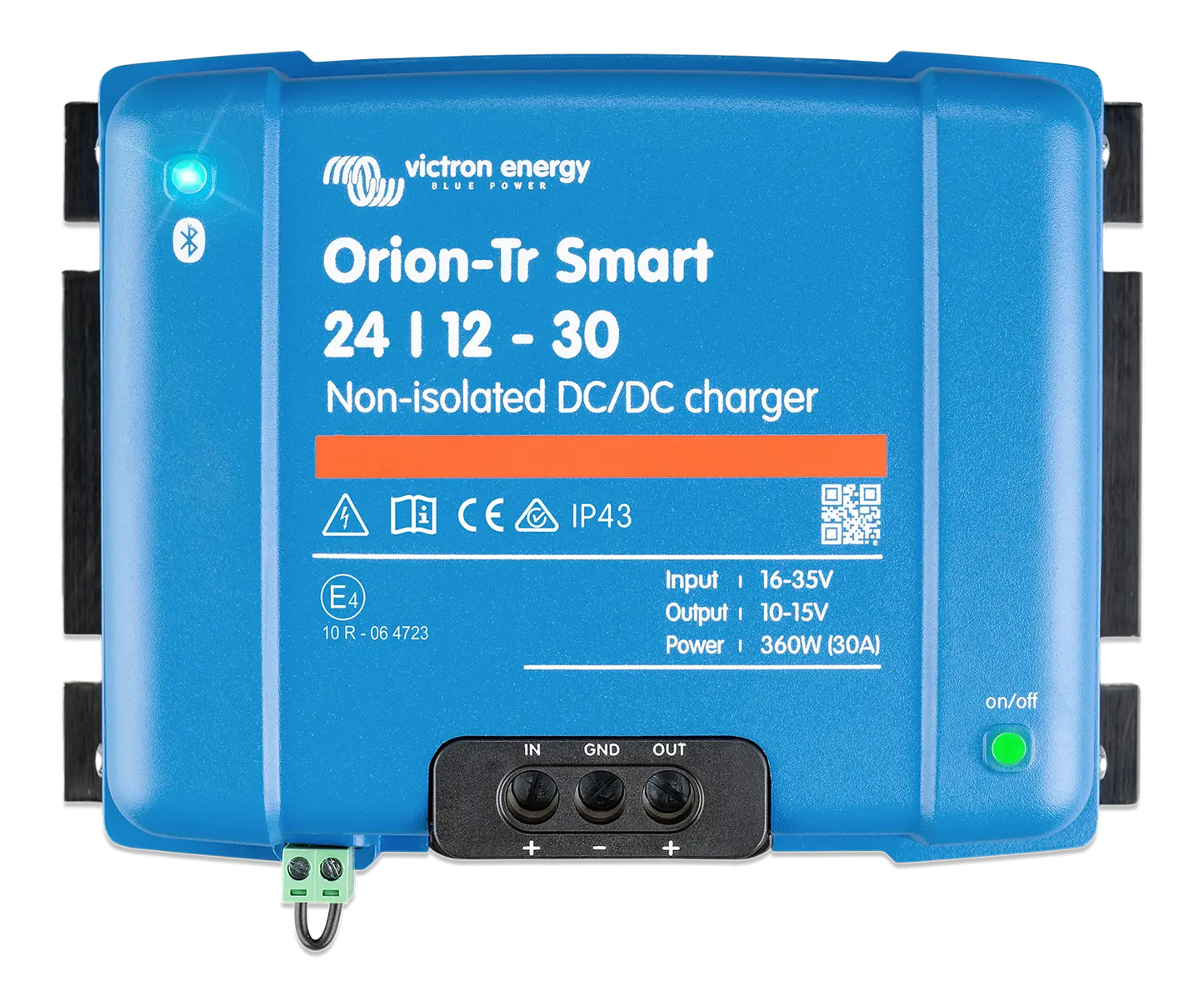

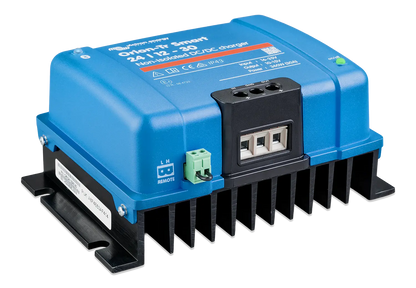

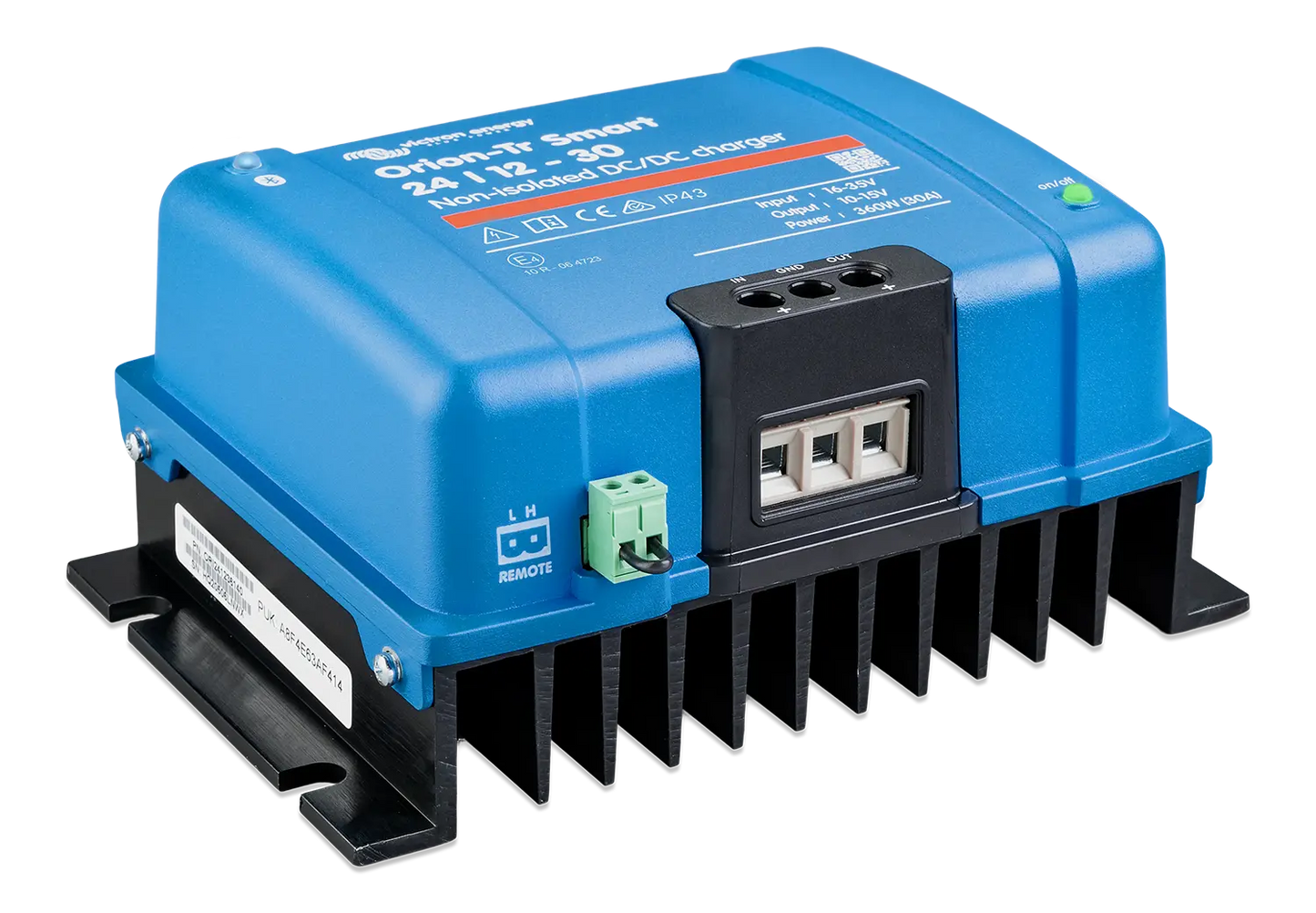

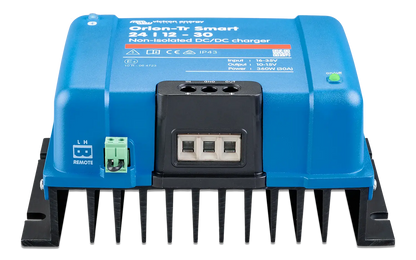

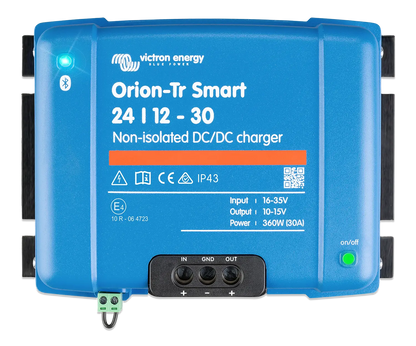

Victron Orion-Tr Smart 24V to 12V 30A DC-DC Charger Non-Isolated

Name: Victron Orion-Tr Smart 24V to 12V 30A DC-DC Charger Non-Isolated
Brand: Victron Energy
SKU: ORI241236140
Price: 349.95 AUD
Availability: InStock

Ideal for 24V trucks, commercial vehicles, motorhomes and off-grid vehicle systems requiring efficient charging of a 12V auxiliary battery from a 24V electrical system.

$349.95 AUD

Sale

FREE shipping Australia-wide

Product variants

Quantity

Genuine Victron Energy product backed by a 5-year warranty
Bluetooth monitoring and setup via the free VictronConnect app
Compatible with Lithium, AGM, Gel and Flooded batteries
Smart alternator compatible for modern vehicle charging systems
Fast Australia-wide dispatch and expert support from Battery Force

The Victron Orion-Tr Smart 24V to 12V 30A DC-DC Charger Non-Isolated is a professional-grade DC-DC charger designed to efficiently charge 12V auxiliary batteries from 24V vehicle electrical systems. Ideal for trucks, commercial vehicles, motorhomes, service vehicles, marine applications, and off-grid systems, it provides reliable charging performance while protecting both starter and auxiliary batteries.

Featuring built-in Bluetooth connectivity, the Orion-Tr Smart allows full configuration and monitoring through the VictronConnect app. Charging parameters can be customised for AGM, Gel, Flooded, and Lithium batteries, making it suitable for a wide range of battery technologies.

Its advanced 3-stage charging algorithm automatically manages Bulk, Absorption, and Float charging stages to maximise battery life and charging efficiency. Engine running detection ensures compatibility with modern smart alternators commonly found in Euro 5 and Euro 6 vehicles.

The Orion-Tr Smart can also function as a fully adjustable power supply, making it an extremely versatile solution for mobile power systems. Designed to Victron's renowned standards, it offers reliable performance in demanding Australian conditions.

Key Features

Converts 24V vehicle power to 12V battery charging
30A continuous charging output
Non-isolated design for efficient operation
Built-in Bluetooth Smart connectivity
Compatible with AGM, Gel, Flooded and Lithium batteries
Fully programmable via VictronConnect App
Adaptive 3-stage charging algorithm
Smart alternator compatibility with engine running detection
Can operate as an adjustable DC power supply
Parallel operation capable for higher output requirements
Short circuit protected
High temperature protection
IP43 protection rating when correctly installed
Heavy-duty screw terminal connections
Trusted Victron Energy reliability

Specifications

Model	Orion-Tr Smart 24/12-30 Non-Isolated
Victron Part Number	ORI241236140
Input Voltage Range	16–35V
Nominal Output Voltage	12.2V
Adjustable Output Voltage	10–15V
Continuous Output Current	30A
Maximum Output Current (10 sec)	45A
Continuous Output Power @ 25°C	430W
Continuous Output Power @ 40°C	360W
Efficiency	88%
Output Voltage Tolerance	±0.2V
Output Noise	2mV RMS
Bluetooth Connectivity	Yes
Battery Compatibility	AGM, Gel, Flooded, Lithium
Smart Alternator Compatible	Yes
Parallel Operation	Yes
DC Connections	Screw Terminals
Maximum Cable Size	16mm²
Protection Rating	IP43 (electronics), IP22 (connection area)
Operating Temperature	-20°C to +55°C
Dimensions	130 x 186 x 80mm
Weight	1.8kg
Warranty	5 Years

What does a non-isolated DC-DC charger mean?

A non-isolated charger shares a common negative connection between the input and output sides. This design is commonly used in vehicle installations and offers excellent efficiency.
