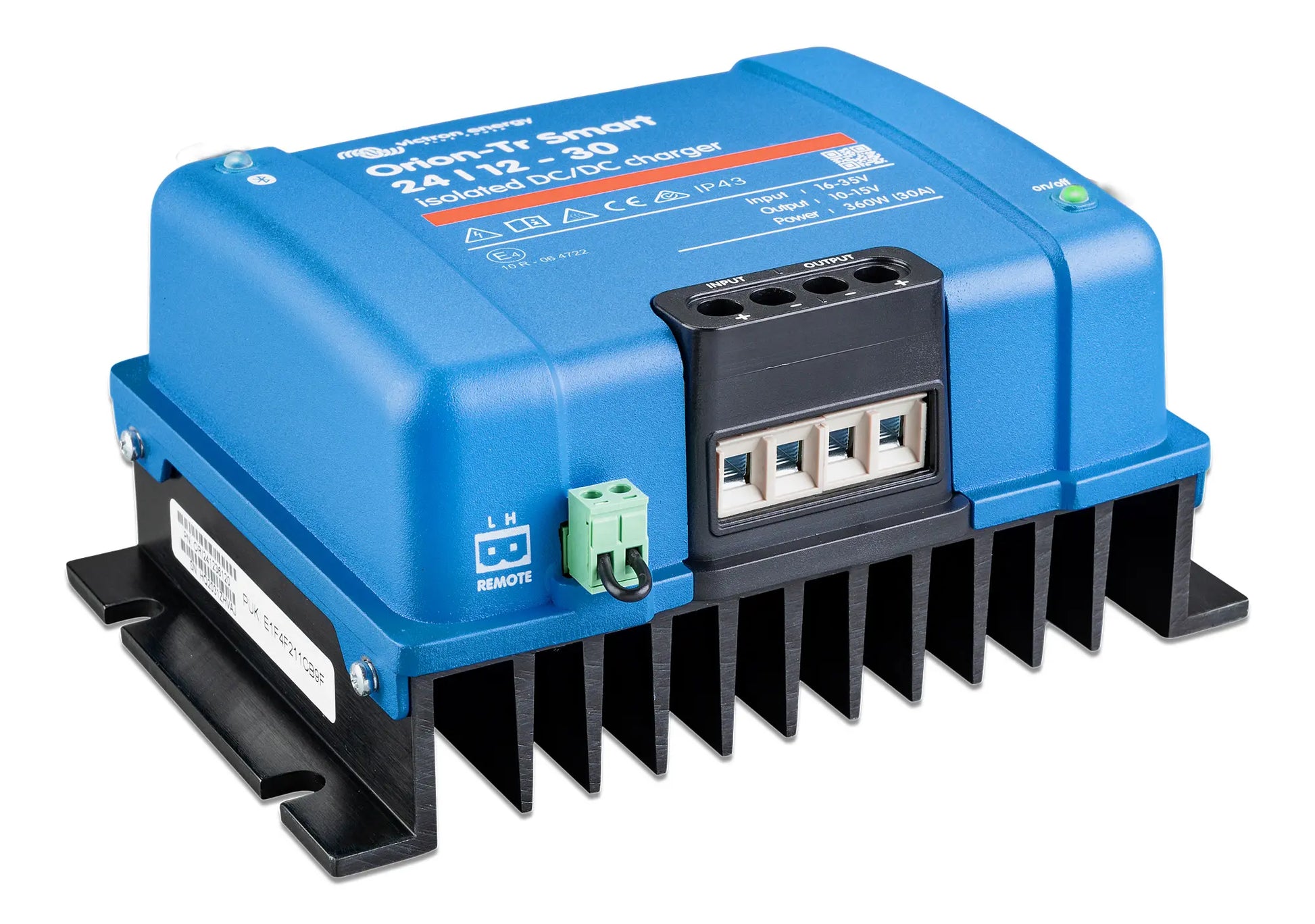

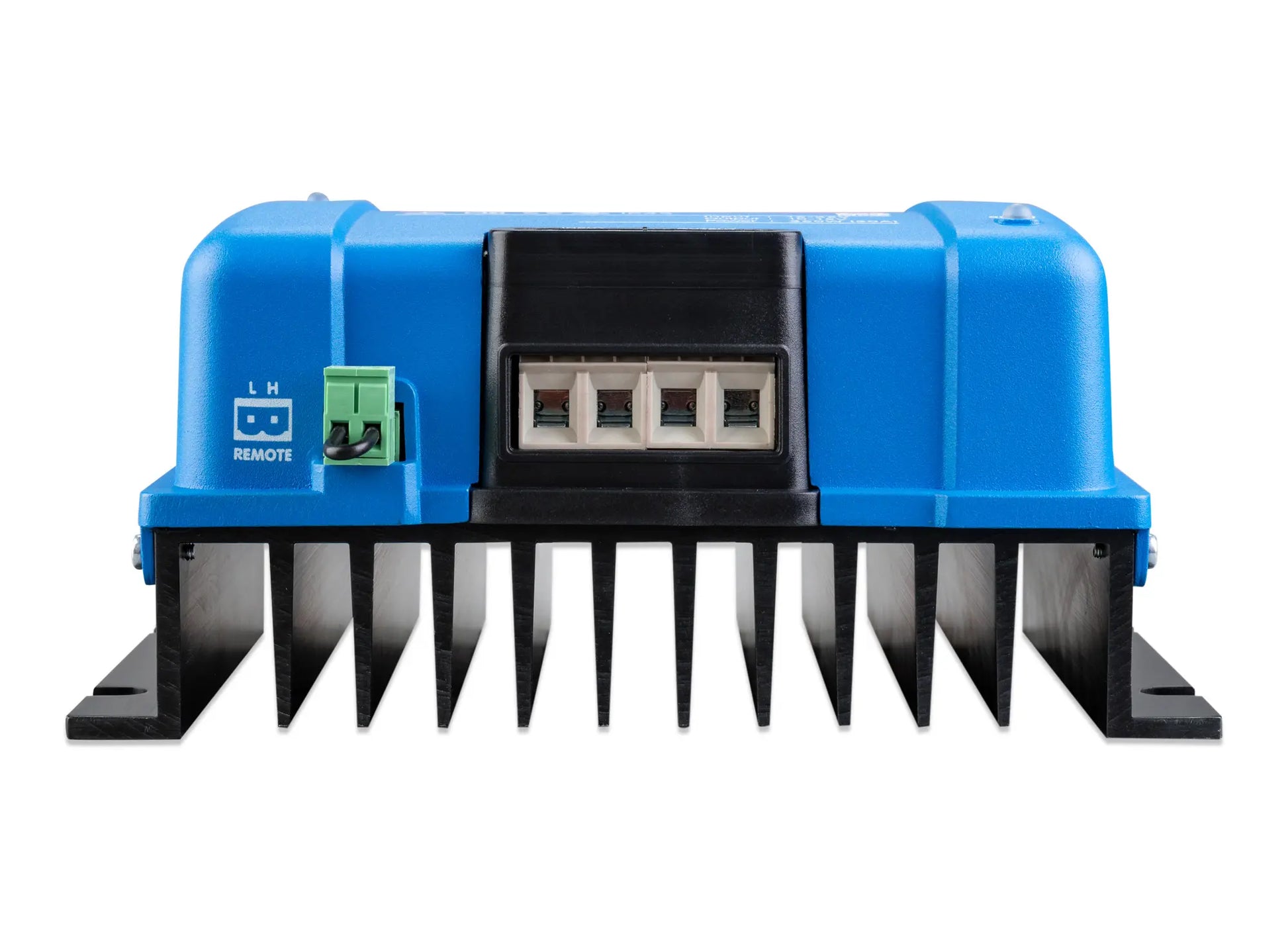

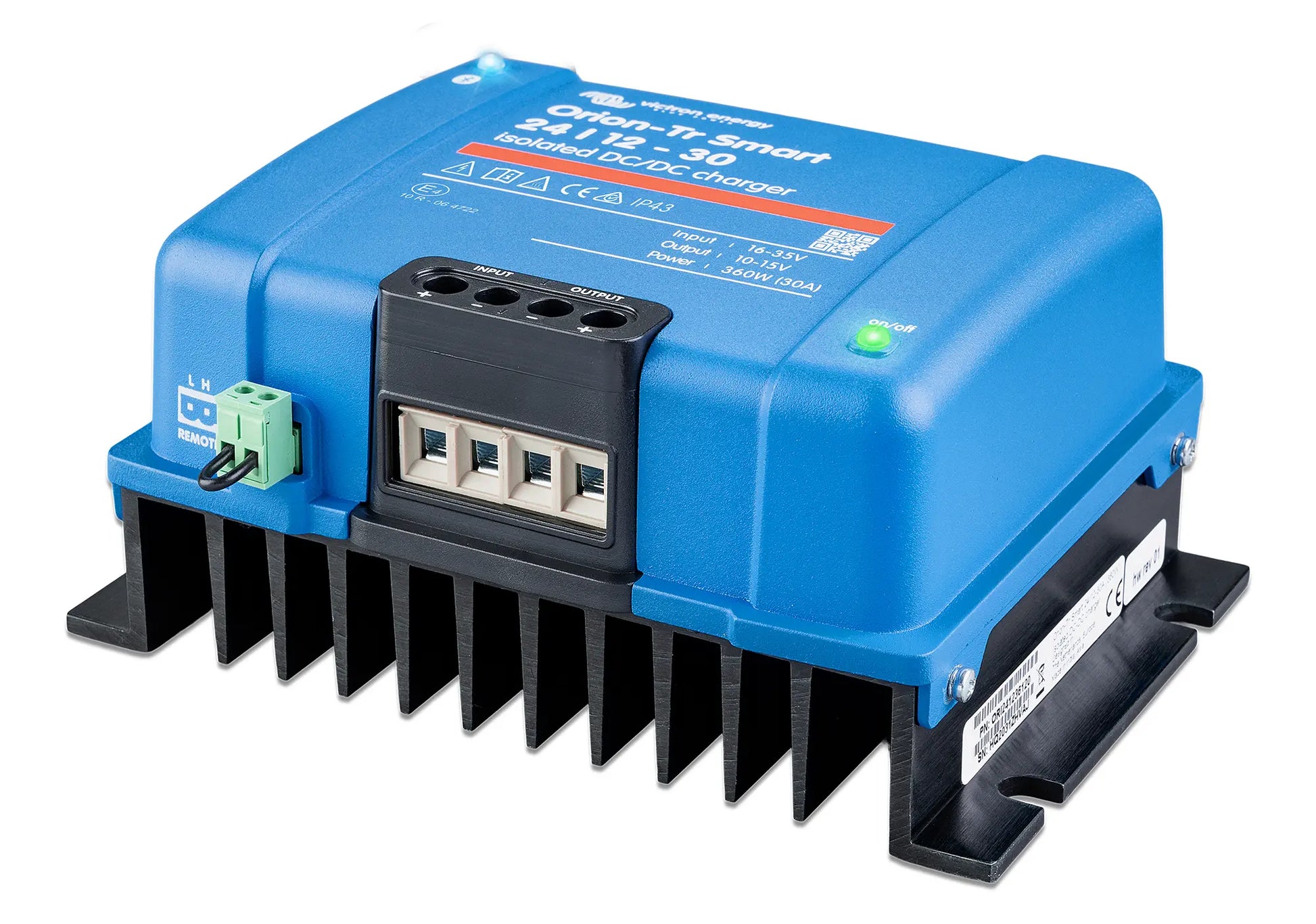

Victron Orion-Tr Smart 24/12-30A Isolated DC-DC Charger ORI241236120

Ideal for 24V trucks, commercial vehicles, marine systems, off-grid setups, auxiliary battery charging, lithium battery systems, and heavy-duty touring applications.

$550.00 AUD
$550.00 AUD
Sale
FREE shipping Australia-wide
  • Fast dispatch Australia-wide from Battery Force
  • Genuine Victron Energy product
  • Trusted by professional installers worldwide
  • Bluetooth setup and monitoring built in
  • Expert support available before and after purchase

The Victron Orion-Tr Smart 24/12-30A Isolated DC-DC Charger is a premium Bluetooth-enabled charger designed to safely charge 12V auxiliary batteries from a 24V vehicle electrical system. Delivering a powerful 30A output with fully programmable charging profiles, the Orion-Tr Smart is ideal for commercial vehicles, trucks, marine systems, industrial applications, and advanced off-grid installations.

Featuring Victron’s adaptive 3-stage charging algorithm, the charger provides intelligent bulk, absorption, and float charging to maximise battery performance and lifespan. It supports AGM, GEL, lead acid, and lithium battery chemistries, with full configuration available directly through the VictronConnect smartphone app.

The isolated design electrically separates the input and output circuits, helping reduce grounding issues and improving installation flexibility in complex electrical systems. Built-in Bluetooth allows real-time monitoring, charger configuration, firmware updates, and system diagnostics without additional hardware.

The Orion-Tr Smart also includes intelligent engine running detection for smart alternator compatibility, remote on/off switching, high-temperature protection, and parallel operation capability for higher output systems.

Designed for demanding environments, the Orion-Tr Smart is trusted worldwide in heavy vehicle, marine, and professional off-grid applications where reliable DC charging performance is critical.

Key Features

  • 24V input to 12V output DC-DC charger
  • 30A charging output
  • Isolated input and output design
  • Built-in Bluetooth connectivity
  • VictronConnect app monitoring and setup
  • Fully programmable charging profiles
  • Suitable for lithium and lead acid batteries
  • Adaptive 3-stage charging algorithm
  • Smart alternator compatibility
  • Remote on/off switching capability
  • High temperature protected
  • Can be connected in parallel for higher output
  • Compact professional-grade design
  • Suitable for trucks, marine, and off-grid systems

Specifications

Part Number ORI241236120
Brand Victron Energy
Product Type DC-DC Charger
Model Orion-Tr Smart 24/12-30A Isolated
Input Voltage 16-35V
Output Voltage 12.2V Nominal
Output Current 30A
Charging Algorithm 3-Stage Adaptive
Bluetooth Integrated
Battery Compatibility AGM / GEL / Lead Acid / Lithium
Isolation 200V DC Between Input, Output & Case
Remote On/Off Yes
Parallel Operation Yes
Operating Temperature -20°C to +55°C
Protection Rating IP43
Connection Type Screw Terminals
Maximum Cable Size 16mm²
Dimensions 130 x 186 x 80mm
Weight 1.8kg
Compliance ECE R10-5

What does this charger do?

It charges a 12V auxiliary battery system from a 24V vehicle or power source.

Is this suitable for lithium batteries?

Yes, it supports lithium, AGM, GEL, and lead acid battery chemistries.

What does isolated mean?

The isolated design separates the input and output circuits electrically, helping reduce grounding issues and improving installation flexibility.

Does this have Bluetooth?

Yes, built-in Bluetooth allows setup, monitoring, and firmware updates through the VictronConnect app.

Is this suitable for trucks and commercial vehicles?

Yes, it is specifically designed for 24V systems commonly found in trucks, heavy vehicles, and marine applications.
