Victron Energy - PMP122305010
MultiPlus-II 12/3000/120-32 Inverter/Charger
MultiPlus-II 12/3000/120-32 Inverter/Charger
Couldn't load pickup availability

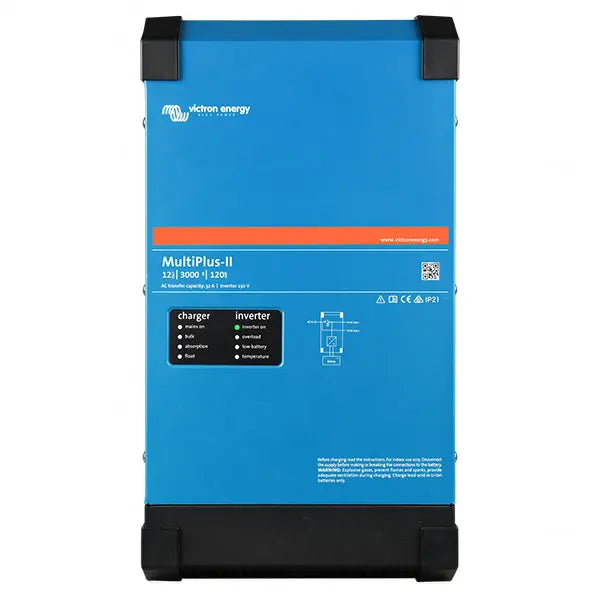

The Victron MultiPlus-II 12/3000/120-32 is a high-performance inverter/charger that seamlessly combines a 12V pure sine wave inverter with a powerful 120A battery charger and a 32A transfer switch. Designed for off-grid, backup, and mobile energy systems, it delivers reliable, uninterrupted power where it’s needed most.
Featuring PowerAssist technology, the MultiPlus-II can supplement limited shore or generator power with battery energy. It also supports parallel and three-phase configurations for scalable energy setups. Remote monitoring and control are available through Victron's VRM Portal when paired with a GX device.
Ideal for caravans, boats, homes, and off-grid cabins, this unit is engineered for maximum reliability, flexibility, and ease of use.
Key Features
- 12V pure sine wave inverter with 3000VA continuous output
- 120A advanced battery charger with adaptive charging
- 32A automatic transfer switch for seamless power switching
- PowerAssist boosts limited AC sources with battery support
- Compatible with lithium and lead-acid batteries
- Remote monitoring via Victron VRM (GX device required)
- Parallel and three-phase operation supported
Specifications
| Model | MultiPlus-II 12/3000/120-32 |
| Inverter Continuous Power | 3000VA / 2400W at 25°C |
| Peak Power | 5500W |
| Output Voltage | 230 VAC ±2% |
| Output Frequency | 50 Hz ±0.1% |
| Input Voltage Range | 9.5 – 17V DC |
| Charger AC Input | 187 – 265V AC, 45 – 65 Hz |
| Battery Charger Current | 120A |
| Transfer Switch | 32A |
| Efficiency | 93% |
| PowerAssist | Yes |
| Parallel Operation | Yes, up to 6 units |
| Three-Phase Support | Yes |
| Remote Monitoring | Via GX device and Victron VRM |
| Dimensions (H x W x D) | 499 x 268 x 141 mm |
| Weight | 18.8 kg |
