Victron Energy - IP22

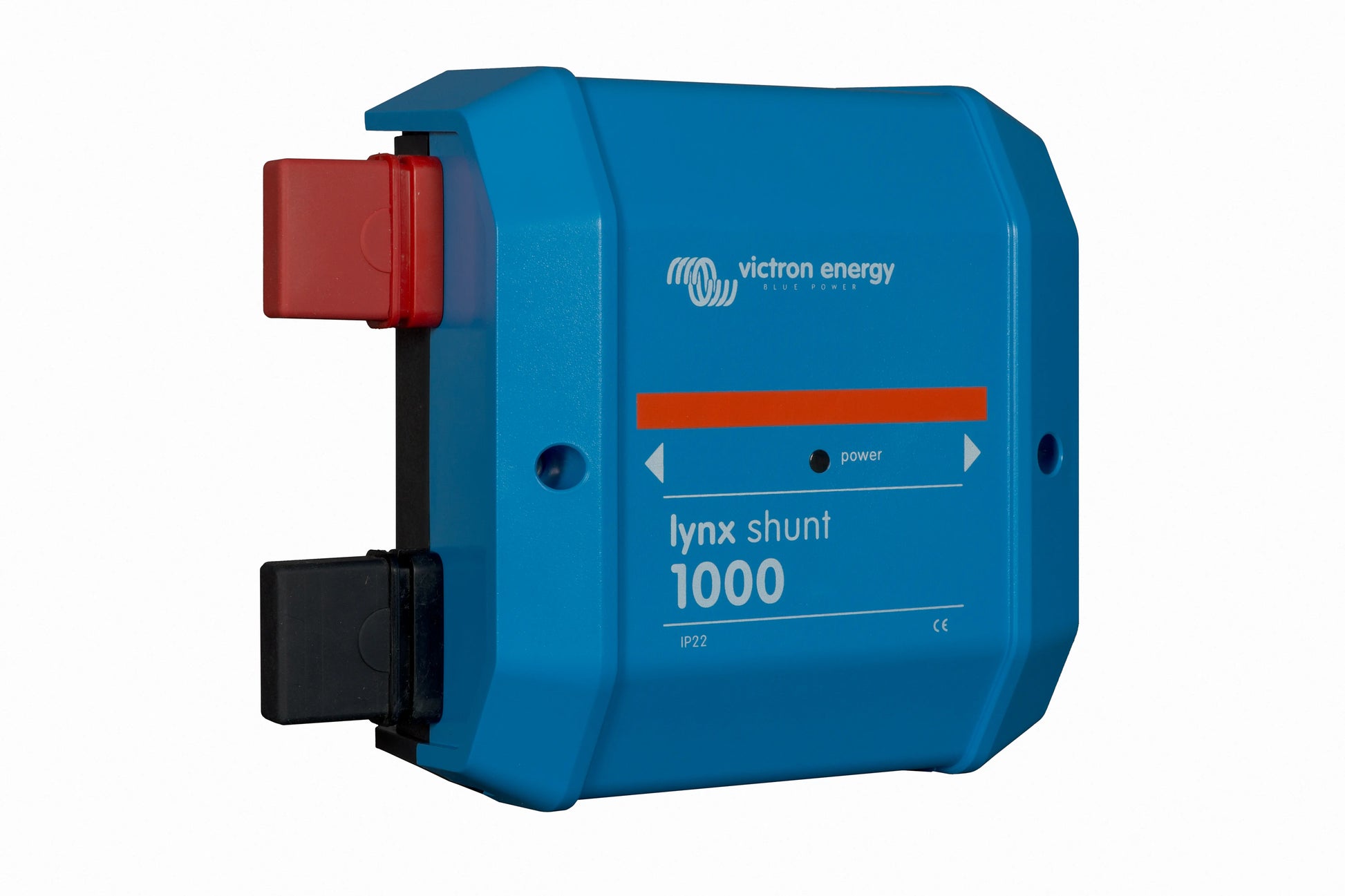

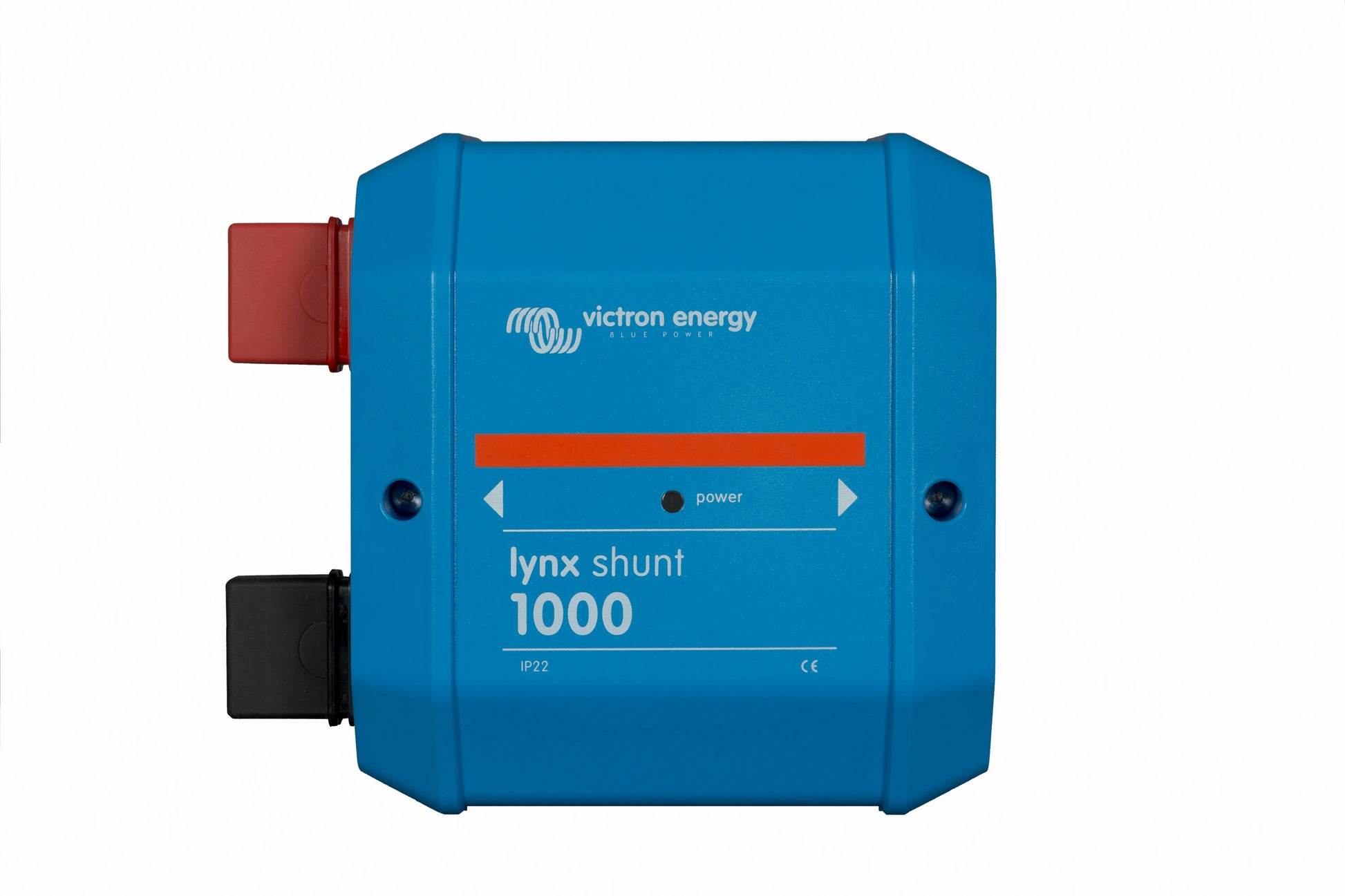

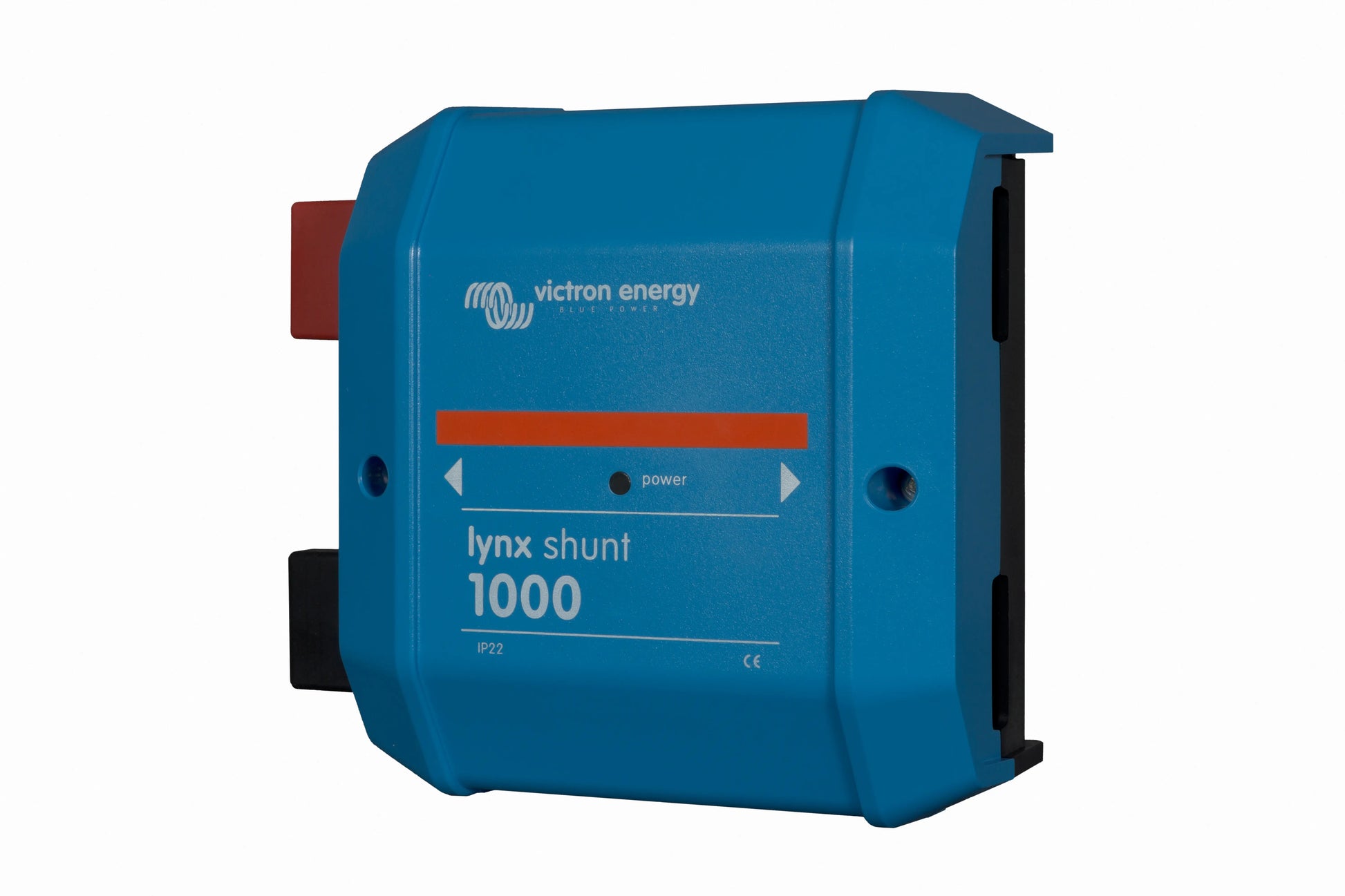

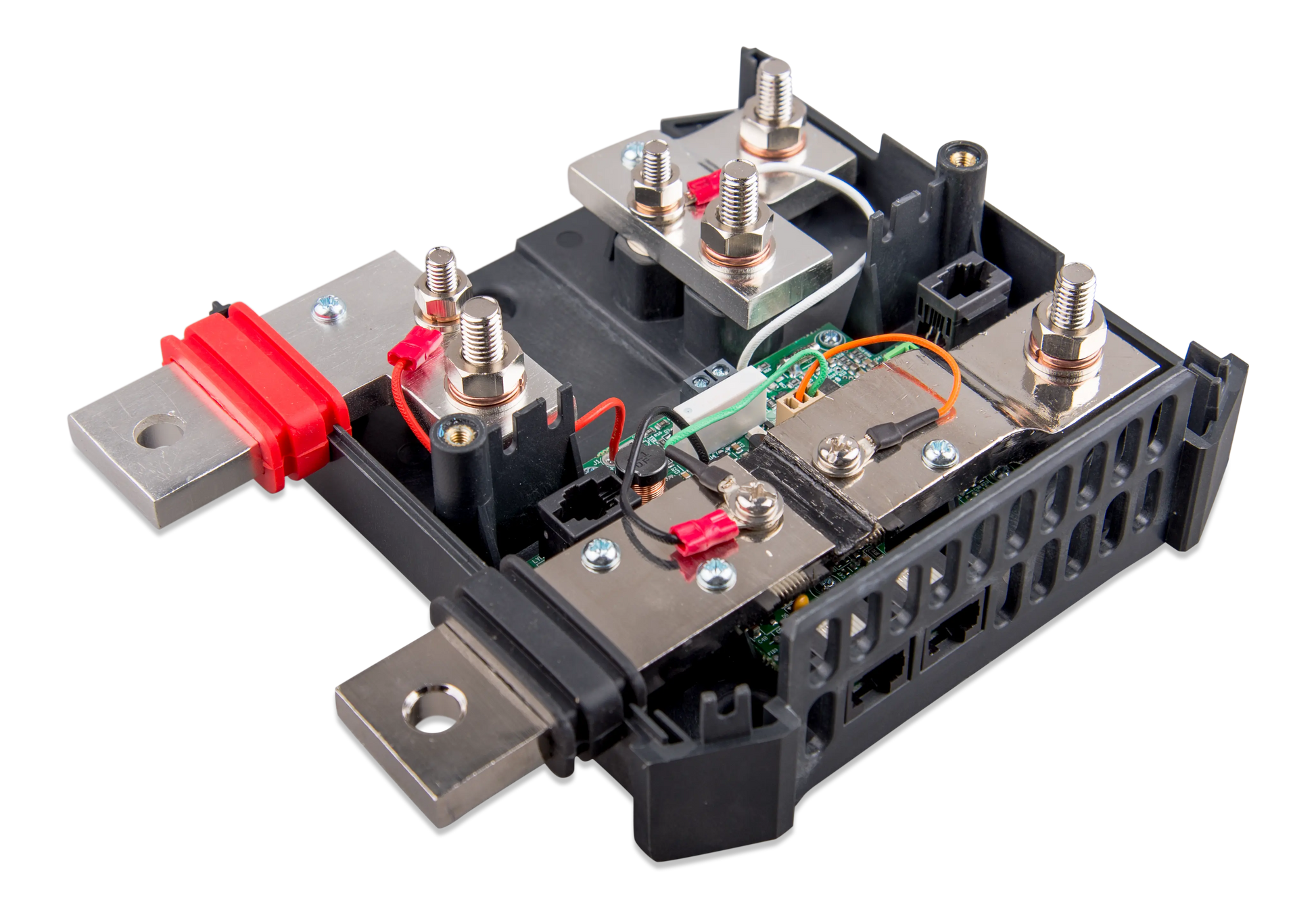

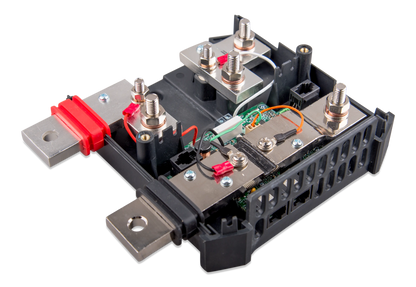

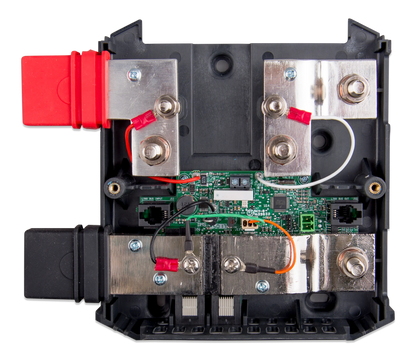

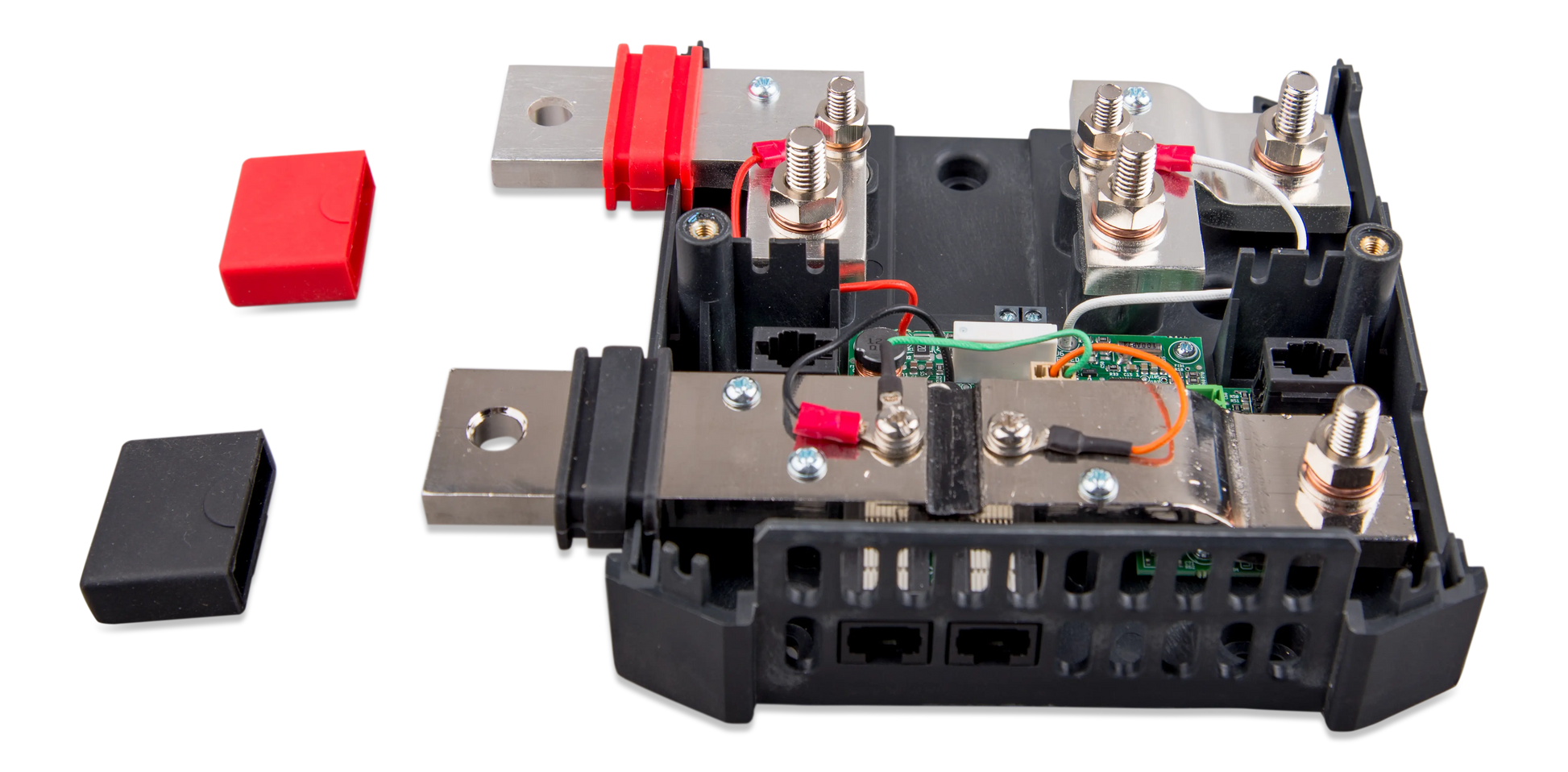

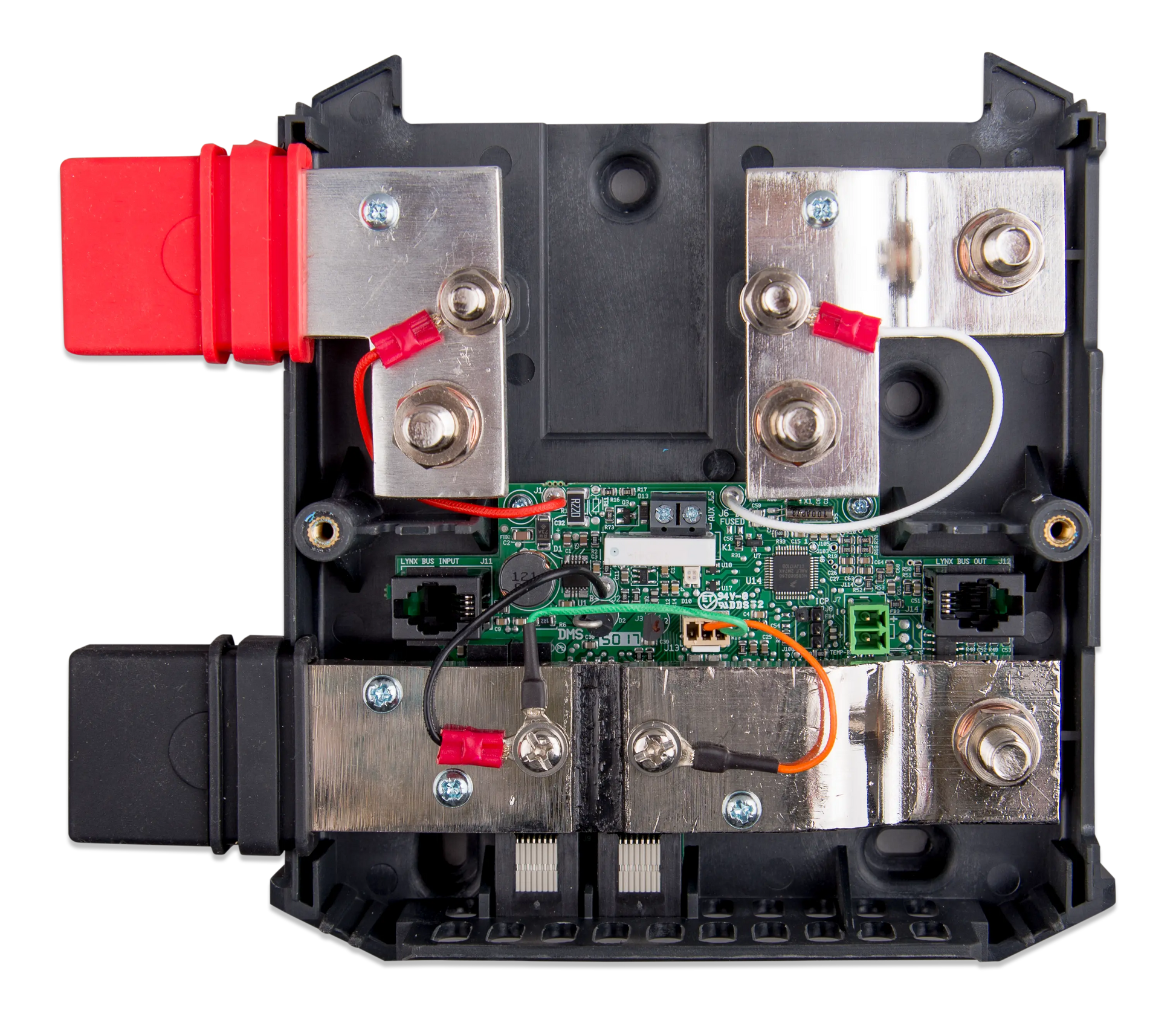

Victron Lynx Shunt VE.Can M8 1000A Battery Monitor
Ideal for off-grid solar systems, marine electrical systems, large 4WD power setups, caravans, motorhomes and commercial battery installations requiring accurate battery monitoring and integrated DC power distribution.
Regular price
$489.95 AUD
Regular price
Sale price
$489.95 AUD
Unit price
/
per
FREE shipping Australia-wide
- Genuine Victron Energy product
- Continuous 1000A current handling capability
- Compatible with Victron GX monitoring systems
- Includes temperature sensor for enhanced battery monitoring
- Backed by Battery Force support and Australia-wide shipping

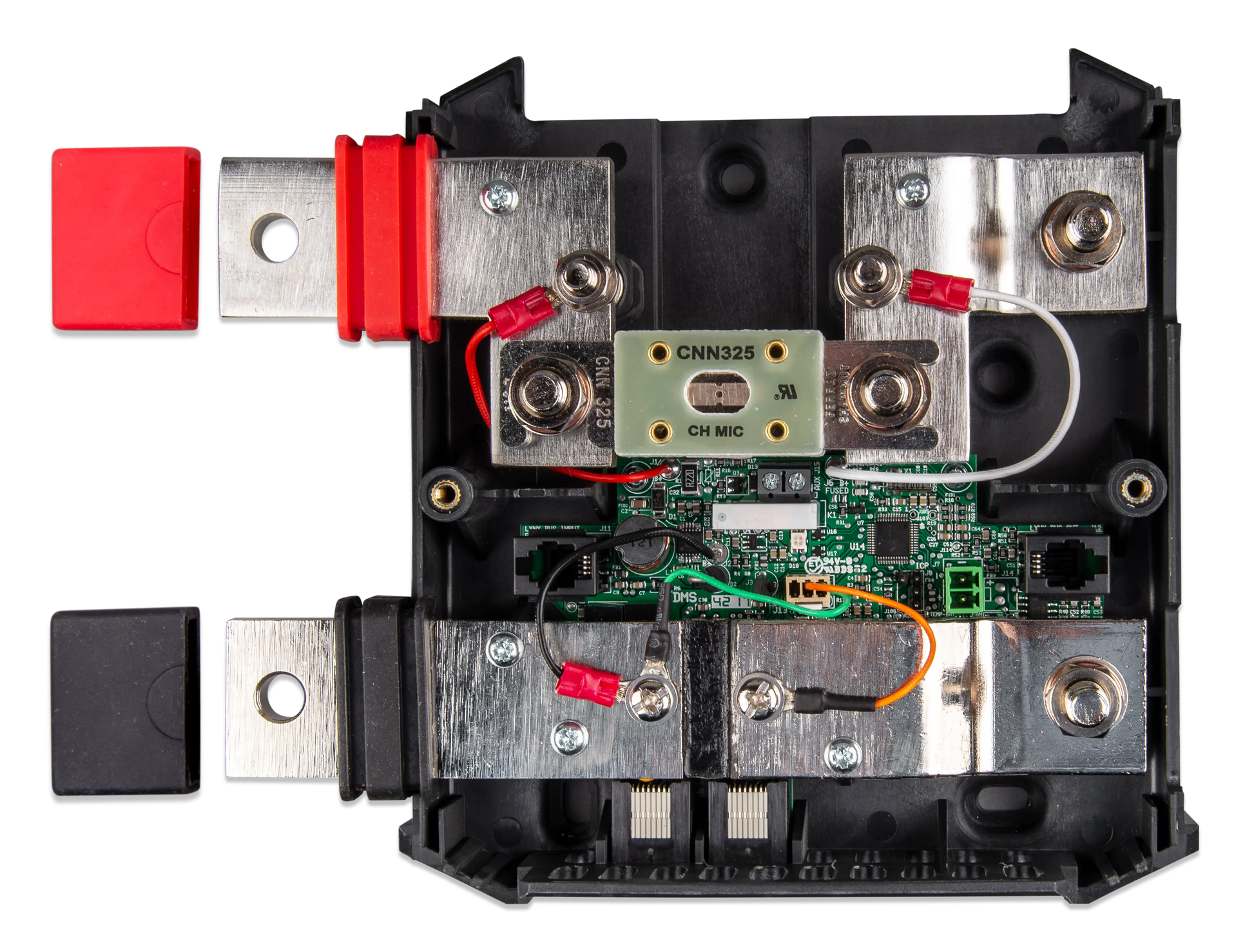

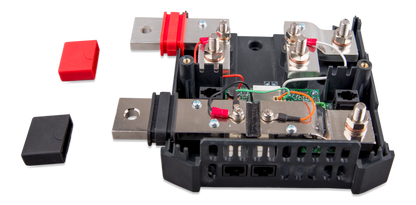

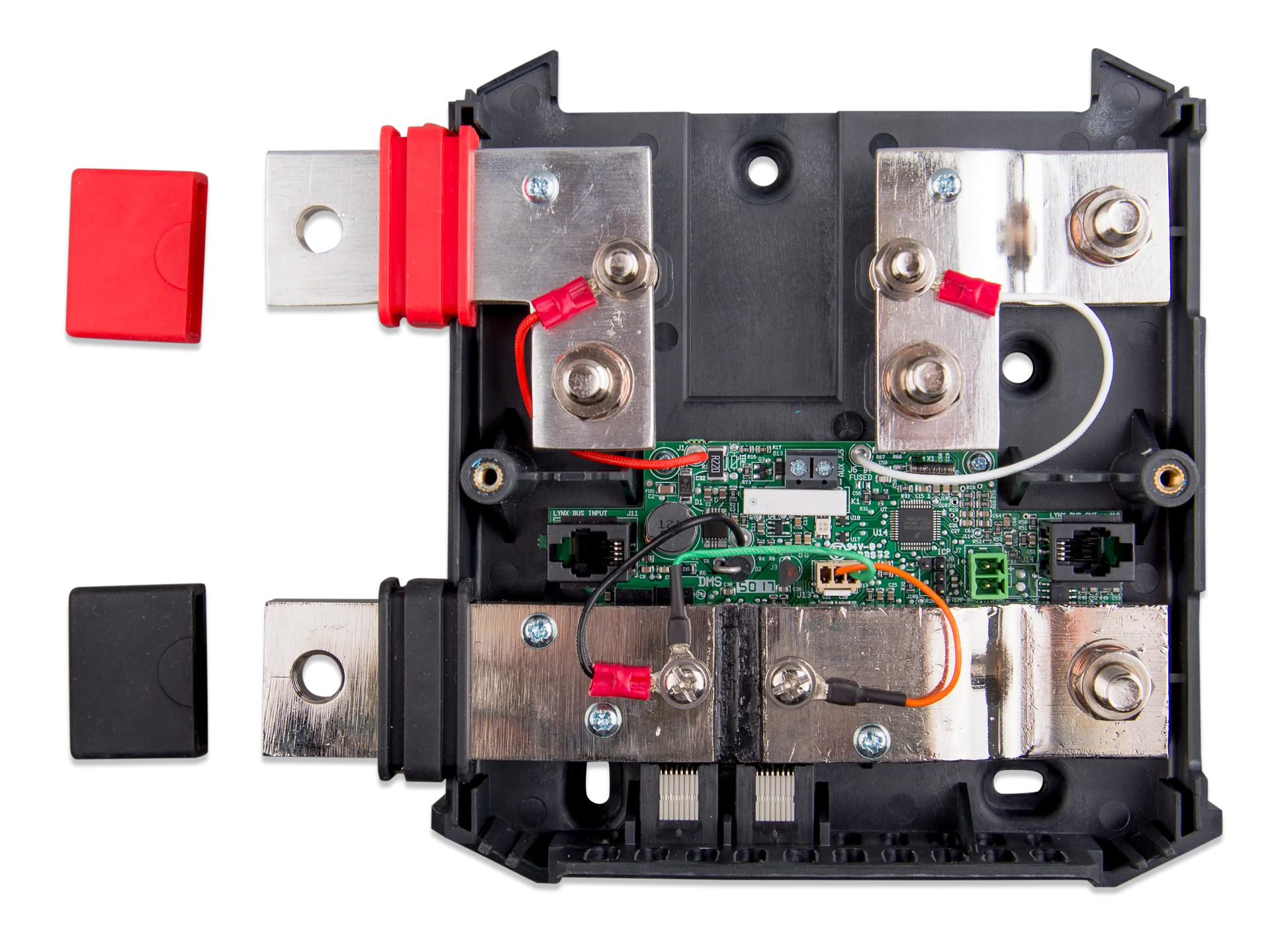

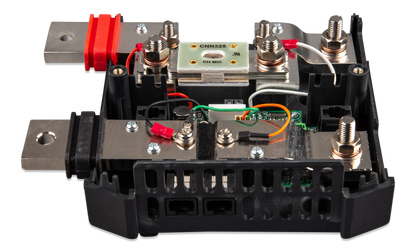

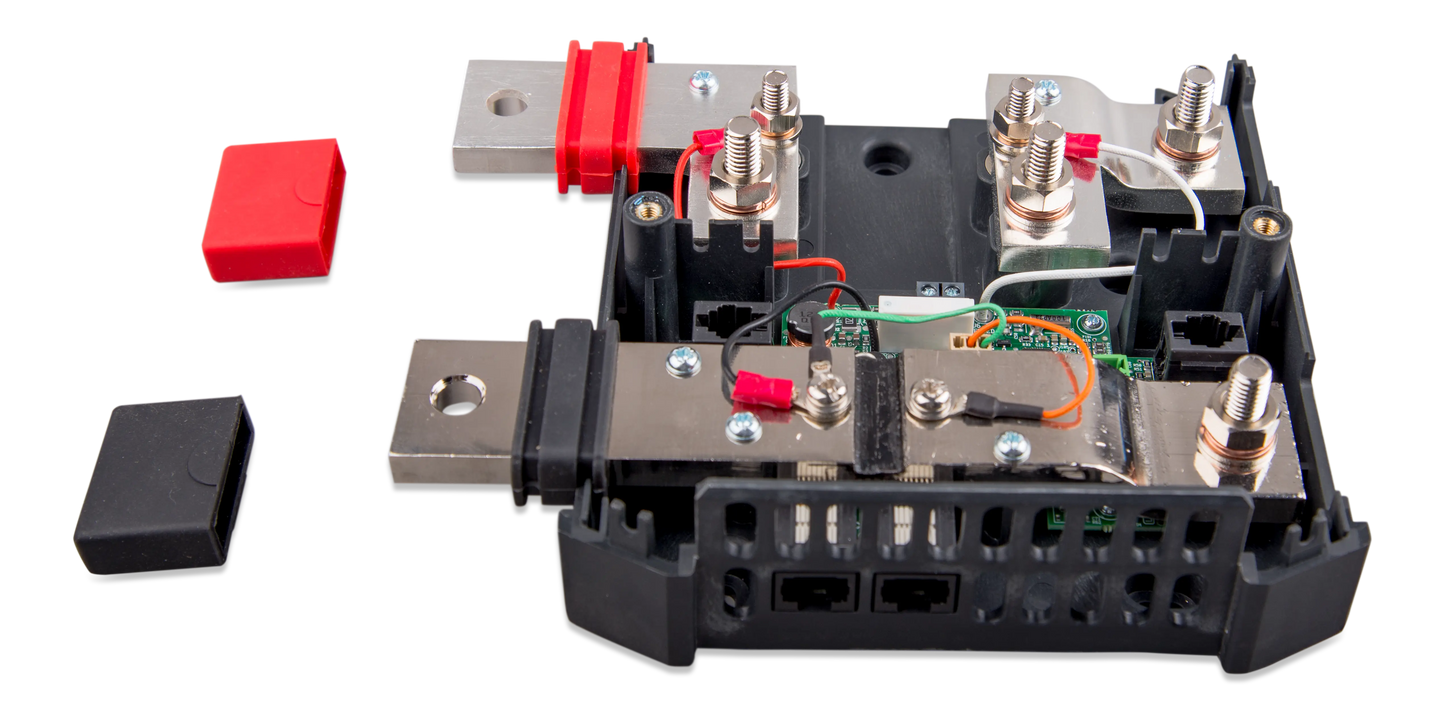

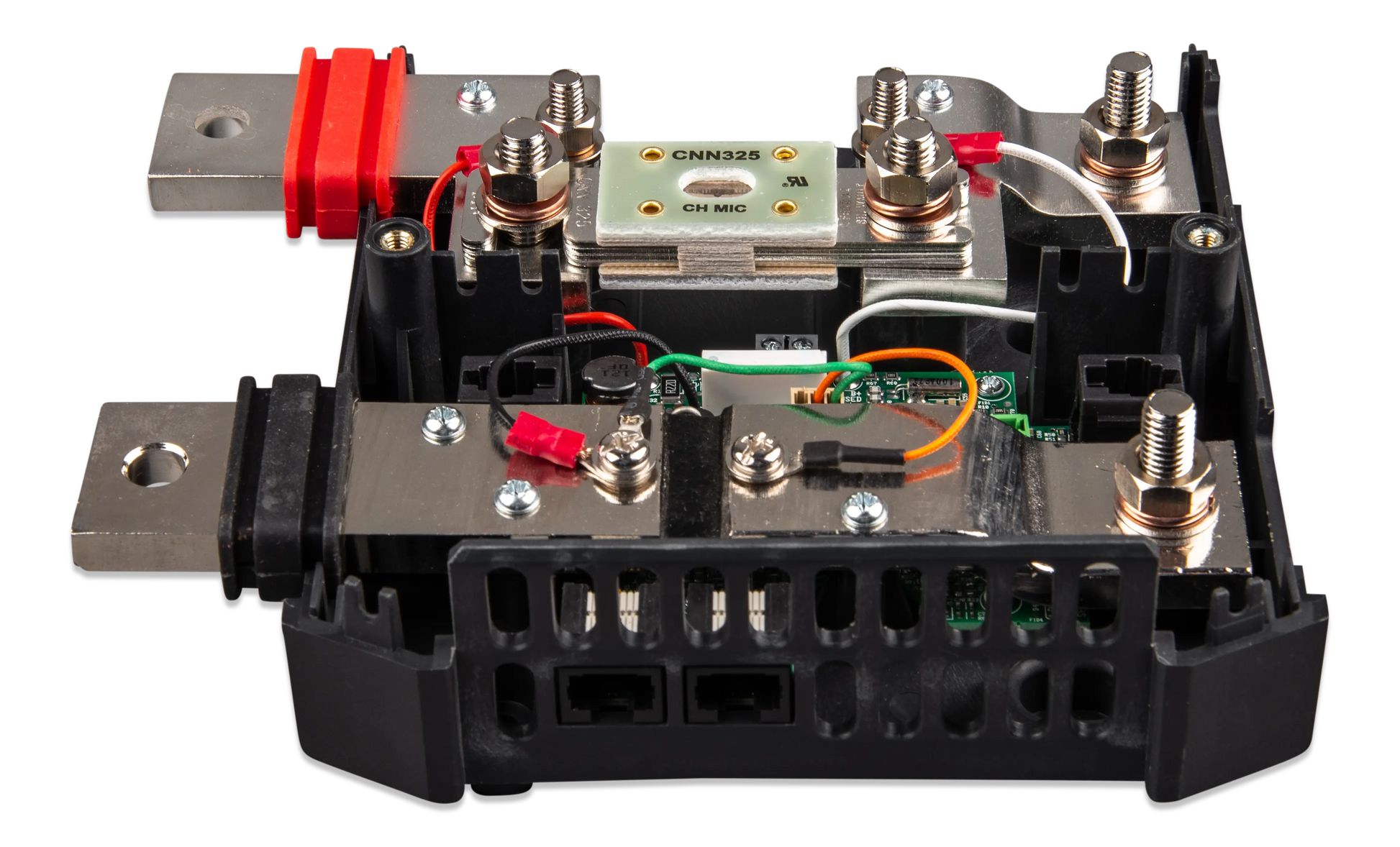

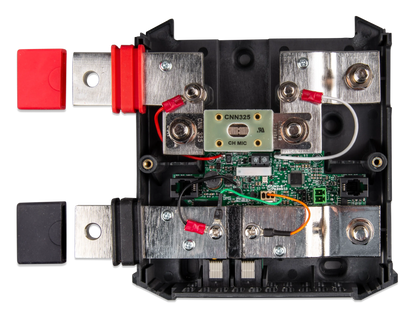

The Victron Lynx Shunt VE.Can (M8) is a professional-grade battery monitoring and DC distribution component designed for larger 12V, 24V and 48V battery systems. Combining a precision 1000A shunt, positive and negative busbars, main system fuse holder, alarm relay and VE.Can communication into a single unit, the Lynx Shunt forms the heart of a Victron Lynx distribution system.
Designed for seamless integration with Victron GX devices such as the Cerbo GX, the Lynx Shunt provides accurate real-time battery monitoring including state of charge, voltage, current, power consumption, battery temperature and historical performance data. This information can be viewed locally or remotely through the Victron VRM Portal for complete system visibility.
The integrated 1000A shunt continuously tracks all current flowing into and out of the battery bank, delivering highly accurate state of charge calculations. An included temperature sensor allows battery temperature monitoring, while the built-in alarm relay can trigger alerts or control external devices based on battery voltage, state of charge, temperature or a blown main fuse.
Suitable for marine, off-grid, commercial, industrial and advanced 4WD power systems, the Lynx Shunt VE.Can simplifies DC system design while providing the monitoring accuracy and reliability expected from Victron Energy.
Key Features
- Integrated 1000A battery monitoring shunt
- Positive and negative busbars in a single housing
- VE.Can communication for GX device integration
- Supports 12V, 24V and 48V battery systems
- Compatible with Cerbo GX, GX Touch, Venus GX and CCGX
- Built-in main system fuse holder
- Includes battery temperature sensor
- Programmable alarm relay
- Remote monitoring through Victron VRM Portal
- Real-time battery voltage, current and state of charge monitoring
- Historical battery performance logging
- Compatible with Victron Lynx distribution systems
- Continuous 1000A current rating
- M8 busbar connections
- Modular design for expandable DC systems
Specifications
| Product Code | Lynx Shunt VE.Can (M8) |
| Brand | Victron Energy |
| System Voltage | 12V, 24V, 48V |
| Supply Voltage Range | 9V - 70V DC |
| Continuous Current Rating | 1000A |
| Busbar Size | M8 |
| Communication | VE.Can |
| Alarm Relay Rating | 3A, 30VDC, 250VAC |
| Temperature Sensor | Included |
| Main Fuse Compatibility | CNN Fuse (sold separately) |
| Enclosure Material | ABS |
| Busbar Material | Tinned Copper |
| Busbar Dimensions | 8mm x 30mm |
| Protection Rating | IP22 |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +60°C |
| Dimensions | 190 x 180 x 80mm |
| Weight | 1.4kg |
| Monitoring Functions | Voltage, Current, Power, State of Charge, Temperature, Historical Data |
| Remote Monitoring | Victron VRM Portal |
| GX Device Compatibility | Cerbo GX, GX Touch, Venus GX, CCGX |
Share
What does the Victron Lynx Shunt VE.Can do?
What does the Victron Lynx Shunt VE.Can do?
The Lynx Shunt VE.Can measures all current flowing into and out of the battery bank, allowing accurate monitoring of battery voltage, current, power usage, state of charge and historical battery performance.
Does the Lynx Shunt VE.Can include a battery monitor?
Does the Lynx Shunt VE.Can include a battery monitor?
Yes. The unit combines a precision battery monitor, 1000A shunt, positive and negative busbars, fuse holder and communication interface into a single module.
Can I connect the Lynx Shunt to a Cerbo GX?
Can I connect the Lynx Shunt to a Cerbo GX?
Yes. The Lynx Shunt VE.Can is designed to connect directly to Victron GX devices such as the Cerbo GX via VE.Can communication.
Is a temperature sensor included?
Is a temperature sensor included?
Yes. A battery temperature sensor is included and can be connected directly to the Lynx Shunt for battery temperature monitoring and alarm functions.
What size battery systems is it suitable for?
What size battery systems is it suitable for?
The Lynx Shunt VE.Can supports 12V, 24V and 48V systems and is rated for up to 1000A continuous current, making it suitable for large off-grid, marine, commercial and industrial battery installations.
