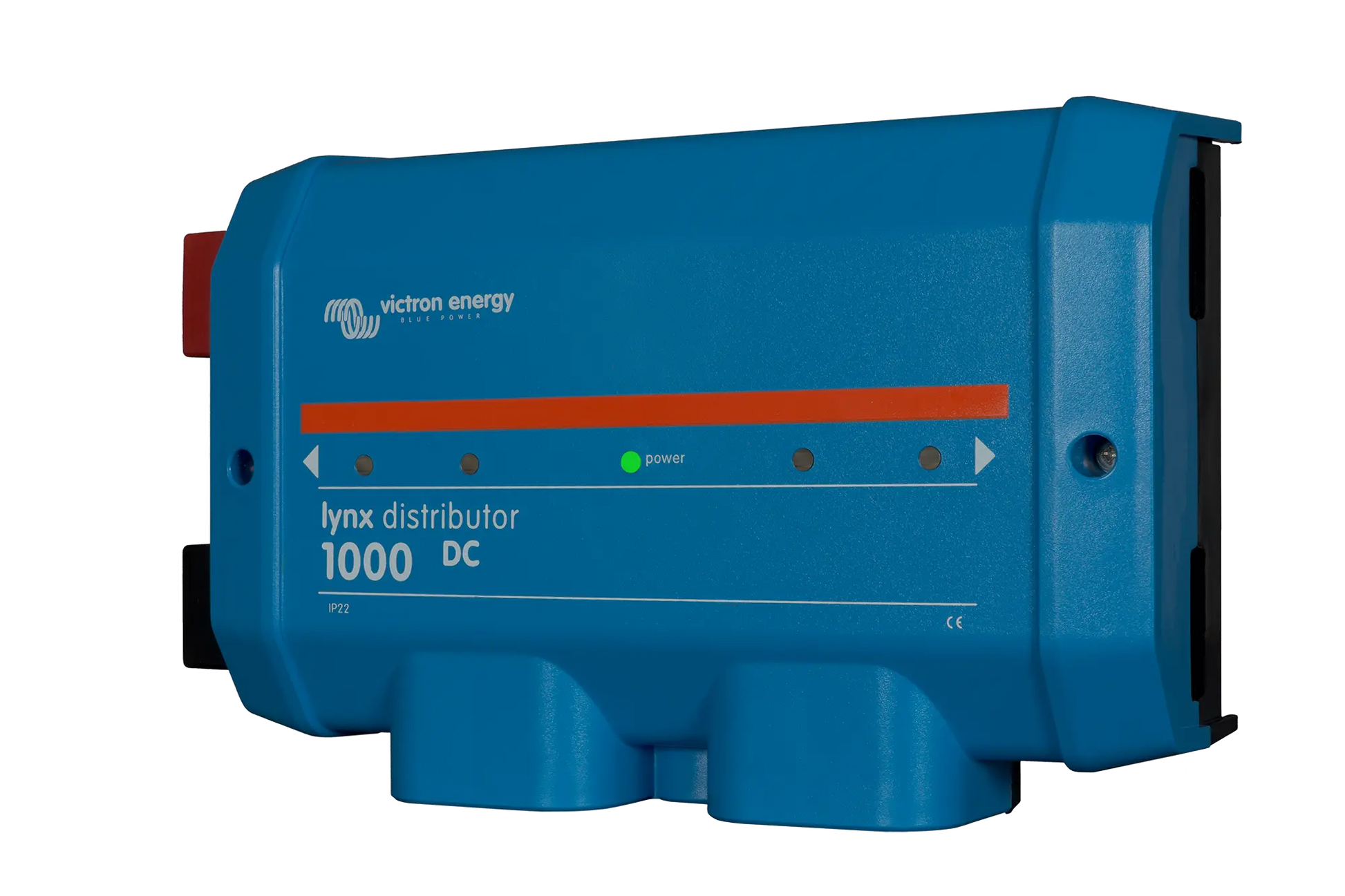

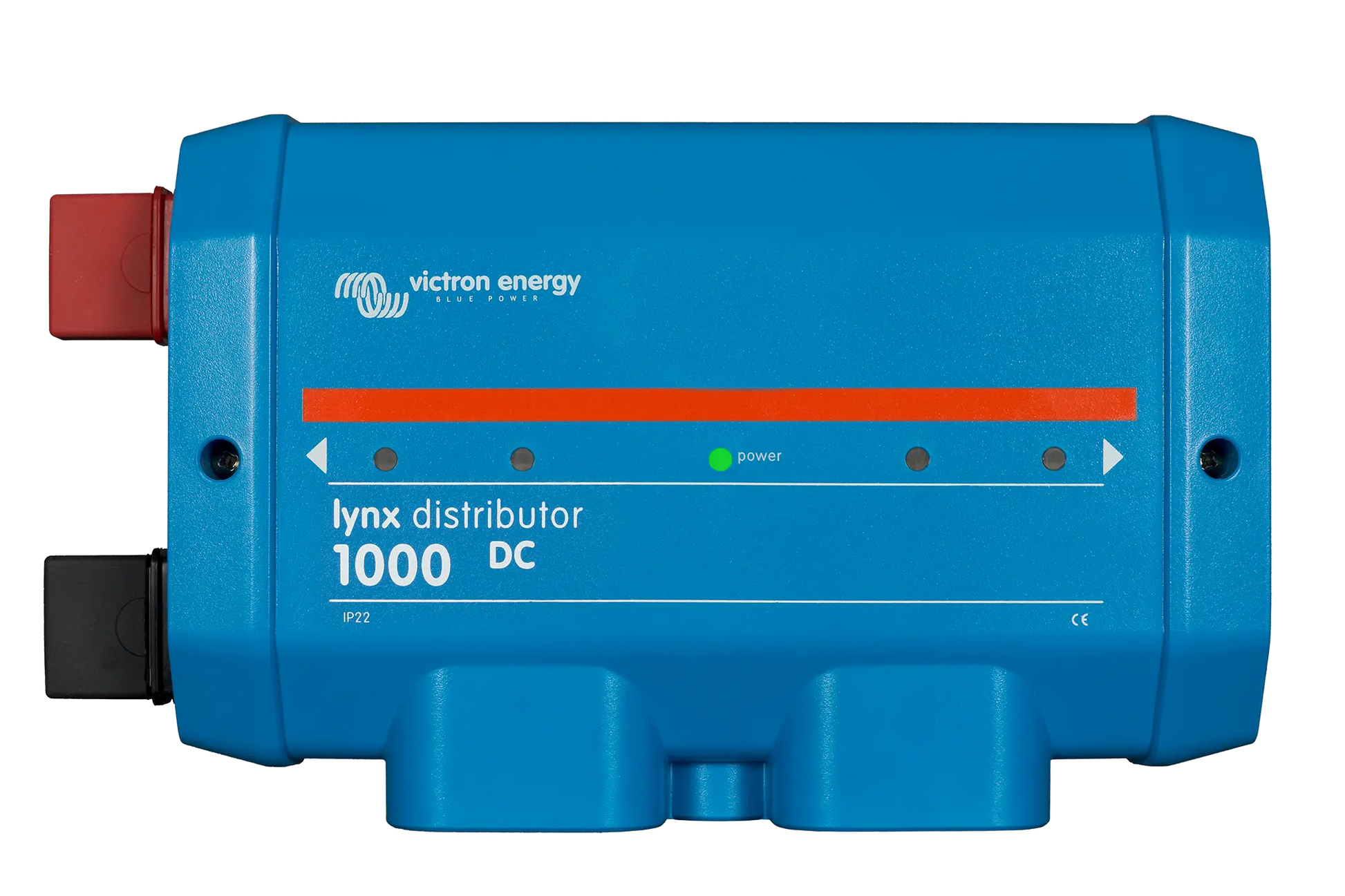

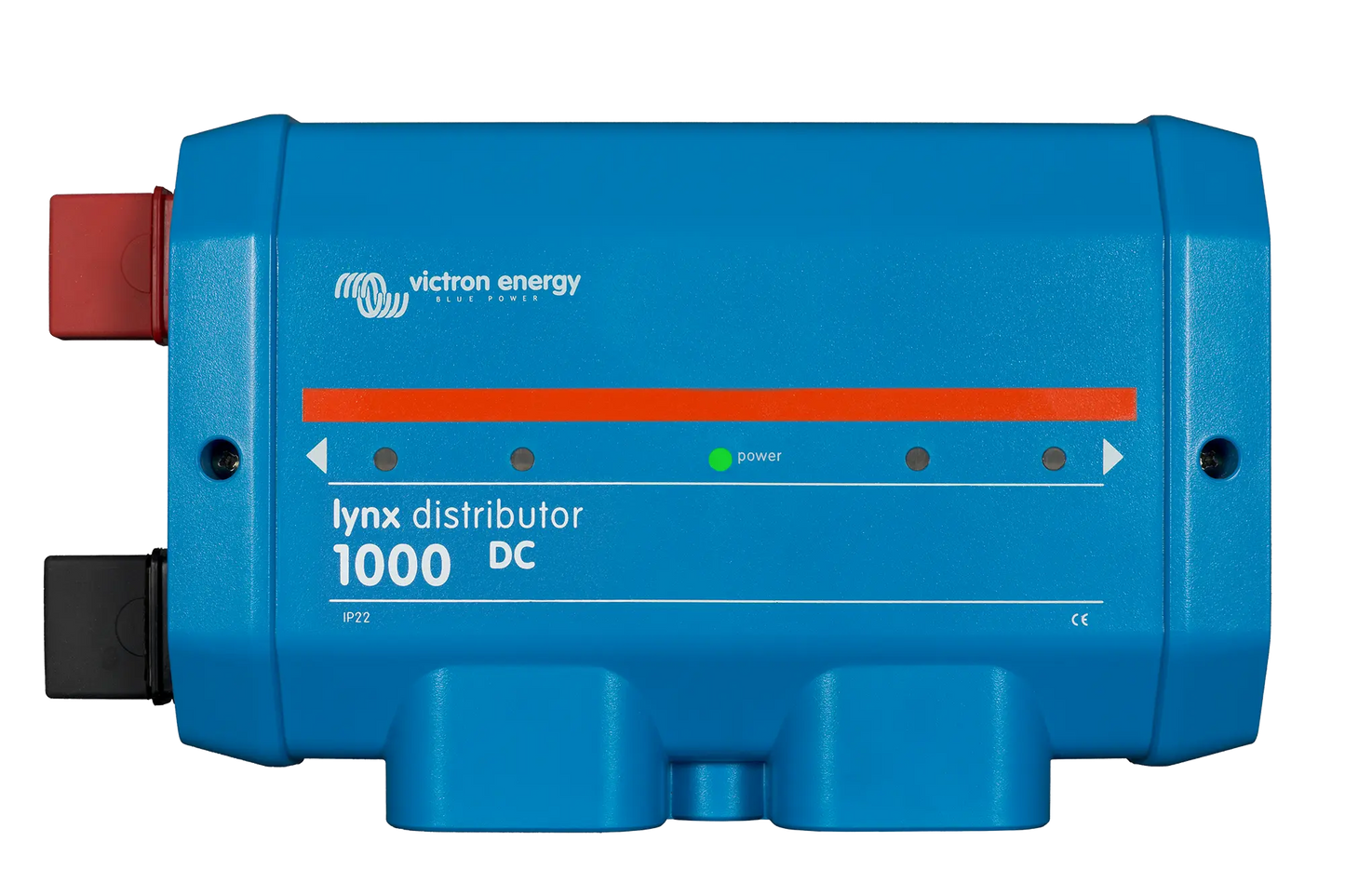

Victron Lynx Distributor 1000 DC M8

Name: Victron Lynx Distributor 1000 DC M8
Brand: Victron Energy
SKU: LYN060102000
Price: 424.95 AUD
Availability: InStock

Ideal for high-current off-grid, marine, caravan and commercial battery systems requiring fused DC power distribution.

$424.95 AUD

Sale

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Genuine Victron Energy product
Supports up to 1000A continuous current
Four individually fused DC circuits
Designed for professional battery installations
Backed by Battery Force support and Australia-wide shipping

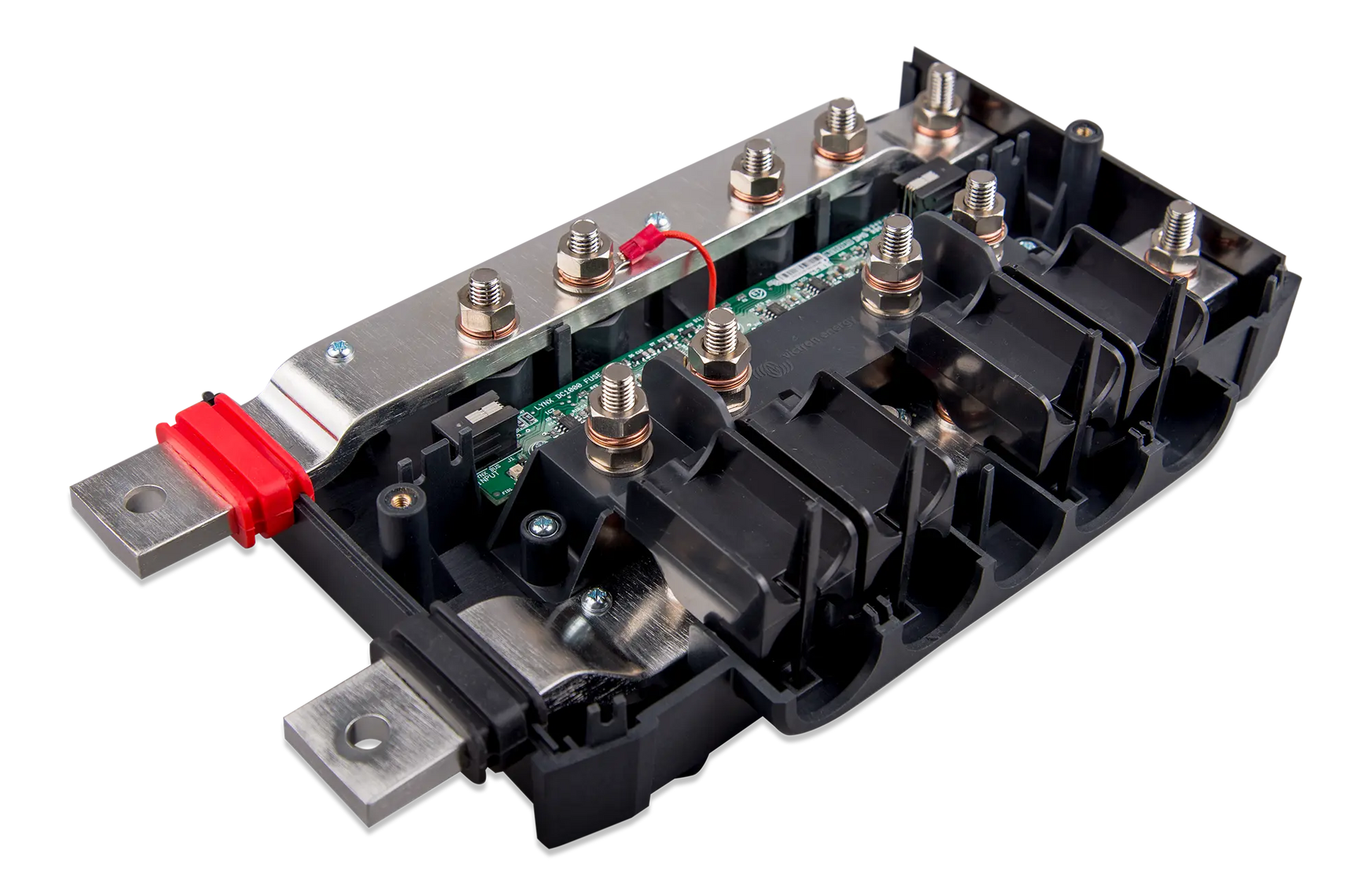

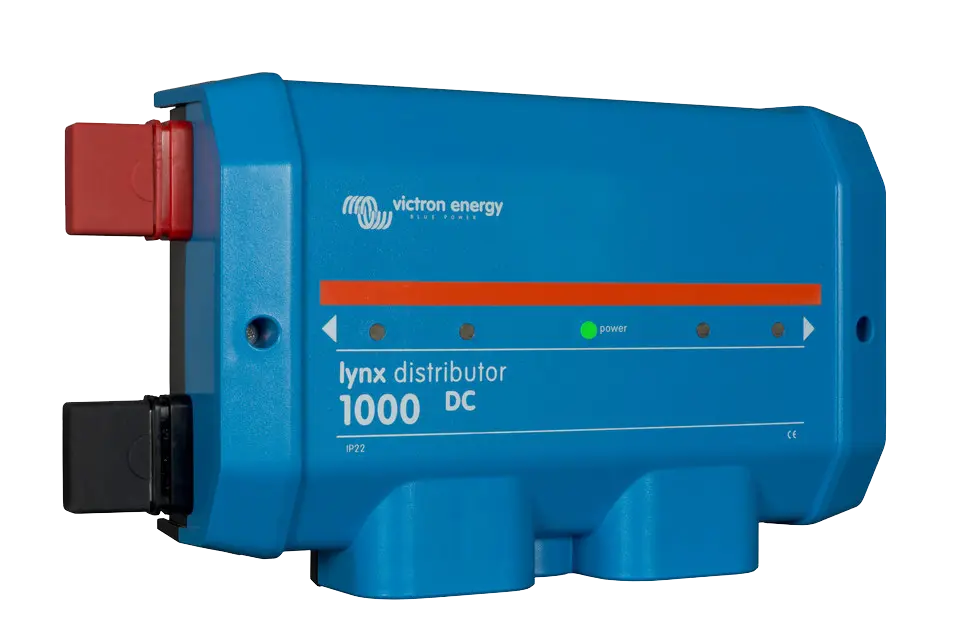

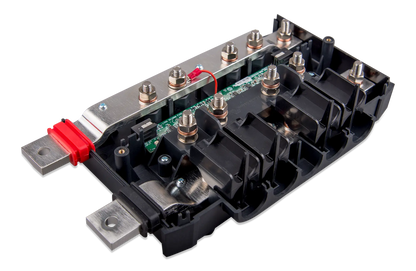

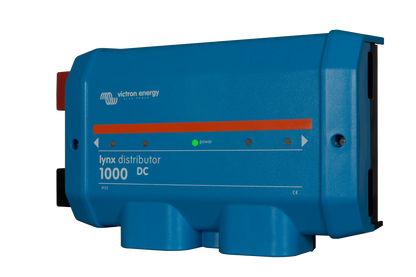

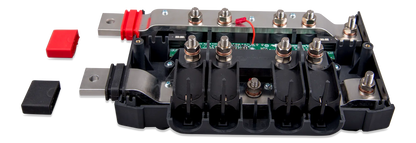

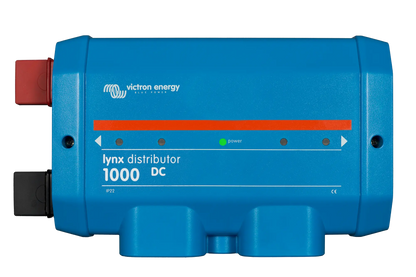

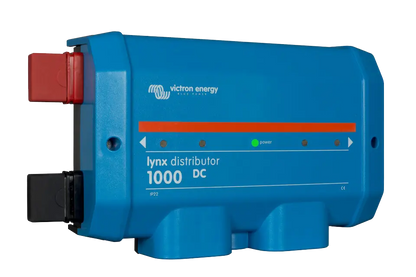

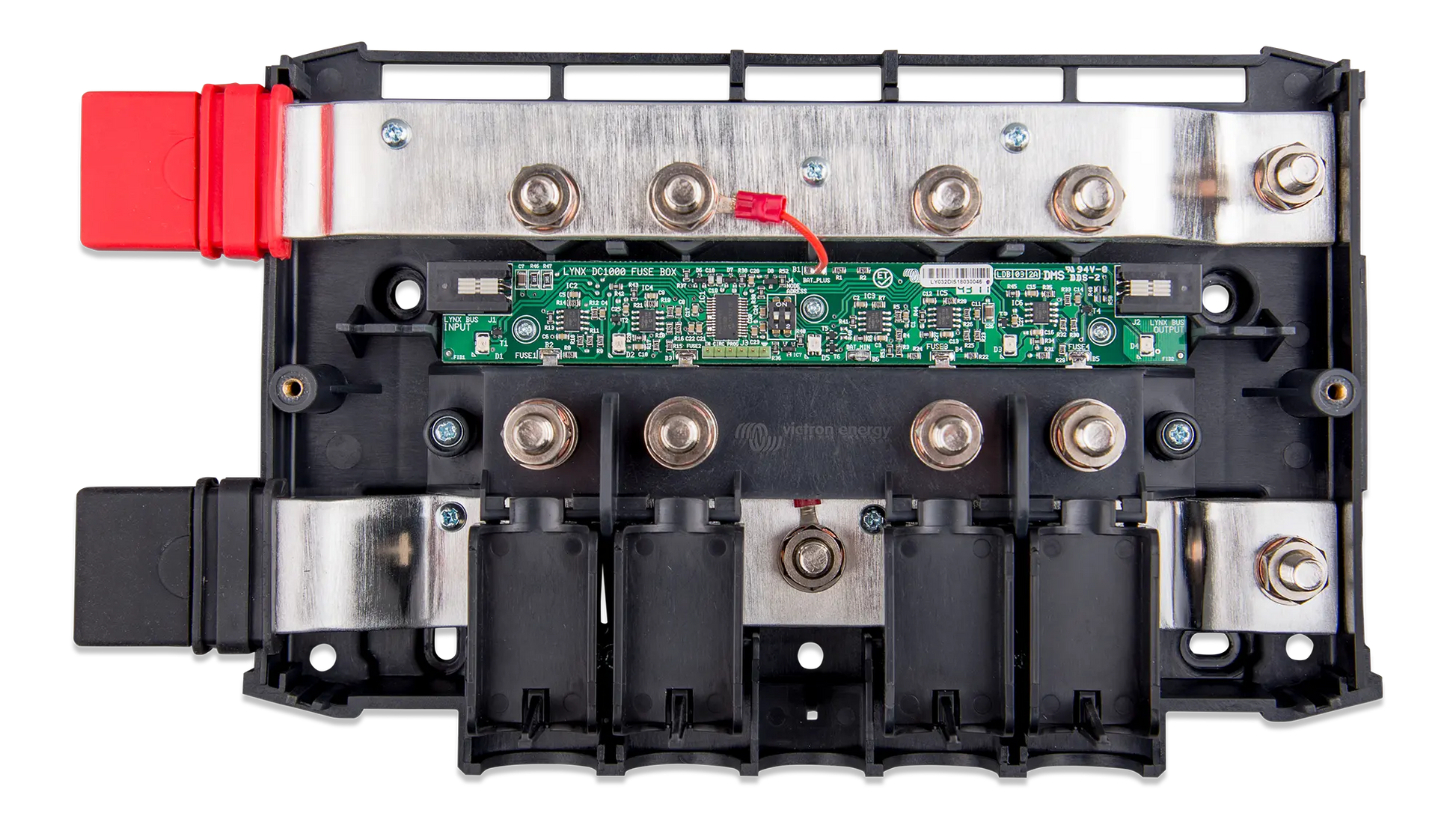

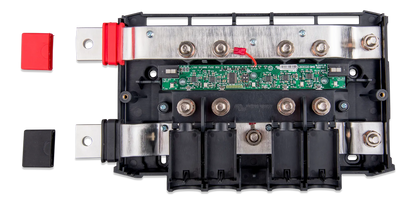

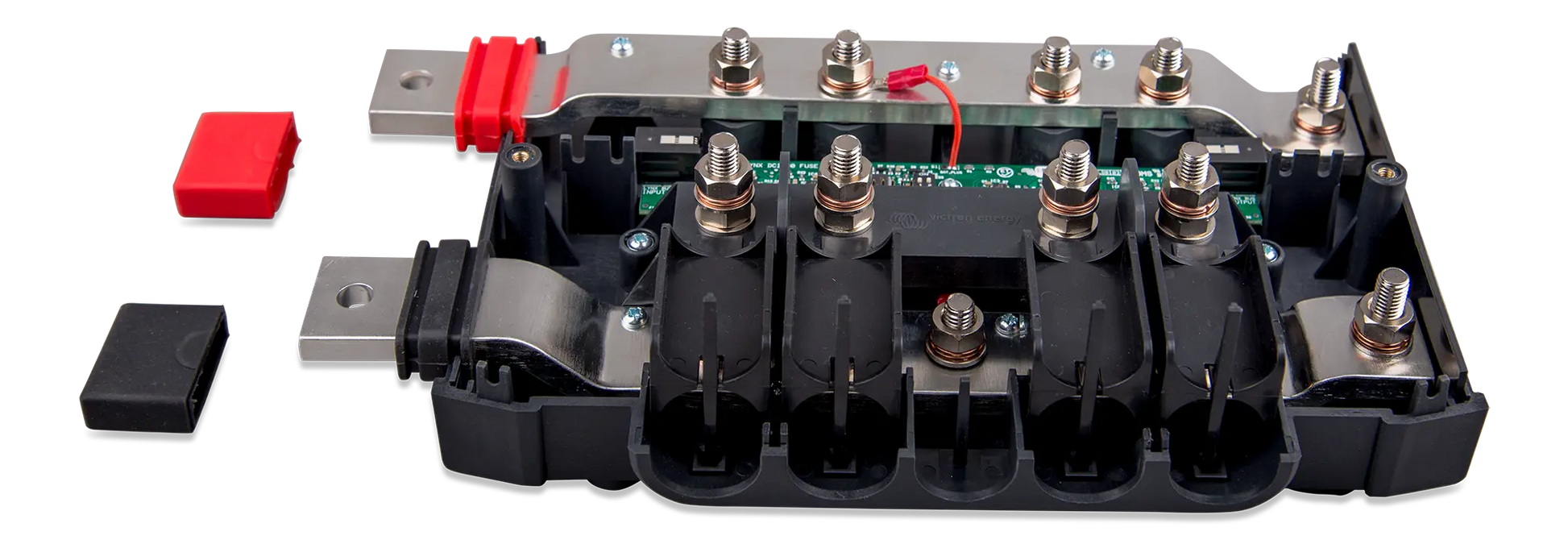

The Victron Lynx Distributor 1000 DC M8 is a premium DC busbar and fuse distribution system designed for high-current battery installations. Built as part of the Victron Lynx modular power distribution range, it combines positive and negative busbars with four individually fused DC circuits in a single professional-grade enclosure.

Ideal for off-grid solar systems, marine electrical installations, caravans, motorhomes and commercial battery systems, the Lynx Distributor provides a clean, organised and scalable method of distributing power to inverters, chargers, DC loads and auxiliary equipment. The integrated fuse monitoring system provides visual indication of blown fuses, helping simplify fault finding and maintenance.

The M8 version features M8 fuse and cable connection points and supports up to four MEGA fuse-protected circuits. When used with a Victron Lynx Smart BMS, fuse status information can also be monitored through VictronConnect, GX devices and the Victron VRM Portal.

Designed to integrate seamlessly with other Victron Lynx modules including the Lynx Power In, Lynx Shunt VE.Can and Lynx Smart BMS, the Lynx Distributor allows installers to build professional, high-current DC systems with simplified wiring, improved safety and future expansion capability.

Key Features

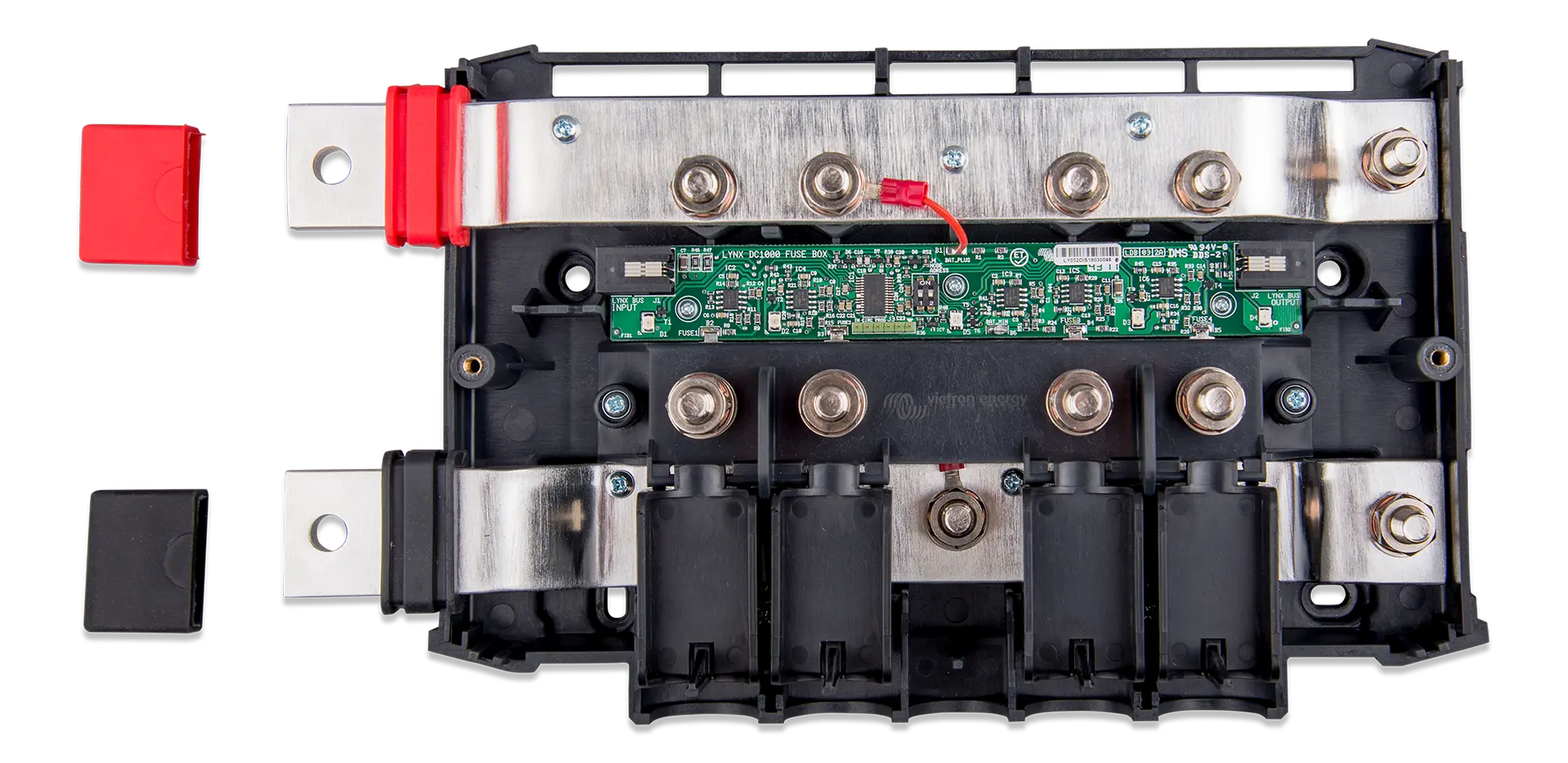

Integrated positive and negative busbars
Four individually fused DC circuits
Supports MEGA fuses (sold separately)
Built-in fuse monitoring LEDs
Continuous 1000A current rating
M8 cable and fuse connections
Modular Victron Lynx system compatibility
Compatible with Lynx Power In, Lynx Shunt VE.Can and Lynx Smart BMS
RJ10 communication interface included
Supports remote fuse monitoring when paired with a Lynx Smart BMS
Tinned copper busbars for excellent conductivity
Professional DC distribution solution for large battery systems
Clean and organised installation design
Includes 40cm RJ10 communication cable

Specifications

Product	Victron Lynx Distributor 1000 DC M8
Brand	Victron Energy
System Voltage	12V, 24V, 48V
Voltage Range	9V - 60V DC
Continuous Current Rating	1000A
Busbar Connections	M8
Fuse Connections	M8
Fuse Type	MEGA Fuses
Number of Fused Circuits	4
Communication	RJ10
Included Cable	40cm RJ10 Cable
Reverse Polarity Protection	Yes
Busbar Material	Tinned Copper
Busbar Dimensions	8mm x 30mm
Enclosure Material	ABS
Protection Rating	IP22
Operating Temperature	-40°C to +60°C
Storage Temperature	-40°C to +60°C
Dimensions	290 x 170 x 80mm
Weight	2.2kg
Compatibility	Lynx Power In, Lynx Shunt VE.Can, Lynx Smart BMS

What does the Victron Lynx Distributor do?

The Lynx Distributor provides safe, organised DC power distribution through four individually fused circuits connected to integrated positive and negative busbars.

Does the Lynx Distributor include fuses?

No. MEGA fuses are required and sold separately, allowing you to select fuse ratings appropriate for each circuit.

What is the difference between the M8 and M10 versions?

The M8 version uses M8 busbar interconnections and cable connection points, while the M10 version uses larger M10 busbar interconnections. Both support M8 fuse and cable connections.
