Victron Energy - GX LTE 4G-SA

Victron GX LTE 4G Cellular Modem for GX Devices (Australia)

Ideal for connecting Victron GX systems in off-grid, marine, caravan, RV, commercial and remote energy installations to the Victron VRM Portal using the mobile network.

$424.95 AUD
$424.95 AUD
Sale
FREE shipping Australia-wide
  • Genuine Victron Energy communication accessory
  • Designed specifically for GX monitoring systems
  • Supports Australia's major 4G network bands
  • Simple installation with USB connectivity
  • Fast Australia-wide dispatch from Battery Force

The Victron GX LTE 4G is a dedicated cellular modem designed to provide reliable mobile internet connectivity for Victron GX devices, allowing your energy system to stay connected to the Victron Remote Management (VRM) Portal wherever cellular coverage is available. Designed specifically for Australian and New Zealand installations, the GX LTE 4G-SA supports 2G, 3G and 4G networks, making it ideal for off-grid power systems, motorhomes, caravans, marine installations and remote industrial applications.

Unlike a conventional mobile hotspot, the GX LTE 4G is purpose-built for Victron GX systems, delivering a dedicated internet connection for remote monitoring, firmware updates, alarms and system management through VRM. It connects directly to your GX device via USB and operates from an ultra-wide 8-70V DC input, making installation simple across 12V, 24V and 48V battery systems.

The integrated GPS receiver can be enabled with an optional active GPS antenna, allowing GPS tracking and geofencing within the VRM Portal. This makes the GX LTE 4G an excellent solution for mobile installations where system location and asset tracking are important.

Supplied with an indoor LTE antenna, DC power cable with inline fuse and integrated USB connection, the GX LTE 4G provides everything required for straightforward installation. For installations inside metal enclosures, vehicles or boats, optional outdoor LTE antennas are available to improve signal strength and maximise connection reliability.

Key Features

  • Genuine Victron Energy cellular modem
  • Designed specifically for Victron GX devices
  • Australian GX LTE 4G-SA model
  • Supports 2G, 3G and 4G cellular networks
  • Connects directly to the Victron VRM Portal
  • Operates from 8-70V DC
  • Built-in GPS receiver
  • Optional GPS tracking and geofencing
  • USB connection to GX devices
  • Mini-SIM card compatible
  • Includes indoor LTE antenna
  • Optional outdoor LTE antenna available
  • Compatible with Venus OS v2.60 and newer
  • Low power consumption
  • Ideal for remote monitoring applications

Specifications

Brand Victron Energy
Product GX LTE 4G Cellular Modem
Australian Model GX LTE 4G-SA (GSM100300400)
Network Support 2G / 3G / 4G LTE
LTE Bands 1, 2, 3, 4, 5, 7, 8, 20, 28, 40, 66
Supply Voltage 8-70V DC
Power Consumption 2.5W during data transfer, <1W idle
GPS Built-in receiver (requires optional active GPS antenna)
SIM Card Mini-SIM (1.8V / 3V)
Connection to GX Device Fixed USB-A Cable (1m)
LTE Antenna Connector SMA Female
GPS Antenna Connector SMA Female
Dimensions 106 × 42.5 × 22mm
Weight 0.08kg
Operating Temperature -40°C to +50°C
Compatibility Victron GX Devices running Venus OS v2.60+

What is the Victron GX LTE 4G used for?

The GX LTE 4G provides a dedicated mobile internet connection for compatible Victron GX devices, allowing remote monitoring and management through the Victron VRM Portal.

Can I use this as a mobile hotspot?

No. The GX LTE 4G is designed solely to provide internet access for the connected GX device. It cannot share internet with laptops, phones or other devices. If multiple devices require internet access, Victron recommends using a dedicated mobile router.

Does it include GPS?

The unit includes a built-in GPS receiver. To enable GPS tracking and geofencing within the VRM Portal, an optional active GPS antenna is required.

Which Victron GX devices is it compatible with?

The GX LTE 4G is compatible with Victron GX devices running Venus OS version 2.60 or later.

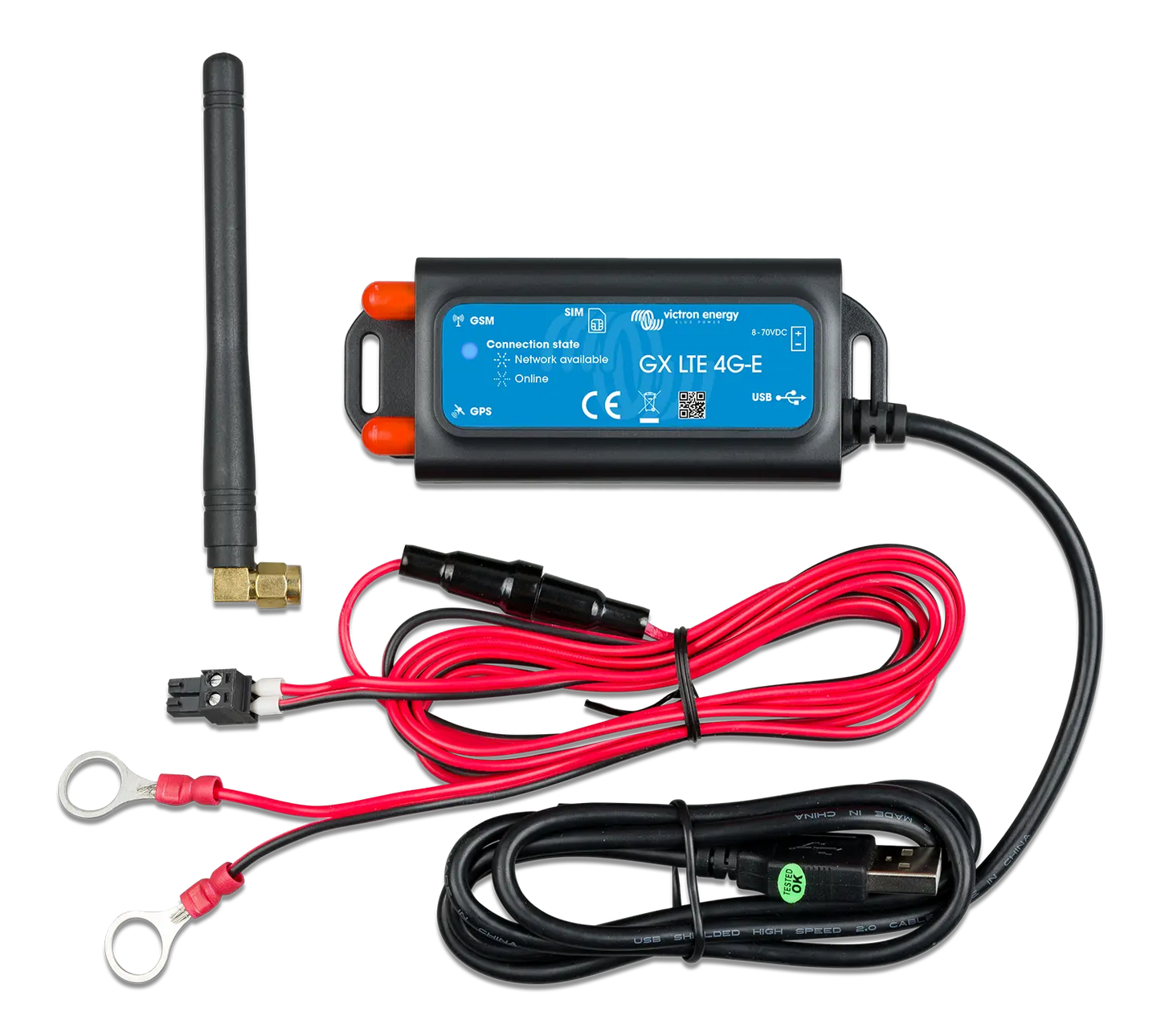

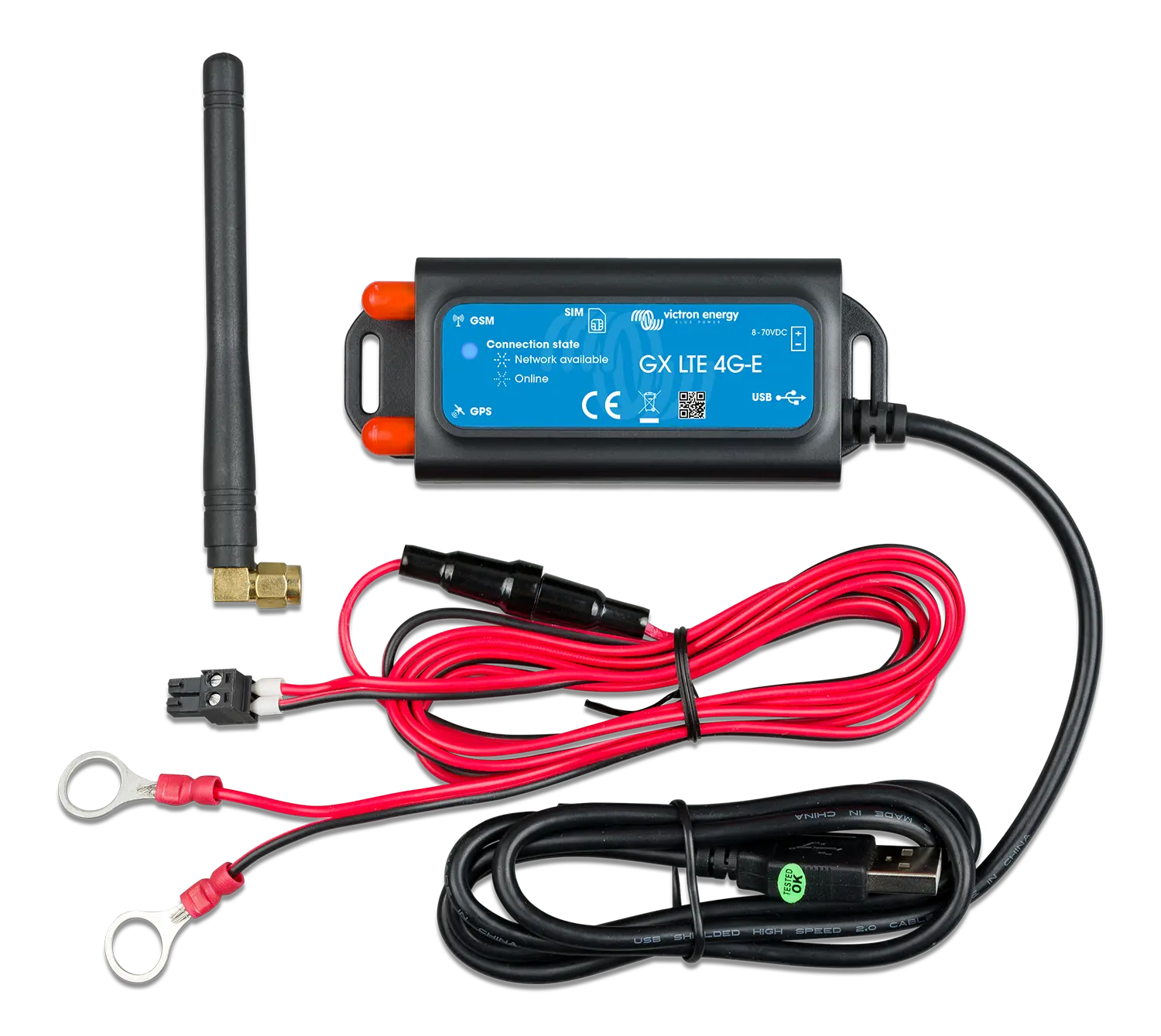

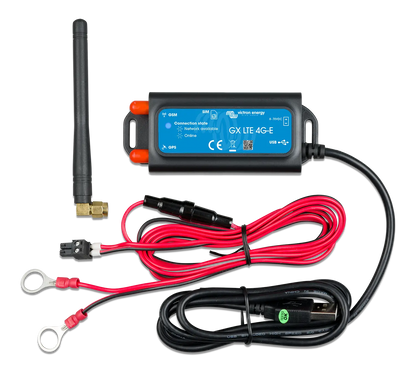

What is included in the box?

The package includes the GX LTE 4G modem with integrated USB cable, an indoor LTE rod antenna and a DC power cable with inline fuse and terminal block, providing everything needed for installation.
