Victron Energy
SmartSolar MPPT 150/35 Solar Charge Controller
SmartSolar MPPT 150/35 Solar Charge Controller
Couldn't load pickup availability

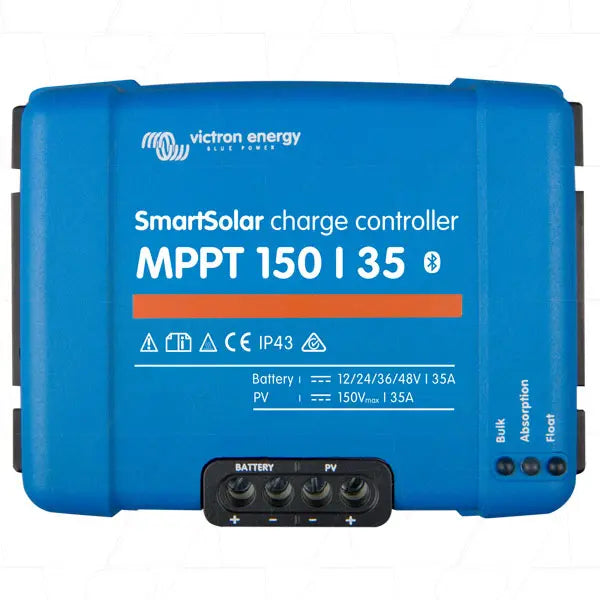

The Victron SmartSolar MPPT 150/35 is a powerful and efficient solar charge controller that supports high-voltage solar arrays with a maximum input of 150V. It’s designed to work with 12V and 24V battery systems, delivering up to 35A of charging current and harnessing every bit of available solar energy using ultra-fast Maximum Power Point Tracking (MPPT).

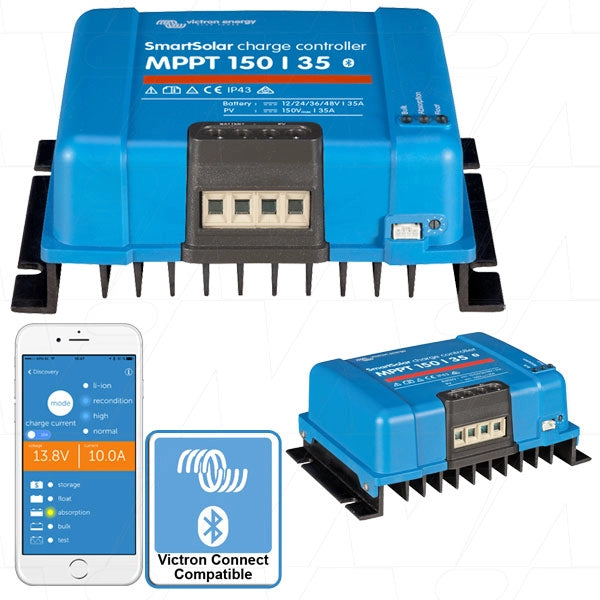

Bluetooth is built in, enabling seamless monitoring and configuration through the VictronConnect app. With smart features like battery life management, programmable settings, and compatibility with lead-acid and lithium batteries, this controller is ideal for off-grid, marine, and remote power systems where reliability and performance matter.
Key Features
- 12V/24V auto-detect with 150V max PV input
- Up to 35A charging current
- Ultra-fast MPPT for maximum solar harvest
- Built-in Bluetooth for real-time monitoring and updates
- Compatible with lead-acid and lithium battery types
- Supports Victron VRM for remote monitoring
- Advanced electronic protections and programmable logic
Specifications
| Model | SmartSolar MPPT 150/35 |
| System Voltage | 12V / 24V auto-select |
| Rated Charge Current | 35A |
| Maximum PV Voltage | 150V |
| Max PV Input Power | 500W @ 12V, 1000W @ 24V |
| Battery Types | Lead-acid (flooded, AGM, GEL), LiFePO₄ |
| Charging Algorithm | Multi-stage adaptive |
| Bluetooth | Built-in (VictronConnect support) |
| Communication Ports | VE.Direct |
| Protection Features | Reverse polarity, over-temp, PV short circuit |
| Operating Temperature | -30°C to +60°C (with derating) |
| Dimensions | 130 x 186 x 70 mm |
| Weight | 1.25 kg |
