Victron Energy - SCC110050210

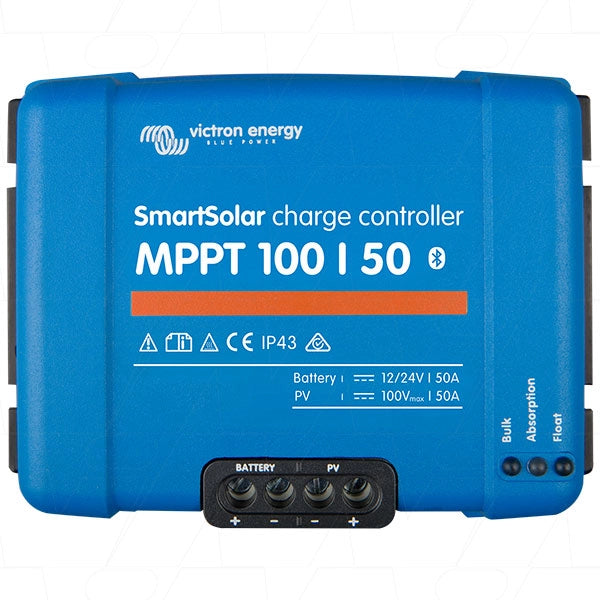

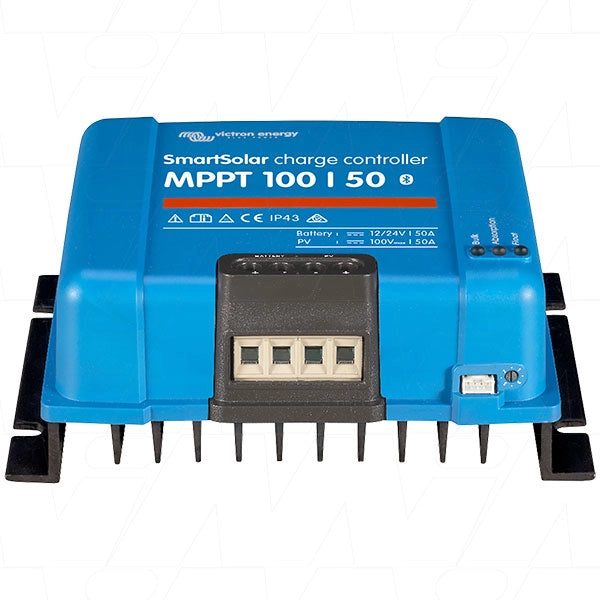

SmartSolar MPPT 100/50 Solar Charge Controller
SmartSolar MPPT 100/50 Solar Charge Controller
Couldn't load pickup availability
The Victron SmartSolar MPPT 100/50 is a high-performance solar charge controller designed to maximise energy harvest from your solar panels using ultra-fast Maximum Power Point Tracking (MPPT) technology. Suitable for both 12V and 24V battery systems, it supports up to 700W of solar input and charges efficiently even under low light conditions.
Bluetooth is built in, allowing you to monitor performance and make configuration changes via the VictronConnect app on your phone or tablet. With advanced features such as battery life management, load output, and optional remote monitoring through the Victron VRM portal, this controller is perfect for off-grid, mobile, and backup power systems.
Key Features
- MPPT controller for 12V/24V battery systems
- Max PV input: 100V, 700W (12V), 1400W (24V)
- 50A charge current
- Ultra-fast Maximum Power Point Tracking for higher efficiency
- Built-in Bluetooth for real-time monitoring via VictronConnect
- Compatible with lead-acid and lithium batteries
- Intelligent battery management and load control
- Optional remote access via Victron Remote Management (VRM)
Specifications
| Model | SmartSolar MPPT 100/50 |
| System Voltage | 12V / 24V auto-select |
| Rated Charge Current | 50A |
| Maximum PV Voltage | 100V |
| Max PV Input Power | 700W @ 12V, 1400W @ 24V |
| Battery Types | Lead-acid (flooded, AGM, GEL), LiFePO₄ |
| Charging Algorithm | Multi-stage adaptive |
| Bluetooth | Built-in, supports VictronConnect app |
| Communication Ports | VE.Direct, optional SmartDongle or GX device |
| Protection Features | Over-temp, PV short, reverse polarity, load disconnect |
| Operating Temperature | -30°C to +60°C (derating above 40°C) |
| Dimensions | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
