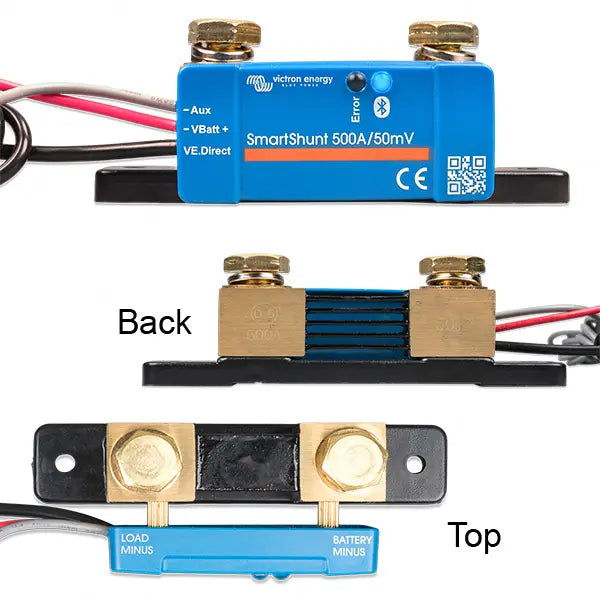

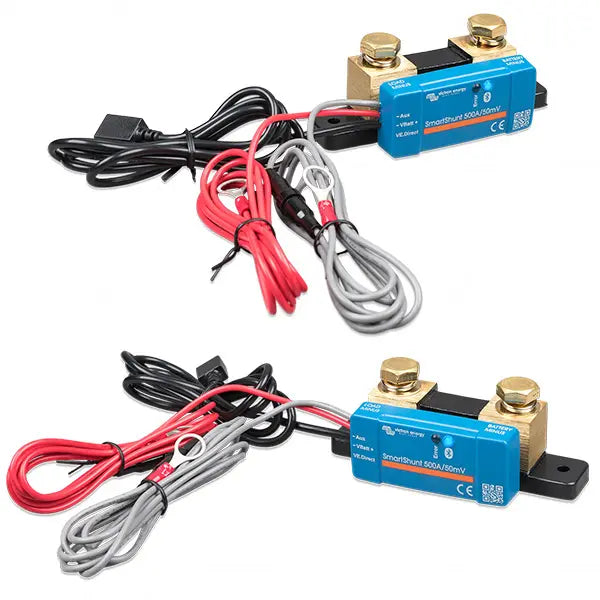

Victron Energy SmartShunt IP65 500A/50mV Battery Monitor

Ideal for caravans, motorhomes, boats, 4WDs and off-grid battery systems requiring compact Bluetooth monitoring with IP65 protection.

$203.95 AUD

Sale

FREE shipping Australia-wide

Product variants

Quantity

Genuine Victron Energy SmartShunt
IP65 potted construction for added protection
Built-in Bluetooth and VictronConnect monitoring
VE.Direct compatible for GX system integration
Expert support available before and after purchase

The Victron Energy SmartShunt IP65 500A/50mV is an all-in-one battery monitor without a separate display. Built-in Bluetooth connects to the VictronConnect app, allowing a compatible phone or tablet to show state of charge, battery voltage, current, consumed amp-hours, time remaining and historical data.

Designed for 6.5–70V DC battery systems, the potted IP65 construction provides added protection for demanding caravan, motorhome, marine, 4WD and off-grid installations. A VE.Direct connection allows integration with a compatible Victron GX device.

The auxiliary input can monitor the voltage of a second battery, battery-bank midpoint or temperature when used with the appropriate optional sensor. Unlike a BMV-712, the SmartShunt has no local display, programmable relay or audible alarm; alarms are viewed through VictronConnect or a connected GX device.

Key Features

500A/50mV all-in-one battery monitor
Built-in Bluetooth for monitoring through VictronConnect
Tracks state of charge, voltage, current, consumed energy and time remaining
IP65 potted construction for added environmental protection
VE.Direct port for compatible Victron GX integration
Auxiliary input for a second battery, midpoint or optional temperature sensor
Supports battery capacities from 1Ah to 9999Ah
Very low current draw of less than 1mA

Specifications

Brand	Victron Energy
Model	SmartShunt IP65 500A/50mV
Manufacturer Part Number	SHU065150050
Current Rating	500A
Shunt Voltage	50mV
Supply Voltage Range	6.5–70V DC
Auxiliary Input Voltage Range	6.5–70V DC
Supported Battery Capacity	1–9999Ah
Current Draw	Less than 1mA
Current Measurement Accuracy	±0.4%
Voltage Measurement Accuracy	±0.3%
Operating Temperature	-40°C to +50°C
Protection Rating	IP65, potted
Communications	Bluetooth and VE.Direct
Auxiliary Monitoring	Second battery voltage, midpoint or temperature with optional sensor
Connection Bolts	M10
Dimensions	46 × 120 × 54mm
Weight	510g

What information does the SmartShunt monitor?

It monitors battery state of charge, voltage, current, consumed amp-hours, time remaining and historical battery data.

How do I view the battery information?

The SmartShunt has built-in Bluetooth and is viewed through the VictronConnect app on a compatible phone or tablet. It can also communicate with compatible GX equipment through VE.Direct.

Does the SmartShunt have its own display?

No. It is designed without a local display. A compatible phone, tablet or connected Victron GX device is used to view the information.

What battery systems does it support?

It operates from 6.5–70V DC and can be configured for battery-bank capacities between 1Ah and 9999Ah. Installation settings must match the connected battery system.

What can the auxiliary input monitor?

The auxiliary input can be configured to monitor a second battery’s voltage, battery-bank midpoint or temperature when used with the appropriate optional temperature sensor.
