Energy Smart Shunt 500A/50mV

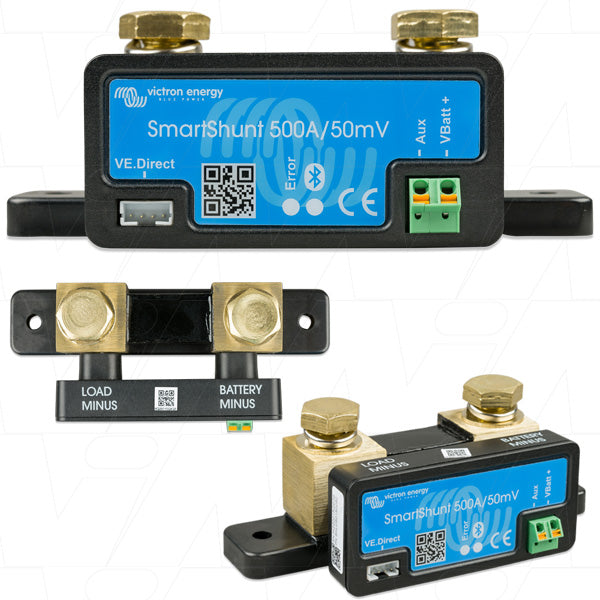

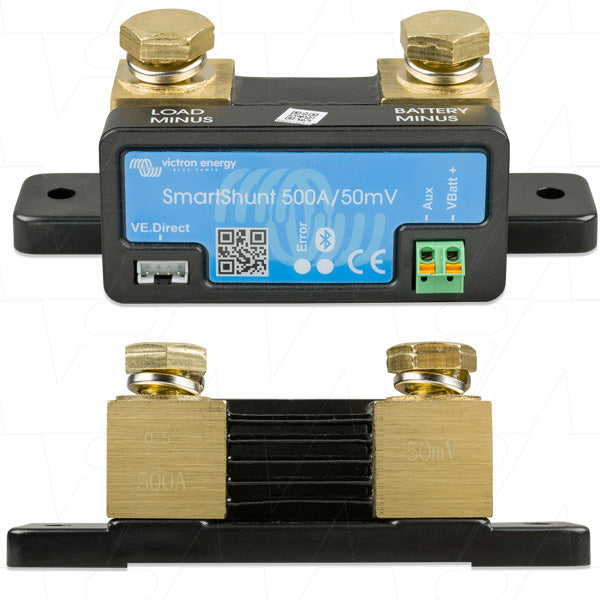

Smart Shunt 500A/50mV Battery Monitor

The Smart Battery Shunt

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display.

The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively the SmartShunt can be connected and be read by a GX device, connected via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Differences compared to BMV712 Battery Monitor
- No programmable visual and audible alarm.
- No programmable relay.

Specifications:

• Supply voltage range: 6,5 - 70 VDC
• Current draw: < 1mA
• Input voltage range: auxiliary battery 6,5 - 70 VDC
• Battery capacity: (Ah) 1 - 9999 Ah
• Operating temperature range: -40 +50°C (-40 - 120°F)
• IP22 Rated
• Measures voltage of second battery, or temperature, or midpoint: Yes
• Temperature measurement range: -20 +50°C
• VE.Direct communication port: Yes
