Victron Energy - ORI121236120

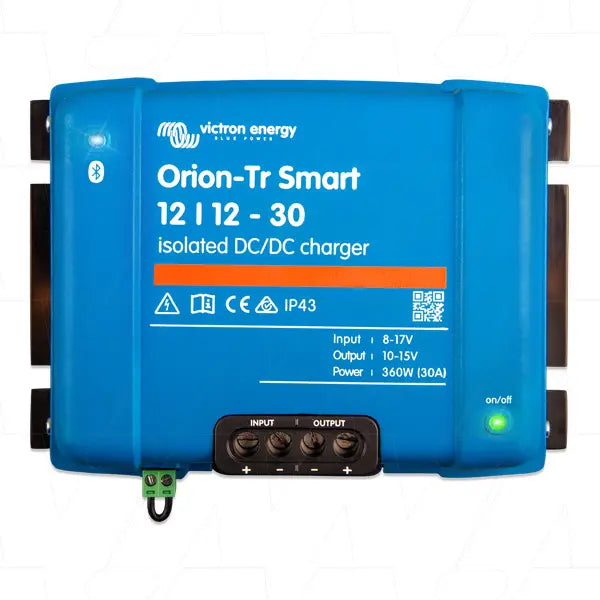

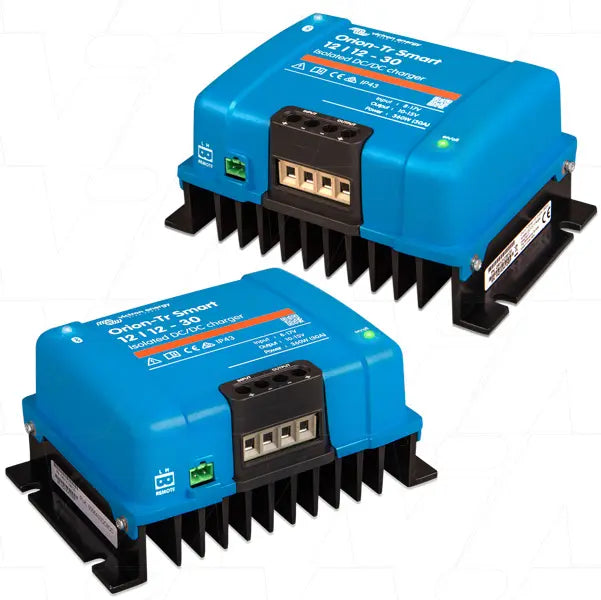

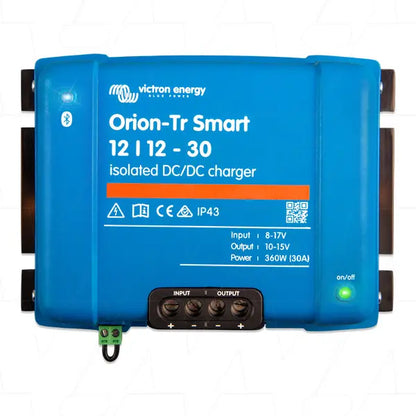

Orion-Tr Smart 12/12-30A (360W) DC-DC Charger
Orion-Tr Smart 12/12-30A (360W) DC-DC Charger
Couldn't load pickup availability
The Victron Orion-Tr Smart 12/12-30A (360W) is a fully isolated, high-efficiency DC-DC charger designed to charge a 12V auxiliary battery from a 12V starter battery system. It’s ideal for dual battery setups in vehicles, caravans, 4WDs, boats, and off-grid solar systems.
This smart charger supports both lead-acid and lithium batteries and is fully programmable via built-in Bluetooth using the VictronConnect app. It features engine running detection, temperature and voltage compensation, and can be used in parallel to increase output.
Whether you're powering a fridge, lighting, or off-grid electronics, the Orion-Tr Smart ensures stable and safe battery-to-battery charging, even in demanding environments.
Key Features
- 12V to 12V DC-DC charger with 30A output (360W)
- Fully isolated for system safety and flexibility
- Built-in Bluetooth for app monitoring and programming
- Compatible with lithium and lead-acid batteries
- Smart engine running detection
- Can be used in parallel for higher output
- Remote on/off control and programmable logic
Specifications
| Model | Orion-Tr Smart 12/12-30A (360W) |
| Input Voltage Range | 10V – 17V |
| Output Voltage | 12.2V – 15V (adjustable) |
| Output Current | 30A |
| Nominal Output Power | 360W |
| Battery Compatibility | Lithium, AGM, GEL, flooded |
| Isolation | Galvanically isolated |
| Bluetooth | Built-in (VictronConnect compatible) |
| Programmability | Fully programmable charging profile |
| Parallel Capable | Yes (connect multiple units) |
| Remote On/Off | Yes |
| Operating Temperature | -20°C to +55°C (derating above 40°C) |
| Ingress Protection | IP43 (electronics), IP22 (connection area) |
| Dimensions | 130 x 186 x 80 mm |
| Weight | 1.8 kg |
