Victron Energy - SCA000300000

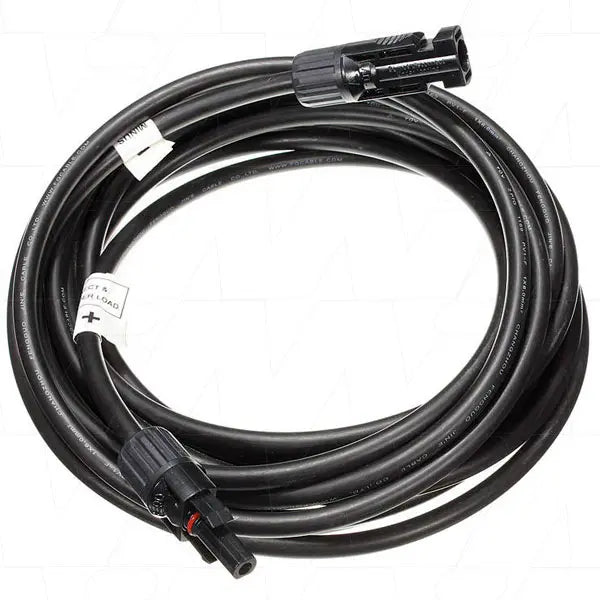

MC4 Solar Cable – 3 m (4 mm²) Pre‑assembled Male & Female (SCA000300000)
MC4 Solar Cable – 3 m (4 mm²) Pre‑assembled Male & Female (SCA000300000)
Regular price
$20.95 AUD
Regular price
Sale price
$20.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This Victron MC4 Solar Cable 3 metre (4 mm²) with pre‑assembled male and female MC4 connectors (model SCA000300000) is a reliable and durable solution for solar PV installations. Ideal for interconnecting solar panels and charge controllers, this product is supplied by Master Instruments and distributed across Australia.
Designed for high performance and outdoor reliability, the robust MC4 connectors ensure IP67-rated waterproof sealing and mechanical stability even under harsh environmental conditions. Suitable for use with Victron’s BlueSolar panels, MPPT controllers, and compatible PV systems.
Key Features
- Genuine Victron Energy SCA000300000 with pre‑assembled male + female MC4 connectors
- 4 mm² DC cable over 3 metres
- IP67-rated waterproof and UV-resistant for long outdoor life
- Rated up to 1,000 V DC (1500 V in some configurations)
- Secure snap-lock mechanism with tinned copper contacts and PPO insulation
- Easy plug-and-play connection; ideal for quick, professional installations
Specifications
| Product Code / SKU | SCA000300000 |
| Brand | Victron Energy |
| Product Name | MC4 Solar Cable Pair – 3 m (4 mm²) |
| Cable Cross-section | 4 mm² (12 AWG) |
| Cable Length | 3 metres |
| Connector Type | Male and Female MC4 |
| Rated Voltage | Up to 1,000 V DC (or 1,500 V) |
| Rated Current | Approx. 30 A |
| Contact Material | Tinned copper |
| Insulation Material | Polyphenylene Oxide (PPO) |
| Ingress Protection | IP67 when mated |
| Operating Temperature Range | –40 °C to +85 °C |
| Certifications | IEC/TÜV compliant |
| Supplier | Master Instruments (Australia) |
| Available Via | Master Instruments websites & resellers |
