MC4 Solar Cable – 1 m (6 mm²) Pre‑assembled Male & Female (SCA000100100)
MC4 Solar Cable – 1 m (6 mm²) Pre‑assembled Male & Female (SCA000100100)
Couldn't load pickup availability

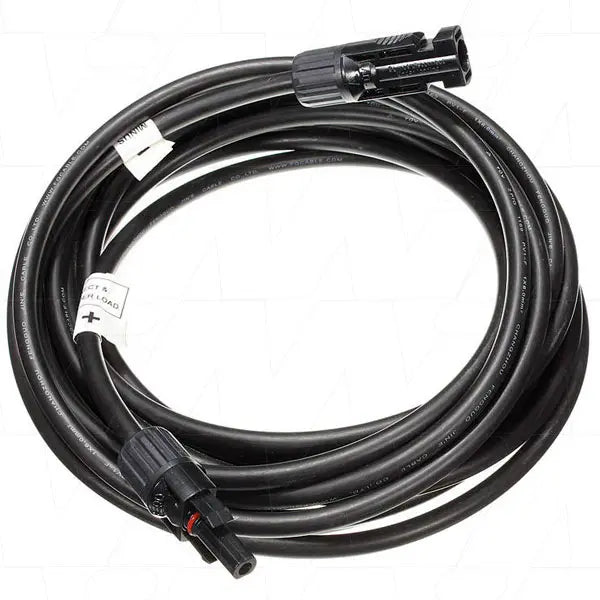

This Victron MC4 Solar Cable – 1 metre (6 mm²), model SCA000100100, comes with factory-assembled male and female MC4 connectors, providing a reliable plug-and-play connection for solar installations. Rated for IP67 waterproof performance and UV-resistant insulation, this cable offers long-lasting outdoor durability.
Engineered for secure and efficient connections between solar panels and system components, it supports continuous current transfer up to approximately 30 A and voltages up to 1,000 V DC (1,500 V DC in compliant systems). It's ideal for direct installation in residential rooftops, off-grid systems, caravans, or rural PV setups where reliability is essential.
Key Features
- Genuine Victron MC4 connectors (male + female) pre-fitted on a 1 m length of 6 mm² cable
- IP67-rated connectors and UV-stabilized insulation for outdoor use
- Snap-lock housing with tinned copper contacts and PPO insulation for maximum reliability
- Supports up to 1,000 V DC (1,500 V DC in compliant multicore systems) and approx. 30 A continuous current
- No assembly required—ready for direct installation
- Built for Australian solar system environments: rooftop arrays, caravans, off-grid setups
Specifications
| Product Code / SKU | SCA000100100 |
| Brand | Victron Energy |
| Cable Length | 1 metre |
| Cable Cross-section | 6 mm² (approx. 10 AWG) |
| Connector Configuration | MC4 male + MC4 female (PV‑ST01 style) |
| Rated Voltage | Up to 1 000 V DC (1 500 V in some systems) |
| Rated Current | Approx. 30 A |
| Contact Material | Tinned copper |
| Insulation Material | PPO (Polyphenylene Oxide) |
| Ingress Protection | IP67 when mated |
| Operating Temperature | −40 °C to +85 °C |
| Certifications | IEC / TÜV compliant |
| Unit Pack | One 1 m cable with male + female plugs |
