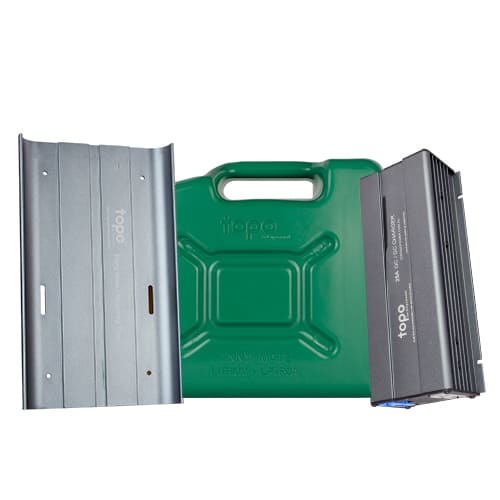

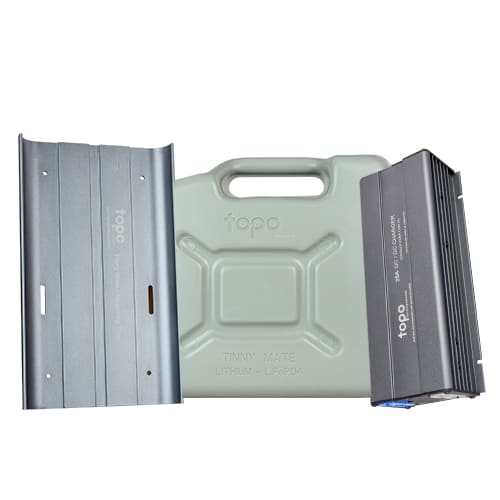

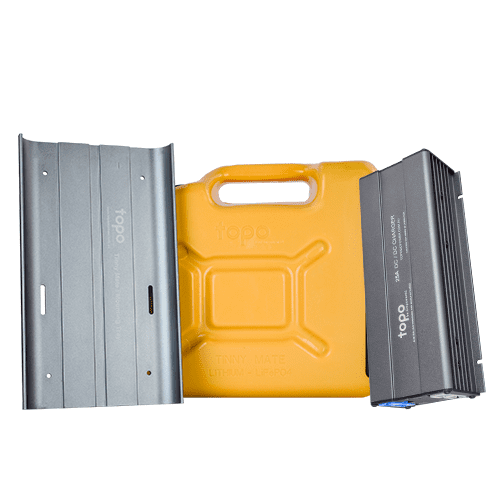

TOPO Tinny Mate, Heavy Duty Plug & Play 12V/100AH LiFEPO4, sealed battery with advanced built-in battery monitoring.
TOPO 30A DC/DC Charger, Simple Plug & Play design for FAST vehicle charging ( Please Note: Rated charge cable and good connections must be wired to support all fast vehicle charging, in all battery systems)
Includes Battery Tray and Set of Connectors
DIMENSIONS
H- 240mm
L – 265mm
W – 145mm
FEATURES
A true plug & play portable power solution
Patent pending & international registered design
Australian owned, made and designed
A grade lifepo4, prismatic cells - IEC 62619 compliant
Powerful and portable, 12V/100AH , 1280Wh @ 10Kg’s
Sealed in a high impact, UV resistant waterproof casing
Accepts 3-way charging: Mains, Solar, Vehicle
CONNECTOR AND DISPLAY
Power
Waterproof On/Off button switch
Display : Waterproof LCD display
Built-In, State of Charge monitoring
Built-In, Volt & Amp monitoring
Built-In, Charge & Discharge status
Input / Output
Anderson 12V / 50A (Grey)
Anderson 12V / 50A (Grey)
Anderson 12V / 120 A (Grey)
ELECTRICAL PARAMETERS
Nominal Voltage 12.8V DC
Rated Capacity 100Ah
Energy 1280Wh
Cycle life >3000 cycles @ 1C, 80%DOD
Self Discharge < 5% per month
Battery in Series / Parallel 2S/2P
IP Rating IP66
DISCHARGE PARAMETERS
Standard Continuous Discharge Current 50A -100A Max
