Topo - TM-12/100AH-sunny-yellow

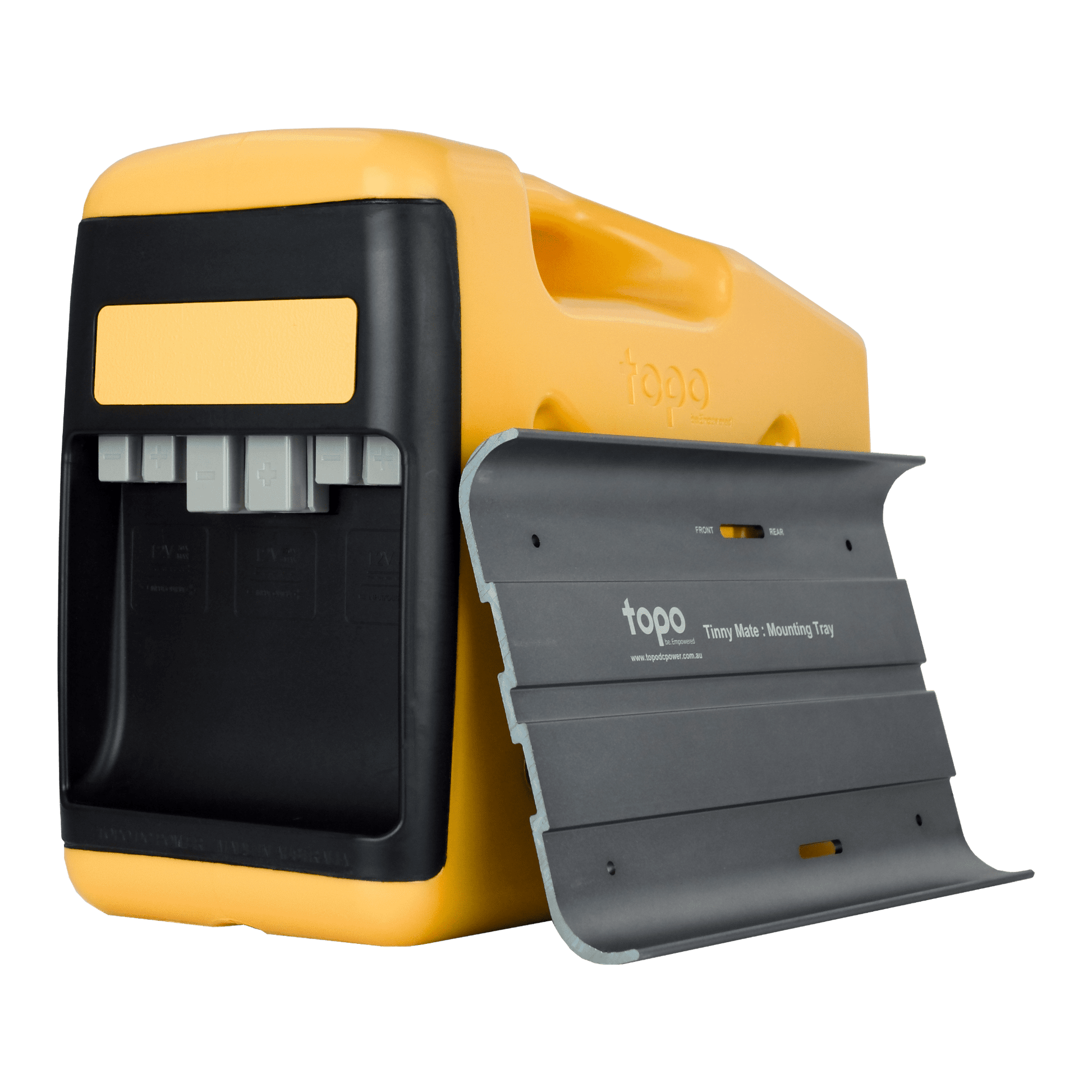

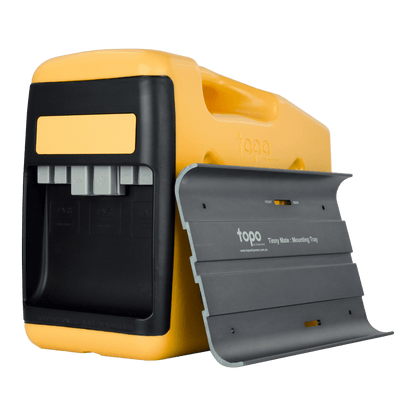

Tinny Mate 12V/100AH Heavy Duty Sealed Battery

Tinny Mate 12V/100AH Heavy Duty Sealed Battery

$950.00 AUD
$950.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour: Yellow

TOPO Tinny Mate, Heavy Duty Plug & Play  12V/100AH LiFEPO4, sealed battery with advanced built-in battery monitoring.

Available in 3 different colours:

  • Sunny Yellow

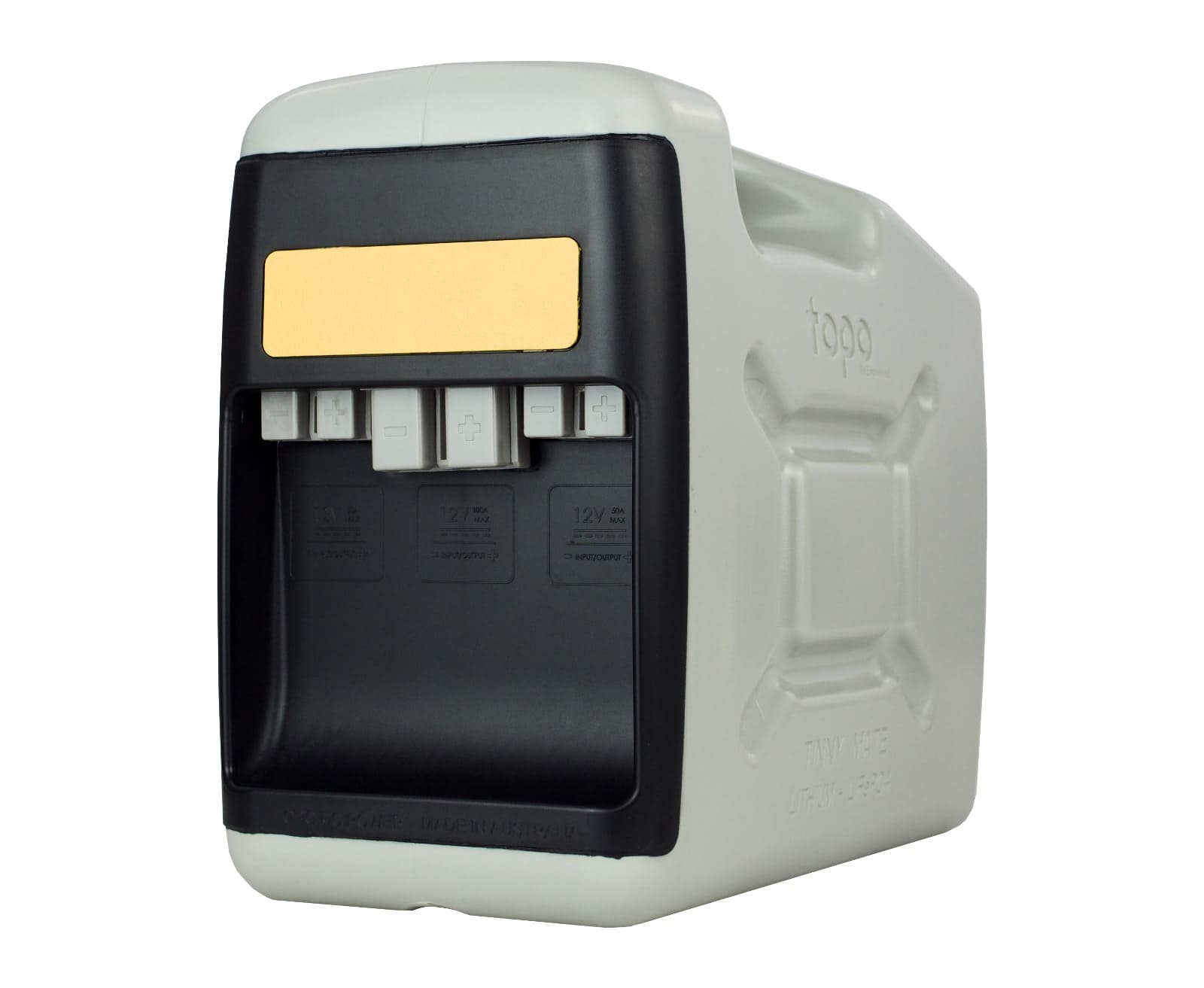

  • Cool Grey

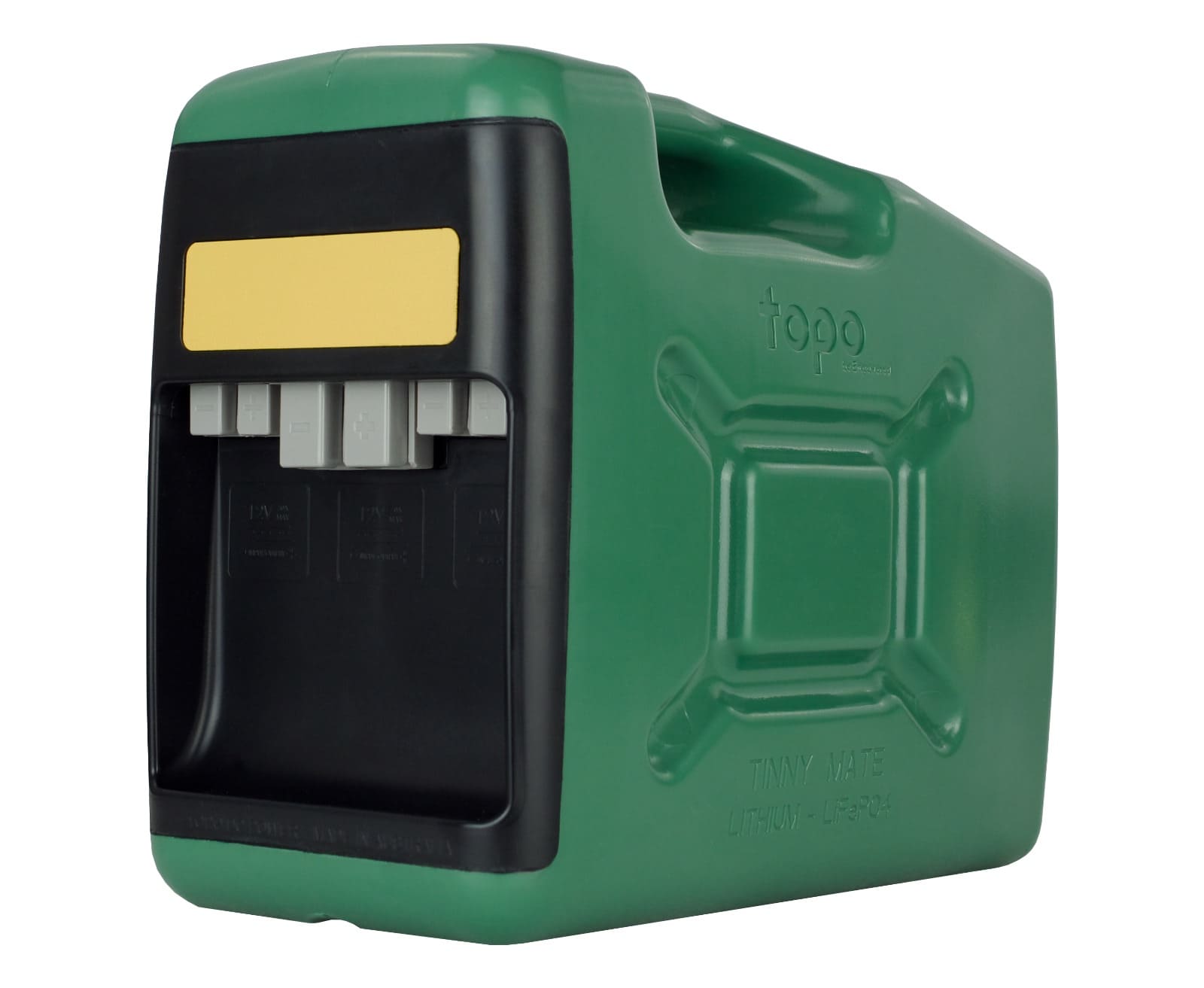

  • Earth Green

Specifications

Power Waterproof On/Off button switch
Display
  • Waterproof LCD display
  • Built-In, State of Charge monitoring
  • Built-In, Volt & Amp monitoring
  • Built-In, Charge & Discharge status
Input / Output
  • Anderson 12V / 50A (Grey)
  • Anderson 12V / 50A (Grey)
  • Anderson 12V / 120 A (Grey)
Dimensions (L x W x H) L-265mm x W-145mm x H-240mm
Nominal Voltage 12.8V DC
Rated Capacity 100Ah
Energy 1280Wh
Cycle life >3000 cycles @ 1C, 80%DOD
Self Discharge < 5% per month
Battery in Series / Parallel 2S/2P
IP Rating IP66
Standard Continuous Discharge Current 50A -100A Max
Pulse Discharge Curent 200A (<30Sec)
Recommended Volt. Disconnect 12V
Discharge Temperature 12V
BMS Low Volt. Cut-off 11V DC
BMS High Temperature cut-off 65°C
Standard Charge Current 50A – 100A Max
Recommended Volt. Disconnect 14.2V DC
Charging Temperature 0 – 55°C
BMS High Volt. Cut-off 14.2V DC
BMS High Temperature cut-off 65°C



In the Box

  • 1x User Manual
  • 1 x Tiny Mate,
    • Model: TM-12/100AH
