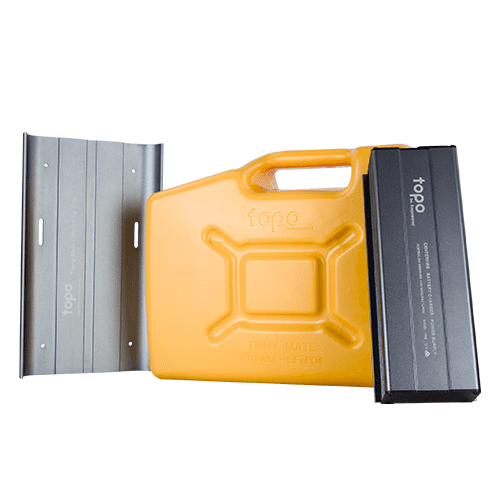

Topo - TM-12/100A-10-sunny-yellow

Tinny Mate + 10 Mains Charger

Tinny Mate + 10 Mains Charger

Regular price $1,150.00 AUD
Regular price Sale price $1,150.00 AUD
Sale Sold out
Colour: Yellow

TOPO Tinny Mate, Heavy Duty Plug & Play  12V/100AH LiFEPO4, sealed battery with advanced built-in battery monitoring.

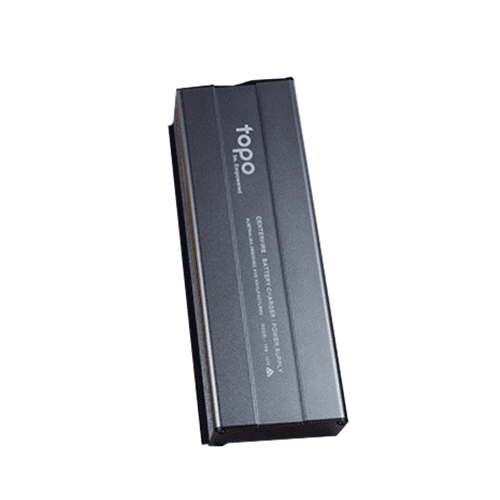

TOPO 10A Mains Charger, Simple Plug & Play design

Includes Battery Tray and Set of Connectors

Specifications

Dimensions

  • H- 240mm
  • L – 265mm
  • W – 145mm

Features

  • A true plug & play portable power solution
  • Patent pending & international registered design
  • Australian owned, made and designed
  • A grade lifepo4, prismatic cells - IEC 62619 compliant
  • Powerful and portable, 12V/100AH , 1280Wh @ 10Kg’s
  • Sealed in a high impact, UV resistant waterproof casing
  • Accepts 3-way charging: Mains, Solar, Vehicle

CONNECTOR AND DISPLAY

Power

  • Waterproof On/Off button switch
  • Display : Waterproof LCD display
  • Built-In, State of Charge monitoring
  • Built-In, Volt & Amp monitoring
  • Built-In, Charge & Discharge status

Input / Output

  • Anderson 12V / 50A (Grey)
  • Anderson 12V / 50A (Grey)
  • Anderson 12V / 120 A (Grey)

ELECTRICAL PARAMETERS

  • Nominal Voltage 12.8V DC
  • Rated Capacity 100Ah
  • Energy 1280Wh
  • Cycle life >3000 cycles @ 1C, 80%DOD
  • Self Discharge < 5% per month
  • Battery in Series / Parallel 2S/2P
  • IP Rating IP66

DISCHARGE PARAMETERS

  • Standard Continuous Discharge Current 50A -100A Max
  • Pulse Discharge Curent 200A (<30Sec)
  • Recommended Volt. Disconnect 12V
  • Discharge Temperature -20 – 60°C
  • BMS Low Volt. Cut-off 11V DC
  • BMS High Temperature cut-off 65°C

CHARGE PARAMETERS

  • Standard Charge Current 50A – 100A Max
  • Recommended Volt. Disconnect 14.2V DC
  • Charging Temperature 0 – 55°C
  • BMS High Volt. Cut-off 14.2V DC
  • BMS High Temperature cut-off 65°C
