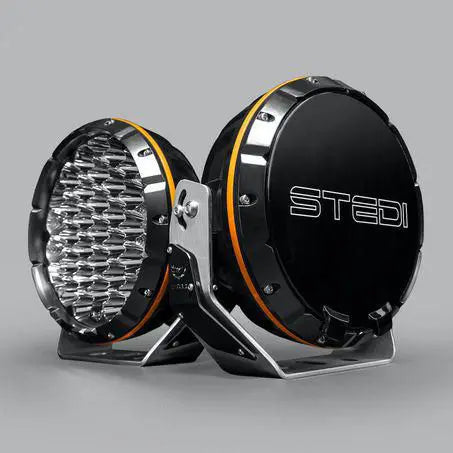

Stedi Type X Sport 8.5 Inch Round LED Driving Light Set LEDTYPE-X-SRT
Ideal for 4WD touring, off-road driving, and highway use where long-distance visibility and wide beam coverage are essential.
Regular price
$479.00 AUD
Regular priceSale price
$479.00 AUD
Unit price/ per
Sale
Tax included.
Shipping calculated at checkout.
Fast dispatch Australia-wide from Battery Force
Trusted supplier of premium 4WD lighting solutions
Built for harsh Australian conditions
Expert support available before and after purchase
High-performance lighting you can rely on
The Stedi Type X Sport 8.5 Inch Round Driving Light Set delivers serious performance in a refined, high-output package built for Australian conditions. Designed for 4WD touring, highway driving, and off-road applications, this light set combines long-distance projection with controlled spread for maximum visibility.
Powered by high-performance OSRAM LEDs and engineered with advanced reflector technology, the Type X Sport produces a powerful combination beam with minimal wasted light. With 12,820 effective lumens per pair and 1 lux reaching up to 895 metres, it provides exceptional clarity and distance when it matters most.
Constructed with a cast aluminium housing and a virtually unbreakable GE Lexan lens, these lights are built to handle harsh environments. With IP68 waterproof protection, EMI/RFI suppression, and a heavy-duty stainless mounting bracket, the Type X Sport is ready for anything from highway driving to rugged off-road conditions.
Key Features
High-performance 8.5” round LED driving light set
12,820 effective lumens (pair)
Combination beam for distance and spread
1 lux at 895 metres (pair)
5700K colour temperature for crisp white light
OSRAM Oslon LEDs for premium output
Advanced reflector design reduces wasted light
GE Lexan lens – virtually unbreakable
Cast aluminium housing with powder-coated finish
IP68 rated for dust and waterproof protection
Deutsch connector for secure connection
EMI/RFI suppression circuitry

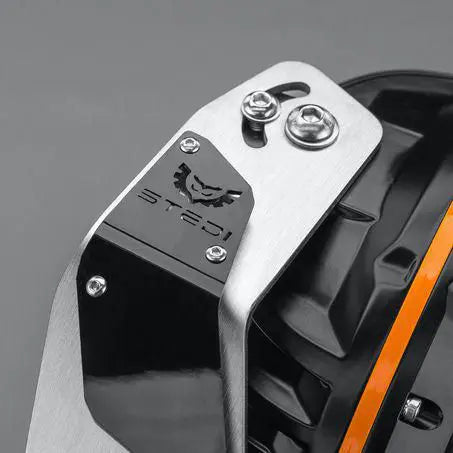

Heavy-duty stainless steel mounting bracket with dampeners
Suitable for 12V and 24V systems
Specifications
Part Number
LEDTYPE-X-SRT
Light Type
Round Driving Light Set
Size
8.5 Inch
Voltage
12V / 24V
Light Output
12,820 Lumens (Effective - Pair)
Beam Pattern
Combination
Distance
1 Lux @ 895m (Pair)
Colour Temperature
5700K
LED Type
OSRAM Oslon
LED Count
32
Current Draw
6.4A @ 13.2V
Lens Material
GE Lexan
Housing
Cast Aluminium
Mount
Single Bolt
Bracket
304 Stainless Steel
Connector
Deutsch DT-2
Waterproof Rating
IP68
Dimensions
190 x 205.7 x 84 mm
Warranty
5 Years
Share
How far do these lights project?
They deliver 1 lux at up to 895 metres per pair, providing excellent long-distance visibility.
What beam pattern do they use?
They use a combination beam, delivering both distance and wide spread.
Are these suitable for 12V and 24V vehicles?
Yes, they are compatible with both 12V and 24V systems.
What makes the lens durable?
They use a GE Lexan lens, which is highly impact-resistant and virtually unbreakable.
Do these lights include mounting hardware?
Yes, they include a heavy-duty stainless steel mounting bracket with rubber dampeners.
