STEDI Micro V2 13.9″ 24‑LED Flood Light (White 5700 K)

STEDI Micro V2 13.9″ 24‑LED Flood Light (White 5700 K)

$79.95 AUD
$79.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

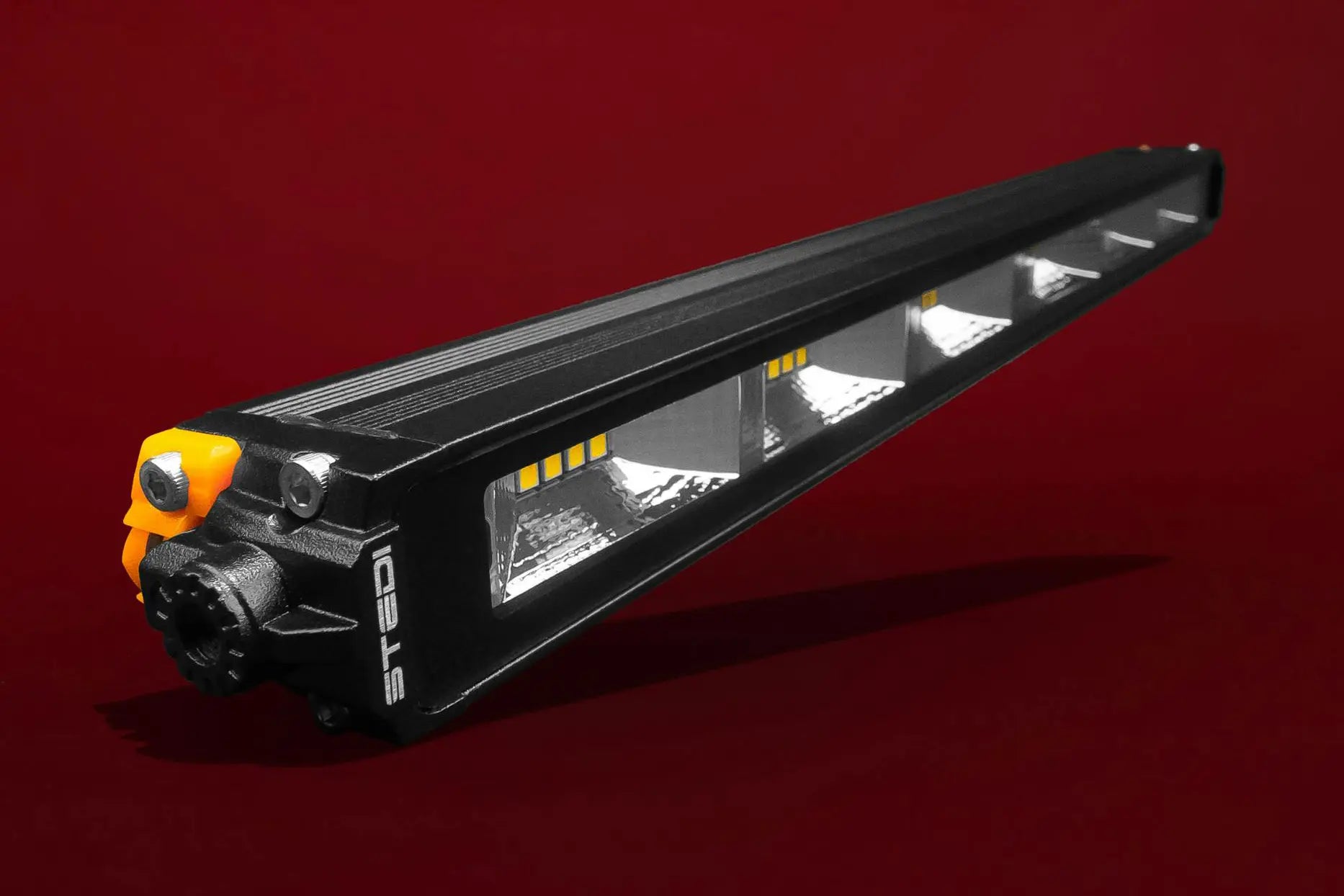

The STEDI Micro V2 13.9″ 24‑LED Flood Light (White, 5700 K) combines high-performance lighting in a compact and lightweight package. With only 25 mm depth and weighing ~0.5 kg, it’s perfect for mounting in confined areas—under awnings, roof racks or vehicle undersides.

Featuring 24 premium OSRAM LEDs producing around 2 600 lumens, this flood light operates reliably in temperatures from –40 °C to +60 °C. It includes an IP68 rating when mated, hardened polycarbonate lens, extruded aluminium housing, male/female Deutsch DT connectors, and stainless-steel mounting brackets for easy and durable installation.

Ideal for camping, off-road, reverse lighting, awnings, solar setups, or any scenario where powerful, low-profile lighting is needed.

Key Features

  • 24 × OSRAM GW‑PSLR32 LEDs delivering approximately 2 600 lumens
  • 5700 K pure white colour temperature with hyper flood beam (~120° width × 30° height)
  • Slim 353 × 25 × 40.6 mm housing weighing just ~0.5 kg
  • IP68 rated when connectors are fully mated, suitable for submersion up to 1.5 m

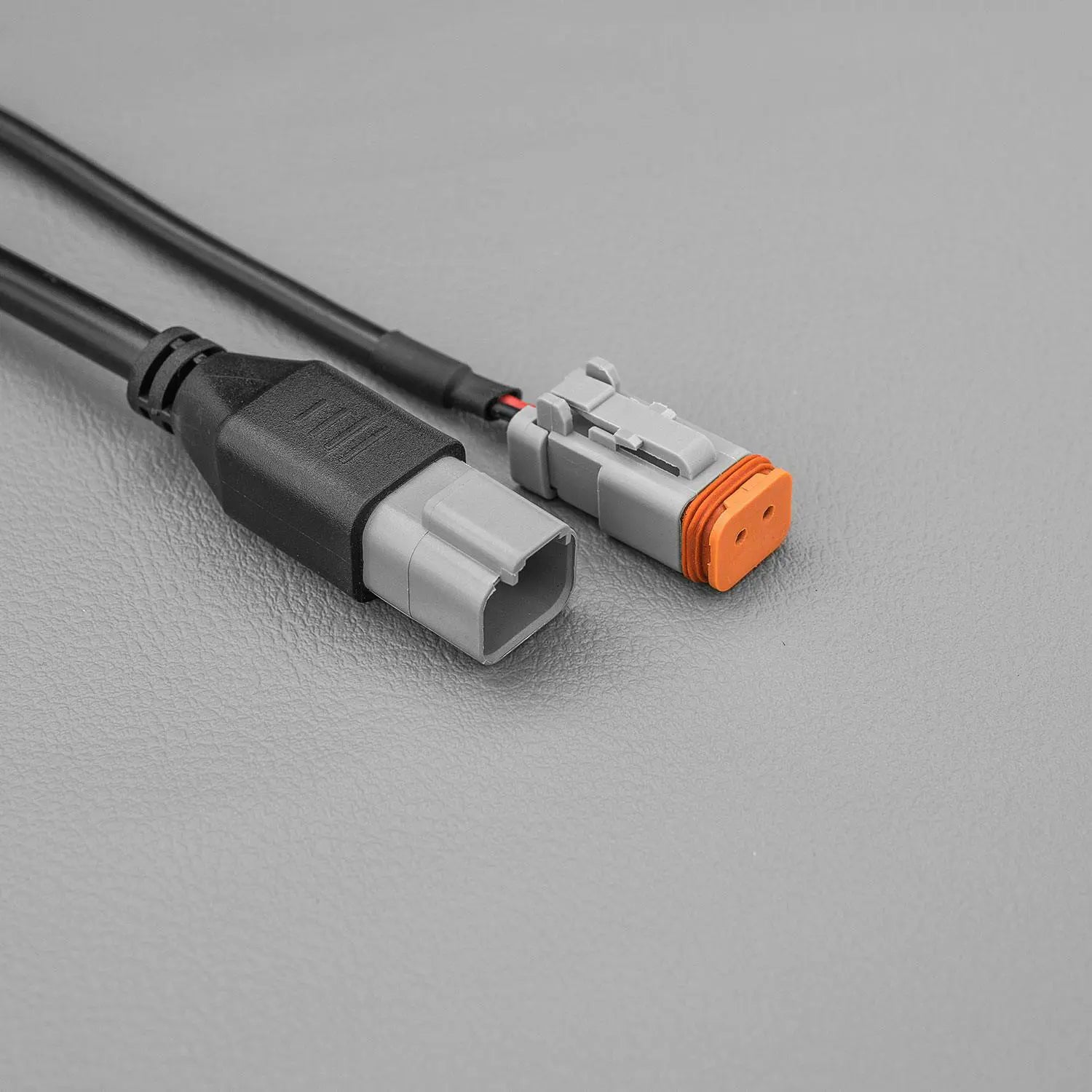

  • Deutsch DT male and female connectors and 400 mm wiring harness included

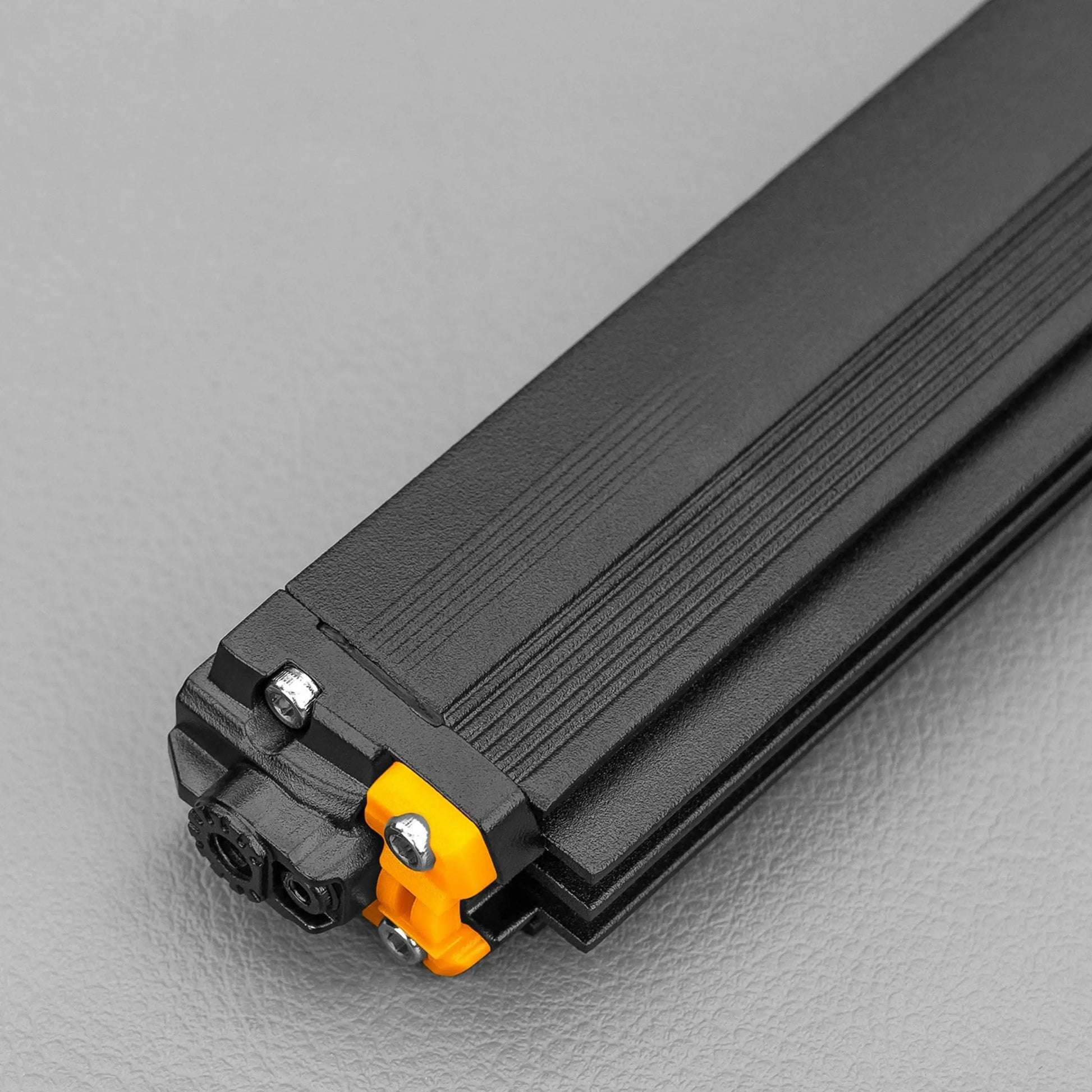

  • Rugged design: extruded aluminium housing and hardened polycarbonate lens

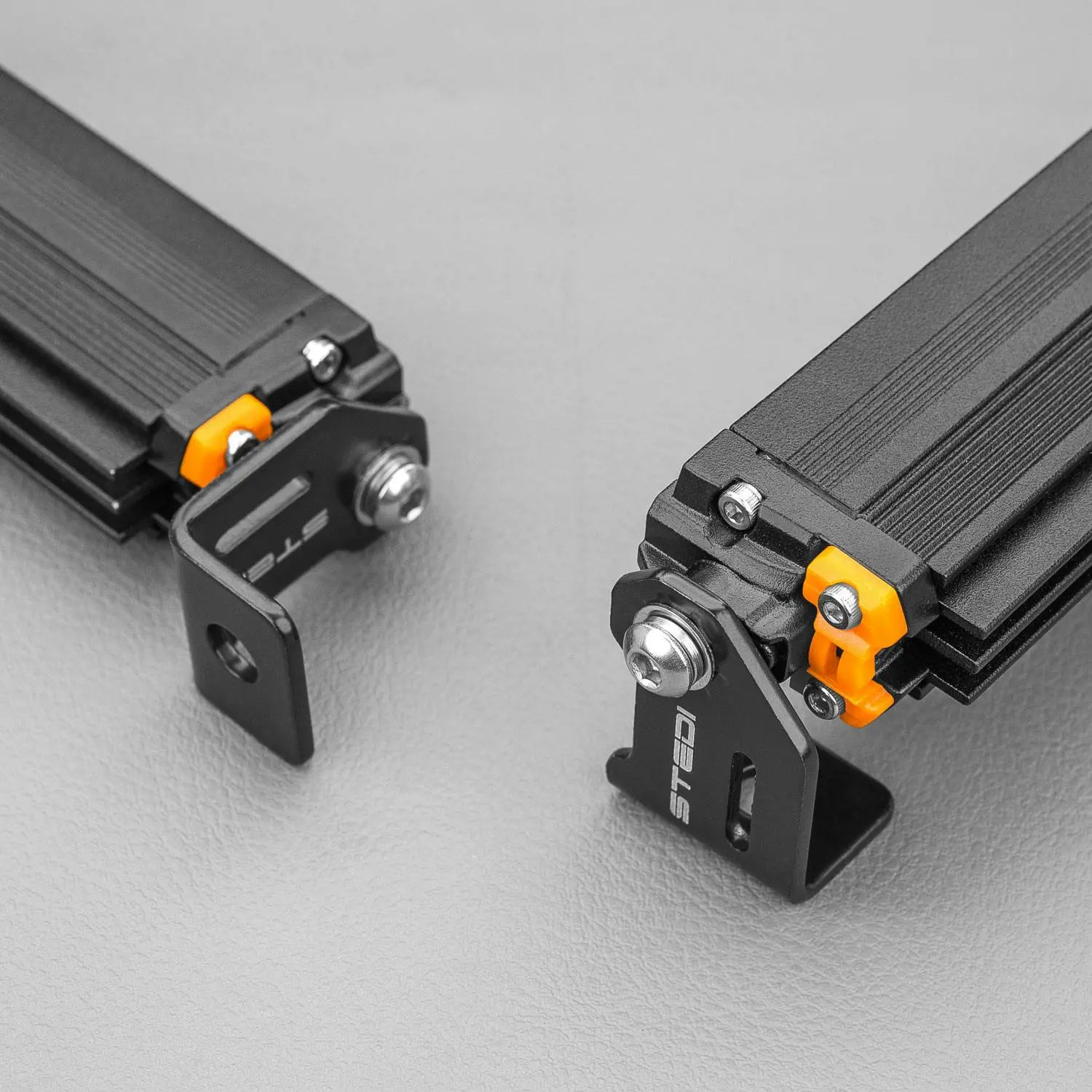

  • Includes 304-grade stainless-steel mounting hardware and brackets
  • Approximate lifespan of 30,000 hours

Specifications

Operating Voltage DC 10–28 V
Power Consumption 24 W
Current Draw ~2.7 A @ 12 V / ~1.35 A @ 24 V
Colour Temperature 5700 K (cool white)
LED Type 24 × OSRAM GW‑PSLR32
Effective Lumen Output ~2 600 lm
Beam Angle Width: 120°, Height: 30° (Hyper Flood)
Ingress Protection IP68 when connectors are mated
Lens Material Hardened polycarbonate
Housing Material Extruded aluminium
Connector Type Deutsch DT02 male & female with 400 mm tails
Mounting Hardware 304 stainless-steel brackets, M8/M6 bolts, washers
Operating Temperature –40 °C to +60 °C
Dimensions (L×H×D) 353 × 25 × 40.6 mm
Weight ~0.5 kg
Estimated Lifespan ~30,000 hours
