Ideal for 4WDs, classic vehicles, and motorcycles requiring a modern LED upgrade for 7” headlight housings.
Regular price
$260.00 AUD
Regular priceSale price
$260.00 AUD
Unit price/ per
Sale
FREE shipping Australia-wide
Fast dispatch Australia-wide from Battery Force
Trusted supplier of premium automotive lighting
ADR compliant for legal road use
Built for harsh Australian conditions
Expert support available before and after purchase

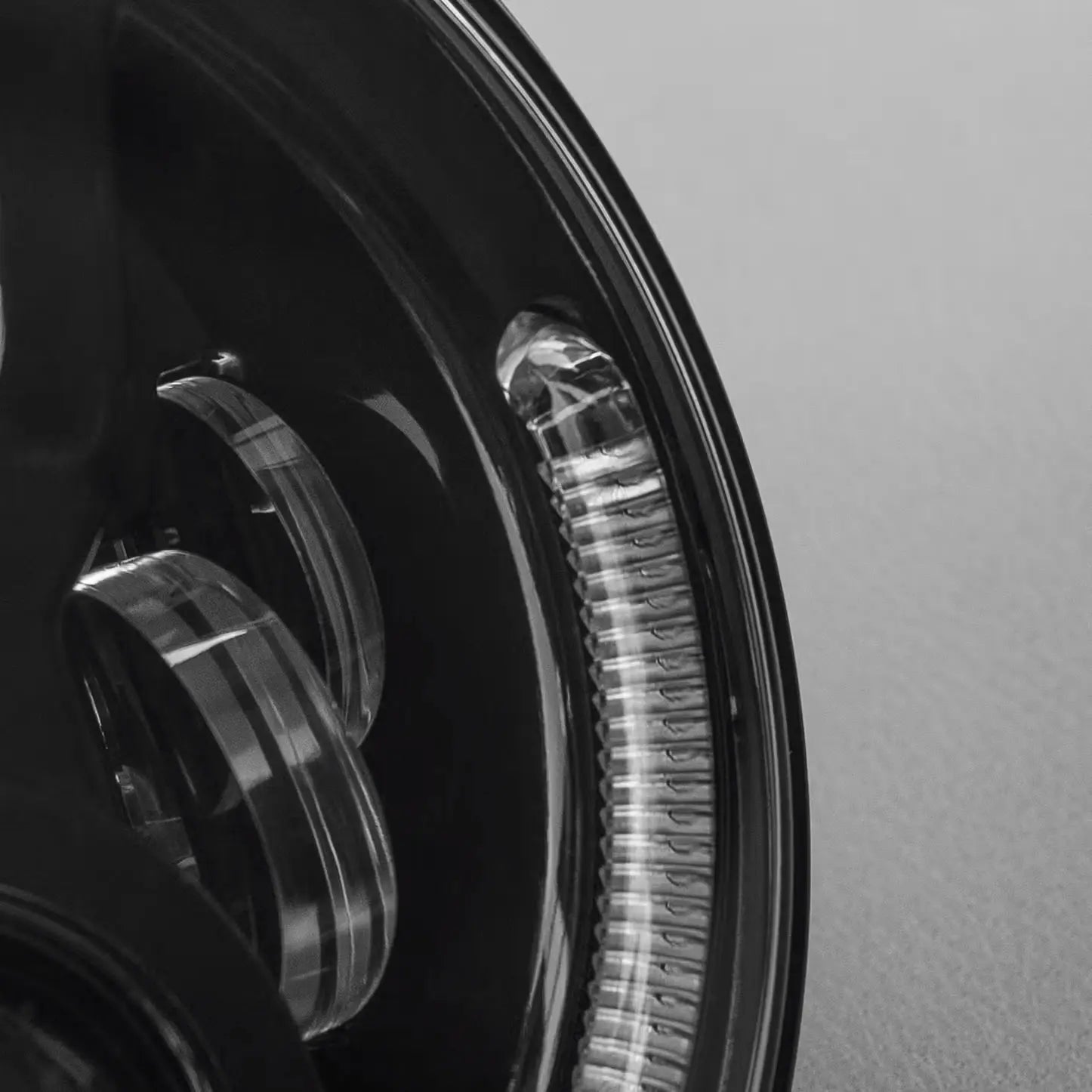

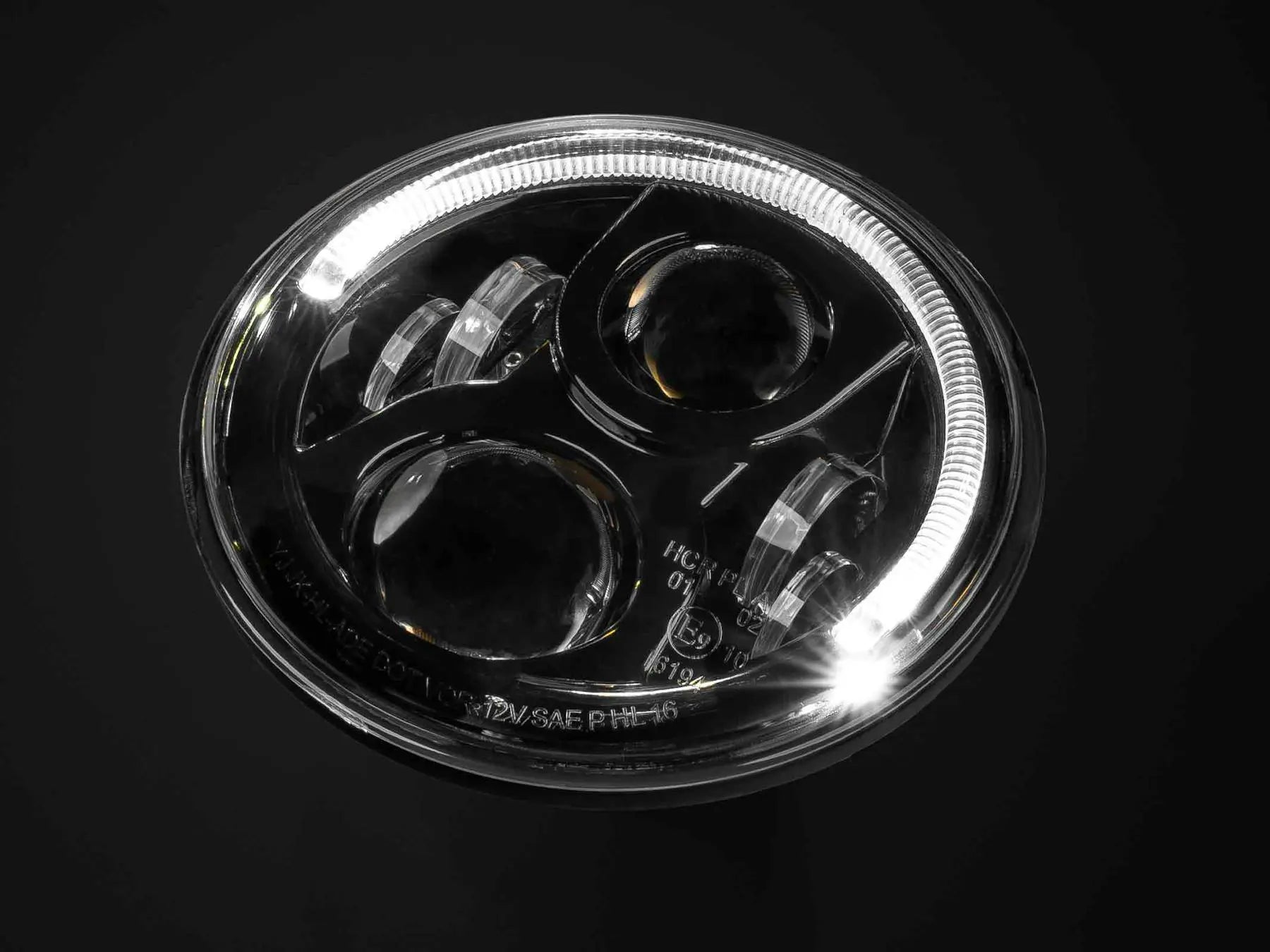

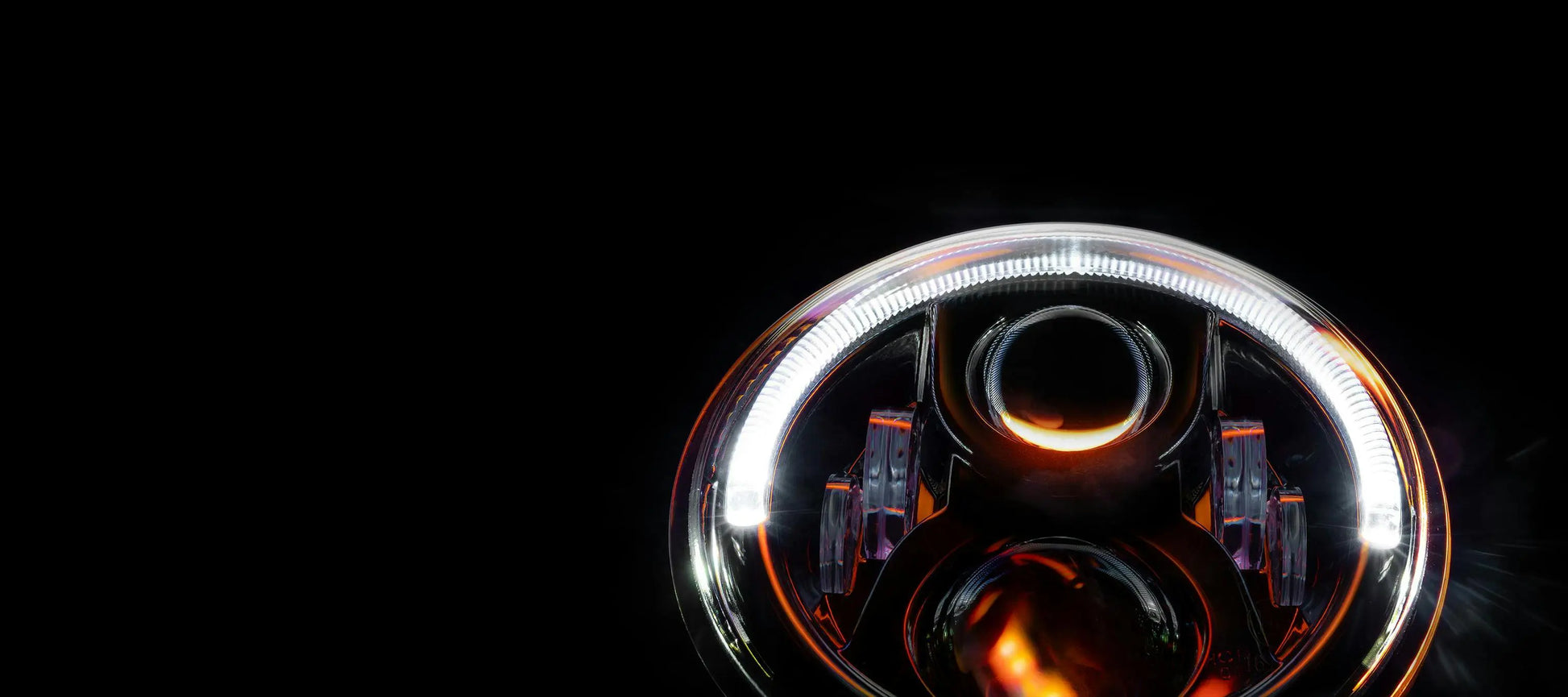

The Stedi CARBON 7 Inch LED Driving Lights should be the first step when improving your motorcycles light output. Complete with High and Low beam as well as a half LED halo ring park light, the CARBON 7" is the perfect replacement for your existing headlight.
KEY PERFORMANCE METRICS

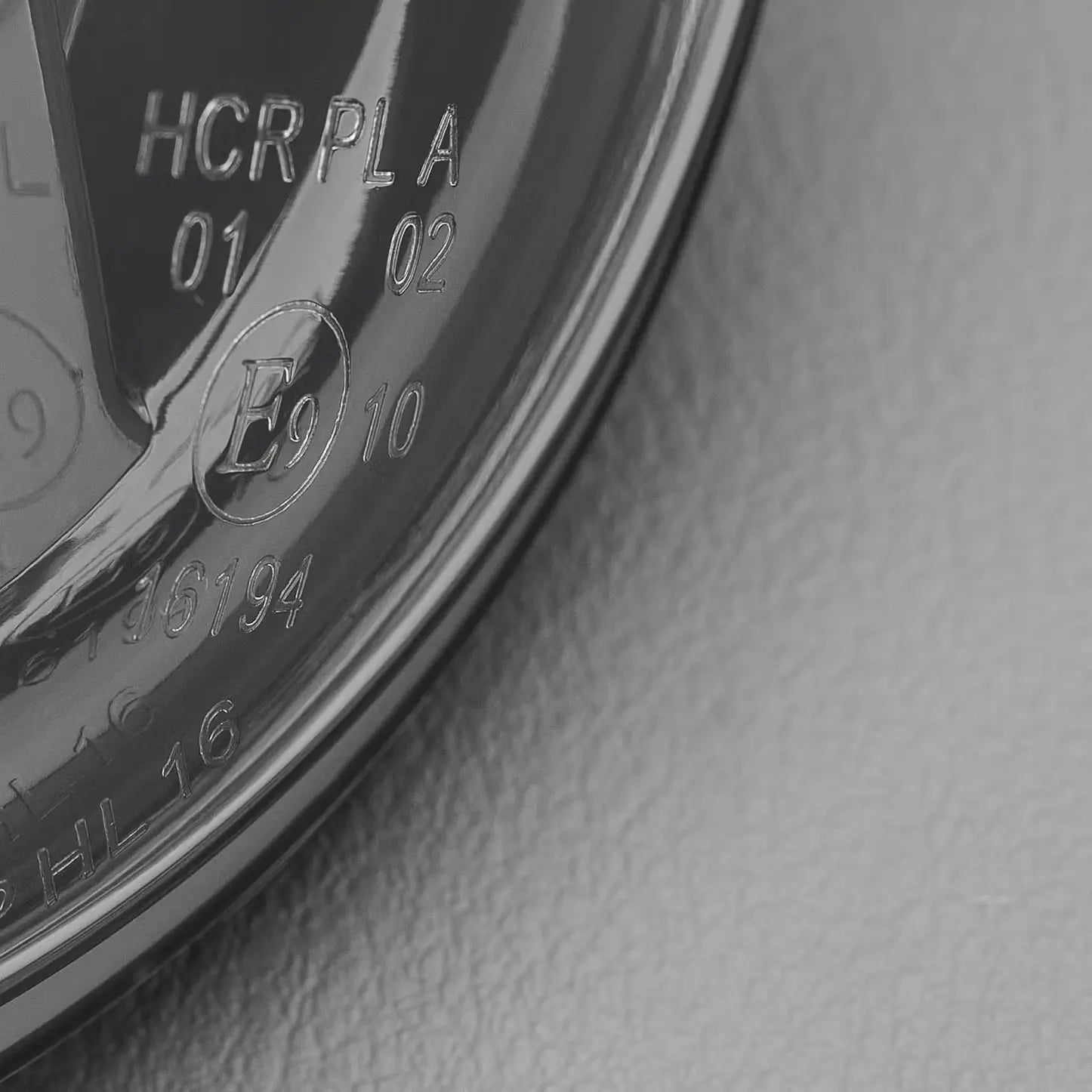

ADR Approved E-Mark CE
Proper Right Hand Drive Beam Geometry

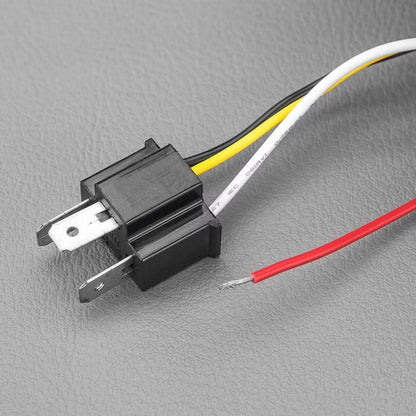

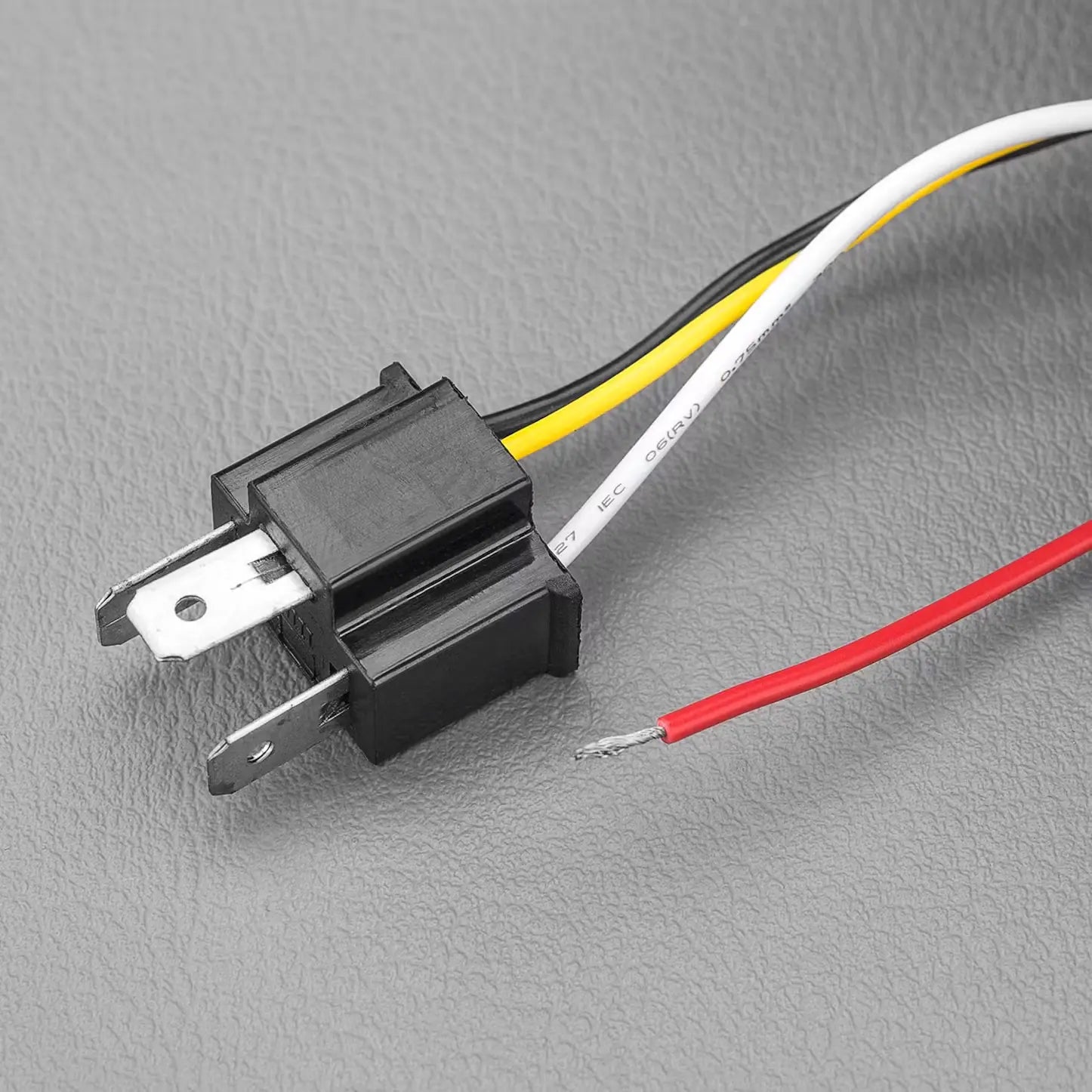

H4 Adaptor
High Beam 1 Lux @ 235m
Low Beam 1 Lux @ 141m
PERFORMANCE BUILD QUALITY
Anodized Polyester Powdercoat

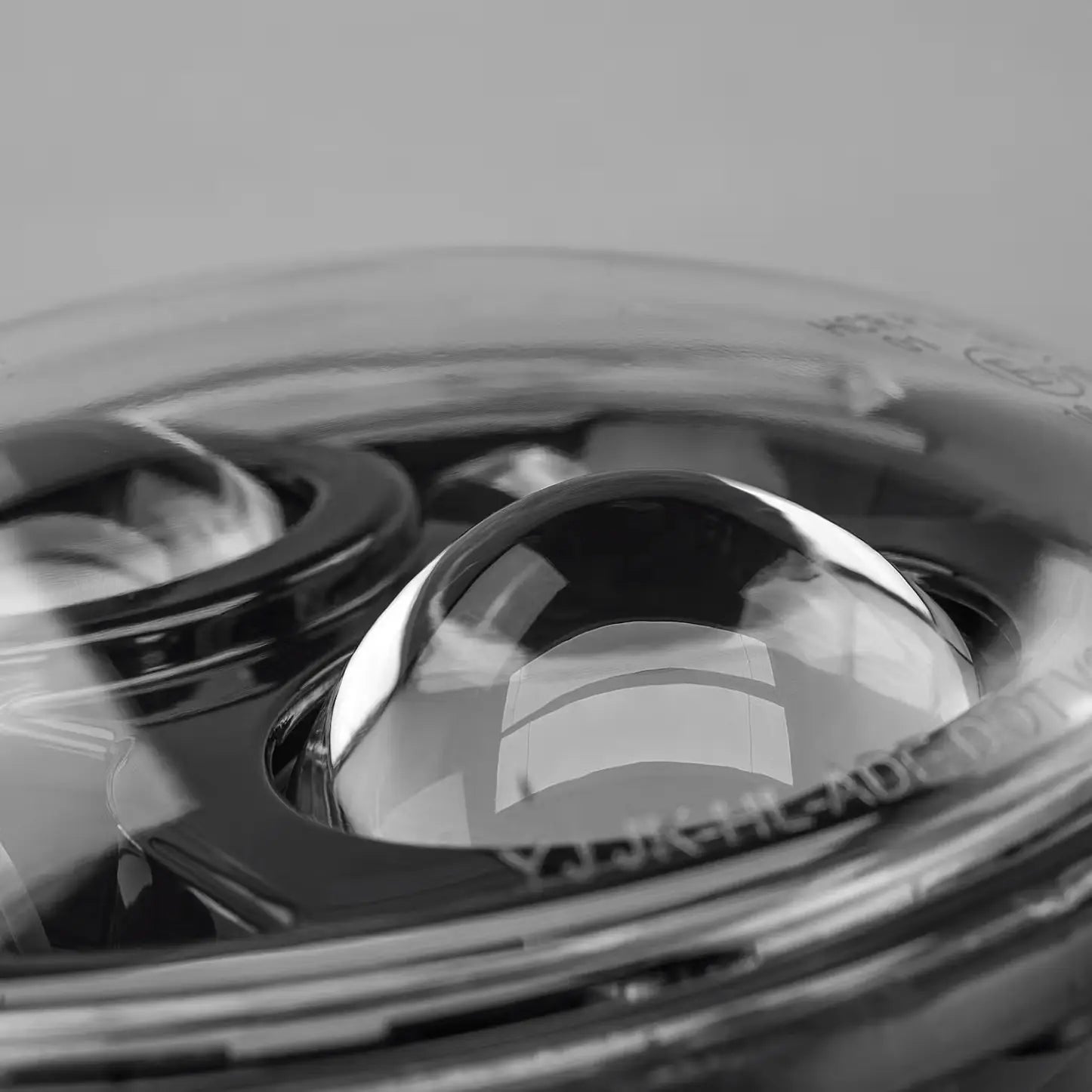

Lexan Polycarbonate (PC) Lens refractor

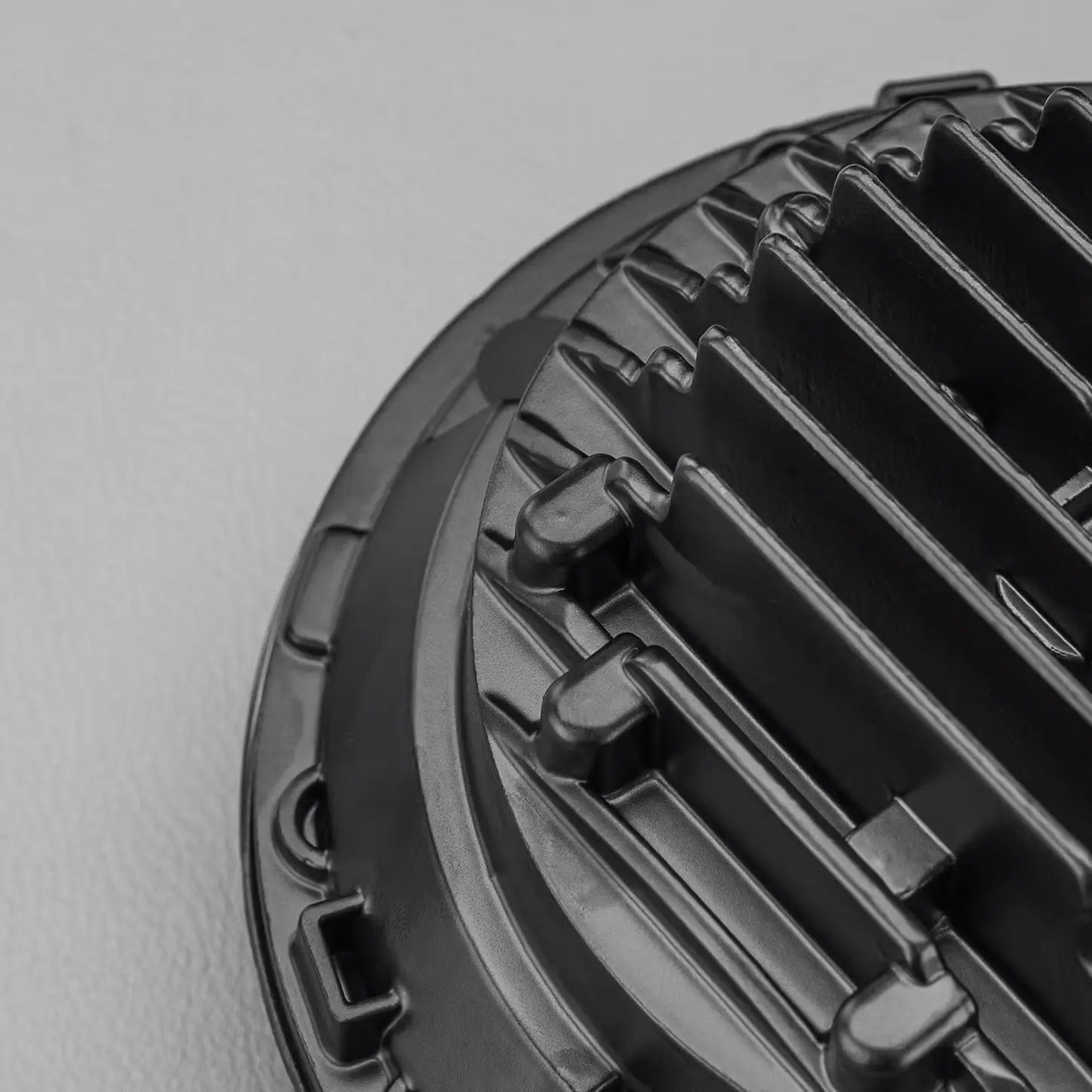

Die-cast aluminium alloy (ADC12) Heat-Sink
IP67 | Ingress Protection
Shock Proof, Waterproof and UV Shielded
Protected against Reverse Polarity and Voltage / Current surges
Warranty | 2 Years
COMPATIBLE MODELS:
1955-1983 Jeep CJ-5
1976-1986 Jeep CJ-7
1981-1985 Jeep CJ-8
1997-2006 Jeep Wrangler (TJ)
2007-2015 Jeep Wrangler 2-Door (JK)
2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
1982 - 1991 Mitsubishi Pajero (L040)
Land Rover Defender
70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
GQ Patrol
Harley Davidson Motorcycles
Mercedes Benz G Wagon
Kenworth Trucks with 7 inch round headlight
LED
High Beam: 2 x 10w XML-2 LED Low Beam: 2 x 15w LED Park Light: 2 x 1.5w Osram
Raw Lumens
High Beam: 1800Lm Low Beam: 1250Lm Park Light: 150Lm
Amp Draw
High Beam: 2.4a @ 13.6v Low Beam: 1.6a @ 13.6v Park Light: 0.2a @ 13.6v
Lifespan
50,000 Hours
Ingress Protection
IP67
Operating Temperature
-30°C~+60°C
Lens Material
LEXAN Polycarbonate
Colour Temp
5700K
Voltage Compatibility
12v & 24v
Peak Beam Distance @ 1 LUX
High Beam: 235m Low Beam: 141m Park Light: 8m
Weight (each)
1.140kg each
Drop in Replacement for
#6014, 6015, 6016, H6024 and Par 56 headlamp designs
ADR Compliance
ADR 46/00 ADR 49/00
Share
Is this a direct replacement for standard 7 inch headlights?
Yes, it is designed as a direct replacement for factory 7” headlight units.
Is this headlight road legal in Australia?
Yes, it is ADR approved for right-hand drive markets.
What is the halo light used for?
The half halo acts as a parker light, adding visibility and a distinctive look.
Can this be used on both 12V and 24V systems?
Yes, it is compatible with both 12V and 24V vehicles.
