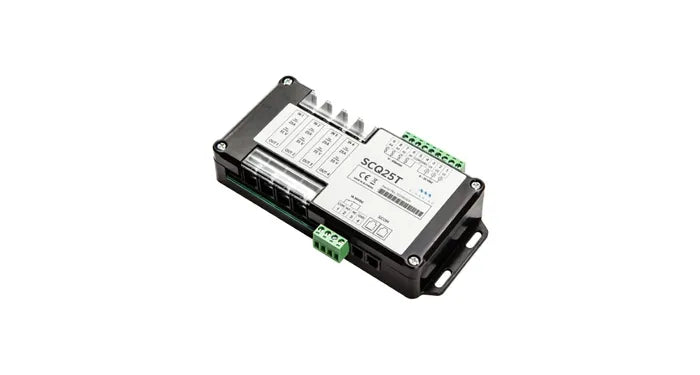

Quad Shunt 4 x 25A & 4 x Tank Module

Simarine: Active shunt for PICO battery monitor with 4x current sensors up to 25A each, combined with 3x voltage and 4x resistance inputs. For 12V and 24V system.

Looking for a highly versatile digital shunt module for monitoring smaller consumers like refrigerator and/or generators like solar, wind, hydro or shore power?

SCQ25T its an innovative combination of shunt, tank interface and voltage module with wide range of monitoring possibilities.

Operating

• Voltage range 6 – 35 V
• Temperature range -20 – +70 °C
• Power consumption at 12 V
• Operating 2.5 mA
• Current measuring channels 4
• Current measuring range
• Per channel 0,01 – 25 A
• Accuracy ± 0,6 %
• Resolution 0,01 A
• Sampling rate 100 ms

Maximal current

• Continuous 25 A
• Peak current (<1 min) 35 A
• Peak current (<5 min) 50 A
• Voltage drop at 300 A 35 mV
• Maximal voltage on connections 35 V

Voltage inputs

• Range 0 – 75 V
• Resolution 1 mV
• Accuracy ± 0,2 %
• Sampling rate 100 ms
• Resistance inputs 4
• Range 0 Ohm – 65 kOhm
• Accuracy ± 3,0%
• Relay (monostable) 1
• Maximum operating current 1 A
• Maximum Common Input Voltage (COM) 6 – 30 V

Connectivity Up to

• Current sensors 4
• Voltage sensors (voltage drop/tank level) 3
• Resistive inputs (tank level/temperature) 4
• Relay Common Input 1
• Relay Output Normaly Open (NO) 1
• Relay Output Normaly Closed (NC) 1
• SiCOM RJ9 Sockets 2

Installation and Dimension

• Dimensions (length x width x depth) 182 x 80 x 32 mm
• Weight 230 g
