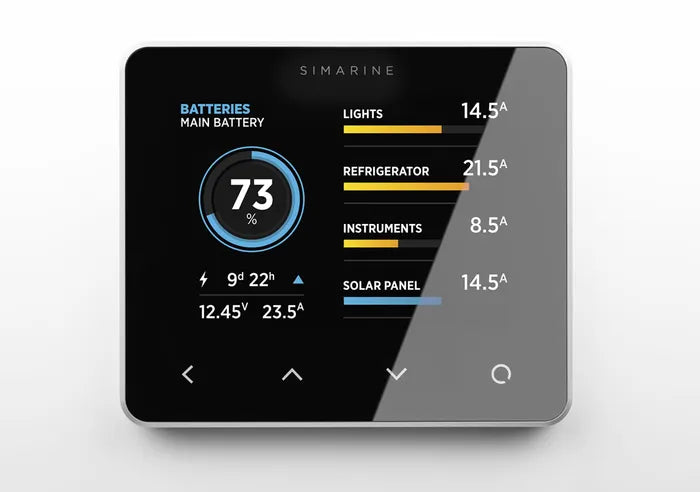

Pico+ Display Standalone Silver Equivalent to Pico-2

SIMARINE's advanced battery monitor for most demanding users. For up to 6 battery banks, 6 additional battery voltages, 14 tank level and 20 consumer or power generation readings. Compatible with all SIMARINE shunts and modules.

Operating

• Power source voltage range 6 - 35 V
• Temperature range -20 – +70 °C
• Power consumption at 12 V
• Operating, WiFi On, 100% illumination 90 mA
• Operating, WiFi Off, 70% illumination 35 mA
• Operating, WiFi Off, 0% illumination 18 mA
• Power Off, logger still active 5 mA

• Current (A) ±0,01 A
• Voltage (V) ±0,01 A
• Amp hours (Ah) ±0,1 A
• SOC - Stat of Charge ( 0 - 100%) ±0,01 A
• Temperature ±0,1 °C / °F
• Voltage inputs
• Range 0 – 75 V

• Radio Frequency Band 2,4 GHz

• Standalone 89 x 84 x 10 mm
• Panel 108,5 x 94 x 10 mm

• Batteries 6
• Shunts 24
• Temperature sensors 10
• Tank level sensors 14
• Inclinometer sensors 2
• Smartphone application 1

Logger Capacity

• up to 3 month
