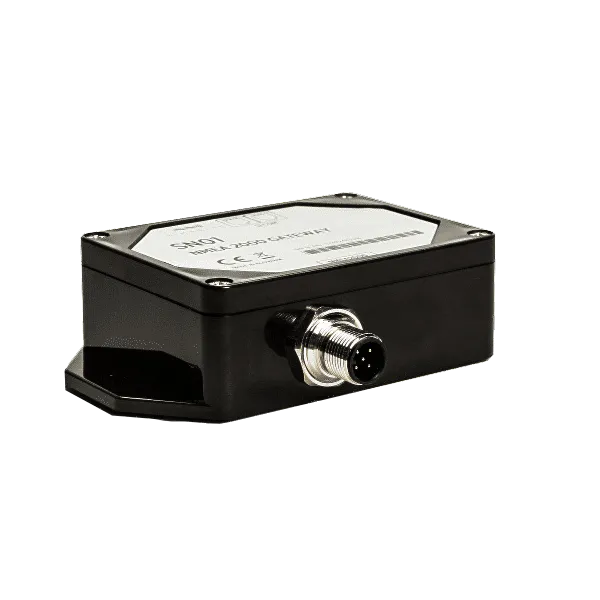

Simarine - SI-SN01
NMEA 2000 Gateway Module
NMEA 2000 Gateway Module
Regular price
$360.00 AUD
Regular price
Sale price
$360.00 AUD
Unit price
/
per
Couldn't load pickup availability
Simarine SN01 SiCOM NMEA 2000 gateway module allows your PICO to transmit and receive information from certain devices connected to an existing NMEA 2000 network. It allows control of switch banks, transmitting battery status, tank levels and some environmental information. Using the gateway, PICO can also display a range of engine and transmission parameters if they are connected to the NMEA network.
Operating
- Power source voltage range 6 – 35 V
- Temperature range -20 – +70 °C
- Power consumption at 12 V
- Operating 0.8 mA
- Dimensions 183x91x34 mm
Connectivity Up to
- NMEA 2000 backbone 1
- SICOM port 2
| PGN | PGN Name | RX | TX |
| 59904 | ISO Request | Yes | No |
| 60928 | ISO Address Claim | Yes | Yes |
| 126996 | Product Information | No | Yes |
| 127257 | Attitude | No | Yes |
| 127502 | Switch Bank Control | No | Yes |
| 127505 | Fluid Level | No | Yes |
| 127506 | DC Detailed Status | No | Yes |
| 127508 | Battery Status | No | Yes |
| 130310 | Environmental Parameters | No | Yes |
| 130314 | Actual Pressure | No | Yes |
