Victron Energy - SCC075015060R

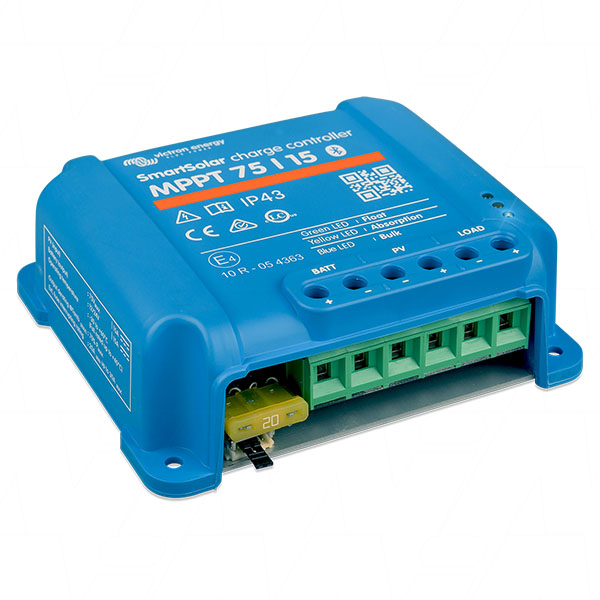

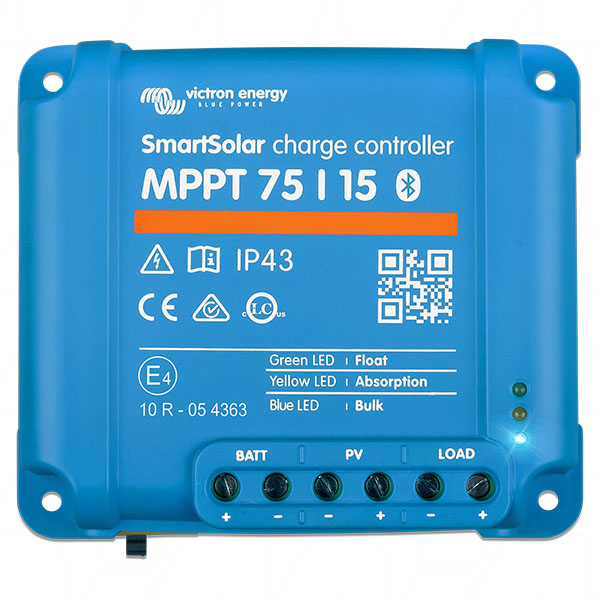

SmartSolar MPPT 75/15 Solar Charge Controller
SmartSolar MPPT 75/15 Solar Charge Controller
Couldn't load pickup availability
The Victron SmartSolar MPPT 75/15 is a compact yet powerful solar charge controller designed for smaller off-grid solar systems. With support for 12V and 24V batteries and a charge current of up to 15A, it’s ideal for caravans, boats, tiny homes, and low-consumption solar setups.
Featuring ultra-fast Maximum Power Point Tracking (MPPT) technology, this controller maximises energy harvest from solar panels, even under low light conditions. The built-in Bluetooth functionality allows you to monitor and adjust settings using the VictronConnect app on your smartphone or tablet.
Durable, intelligent, and easy to install, the MPPT 75/15 offers excellent value and performance in a compact form factor.
Key Features
- MPPT controller for 12V/24V systems
- Max PV voltage of 75V, with 15A charging output
- Ultra-fast MPPT algorithm for improved efficiency
- Built-in Bluetooth for VictronConnect app control
- Compatible with lead-acid and lithium battery chemistries
- Compact and lightweight – ideal for small solar setups
- Includes electronic protection features for safety
Specifications
| Model | SmartSolar MPPT 75/15 |
| System Voltage | 12V / 24V auto-select |
| Rated Charge Current | 15A |
| Maximum PV Voltage | 75V |
| Max PV Input Power | 220W @ 12V, 440W @ 24V |
| Battery Types | Lead-acid (AGM, GEL, flooded), LiFePO₄ |
| Charging Algorithm | Adaptive 3-stage: bulk, absorption, float |
| Bluetooth | Integrated (VictronConnect support) |
| Communication | VE.Direct port |
| Protection Features | Overload, short-circuit, over-temperature |
| Operating Temperature | -30°C to +60°C |
| Dimensions | 100 x 113 x 40 mm |
| Weight | 0.5 kg |
