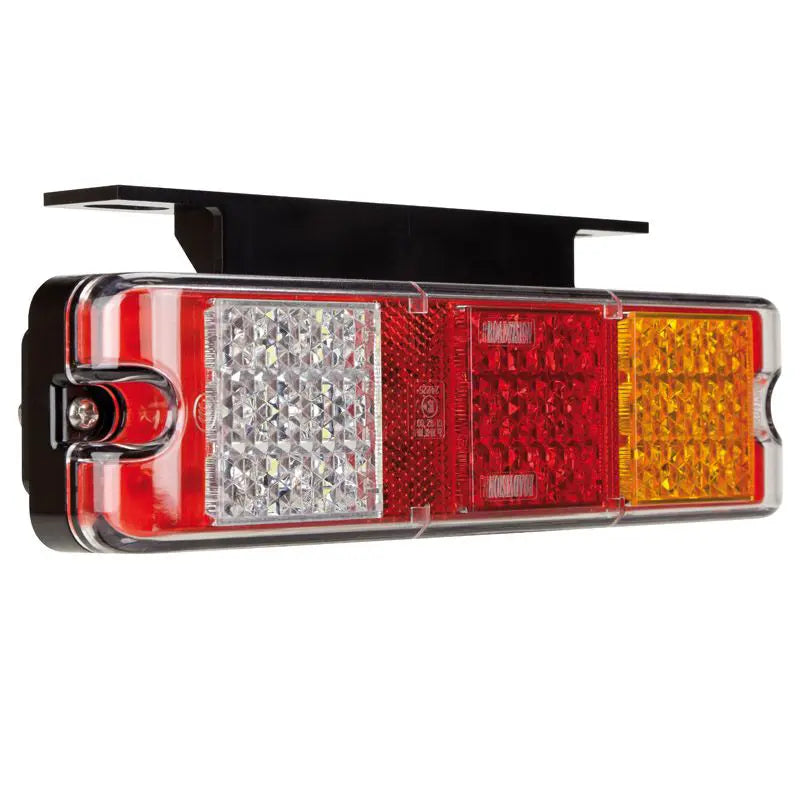

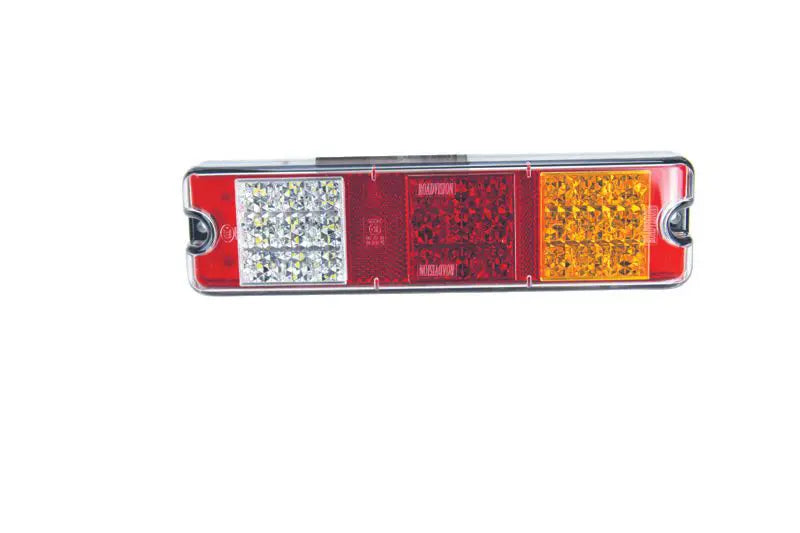

Everything you could want in a combination lamp and much, much more. Just fit and forget. ROADVISION’s super bright LED Combination Lamp Stop/Tail, Indicator & Reverse (BR230ARW) provides superior visibility with minimum current draw and can handle anything you and the environment throw at them.
Designed to last a lifetime*, they are maintenance free, dust and water proof, and manufactured from virtually unbreakable polycarbonate lenses and housings.
They are supplied with a removable right angled mounting bracket and have the flexibility to be mounted vertically or horizontally, with the same mounting footprint as the most commonly used incandescent lamps, and are ideal for tray ute applications. What more could you ask for in a combination lamp?
Features
- Compact LED combination lamp
- Multi-volt 10-30V input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Tough polycarbonate lens & housing
- Water and dust proof
- Supplied pre-wired with 300mm LEDLink harness
- Compact body allows fitment into the tightest of applications
- Removable mounting bracket to suit any mounting application
Specifications
| Part Number | BR230ARW |
|---|---|
| Description | Rect Stop/Tail/Ind/Rev/Ref |
| Functions | Stop/Tail Indicator & Reverse |
| Voltage Input | 10-30V DC |
| Number of LED's | Indicator - 9 LED's Stop/Tail - 9 LED's Reverse 9 LED's |
| Current Draw Amps | Ind - 0.05A @ 13.8V S/T - 0.05/0.05A @ 13.8V |

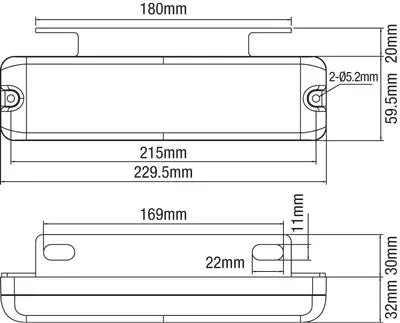

| Dimensions AxBxC | 229x59.5x32mm |
| Lens Construction | Polycarbonate |
| Housing Construction | Polycarbonate |
| Mounting Hole Centre | 215mm Stud Centres or 125-169mm Bracket Mount Centres |
| Cable Length | 300mm Tinned Copper LEDLink Connector |
| Wiring Colour Codes | Earth - White Stop - Red Rail - Brown Indicator - Green or Yellow |
| ADR Approval | Ind - E4-6R-0124225 S/T - E4-7R-0124225 Rev - E4-23R-0124225 Ref - E4-3R-023771 |
| CTA Approval | CTA-060863 |
