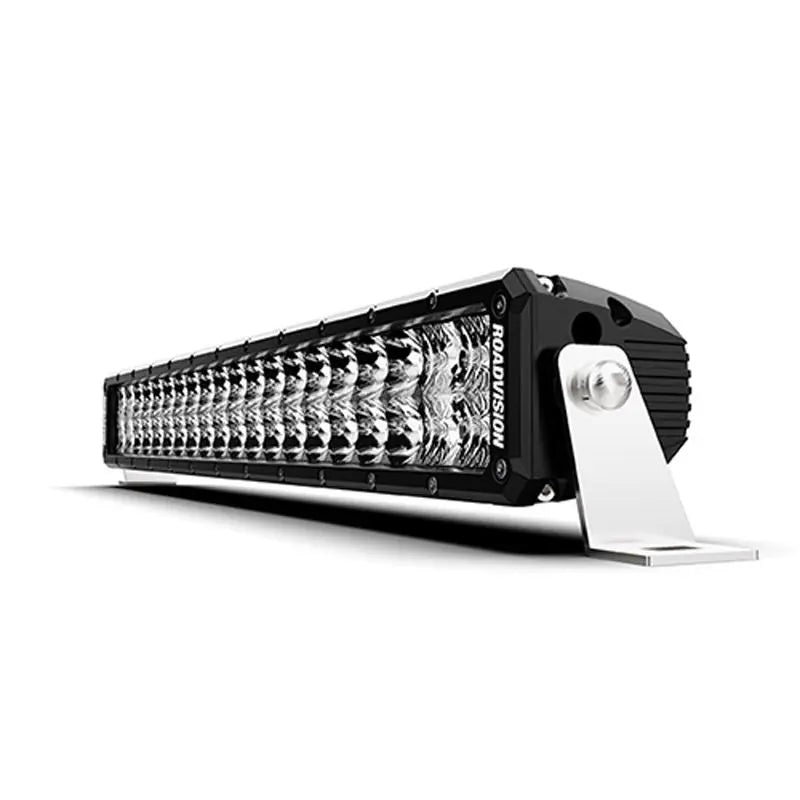

The Roadvision Essentials Series LED Bar Light 22in DRE 11-32V 40x5W 200W 11500lm Combo Beam is the ideal choice for those chasing value for money without compromising on quality.
Utilising high performing 5W Osram LED’s, Thermal Management Technology, packaged in an IP68 rated housing and shielded behind a polycarbonate lens, these bar lights are built to endure the toughest conditions.
The Essentials Series dual row LED bar lights produce up to 11500lm of instant light output. With the perfect combination of spot and driving optics, they produce combination style beam patterns reaching up to 694 meters @ 1 LUX.
Available in the most common 12” & 22” lengths, they are a perfect entry level solution while still providing great output, durability and the perfect look for your rig.
| Description | DRE Series 12" Bar 20 LED |
| Beam Pattern | Combination |
| Maximum Lumens | 6800lm |
| Maximum Lux @ 10m | 2573lx |
| Maximum Beam Distance @ 0.5lx | 718m |
| Maximum Beam Distance @ 1LX | 507m |
| Input Voltage | 11-32VDC |
| Maximum Watts | 100W |
| Number of LEDs | 20 x 5W Osram |
| Current Draw @ 13.8V | 5.0~7.2 Amps |
| Lens Construction | Polycarbonate |
| Housing Construction | Die-Cast Aluminium |
| Wiring | 2 Pin Deutsch Plug |
| Dimensions AxBxC | 359 x 80 x 65mm |
