Powertech - PS2036
Powertech USB & 12V Cigarette Lighter Power Socket (Switched) – PS2036
Powertech USB & 12V Cigarette Lighter Power Socket (Switched) – PS2036
Couldn't load pickup availability

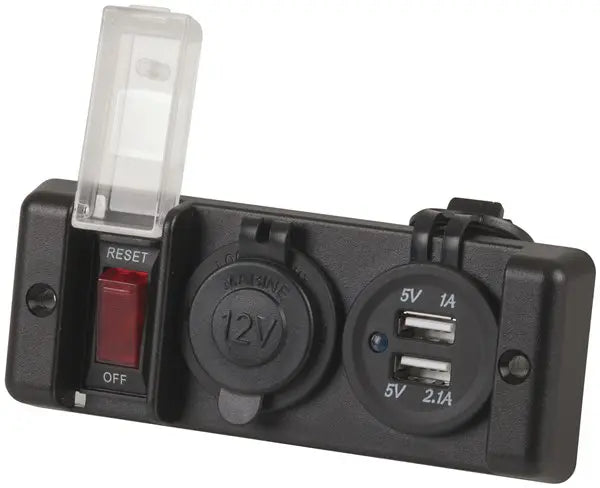

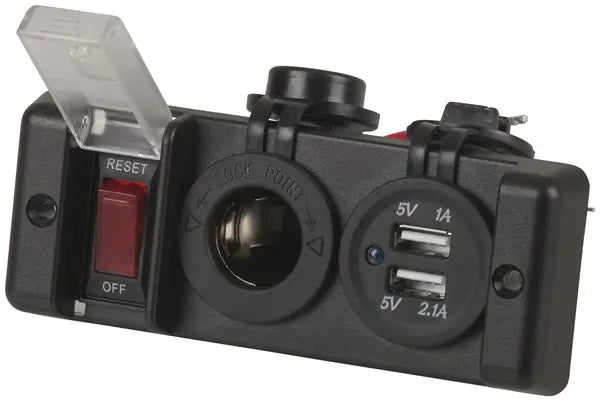

The Powertech PS2036 is a versatile and compact power panel, perfect for vehicles, caravans, and boats. It combines dual 12V cigarette lighter sockets with two USB charging ports (1A and 2.1A), all controlled by a single rocker switch protected under a tamper-resistant cover.

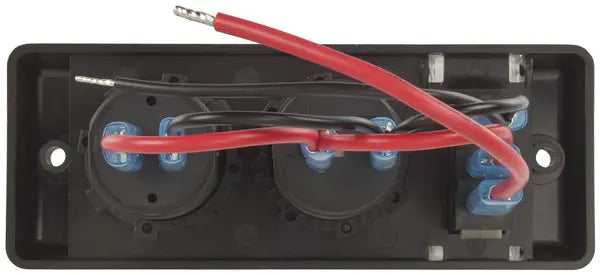

Rated at 16A, the switch also acts as a breaker—automatically cutting power if current draw exceeds the limit, and can be switched back on immediately. The panel is easy to install, requiring approximately 70mm clearance behind for wiring, and connects via standard ¼” QC tabs for straightforward reconfiguration if needed.
Durable and practical, this panel provides reliable power for all your 12V and USB devices in a clean, easy-to-mount design.
Key Features
- Dual 12V cigarette lighter sockets (10A shared)
- Two USB ports: 1A and 2.1A (5V USB 2.0)
- Rocker switch with tamper-resistant protective cover
- 16A breaker-style switch protection
- Compact panel design (130mm x 50mm)
- Simple installation with 70mm wiring clearance
- Bare lead connections with included 70mm lead length
- Mounts via 4mm countersunk holes
Specifications
| Model Number | PS2036 |
| Width | 130mm |
| Height | 50mm |
| Depth (wiring clearance) | ~70mm |
| Voltage Requirement | 12V DC |
| Current Rating | 16A (breaker-style protection) |
| Cigarette Lighter Sockets | 2 (10A rated) |
| USB Ports | 2 (1A + 2.1A @ 5V, USB 2.0) |
| Switch Type | Rocker (with protective cover) |
| Vehicle Connection | Bare leads |
| Item Connection | Hard wired |
| Lead Included | Yes (70mm) |
| Mounting | 2 x 4mm countersunk holes |
| Packaged Volume | 1.7L |
| Packaged Weight | 0.15kg |
| Packaged Size (L x W x H) | 17cm x 10.2cm x 9.8cm |
