OEX - ACX3958BL

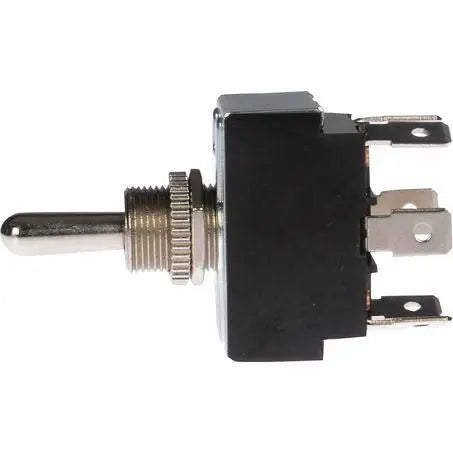

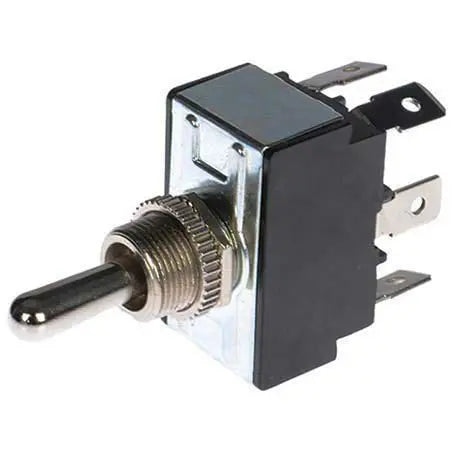

OEX Toggle Switch DPDT Momentary On/Off/Momentary On 20A 12/24V (ACX3958BL)
Ideal for winches, actuators, motor control systems, and applications requiring momentary directional switching.
Regular price
$29.95 AUD
Regular price
Sale price
$29.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
- Fast dispatch Australia-wide from Battery Force
- Trusted supplier of automotive electrical components
- Quality products backed by manufacturer warranty
- Expert support available before and after purchase
- Reliable performance for demanding applications
The OEX ACX3958BL Toggle Switch is a heavy-duty DPDT (Double Pole Double Throw) switch designed for precise control in 12V and 24V electrical systems. Featuring a momentary on/off/momentary on configuration, it is ideal for applications where temporary activation in either direction is required, such as winches, actuators, and motor controls.
With a 20A rating, this toggle switch delivers reliable performance for demanding automotive and industrial applications. The robust construction and 6-terminal design provide flexible wiring options, while the compact mounting size makes it easy to install in dashboards, control panels, and custom setups.
Non-illuminated and built for durability, this switch is a practical choice for professional and DIY installations where reliability and control are essential.
Key Features
- DPDT (Double Pole Double Throw) toggle switch
- Momentary On / Off / Momentary On operation
- Rated to 20A for reliable performance
- Suitable for 12V and 24V systems

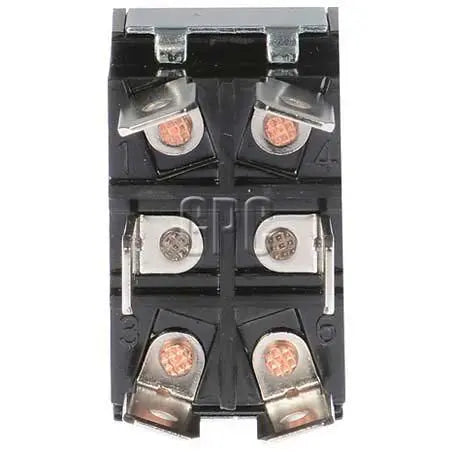

- 6 terminal design for flexible wiring
- Non-illuminated for simple, clean installations
- Compact mounting size for easy fitment
- Ideal for winches, actuators, and motor control
Specifications
| Part Number | ACX3958BL |
| Switch Type | Toggle |
| Configuration | DPDT (Double Pole Double Throw) |
| Switch Action | Momentary On / Off / Momentary On |
| Voltage | 12V / 24V |
| Current Rating | 20A |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Number of Terminals | 6 |
| Mount Diameter | 12.5mm |
| Mount Length | 12mm |
| Illumination | Non-illuminated |
| Weight | 0.03kg |
| Warranty | 1 Year |
Share
What does momentary on/off/momentary on mean?
What does momentary on/off/momentary on mean?
It means the switch returns to the centre (off) position when released, with momentary activation in either direction.
What is a DPDT switch?
What is a DPDT switch?
DPDT stands for Double Pole Double Throw, allowing control of two separate circuits or reversing polarity in applications like motors.
What is this switch commonly used for?
What is this switch commonly used for?
It’s often used for winches, actuators, and motor direction control.
Is this switch illuminated?
Is this switch illuminated?
No, this is a non-illuminated toggle switch.
What voltage systems is this suitable for?
What voltage systems is this suitable for?
It is designed for both 12V and 24V systems.
