OEX - ACX1065

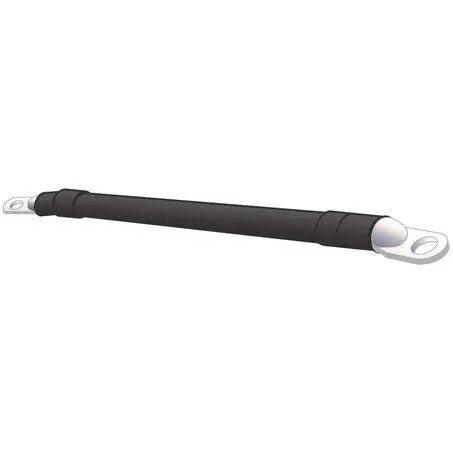

OEX 2 B&S Battery Lead, Stud to Stud, Length - 680mm, Stud Hole - 10mm
OEX 2 B&S Battery Lead, Stud to Stud, Length - 680mm, Stud Hole - 10mm
Couldn't load pickup availability
Built tough for Australian conditions, the OEX 2 B&S Battery Lead (Stud to Stud, 680mm) is engineered for high-performance electrical systems in 4WDs, boats, caravans, and heavy vehicles. Featuring premium Australian-made copper, this lead is die-crimped, solder dipped, and finished with UV-stabilised black PVC insulation for maximum durability.
With a nominal power rating of 245A (60% duty cycle) and a 32.15mm² conductor cross-section, this heavy-duty lead ensures consistent power delivery even in demanding applications. Designed for reliability, it includes 10mm stud holes and brass terminals to provide a secure and corrosion-resistant connection every time.
Key Features
- 680mm Total Length – Ideal for compact, high-draw applications
- 2 B&S Gauge (32.15mm²) – Suitable for high-current systems
- Nominal Rating: 245A – At 60% duty cycle over 5 minutes
- Stud to Stud Termination – 10mm stud holes for secure mounting
- UV Stabilised PVC Sheath – Built to withstand harsh Australian conditions
- Die-Crimped & Solder-Dipped – For long-lasting, vibration-resistant connections
- Premium Australian Copper – High-conductivity cable, 100% Aussie-made
- Brass Terminals – Strong, corrosion-resistant for maximum performance
Specifications
Length | 680mm |
Gauge | 2 B&S |
Conductor Size | 32.15mm² |
Nominal Power Rating | 245A (60% duty cycle over 5 mins) |
Termination | Stud to Stud |
Stud Hole Size | 10mm |
Cable Colour | Black |
Outer Sheath | UV Stabilised PVC |
Material | Australian Copper with Brass Terminals |
Weight | 0.36kg |
Origin | 100% Australian Made |
