• OEX 10-30V LED Slimline Amber Beacon - Magnetic Mount (ACX2368)
1 1

OEX - ACX2368

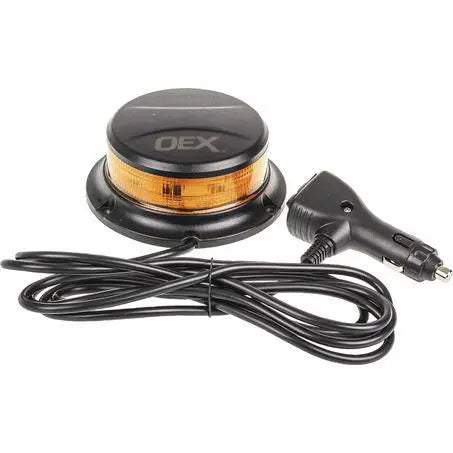

OEX 10-30V LED Slimline Amber Beacon - Magnetic Mount (ACX2368)

Ideal for Commercial, service and work vehicles requiring a compact, removable amber warning beacon for 12V or 24V applications.

$179.95 AUD
$179.95 AUD
Sale
FREE shipping Australia-wide
  • Wide 10-30V operating range suits both 12V and 24V vehicles
  • SAE J845 Class 1 and ECE R65 compliant warning performance
  • ECE R10 EMC compliant for automotive electrical environments
  • IP67 rated for dependable protection against dust and water
  • Backed by a two-year warranty

The OEX ACX2368 LED Slimline Amber Beacon provides high-visibility warning lighting in a compact 48mm-high magnetic mount design, making it ideal for vehicles and equipment where a temporary or easily removable beacon is required.

Designed to operate across 10-30V systems, the ACX2368 is suitable for both 12V and 24V applications. Its magnetic mounting system allows the beacon to be quickly positioned when required without the need for a permanent mounting installation.

The beacon uses 32 amber LEDs and offers 10 selectable flash patterns, including a simulated rotating pattern, allowing the warning signal to be configured to suit different operating environments.

Built for demanding outdoor conditions, the ACX2368 carries an IP67 rating for protection against dust and water ingress. It also meets SAE J845 Class 1, ECE R65 and ECE R10 EMC requirements, providing a dependable warning solution for commercial vehicles, service vehicles, agricultural equipment and machinery.

Backed by a two-year warranty, the OEX ACX2368 combines compact dimensions, flexible installation and professional-grade warning performance.

Key Features

  • Slimline LED amber warning beacon
  • Compact 48mm overall height
  • Strong magnetic mounting for temporary installation
  • Wide 10-30V operating voltage range
  • Suitable for 12V and 24V systems
  • 32 amber LEDs
  • 10 selectable flash patterns
  • Simulated rotating flash pattern available
  • IP67 rated for protection against dust and water
  • SAE J845 Class 1 compliant
  • ECE R65 compliant
  • ECE R10 EMC compliant
  • Up to 2.25A current draw at 12V depending on selected flash pattern
  • Amber lens
  • Two-year warranty

Specifications

Part Number ACX2368
Brand OEX
Type Strobe Lamp / Warning Beacon
Beacon Style LED
Colour Amber
Lens Colour Amber
Mounting Type Magnetic
Operating Voltage 10-30V
System Compatibility 12V / 24V
LEDs 32
Flash Patterns 10 Selectable Patterns, Including Simulated Rotation
Current Draw Up to 2.25A @ 12V, depending on flash pattern
Height 48mm
Ingress Protection IP67
Compliance ECE R65, ECE R10 EMC, SAE J845 Class 1
Insulated Return No
Weight 0.4kg
Warranty 2 Years

Is the OEX ACX2368 suitable for both 12V and 24V vehicles?

Yes. The ACX2368 has a 10-30V operating range, making it suitable for both 12V and 24V electrical systems.

How is the OEX ACX2368 beacon mounted?

The ACX2368 uses a magnetic mounting system, allowing it to be installed and removed without requiring a permanent beacon mount.

How many flash patterns does the ACX2368 have?

The beacon provides 10 selectable flash patterns, including a simulated rotating warning pattern.

Is the OEX ACX2368 waterproof?

The beacon has an IP67 rating, providing protection against dust and water ingress for use in exposed working environments.

What standards does the OEX ACX2368 comply with?

The ACX2368 complies with ECE R65, ECE R10 EMC and SAE J845 Class 1 requirements.
