Noxsolis - NX532

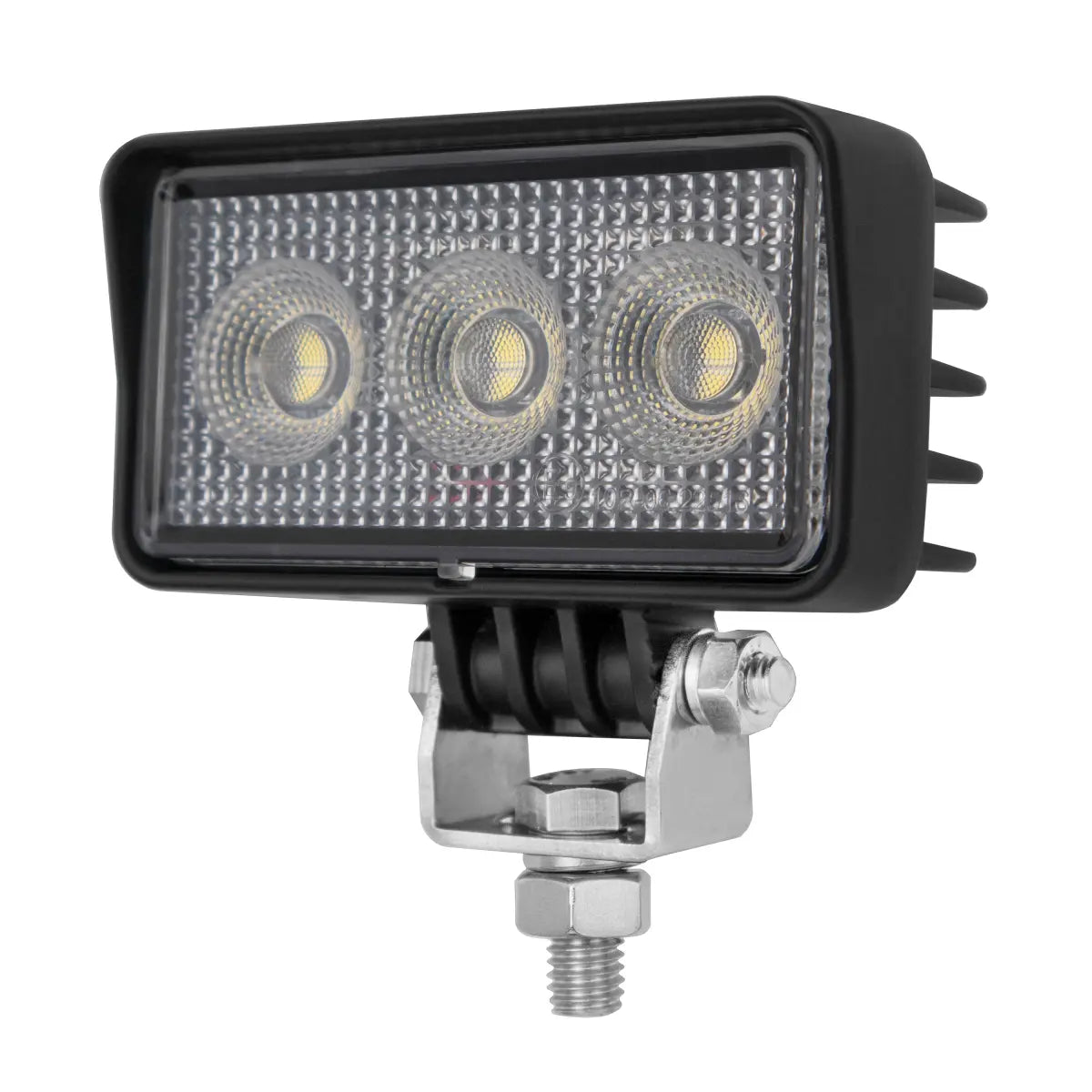

Noxsolis NX532 LED Slim Work Light 1080 Lumen Flood Beam
Ideal for reversing lights, tray and canopy lighting, agricultural machinery, trailers, marine applications and compact work light installations.
- Slim compact design for tight mounting locations
- IP66 and IP68 protection against dust and water ingress
- Multi-voltage operation for 12V and 24V systems
- EMC compliant for reduced electrical interference
- Backed by a 5-year warranty
The Noxsolis NX532 LED Slim Work Light is a compact yet powerful lighting solution designed for vehicles, machinery, agricultural equipment, marine applications and worksite environments where reliable illumination is essential. Delivering 1080 raw lumens from a slim, low-profile housing, the NX532 provides excellent flood beam coverage while fitting into tight mounting locations where larger work lights simply won't fit.
Built around a rugged die-cast aluminium housing and impact-resistant polycarbonate lens, the NX532 is engineered to withstand harsh Australian conditions. The flood beam pattern delivers broad, even light distribution, making it ideal for reversing, work areas, service bodies, trailers, canopies, agricultural machinery and equipment requiring close-range illumination.
Designed for both 12V and 24V systems, the NX532 offers multi-voltage compatibility and low current draw, making it suitable for a wide range of vehicle and equipment applications. Its slim dimensions allow installation in confined spaces while maintaining professional-grade durability and performance.
With IP66 and IP68 protection ratings, EMC compliance and a 5-year warranty, the NX532 is built to provide dependable performance in demanding environments.
Key Features
- Compact slim-profile LED work light
- 1080 raw lumen output
- 900 effective lumen output
- Wide flood beam pattern
- Multi-voltage 12V and 24V compatibility
- Durable die-cast aluminium housing
- Impact-resistant polycarbonate lens
- IP66 and IP68 rated protection
- EMC compliant design
- Low power consumption
- Ideal for reversing and work area lighting
- Compact installation footprint
- 5-year warranty
Specifications
| Model | NX532 |
| Brand | Noxsolis |
| Product Type | LED Work Light |
| Beam Pattern | Flood |
| Raw Lumens | 1080 lm |
| Effective Lumens | 900 lm |
| Power Consumption | 12W |
| Voltage | 12-24V DC |
| Operating Voltage | 12-24V DC |
| Current Draw | 0.87A @ 13.8V / 0.5A @ 24V |
| Colour Temperature | 5700K |
| Housing Material | Die-Cast Aluminium |
| Housing Colour | Black |
| Lens Material | Polycarbonate |
| Lens Colour | Clear |
| Shape | Rectangular |

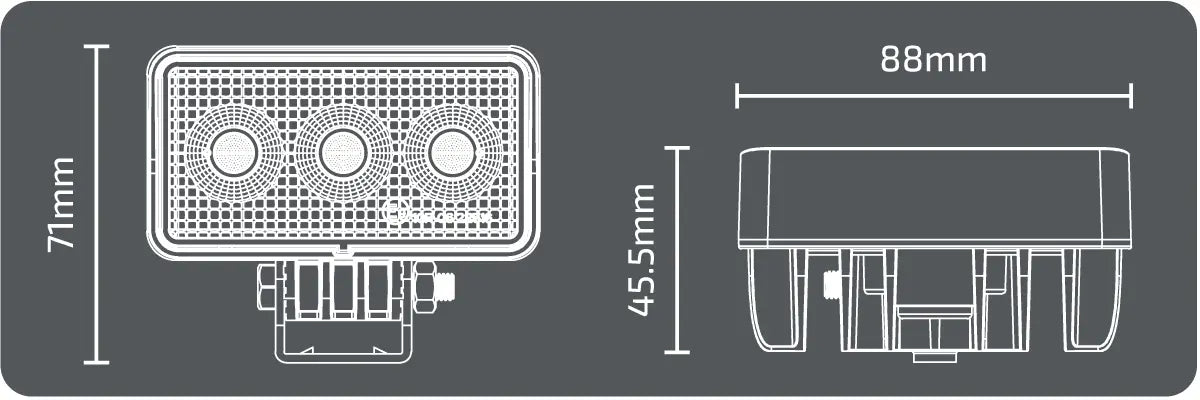

| Width | 88mm |
| Height | 71mm |
| Depth | 45.5mm |
| Weight | 0.27kg |
| IP Rating | IP66 / IP68 |
| EMC Compliance | CISPR 25 Class 3 & ECE R10 |
| Warranty | 5 Years |
| Pack Quantity | 1 |
Share
What beam pattern does the NX532 use?
What beam pattern does the NX532 use?
The NX532 features a flood beam pattern designed to provide broad, even illumination for work areas and close-range visibility.
Is the NX532 suitable for both 12V and 24V vehicles?
Is the NX532 suitable for both 12V and 24V vehicles?
Yes. The work light operates on both 12V and 24V DC systems.
How bright is the NX532?
How bright is the NX532?
The light produces 1080 raw lumens and 900 effective lumens.
Is this work light waterproof?
Is this work light waterproof?
Yes. The NX532 carries both IP66 and IP68 ratings for protection against dust and water ingress.
What is the main advantage of the NX532?
What is the main advantage of the NX532?
Its slim compact housing allows installation in tight spaces while still delivering reliable flood beam illumination for work and reversing applications.
