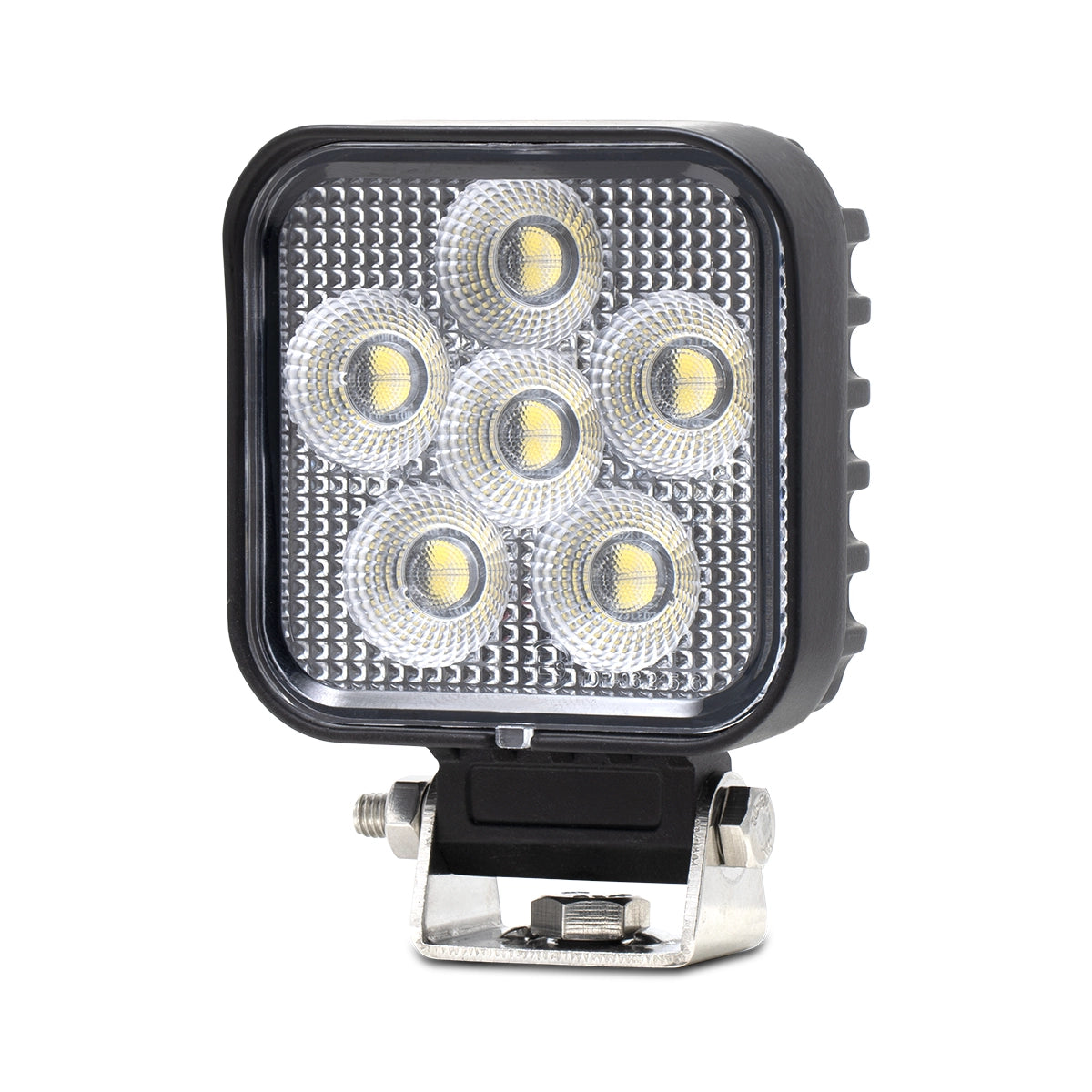

Noxsolis - NX530
3" LED Slim Work Light 12-24V 24W
3" LED Slim Work Light 12-24V 24W
Couldn't load pickup availability
Light up the toughest worksites with the Noxsolis NX530 LED Work Light, engineered for Aussie conditions and serious performance. Whether you’re on the job, off-road, or out in the elements, this powerful compact flood beam delivers 5300 raw lumens of crisp, white light—perfect for maximising visibility in all directions.
Built to thrive where others fail, the NX530 features rugged die-cast aluminium housing, a virtually unbreakable polycarbonate lens, and an IP69K rating to withstand dust, mud, pressure washers and extreme weather. It’s designed for 24/7 reliability, backed by smart thermal management and advanced circuitry for long-lasting efficiency.
From mining sites and agricultural setups to marine and construction applications, the NX530 is your go-to choice for premium-grade LED lighting that won’t quit.
Key Features
- 5300lm Raw / 3240lm Effective Output – Intense brightness for wide, clear flood coverage
- Durable Die-Cast Aluminium Housing – Withstands tough environments
- IP69K Rated – Extreme water and dust protection
- Multi-Voltage Input (9–33V DC) – Suits 12V and 24V setups
- Flood Beam Pattern – Ideal for general worksite lighting
- High-Impact Polycarbonate Lens – Virtually unbreakable
- Reverse Polarity Protection – Prevents wiring damage
- Electromagnetic Interference (EMI) Shielded – ADR compliant
- Deutsch DT Connector – Fast, reliable installation
- Compact Footprint – Just 114mm x 82mm (mount to back)
Specifications
Voltage Range | 9–33V DC |
Raw Lumens | 5300lm |
Effective Lumens | 3240lm |
LED Brand / Quantity | OSRAM / 5 x 10W LEDs |
Current Draw @ 13.5V | 3.5A |
Power Consumption | 47.2W |
Beam Type | Flood |
Lens Material | Polycarbonate |
Housing Material | Die-cast aluminium |
Connector Type | Deutsch DT 2-pin |
Mounting | Stainless steel bracket |
IP Rating | IP69K |
Operating Temp | –40°C to +60°C |
EMI / EMC | CISPR25 Class 3 |
Dimensions (W x H x D) | 114 x 102 x 82mm |
Warranty | 5 Years |
