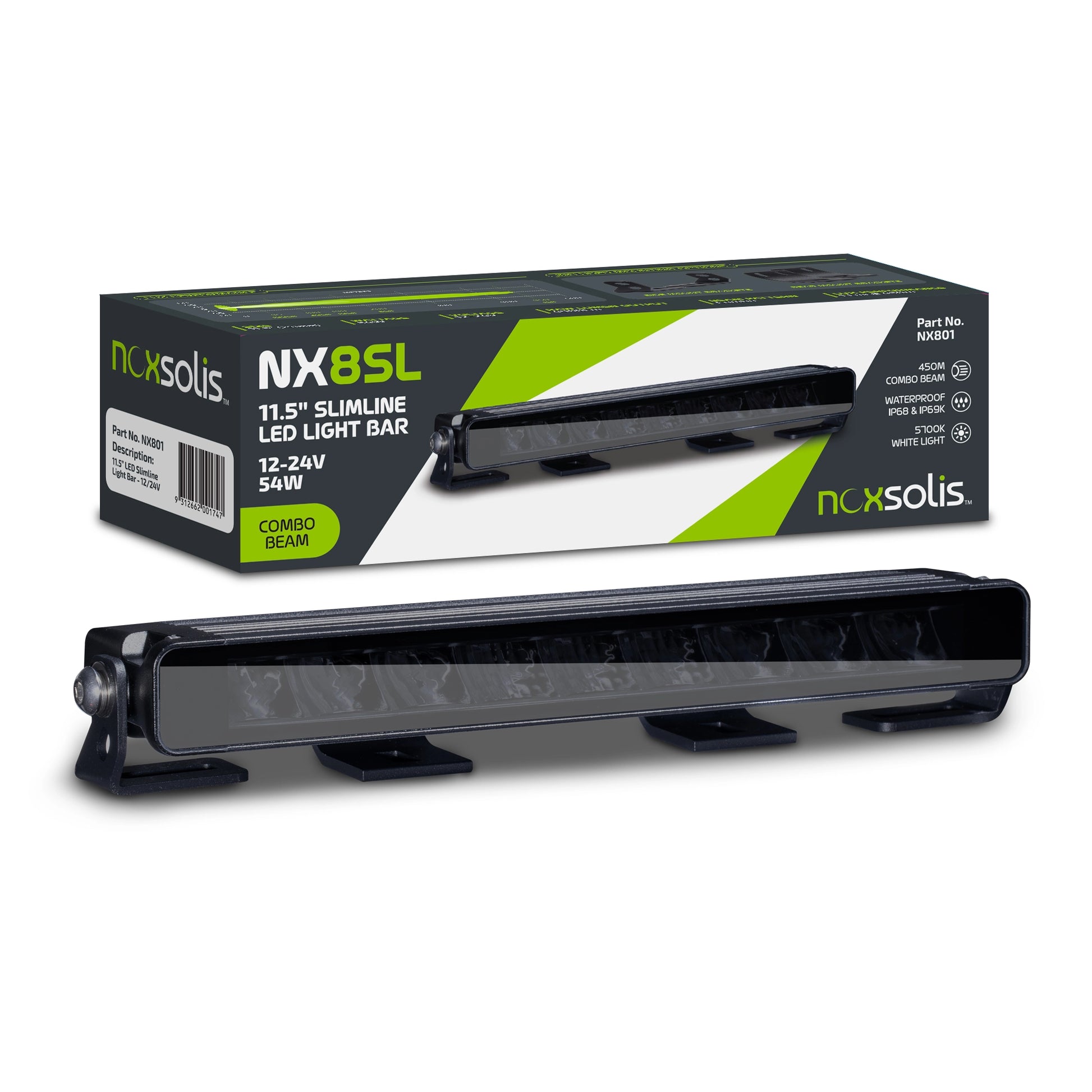

Noxsolis - NX801
11.5" LED Slimline Light Bar - 12/24V
11.5" LED Slimline Light Bar - 12/24V
Couldn't load pickup availability
Light up the road ahead with confidence using the Noxsolis NX801 11.5" LED Slimline Light Bar – a high-performance driving light designed for Australian conditions. With a powerful output of 4,320 effective lumens, this compact but rugged bar light offers exceptional visibility for 4WDs, utes, trucks, and off-road vehicles.
Built with a slimline design and high-output 8x 5W OSRAM LEDs, the NX801 delivers focused illumination without taking up too much space. It's IP69K rated, fully sealed against dust and water, and tough enough to handle corrugated tracks, wild weather, and daily use. Whether you’re mounting it on a bullbar or integrating it into a canopy, this light bar combines performance, durability, and sleek aesthetics.
Key Features
- 11.5" Slimline Housing - Perfect for tight spaces or integrated setups
- 8 x 5W OSRAM LEDs - Brilliant performance with 4,320 effective lumens
- Flood Beam Pattern - Wide spread light for improved visibility
- IP69K Waterproof Rating - Built to withstand Australia's harshest environments
- Durable Diecast Aluminium Housing - Long-lasting and vibration-resistant
- Polycarbonate Lens - Scratch-resistant and impact-tough
- Multi-Voltage (12–24V) - Suitable for a wide range of vehicles
- EMC Approved - Won't interfere with your vehicle's electronics
Specifications
Model | NX801 |
LED Chips | 8 x 5W OSRAM |
Raw Lumens | 6,720 lumens |
Effective Lumens | 4,320 lumens |
Beam Pattern | Flood |
Voltage Range | 12V–24V DC |
Power Consumption | 40W |
Current Draw @ 13.2V | 3.03A |
Dimensions (W x H x D) | 293 x 40 x 65 mm |

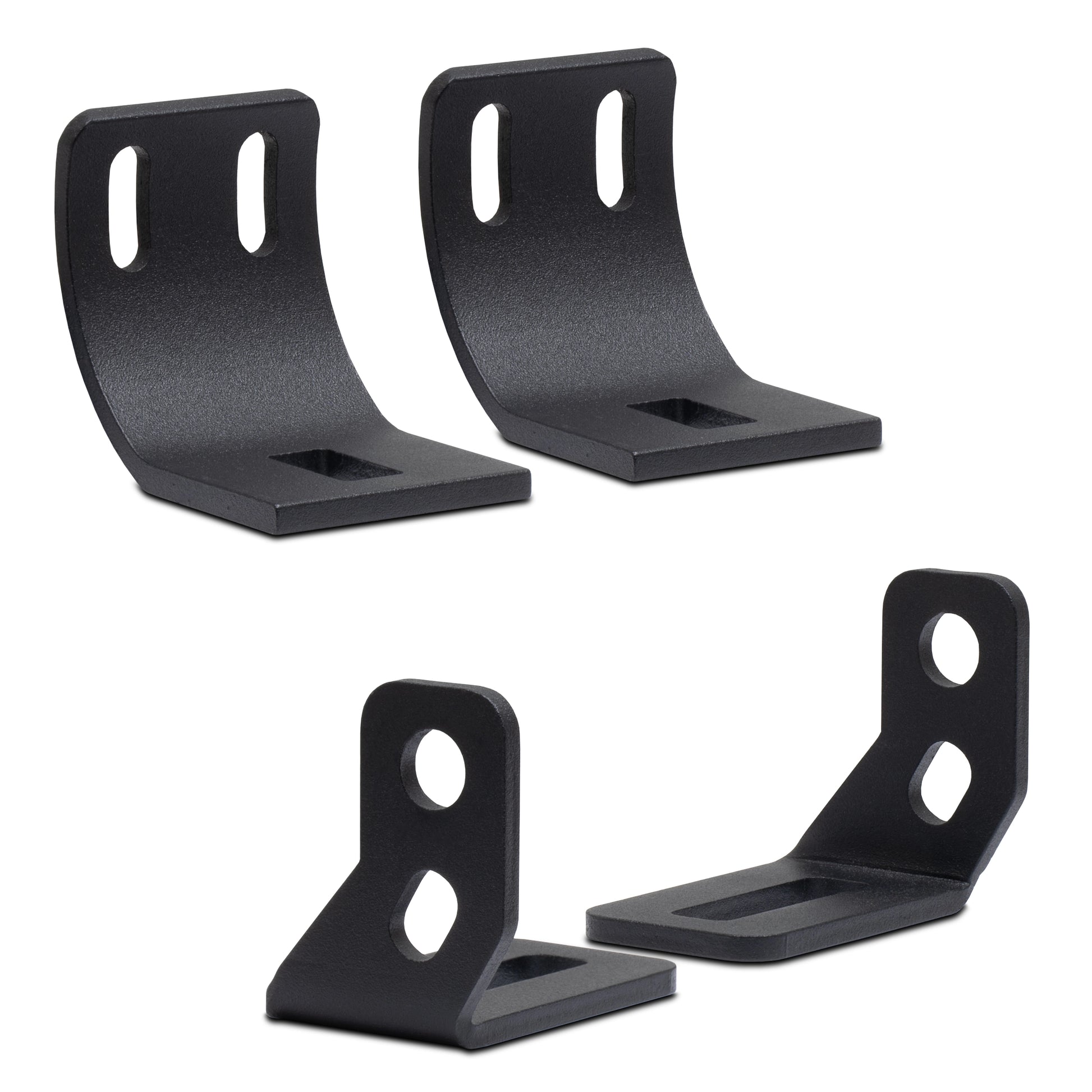

Mounting Type | Side & Rear Mounting |
Lens Material | Polycarbonate |
Housing Material | Aluminium |
Waterproof Rating | IP69K |
Vibration Rating | 21 Grms |
EMC Rating | CISPR 25 Class 3 |
Operating Temp | -40°C to +60°C |
Weight | Approx. 980 grams |
