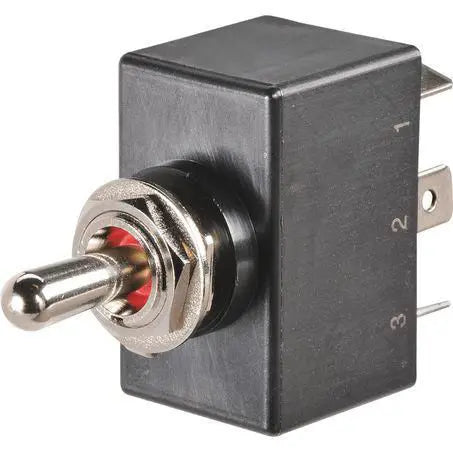

Waterproof Heavy Duty Toggle Switch DPDT - 25A @ 12V

The Narva Waterproof Heavy Duty Toggle Switch DPDT is engineered for reliability in demanding environments such as automotive, marine, and off-road applications. Offering an On–Off–On double pole double throw (DPDT) action, it provides versatile switching with a 25A rating at 12V (15A at 24V).

Fully sealed with epoxy resin to IP67 standards and fitted with an integrated O-Ring seal, this switch ensures outstanding resistance to water, dust, and vibration. Compact and easy to install with push-on terminals and a 12mm mounting opening, it’s a durable solution for any heavy-duty wiring setup.

Key Features

• Heavy duty DPDT toggle switch with On–Off–On action
• Rated 25A at 12V and 15A at 24V
• Fully sealed to IP67 with epoxy resin protection
• Integrated O-Ring seal for enhanced durability
• Reliable performance across -40°C to +85°C temperature range
• Push-on terminals for quick installation
• Compact design with 12mm mounting opening
• Non-illuminated for simple, rugged operation

Specifications
