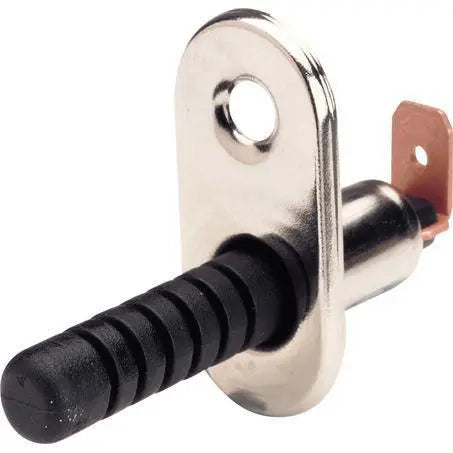

The Narva 60041BL Universal Door Switch provides a simple and effective solution for activating interior lights or alarms when a vehicle door is opened. With a robust 10A rating at 12V (5A at 24V), this SPST (Single Pole Single Throw) switch is built for durability and reliability. It features a normally closed contact configuration and a push-on terminal for easy installation. The extended arm can be trimmed to the required length, while the compact 9.5mm mounting opening makes it ideal for tight spaces. Perfect for use in cars, 4WDs, caravans, trucks, and marine environments, this non-illuminated switch offers dependable operation backed by Narva’s one-year warranty.
Key Features:
Rated 10A @ 12V (5A @ 24V) for reliable current handling
Normally closed contacts ideal for door or alarm activation
Extended arm can be trimmed to suit your installation
Quick push-on terminal for fast wiring
Compact 9.5mm mounting opening for universal fit
Non-illuminated SPST design for simple functionality
Covered by a 1-year Narva warranty
Specifications:
Warranty
One Year
Number of Terminals
1
Power Rating
10A @ 12V (5A @ 24V)
Switch Action
On - Momentary Off (SPST)
Voltage
12V
Lamp Colour/s
Not Applicable
Mount Diameter
9.5mm
Number of Poles
1
Number of Positions
2
Switch Type
Door Light
Switch Illumination
Non-Illuminated
Weight
0.016kg
Features
Extended arm can be cut to length; normally closed contacts; push-on terminal; 9.5mm mounting opening
