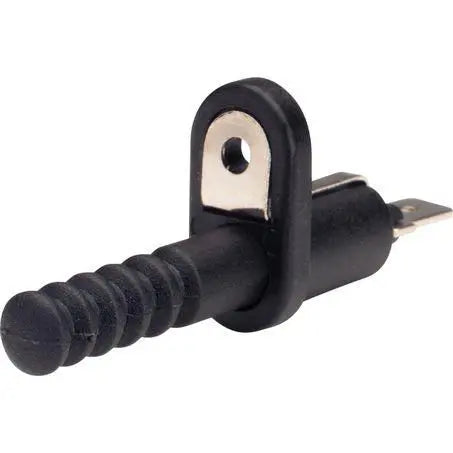

The Narva 60042BL Universal Door/Alarm Switch is a compact, reliable switch designed for activating alarms or interior lights when a door is opened. Built to handle up to 10A at 12V, this SPST (Single Pole Single Throw) switch features a normally closed contact configuration and a convenient push-on terminal connection. Its extended arm can be easily trimmed to suit individual applications, while the 10.5mm mounting diameter ensures a secure fit in a wide range of vehicles. Ideal for cars, trucks, caravans, and marine setups, this non-illuminated switch offers dependable performance backed by Narva’s one-year warranty.
Key Features:
Rated at 10A @ 12V (5A @ 24V) for dependable power handling
Extended arm design — easily cut to suit your installation
Normally closed contacts for door/trigger applications
Simple push-on terminal connection for quick wiring
Fits standard 10.5mm mounting holes
Durable and compact construction for automotive and marine use
Backed by a 1-year Narva warranty
Specifications:
Warranty
One Year
Number of Terminals
1
Power Rating
10A @ 12V (5A @ 24V)
Switch Action
On - Momentary Off (SPST)
Voltage
12V
Lamp Colour/s
Not Applicable
Mount Diameter
10mm
Number of Poles
1
Number of Positions
2
Switch Type
Door Light
Item Type
Switch
Switch Illumination
Non-Illuminated
Weight
0.01kg
Features
Extended arm can be cut to length; normally closed contacts; push-on terminal; 10.5mm mounting opening
