Narva - 71650

Narva Ultima 175 12V 100W Halogen Pencil Beam Driving Light Kit

Ideal for 12V 4WDs, utes and touring vehicles needing a complete twin pencil-beam halogen driving light kit for long-range auxiliary illumination.

$199.00 AUD
$199.00 AUD
Sale
FREE shipping Australia-wide
  • Genuine Narva Ultima 175 twin-lamp kit
  • Complete with globes, relay, switch and wiring hardware
  • See-through lens protectors included
  • Rotary Cup mounts for flexible lamp positioning
  • Expert support available before and after purchase

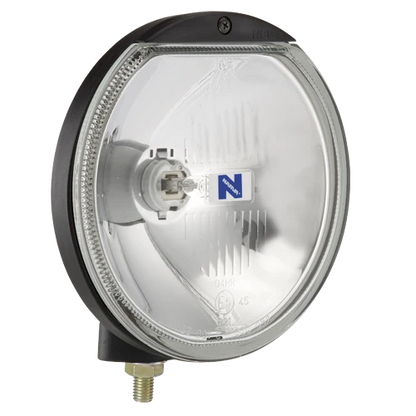

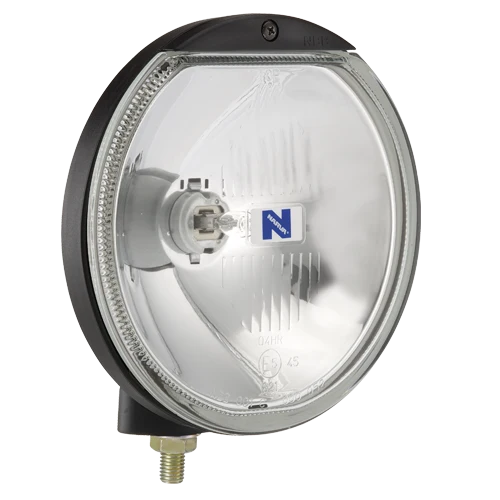

The Narva Ultima 175 Pencil Beam Driving Lamp Kit is a complete twin-lamp auxiliary lighting package for 12V vehicles. Its two 175mm quartz-halogen driving lamps use pencil-beam optics to project useful light further down the road, making the kit well suited to regional travel, touring and night driving where long-range visibility matters.

Each lamp uses Narva's Rotary Cup mounting system for flexible positioning and incorporates a glare shield to help control stray light. The kit arrives with 100W H3 globes, clear lens protectors, a relay, toggle switch, mounting spacers, terminals and wiring hardware, giving installers the core components required for a matched twin-lamp setup.

Road-use note: Narva's approval information for this lamp applies when it is fitted with a 55W globe. This kit is supplied with 100W globes, so check the applicable road-use requirements before installation and use.

Key Features

  • Twin 175mm pencil-beam driving lamps for long-range auxiliary illumination
  • Supplied with two 12V 100W H3 quartz-halogen globes
  • Rotary Cup mounting system allows flexible lamp positioning
  • Integrated glare shields help reduce stray light
  • See-through lens protectors help guard the lamp lenses while retaining visibility
  • Complete kit includes relay, toggle switch, spacers, terminals and wiring hardware

Specifications

Brand Narva
Part Number 71650
Product Type Twin driving lamp kit
Beam Pattern Pencil beam
Light Source Quartz halogen
Voltage 12V
Globe Type H3
Globe Power 100W per lamp
Lamp Diameter 175mm
Kit Contents 2 x 71647 driving lamps; 2 x 72209BL see-through lens protectors; 2 x 48351 12V H3 100W globes; 1 x 72386 relay; 1 x 60044 toggle switch; 1 x pair 74148 mounting spacers; terminal and wiring pack
Approval Note ADR 46/00 / E5-8R-04821 approval applies only when fitted with a 55W globe

What is included in the Narva Ultima 175 driving light kit?

The kit includes two 71647 driving lamps, two 72209BL see-through lens protectors, two 48351 12V H3 100W globes, one 72386 relay, one 60044 toggle switch, one pair of 74148 mounting spacers, plus terminals and wiring hardware.

What type of beam does the Narva Ultima 175 kit produce?

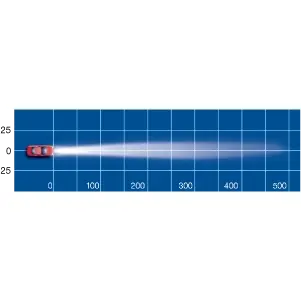

These lamps use a pencil-beam pattern designed for long-range auxiliary illumination. They are best suited to extending visibility further ahead rather than providing the broad spread of a dedicated driving or flood beam.

Will this driving light kit work with my vehicle?

Part number 71650 is a 12V kit intended for vehicles with a 12V electrical system and suitable mounting locations for 175mm lamps. Confirm the available mounting space, electrical capacity and applicable installation requirements for your vehicle before purchasing.

Does the Narva Ultima 175 kit require professional installation?

The kit includes a relay, switch, terminals and wiring hardware, but it still requires secure mounting and correct integration with the vehicle's electrical and high-beam circuits. Installation by a qualified auto electrician is recommended if you are not experienced with auxiliary vehicle lighting.

Are the supplied 100W lamps ADR approved for on-road use?

The published ADR 46/00 and E5-8R-04821 approval information for this lamp applies only when it is fitted with a 55W globe. Because kit 71650 is supplied with 100W globes, do not assume the supplied configuration is approved for on-road use; check the current requirements in your state or territory before installation and use.
