OEX - LLX20006
Push Button Switch Inline On/Off 12/24V - Pre-Wired with 2-Way DT, IP68
Push Button Switch Inline On/Off 12/24V - Pre-Wired with 2-Way DT, IP68
Regular price
$88.00 AUD
Regular price
Sale price
$88.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

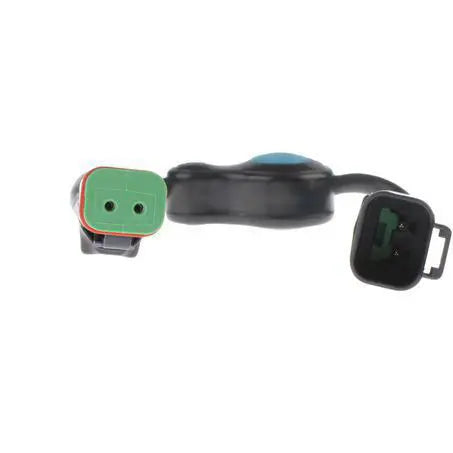

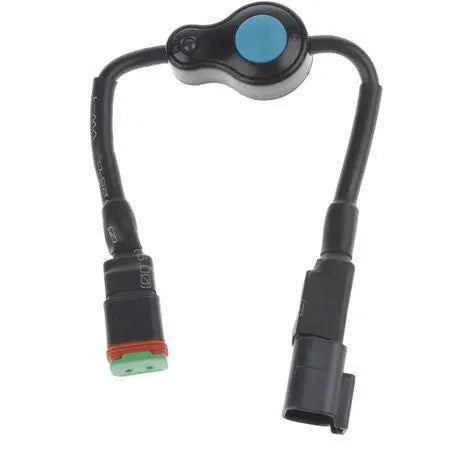

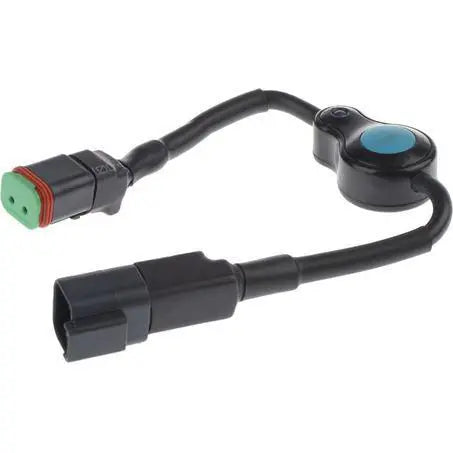

The OEX Push Button Inline Switch offers a simple and durable On/Off solution for automotive and 4WD applications. Designed for convenience, it comes pre-wired with 2-pin Deutsch connectors, making installation quick and reliable. Rated at 4A @ 12V, this single pole single throw (SPST) push button switch provides dependable control in a compact design. With IP68 environmental protection, it is fully sealed against dust and water ingress, ensuring long-lasting performance even in harsh Australian conditions.
Key Features
- Inline SPST push button On/Off switch
- Pre-wired with 2-pin Deutsch connectors
- Rated 4A @ 12V for reliable performance
- Fully sealed to IP68 standard for dust and water protection
- Compact and lightweight design for easy installation
- Illuminated for visibility and ease of use
Specifications
| Warranty | 1 Year |
| Voltage | 12/24V |
| Power Rating | 4A @ 12V |
| Switch Action | Off – On (SPST) |
| Number of Terminals | 2 |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Switch Type | Push Button |
| Illumination | Illuminated |
| Environmental | IP68 (Dust & Waterproof) |
| Connector Type | Pre-Wired with 2-Pin Deutsch Connectors |
| Weight | 0.12kg |
