Narva - 97210

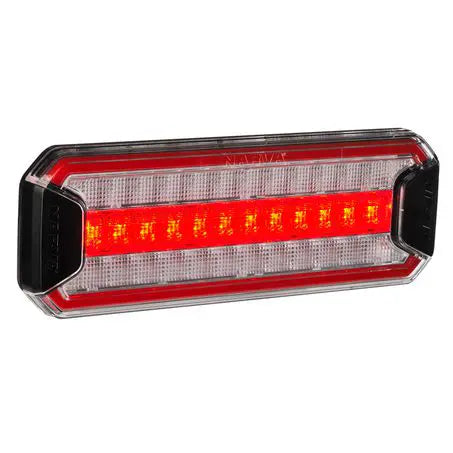

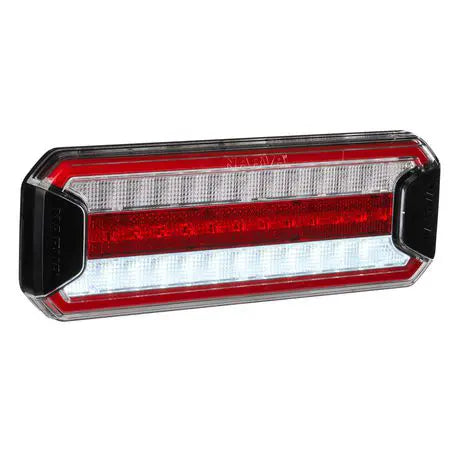

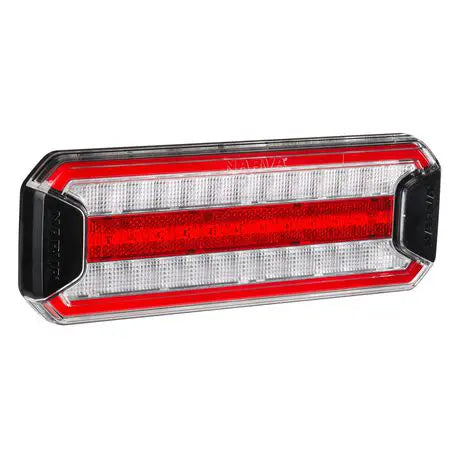

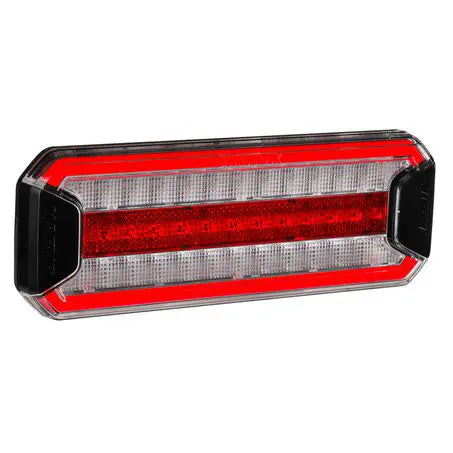

Narva Model 72 9-33V LED Rear Combination Lamp with Retro Reflector - 97210

Name: Narva Model 72 9-33V LED Rear Combination Lamp with Retro Reflector - 97210
Brand: Narva
SKU: 97210
Price: 144.95 AUD
Availability: InStock

Ideal for compatible trucks, trailers, utes and commercial vehicles requiring a sealed, multi-function 12V or 24V LED rear lamp with an in-built retro reflector.

$144.95 AUD

Sale

FREE shipping Australia-wide

Product variants

Quantity

Genuine Narva Model 72 combination lamp
Backed by a seven-year warranty
Fully sealed to IP68 and IP69K
ADR approved with CTA, CRN and ‘E’ Mark compliance
Compatible with electrical systems operating between 9V and 33V

The Narva 97210 Model 72 is a multi-function LED rear combination lamp incorporating stop, tail, direction indicator and reverse lighting into one surface-mounted unit. An in-built retro reflector further consolidates the vehicle’s rear lighting requirements, while Narva’s signature light pipes create a distinctive tail-light appearance at night.

Designed for compatible trucks, trailers and commercial vehicles, the Model 72 operates across a wide 9–33V range, allowing it to suit both 12V and 24V electrical systems. It draws 0.4A at 12V and is supplied with 0.5 metres of cable for connection during installation.

The lamp is designed around the common 284 x 100 mm industry footprint, with adjustable bolt holes allowing it to also suit the smaller 222 x 96 mm footprint. It can retrofit Narva Model 42 and Model 70 bolt-pattern footprints, making it a practical option when replacing or upgrading compatible rear lamps.

A hardened acrylic lens provides improved resistance to chemicals and UV exposure. The fully sealed housing carries IP68 and IP69K protection ratings, while CTA, CRN and ‘E’ Mark compliance supports its use in road-going vehicle and trailer applications. The Narva Model 72 is also backed by a seven-year warranty.

Key Features

LED stop, tail, direction indicator and reverse functions in one rear lamp
In-built retro reflector reduces the need for a separate reflector
Signature Narva light pipes create a distinctive appearance at night
Wide 9–33V operating range suits compatible 12V and 24V systems
Current draw of 0.4A at 12V
Hardened acrylic lens offers improved chemical and UV resistance
Fully sealed with IP68 and IP69K protection ratings
Surface-mounted design with adjustable bolt holes
Designed around the common 284 x 100 mm industry footprint
Also suits a smaller 222 x 96 mm mounting footprint
Retrofits Narva Model 42 and Model 70 bolt-pattern footprints
Supplied with 0.5 metres of cable
ADR approved with CTA, CRN and ‘E’ Mark compliance
Backed by a seven-year warranty

Specifications

Brand	Narva
Model	Model 72
Part Number	97210
Product Type	LED rear combination lamp
Lighting Functions	Stop, tail, direction indicator and reverse
Reflector	In-built retro reflector
Lighting Design	Signature light pipes
Operating Voltage	9–33V
Current Draw	0.4A at 12V
Lens	Hardened acrylic
Mounting Type	Front surface mount with adjustable bolt holes
Common Industry Footprint	284 x 100 mm
Alternative Mounting Footprint	222 x 96 mm
Retrofit Compatibility	Narva Model 42 and Model 70 bolt-pattern footprints
Ingress Protection	IP68 and IP69K
Cable Length	0.5 m
Compliance	ADR approved; CTA, CRN and ‘E’ Mark
Warranty	7 years
Unit of Measure	Each

What lighting functions does the Narva 97210 provide?

The Narva 97210 combines LED stop, tail, direction indicator and reverse lighting functions in one rear lamp. It also includes an in-built retro reflector.

Can the Narva Model 72 be used with both 12V and 24V systems?

Yes. The lamp has a 9–33V operating range, allowing it to work with compatible 12V and 24V vehicle electrical systems.

What mounting footprint does the Narva 97210 require?

The lamp is designed around the common 284 x 100 mm industry footprint. Its adjustable bolt holes also suit a smaller 222 x 96 mm footprint, and the lamp can retrofit Narva Model 42 and Model 70 bolt-pattern footprints.
