Narva - 63198BL
Marine Waterproof Switch Panel
Marine Waterproof Switch Panel
Couldn't load pickup availability

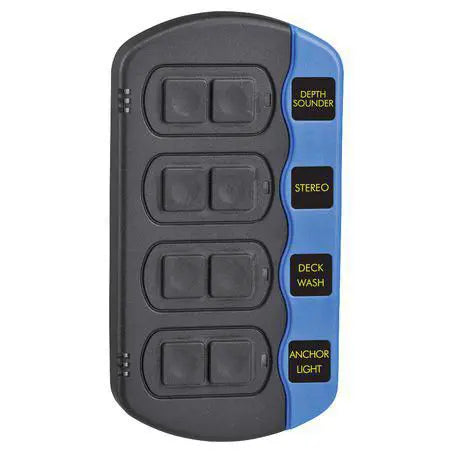

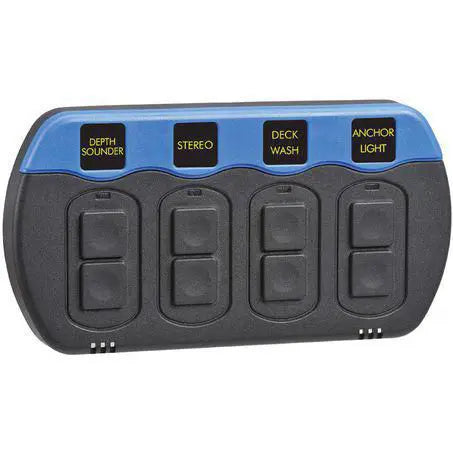

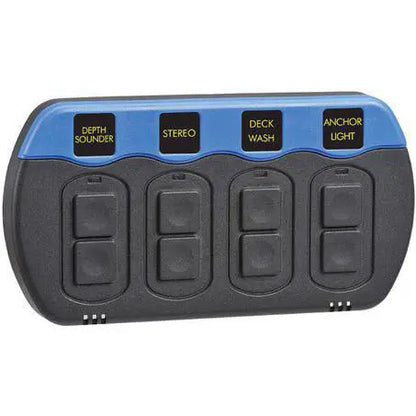

The Narva 63198BL Marine Waterproof Switch Panel is designed for boating enthusiasts who demand reliability and protection in harsh marine environments. Rated to IP66, this switch panel ensures your circuits remain safe from water, dust, and the elements while delivering consistent power control. Featuring LED back-lit labels, replaceable contour wave covers, and a durable construction, it’s an ideal choice for vessels where switches need maximum protection without compromising ease of use.
Built for 12V and 24V systems, the panel provides a professional finish with four SPST On/Off switches and is simple to mount with a compact footprint. Whether you’re upgrading or replacing, this Narva waterproof switch panel gives you the durability and functionality to power marine accessories with confidence.
Key Features
- IP66 rated – waterproof and dustproof for marine environments
- Four SPST On/Off switches with LED back-lit labels

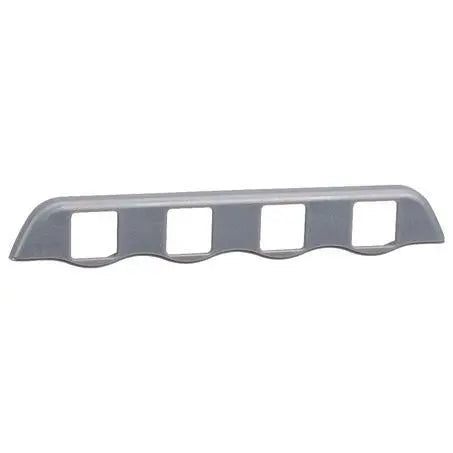

- Replaceable clip-on contour wave cover available in blue & grey
- Compact design – 86mm x 40mm mounting size
- Suitable for both 12V and 24V systems
- Output rating: 10A max per circuit / 15A max total (two circuits)
- Easy installation with a minimum recommended depth of 55–60mm
- Durable design for long service life in boats and outdoor applications
Specifications
| Warranty | One Year |
| Item Type | Marine Waterproof Switch Panel |
| Voltage | 12/24V DC |
| Switch Action | On - Off - SPST |
| Switch Function | 2P SPST On/Off x 4 |
| Power Rating | 10A max per circuit / 15A max (two circuits) |
| Mount Length | 86mm |
| Mount Width | 40mm |
| Mounting Hole Size | 86 x 40mm |
| Minimum Mounting Depth | 55–60mm (to allow for cable) |
| Features | Replaceable clip-on contour wave cover (blue & grey), LED back-lit labels |
| Environmental Rating | IP66 |
| Operating Temperature | -25°C to +60°C |
