LV Automotive - LV4216R
M8X32.5mm Red Twin Power Post 48V/200A S/S Stud & Washer Tin Plated Brass Link
M8X32.5mm Red Twin Power Post 48V/200A S/S Stud & Washer Tin Plated Brass Link
Couldn't load pickup availability

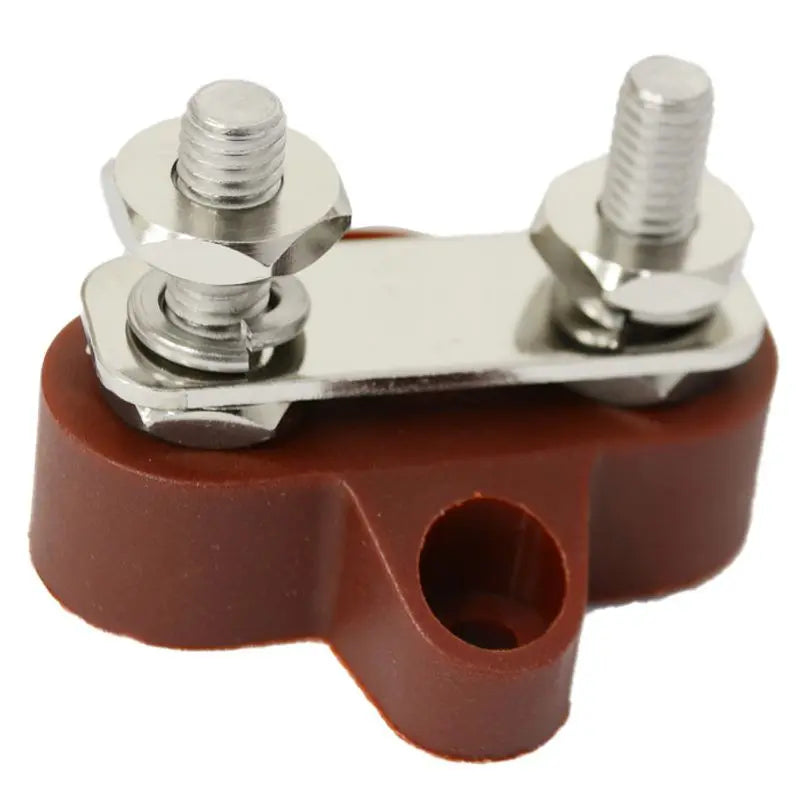

The LV4216R/B Twin Power Post with Link provides a safe and reliable method for connecting high-current cables in a compact footprint. With two M8 stainless steel studs and a pre-installed tin-plated brass link, this terminal assembly is perfect for power distribution or grounding in 12V, 24V, and 48V electrical systems.
Housed in a durable red fibreglass-reinforced nylon base, it is ideal for colour-coded positive connections. The robust design makes it a go-to solution for use in automotive, marine, RV, 4WD, solar, and off-grid power installations.
The LV4216R/B supports easy, corrosion-resistant connections while maintaining electrical integrity and reducing clutter in confined spaces.
Specifications
| Item Type | Twin Power Post with Link |
| Part Number | LV4216R |
| Voltage Rating | Up to 48V DC |
| Current Rating | 200A |

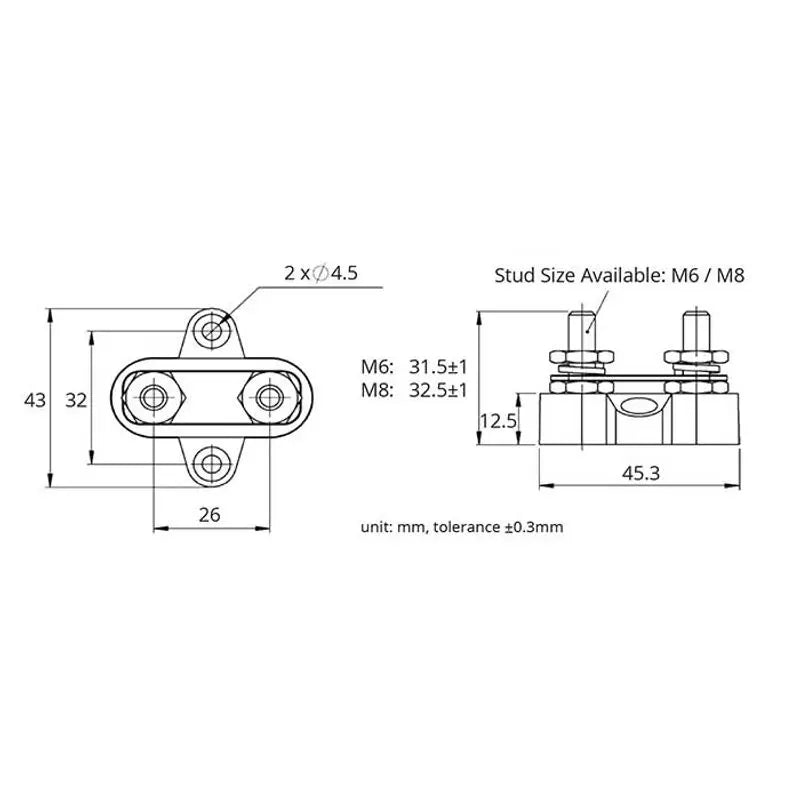

| Stud Size | M8 x 31.5mm |
| Terminal Link | Tin-plated brass link |
| Base Material | Fibreglass-reinforced nylon |
| Hardware | Stainless steel stud and washer |
| Nut Material | Nickel-plated brass |
| Colour | Red or Black |
| Pack Size | 1 per pack |
