LV Automotive - LV5314

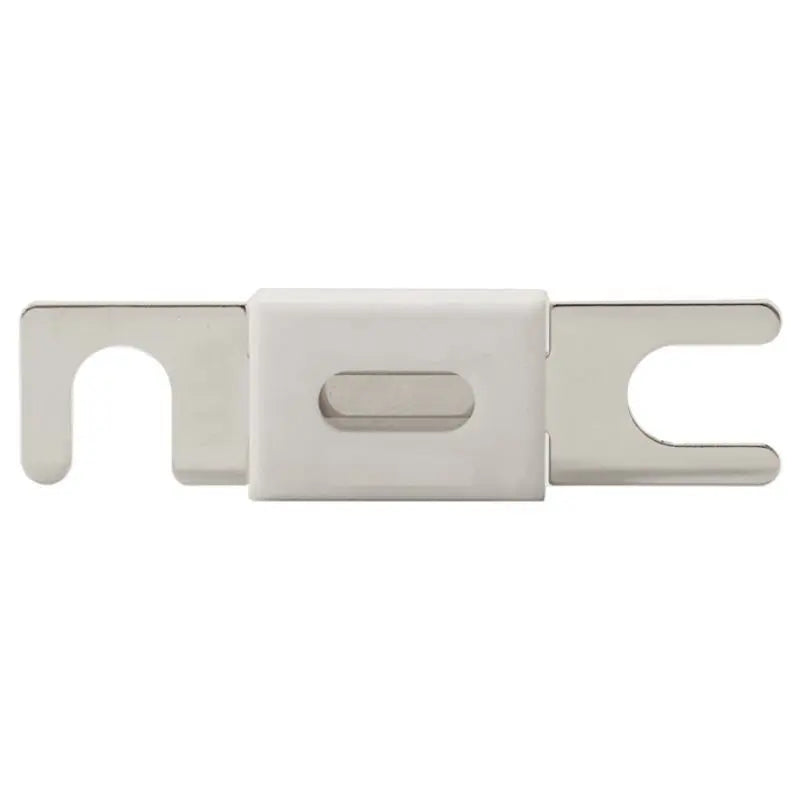

LV5314 500A ANL Fuse - Medium Time Lag

Ideal for high-current battery, inverter and auxiliary power circuits requiring a 500A ANL fuse with medium time-lag protection.

$23.65 AUD
$23.65 AUD
Sale
Tax included. Shipping calculated at checkout.
  • High 500A rating for demanding DC electrical systems
  • Medium time-lag design accommodates short-duration current surges
  • ANL format suits compatible bolt-down fuse holders
  • Ideal for battery, inverter and auxiliary power installations
  • Supplied individually for new installations or replacement use

The LV5314 500A ANL Fuse is a high-current circuit protection solution designed for demanding 12V and DC electrical installations where large cable runs, batteries and high-draw equipment require reliable over-current protection.

Rated at 500 amps, this ANL-style fuse features a medium time-lag characteristic, allowing it to tolerate short-duration current surges while still providing protection against sustained over-current conditions.

ANL fuses are commonly used in high-current auxiliary power systems including 4WDs, caravans, camper trailers, marine installations, battery banks, inverters and other heavy-duty DC electrical systems.

The bolt-down ANL format provides a secure electrical connection when installed in a compatible ANL fuse holder. Its replaceable design also makes it straightforward to restore circuit protection following a fuse operation without replacing the complete holder or wiring assembly.

Supplied individually, the LV5314 is a practical choice for new high-current installations or as a replacement 500A ANL fuse in an existing compatible system.

Key Features

  • 500A high-current ANL fuse
  • Medium time-lag fuse characteristic
  • Designed for high-current DC circuit protection
  • Helps protect wiring and electrical equipment against sustained over-current
  • Handles short-duration current surges without unnecessary fuse operation
  • Bolt-down ANL fuse design
  • Suitable for compatible ANL fuse holders
  • Ideal for high-current battery and inverter installations
  • Suitable for 4WD and auxiliary power systems
  • Suitable for caravans and camper trailers
  • Suitable for marine and off-grid electrical systems
  • Convenient replacement fuse
  • Supplied individually

Specifications

Product Code LV5314
Product Type ANL Fuse
Fuse Rating 500A
Fuse Style ANL
Time-Lag Rating Medium Time Lag
Installation Type Bolt-Down
Application High-Current Circuit Protection
Pack Quantity 1
Unit of Measure Each

What is the LV5314 fuse rated at?

The LV5314 is a 500A ANL fuse designed for high-current electrical circuit protection.

What does medium time lag mean on an ANL fuse?

A medium time-lag fuse is designed to tolerate brief current surges without immediately operating, while still providing protection against sustained over-current conditions.

Where would a 500A ANL fuse typically be used?

A 500A ANL fuse may be used in appropriately designed high-current systems such as large battery banks, inverters and auxiliary DC power installations. The correct fuse rating should always be determined by the wiring, equipment and system design rather than the appliance rating alone.

Does the LV5314 require a fuse holder?

Yes. As an ANL-style bolt-down fuse, the LV5314 should be installed in a compatible ANL fuse holder rated appropriately for the circuit.

Is the LV5314 supplied as a pack?

The LV5314 is supplied as one 500A ANL fuse.
