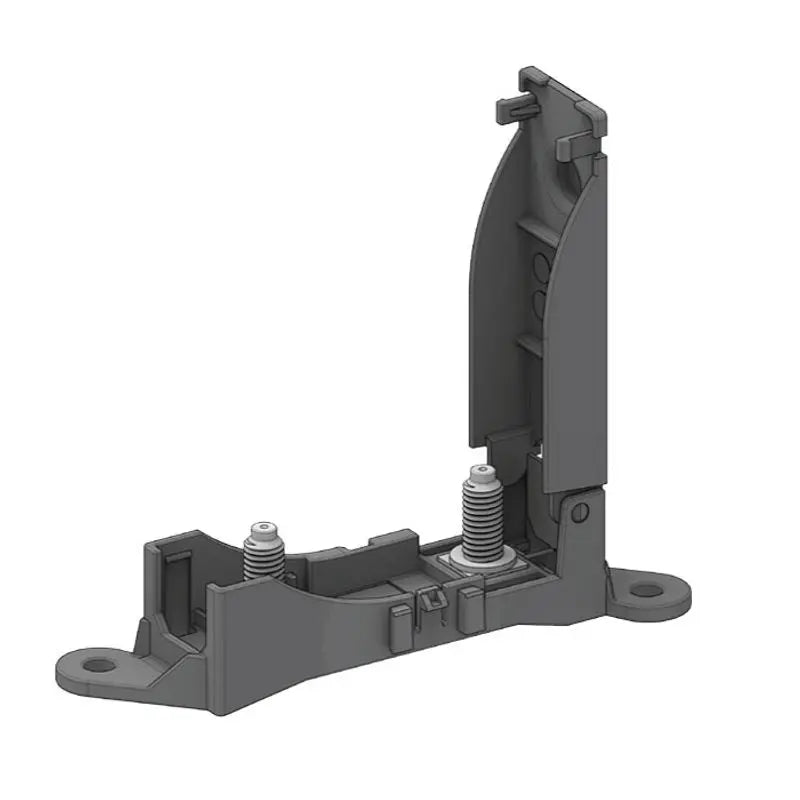

The LV5386 is a heavy-duty, panel-mount MEGA® fuse holder designed for high-current DC circuits in 4WD, marine, caravan, truck and industrial installs. It features robust M8 studs for large cable lugs, a hinged safety cover for quick servicing, and a dovetail interlock so multiple holders can be linked in a tidy row.
The body is moulded from PA66 GF30 (glass-filled nylon) for heat and impact resistance. Pair it with the correct MEGA® fuse size to protect main battery feeds, winches, inverters, DC-DC chargers and auxiliary distribution.
Key Features
Panel-mount MEGA®/AMI-style fuse holder for high-current DC protection
M8 studs suit heavy-gauge ring lugs and large conductors
Hinged protective cover for safe, fast fuse changes
Dovetail interlock to link multiple holders into a clean block
PA66 GF30 (glass-filled nylon) body for strength and heat resistance
Compact footprint for engine bay and equipment panels
Ideal for main battery feeds, winches, inverters, DC-DC, solar and aux circuits
Specifications
Part number
LV5386
Fuse type
MEGA® / AMI (fuse sold separately)
Mounting
Panel-mount
Stud size
M8 (both ends)
Cover
Hinged protective cover
Interlock
Dovetail link (multi-position assembly)
Body material
PA66 GF30 (glass-filled nylon)
Continuous current
Up to 500 A (fuse & installation dependent)
Typical applications
Main battery protection; winch supply; inverter feed; DC-DC/solar input; distribution blocks
