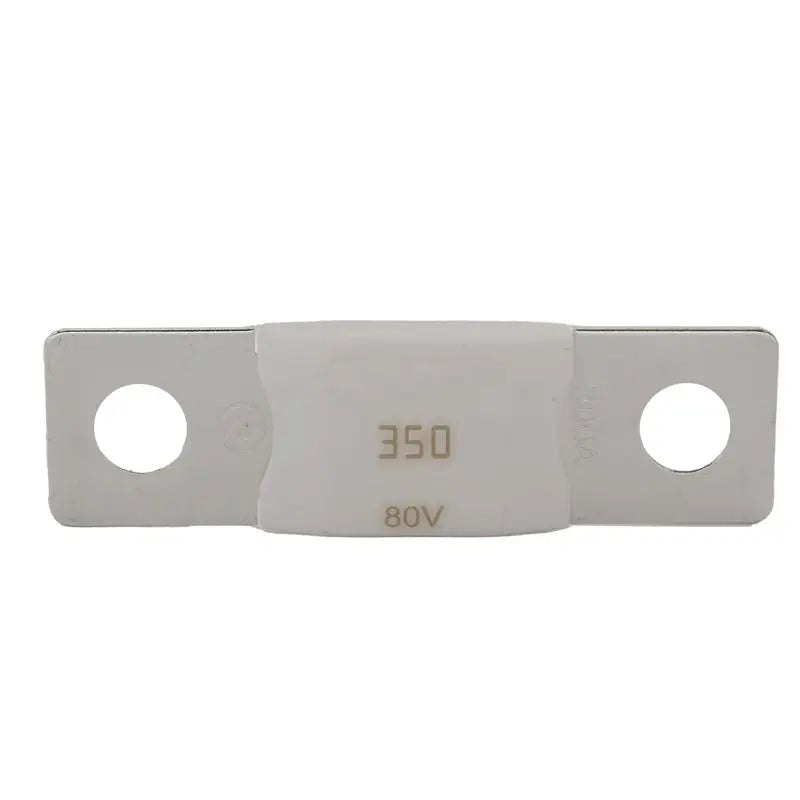

Fuse MEGA ANM 350A/80V [1pk] Slow Blow - LV5368

A heavy-duty MEGA (ANM) bolt-down fuse rated at 350 A / 80 V DC for protecting high-current automotive, marine, caravan and industrial DC circuits. The slow-blow (time-delay) characteristic rides through short inrush events from inverters, winches and compressors while still safeguarding cables and downstream equipment.

Built with a ceramic body for thermal stability and a tin-plated copper-alloy element for low resistance and corrosion protection. Suits standard MEGA/AMI fuse holders and is supplied as a single pack.

Key Features

• MEGA (ANM) 350 A slow-blow fuse for high-current DC protection
• 80 V DC rating — suitable for 12/24/48 V systems within spec
• Ceramic body for superior heat resistance and durability
• Tin-plated copper-alloy element for reliable, low-resistance conduction
• Bolt-down format — fits standard MEGA/AMI holders used in 4x4, marine and caravan installs
• Ideal for inverters, winches, DC-DC chargers, distribution blocks, dual-battery systems

Specifications
