LV Automotive - LV5362
ANL Bolt-On Fuse - 150A (Slow Blow) - LV5362
ANL Bolt-On Fuse - 150A (Slow Blow) - LV5362
Regular price
$29.95 AUD
Regular price
Sale price
$29.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

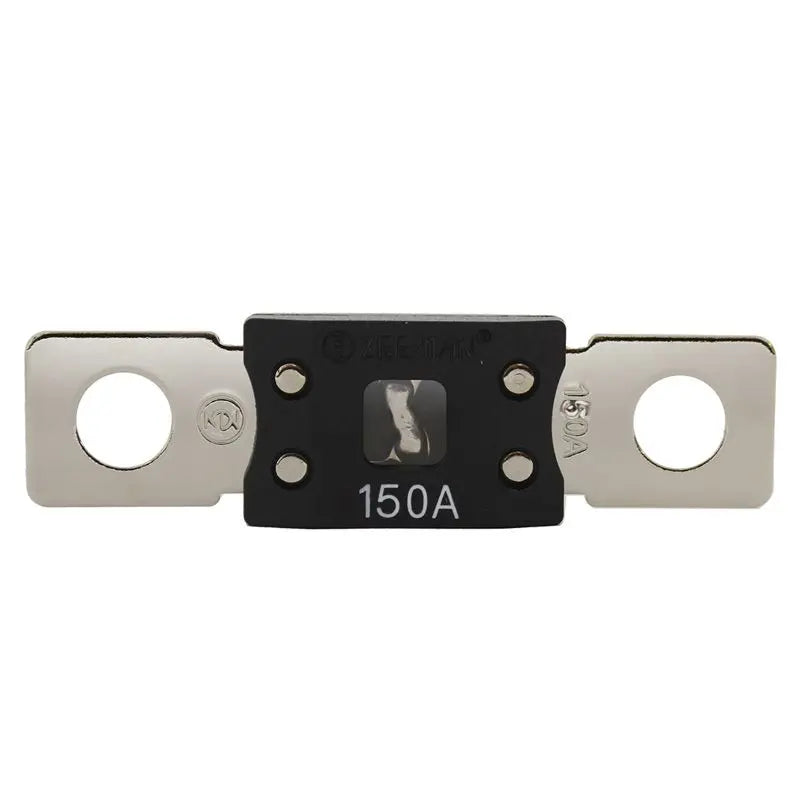

The LV5362 is a 150 A ANL bolt-on fuse designed for reliable protection of high-current 12/24 V DC circuits. Built with a tin-plated copper alloy element and high-temperature construction, it fits standard ANL holders and stands up to harsh under-bonnet environments. Complies with ISO automotive fuse standards for peace of mind in aftermarket and OEM applications.
Key Features
- ANL bolt-on fuse for high-current DC protection (12/24 V systems)
- 150 A slow-blow characteristic—handles startup surges without nuisance blows
- Tin-plated copper alloy element; high-temperature construction

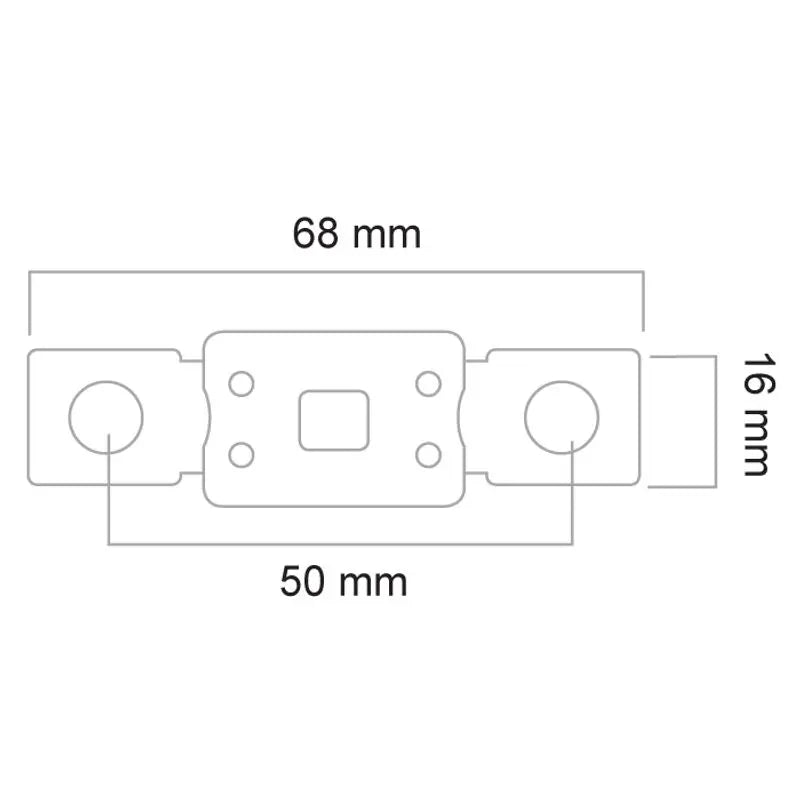

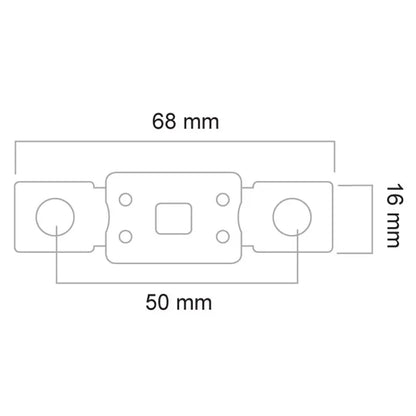

- Ø8.5 mm mounting holes—fits standard ANL holders
- Operating temperature –40 °C to +125 °C
- Interrupting rating 2000 A @ 32 V DC (typical ANL rating)
- Meets ISO 8820-5 / GB/T31465.5 requirements for automotive fuses
- Supplied as single unit (trade 10-pack available)
Specifications
| Part Number | LV5362 |
| Fuse Type | ANL (bolt-on), slow-blow |
| Amp Rating | 150 A |
| System Voltage | 12/24 V DC |
| Interrupting Rating | 2000 A @ 32 V DC |
| Element / Body | Tin-plated copper alloy |
| Mounting Hole Diameter | Ø 8.5 mm |
| Operating Temperature | –40 °C to +125 °C |
| Standards / Compliance | ISO 8820-5 / GB/T31465.5 |
| Pack Quantity | 1 (also available in 10-pack) |
| Fits | Standard ANL fuse holders |
