LV Automotive - LV5360

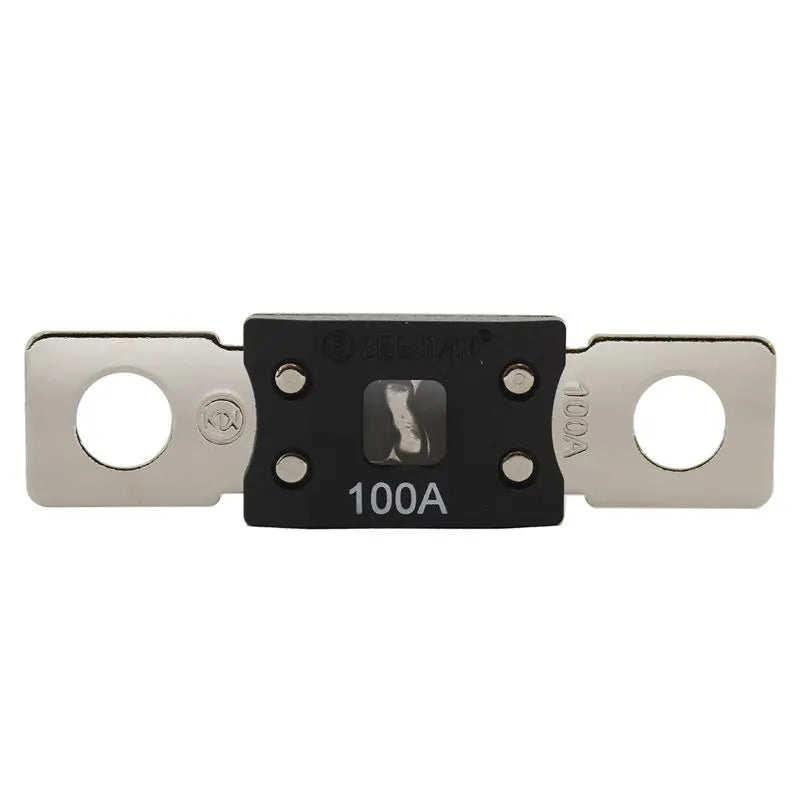

ANL Bolt-On Fuse, 100 A (Single Pack) - LV5360
ANL Bolt-On Fuse, 100 A (Single Pack) - LV5360
Regular price
$29.95 AUD
Regular price
Sale price
$29.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The LV5360 is a 100 A ANL bolt-on fuse for protecting high-current 12/24 V DC circuits in 4WD, marine, caravan and industrial systems. It’s a slow-blow element designed to tolerate inrush while safeguarding main feeds to inverters, winches, DC-DC chargers and distribution blocks.
The series features tin-plated copper alloy conductors, robust high-temperature construction, and Ø8.5 mm mounting holes to suit standard ANL holders. Complies with relevant automotive fuse standards for reliability in harsh environments.
Key Features
- ANL bolt-on fuse for high-current DC protection (12/24 V systems).
- 100 A slow-blow rating — handles startup surges without nuisance blows.
- Tin-plated copper-alloy element; high-temperature construction.
- Ø8.5 mm mounting holes — fits standard ANL holders.
- Operating temperature −40 °C to +125 °C; interrupting rating 2000 A @ 32 V.
- Meets common automotive fuse standards for reliability.
Specifications
| Part number | LV5360 |
| Fuse type / format | ANL bolt-on, slow-blow |
| Current rating | 100 A (single pack) |
| System voltage | Up to 32 V DC |
| Interrupting rating | 2000 A @ 32 V |

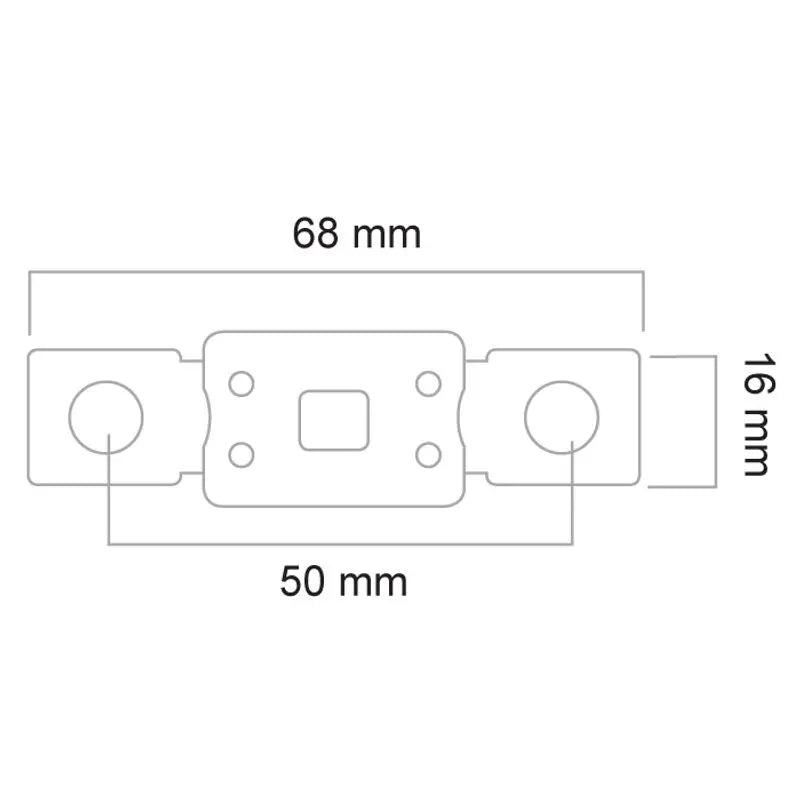

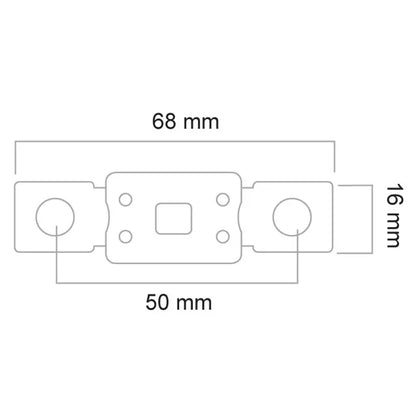

| Mounting holes | Ø8.5 mm (standard ANL pattern) |
| Conductor material | Tin-plated copper alloy |
| Body construction | High-temperature body |
| Operating temp | −40 °C to +125 °C |
| Typical applications | Main battery feed, inverter/winch, DC-DC/solar, distribution blocks |
