KT Solar - KT70716

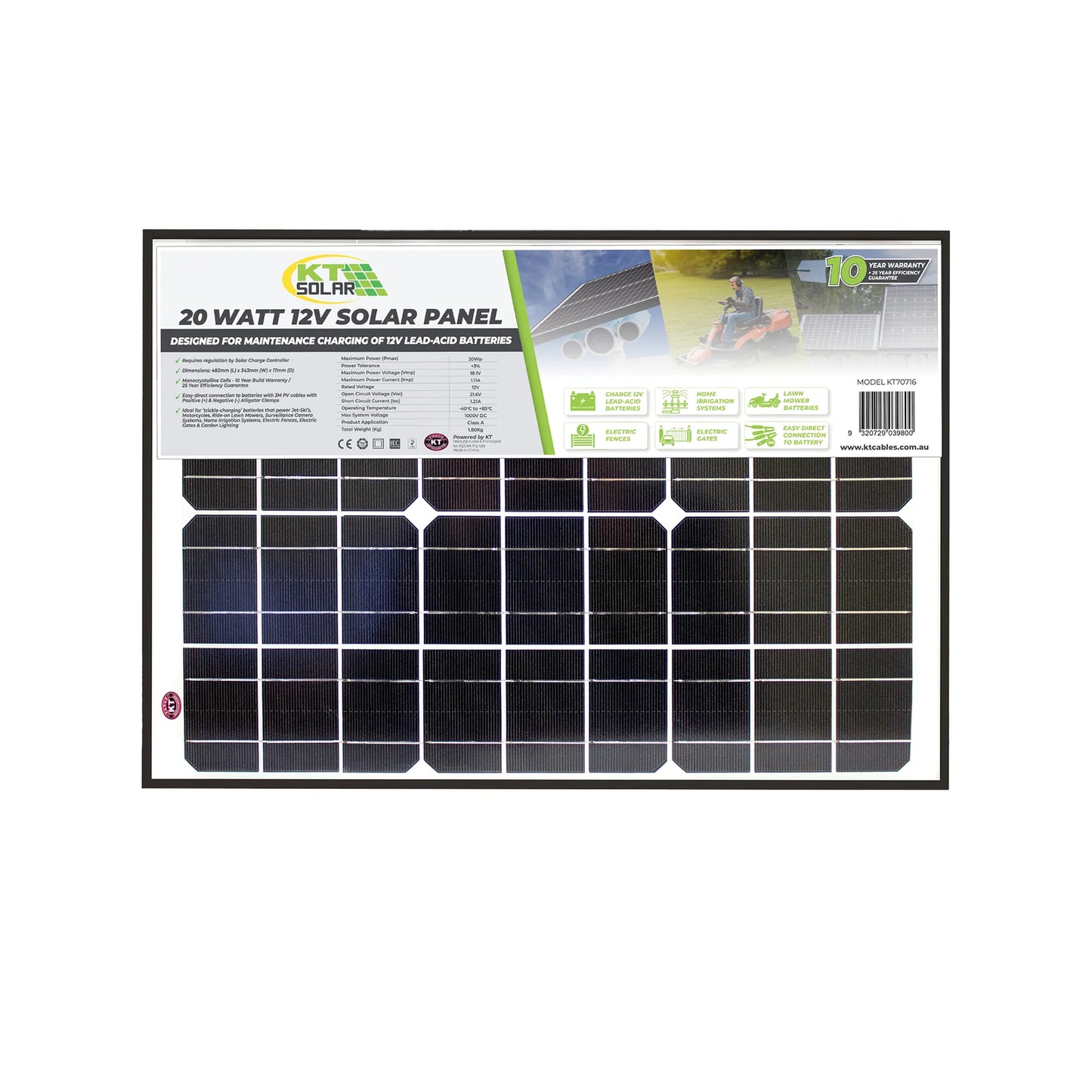

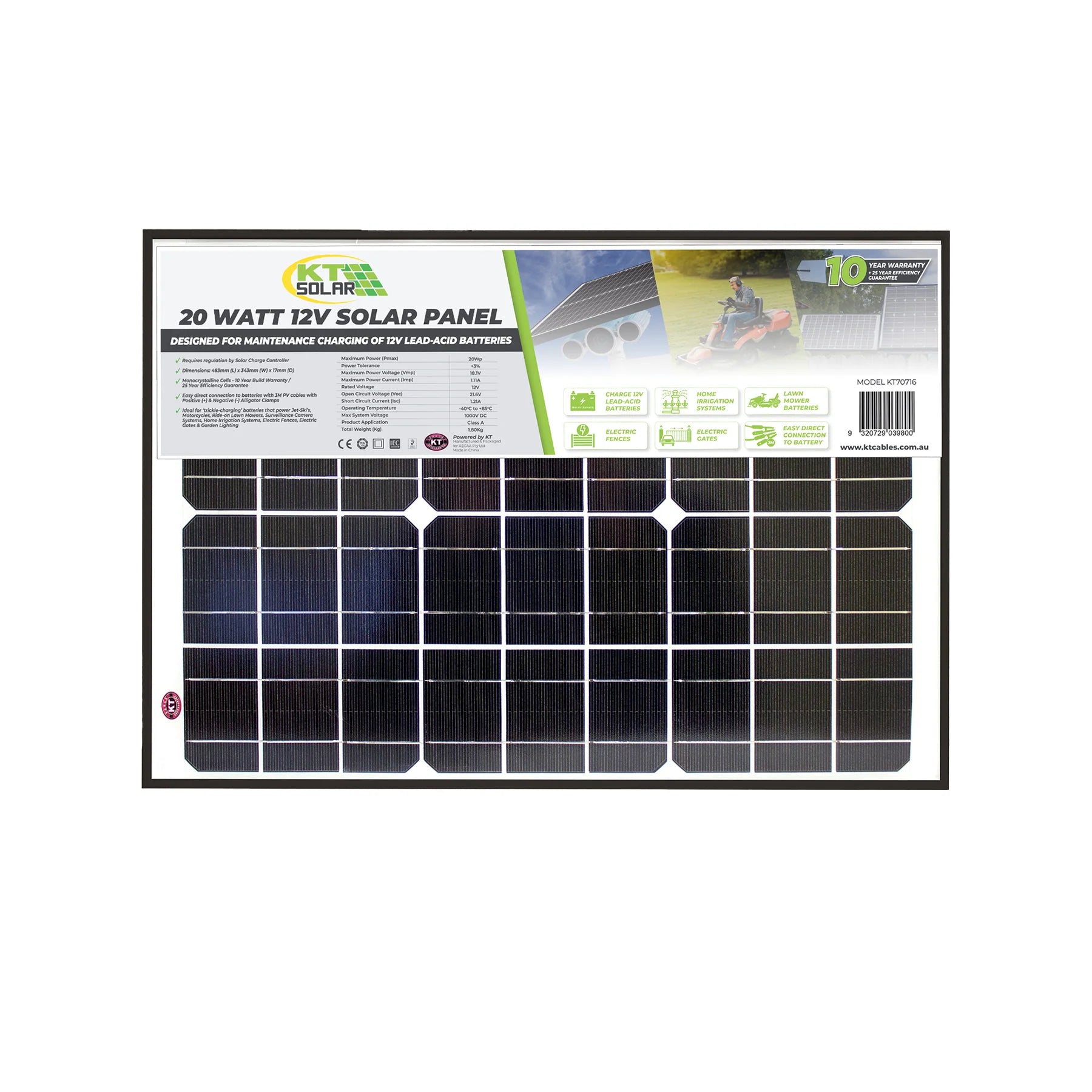

KT Solar KT70716 20W 12V Monocrystalline Single Cell Solar Panel

KT Solar KT70716 20W 12V Monocrystalline Single Cell Solar Panel

$79.95 AUD
$79.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

The KT Solar KT70716 20W 12V Monocrystalline Solar Panel delivers efficient, reliable power generation in a compact form factor - perfect for battery maintenance, camping, boating, or small off-grid systems.

Built using premium A-grade monocrystalline cells, it provides consistent output and superior efficiency even in low-light conditions. The single-cell design minimises energy loss from shading, while the robust aluminium frame and tempered glass front ensure long-term durability.

Ideal for maintaining 12V batteries in vehicles, caravans, and remote setups, this panel is engineered to handle the demands of the Australian environment.

Key Features

  • High Efficiency Output: 20W monocrystalline panel for 12V charging and maintenance.
  • Single-Cell Construction: Reduces power loss caused by partial shading.
  • Compact Design: Lightweight and easy to mount on vehicles, boats, or trailers.
  • Durable Build: Tempered glass and corrosion-resistant aluminium frame for harsh conditions.
  • Weather Resistant: Built to handle high UV exposure and varying temperatures.
  • Versatile Use: Perfect for trickle charging and maintaining 12V batteries.
  • Australian Supported: Designed and tested for reliable performance in local conditions.

Specifications

Brand KT Solar
Model KT70716
Type Monocrystalline Solar Panel
Power Output 20W
Nominal Voltage 12V DC
Max Power Voltage (Vmp) 18.0V (approx.)
Max Power Current (Imp) 1.11A (approx.)
Open Circuit Voltage (Voc) 21.6V (approx.)
Short Circuit Current (Isc) 1.22A (approx.)
Cell Type A-grade monocrystalline silicon
Frame Material Anodised aluminium
Front Material Tempered safety glass
Dimensions (L × W × H) 450 mm × 350 mm × 25 mm (approx.)
Weight 2.2 kg (approx.)
Connector Type MC4 or compatible 12V output terminals
Operating Temperature −40°C to +85°C
Application 12V battery maintenance, camping, 4WD, marine, off-grid systems
Warranty 2 Years (manufacturer’s warranty)
View full details
